Venice Series Toilet Repair Parts
by American Standard

Searching for replacement parts for your American Standard Venice toilet? You'll find them here at your source for hard to find parts, PlumbingSupply.com ®! From fill valves to flappers, we have what you're looking for. And, if you need other American Standard parts, we have a huge selection here.

American Standard - Venice toiletVenice
American Standard - Venice II toiletVenice II

Replacement Parts for American Standard Venice Series Toilets
Two Piece Model - #2163 / Tank # 4076

Parts diagram for American Standard - Venice series

Item # Part # Description Price & Quantity
1 738098-0070A Fill Valve / Water Control Assembly Discontinued
400A "Will Fit" Fluidmaster Fill Valve - float rod/ball NOT needed $16.62
2 738099-0070A Flush Valve Discontinued
87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, may need to be cut down to height of original valve (altered valves are non-returnable) $14.99
3 738106-0070A Flapper - for 738099-0070A valve - Replaced by 7381129-200-0070A - for original 738099-0070A Flush Valve $21.56
2001BP Replacement flapper only - for #87 Will-Fit 2" Flush Valve $4.17
4 047148-0020A Front Mount Trip Lever - Chrome $15.57
047148-0990A Front Mount Trip Lever - Polished Brass $23.24
047148-0200A Front Mount Trip Lever - White $16.83
047148-0210A Front Mount Trip Lever - Bone $13.64
5 047188-0070A Tank to Bowl Kit - includes gaskets and mounting hardware $23.03
6 200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91
7 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts for American Standard Venice II Series Toilets
Two Piece Model - #2233 / Tank # 4042

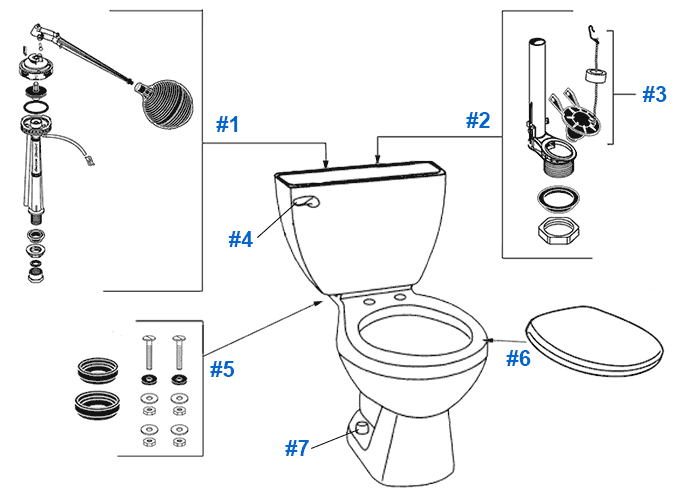

Parts diagram for American Standard - Venice II series

Item # Part # Description Price & Quantity
1 738351-0070A Fill Valve / Water Control Assembly Discontinued
400A "Will Fit" Fluidmaster Fill Valve - adjustable 9" to 14", float rod/ball NOT needed $16.62
3198.000-B Fill Valve / Water Control Assembly Discontinued
528 "Will Fit" Korky ® QUIETFILL Replacement Fill Valve - float ball/rod NOT required $11.95
2 738356-0070A Flush Valve - includes flapper, float, chain and locknut Discontinued
87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, will need to be cut down to height of original valve (altered valves are non-returnable) $14.99
3 738165-0070A Flapper - Replaced by 7381129-200-0070A - for original 738356-0070A Flush Valve $21.56
2001BP Replacement flapper only - for #87 Will-Fit 2" Flush Valve $4.17
4 047148-0020A Front Mount Trip Lever - Chrome $15.57
047148-0990A Front Mount Trip Lever - Polished Brass $23.24
047148-0200A Front Mount Trip Lever - White $16.83
047148-0210A Front Mount Trip Lever - Bone $13.64
5 047188-0070A Tank to Bowl Kit - includes gaskets and mounting hardware $23.03
6 200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91
7 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07

- OR - View Cart

Related Items & Information




Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
