VorMax Series Toilet Repair Parts
by American Standard

The clean contemporary lines of the Townsend Collection make these toilets hard to replace - so why not repair yours instead? Whether you've got the classic two-piece Champion model or the high-tech VorMax one-piece version, we've got the parts you need to get your Townsend toilet working like new again.
American Standard VorMax toiletVorMax & VorMax Plus
Tank #4370
American Standard VorMax HET toiletVorMax & VorMax Plus HET
Tank #4385
American Standard VorMax Esteem toiletEsteem
Tank #4270
American Standard VorMax Estate toiletEstate
Tank #4570

Replacement Parts for American Standard VorMax & VorMax Plus Toilets
Ultima, Optum, & Astute Collections
Two Piece Models - #203AA, 707AA, 708AA, & 727AA / Tank #4370

American Standard VorMax Series toilet parts diagram - tank #4370
Item # Part # Description Price & Quantity
1 7381125-400.0070A Fluidmaster Fill Valve $40.09 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.67 Enter a quantity and

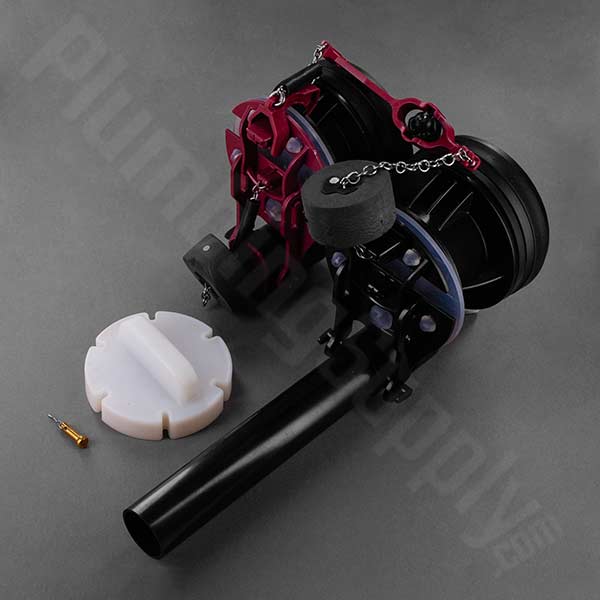

4 7381655-200.0070A Vormax Flush Valve Assembly - includes complete dual flapper assembly - view dimensions $87.85 Enter a quantity and

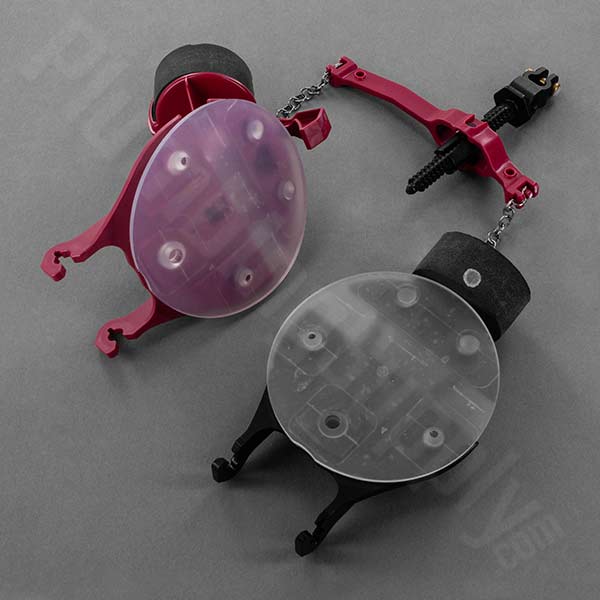

5 7381657-200.0070A Vormax Flapper Assembly - includes dual flappers with silicone seals & teeter bar $48.08 Enter a quantity and

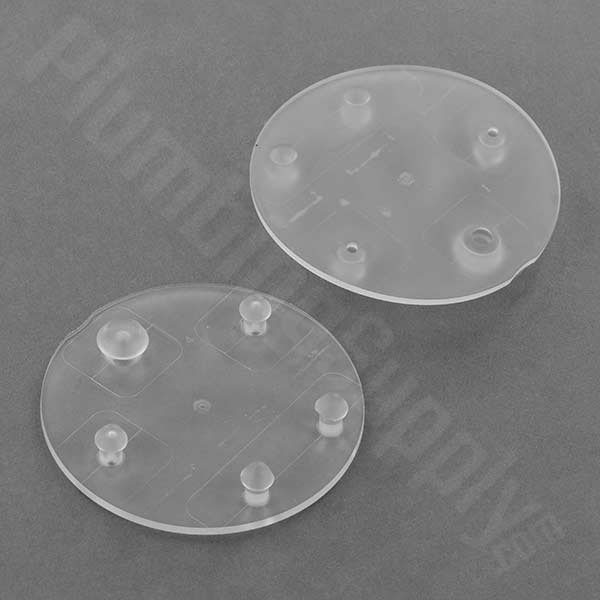

6 7381424-100.0070A Silicone Seals for Vormax Flapper Assembly (PAIR) $32.64 Enter a quantity and

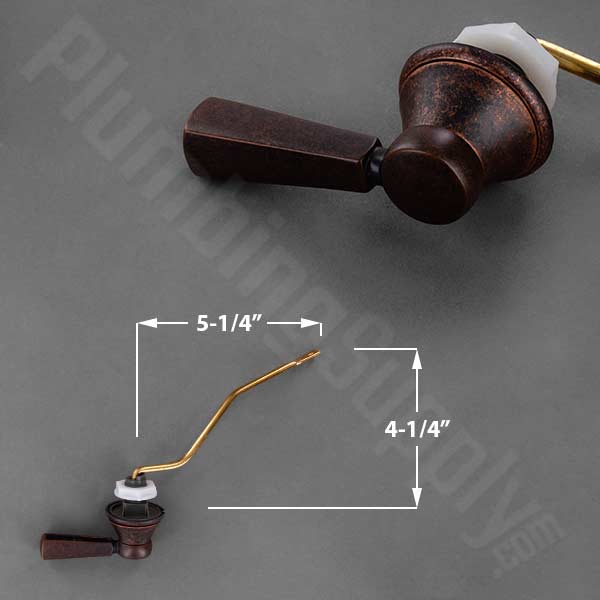

7 7381457-201.2240A Front Mount Trip Lever - Oil Rubbed Bronze $95.32 Enter a quantity and

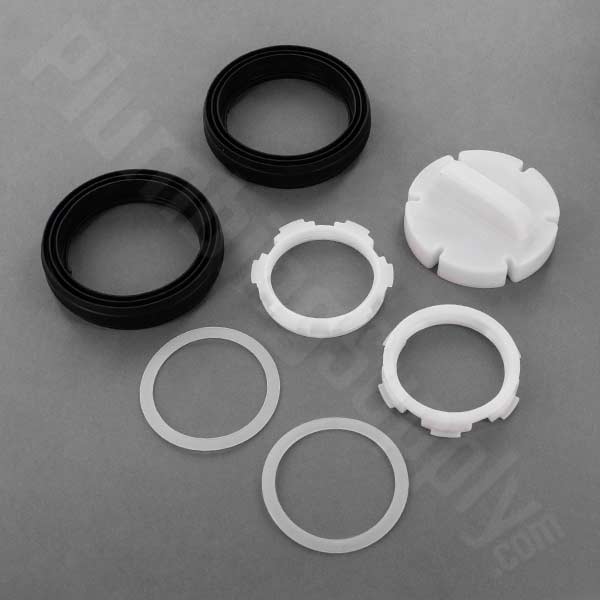

8 7381426-100.0070A Tank to Bowl Coupling Kit - Note: This kit included with Vormax Flush Valve Assembly #7381655-200.0070A $21.62 Enter a quantity and
9 5055A Contemporary Vormax Elongated Toilet Seat - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Replacement Parts for American Standard VorMax & VorMax Plus Toilets
HET & Ultimate HET Collections
Two Piece Model - #238AA / Tank #4385

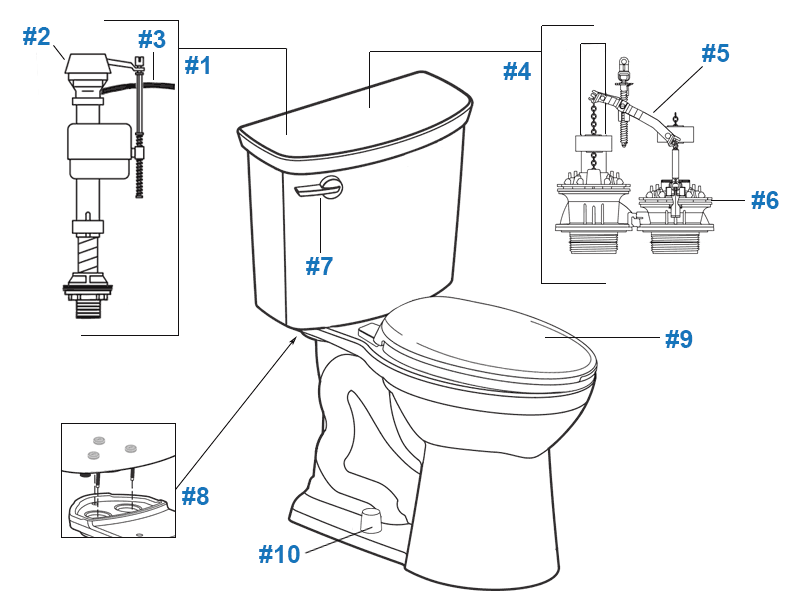

American Standard VorMax Series toilet parts diagram - tank #4385
Item # Part # Description Price & Quantity
1 7381125-400.0070A Fluidmaster Fill Valve $40.09 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.67 Enter a quantity and
4 7381655-200.0070A Vormax Flush Valve Assembly - includes complete dual flapper assembly - view dimensions $87.85 Enter a quantity and
5 7381657-200.0070A Vormax Flapper Assembly - includes dual flappers with silicone seals & teeter bar $48.08 Enter a quantity and
6 7381424-100.0070A Silicone Seals for Vormax Flapper Assembly (PAIR) $32.64 Enter a quantity and

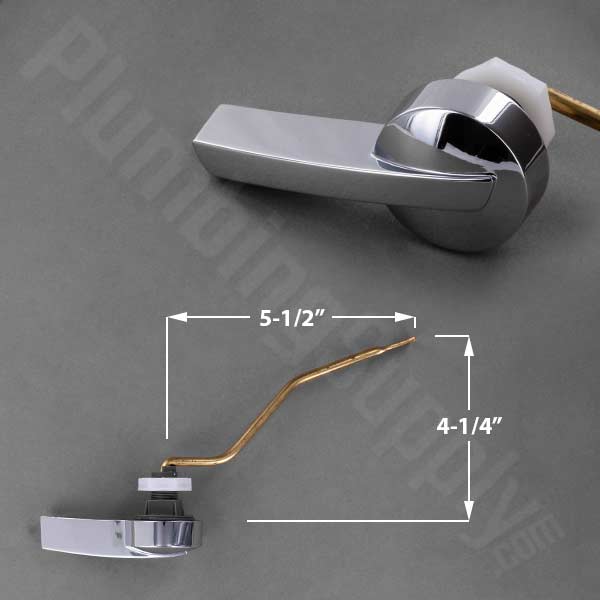

7 7381740-200.0020A Front Mount Trip Lever - Chrome $63.72

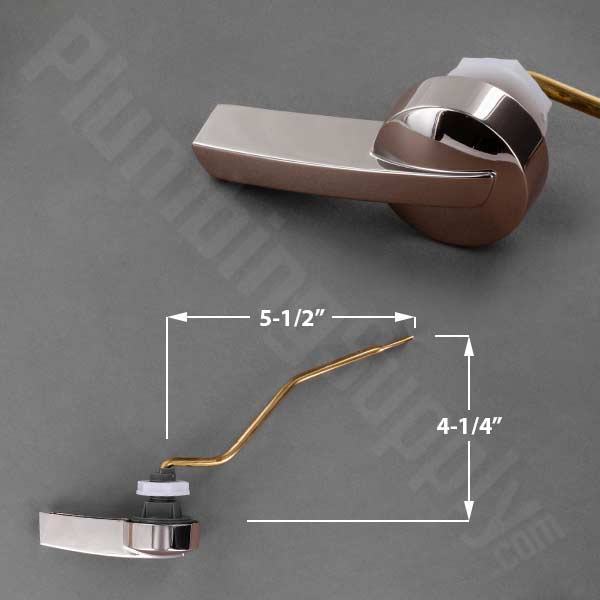

7381740-200.0130A Front Mount Trip Lever - Polished Nickel $63.50

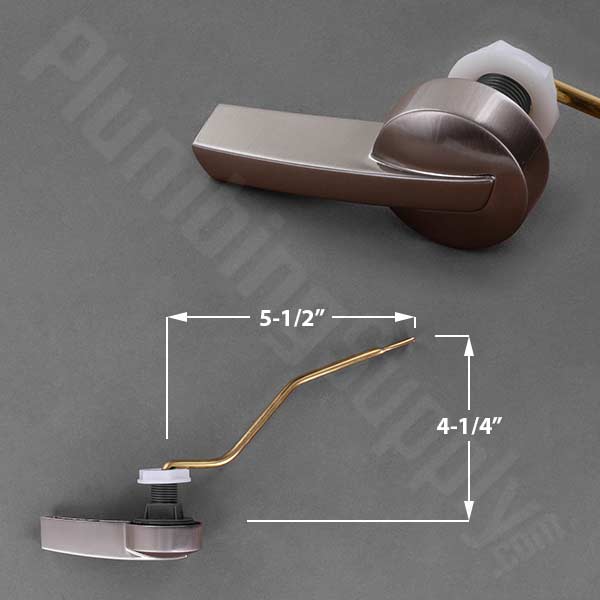

7381740-200.2950A Front Mount Trip Lever - Satin Nickel $72.39 Enter a quantity and
8 7381426-100.0070A Tank to Bowl Coupling Kit - Note: This kit included with Vormax Flush Valve Assembly #7381655-200.0070A $21.62 Enter a quantity and
9 5055A Contemporary Vormax Elongated Toilet Seat - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Replacement Parts for American Standard VorMax Esteem Toilets
Two Piece Model - #205AA / Tank #4270

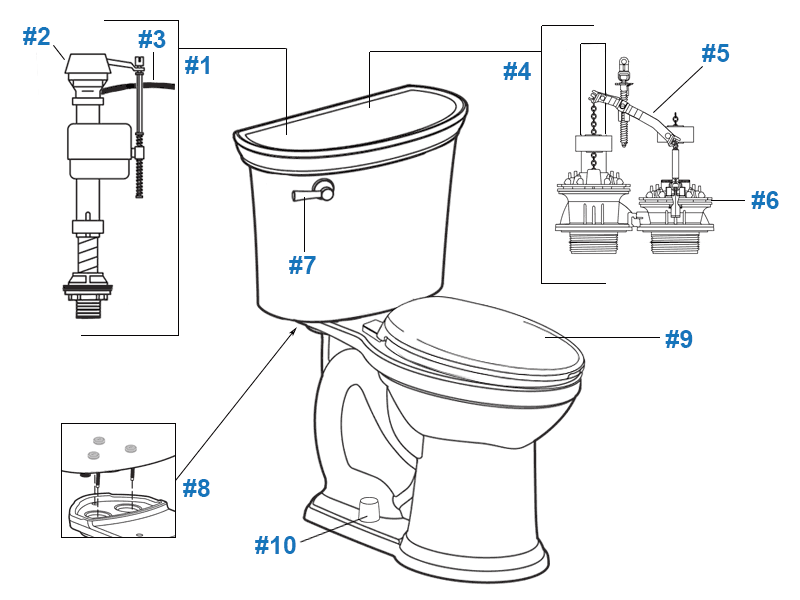

American Standard VorMax Esteem Series toilet parts diagram - tanks #4270
Item # Part # Description Price & Quantity
1 7381125-400.0070A Fluidmaster Fill Valve $40.09 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.67 Enter a quantity and
4 7381655-200.0070A Vormax Flush Valve Assembly - includes complete dual flapper assembly - view dimensions $87.85 Enter a quantity and
5 7381657-200.0070A Vormax Flapper Assembly - includes dual flappers with silicone seals & teeter bar $48.08 Enter a quantity and
6 7381424-100.0070A Silicone Seals for Vormax Flapper Assembly (PAIR) $32.64 Enter a quantity and

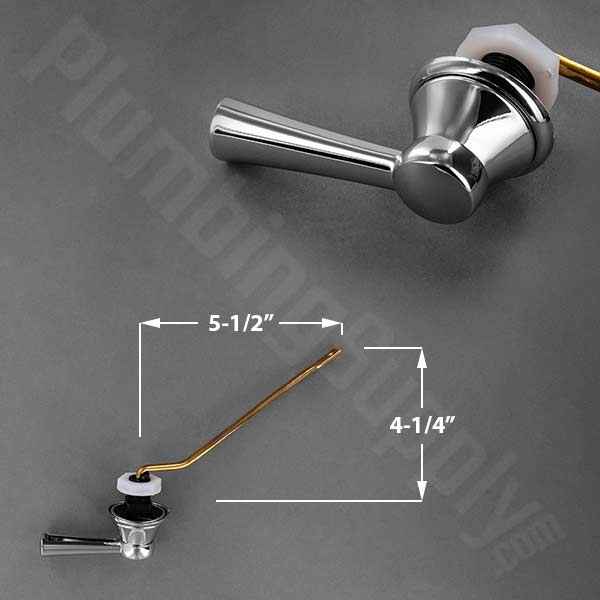

7 7381459-200.0020A Front Mount Trip Lever - Chrome $57.94

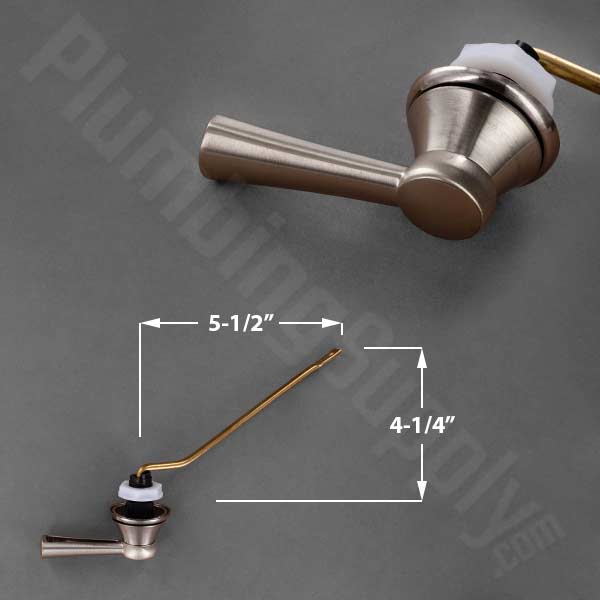

7381459-200.2950A Front Mount Trip Lever - Satin Nickel Temporarily
Unavailable

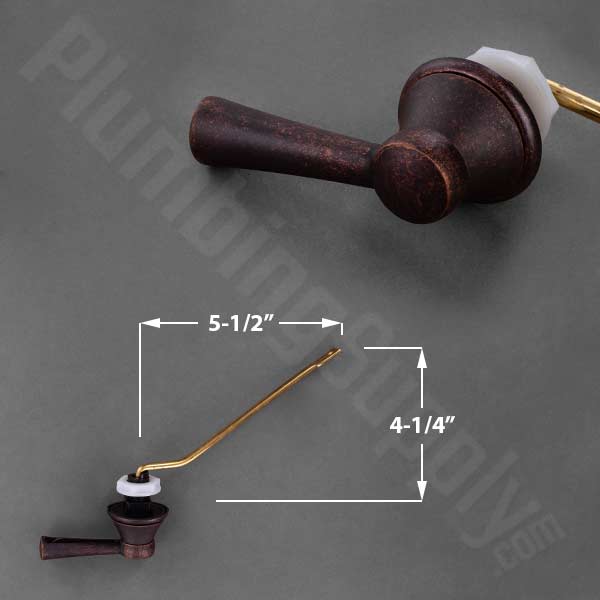

7381459-200.2240A Front Mount Trip Lever - Oil Rubbed Bronze $84.51 Enter a quantity and
8 7381426-100.0070A Tank to Bowl Coupling Kit - Note: This kit included with Vormax Flush Valve Assembly #7381655-200.0070A $21.62 Enter a quantity and
9 5055A Contemporary Vormax Elongated Toilet Seat - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Replacement Parts for American Standard VorMax Estate Toilets
Two Piece Model - # / Tank #4570

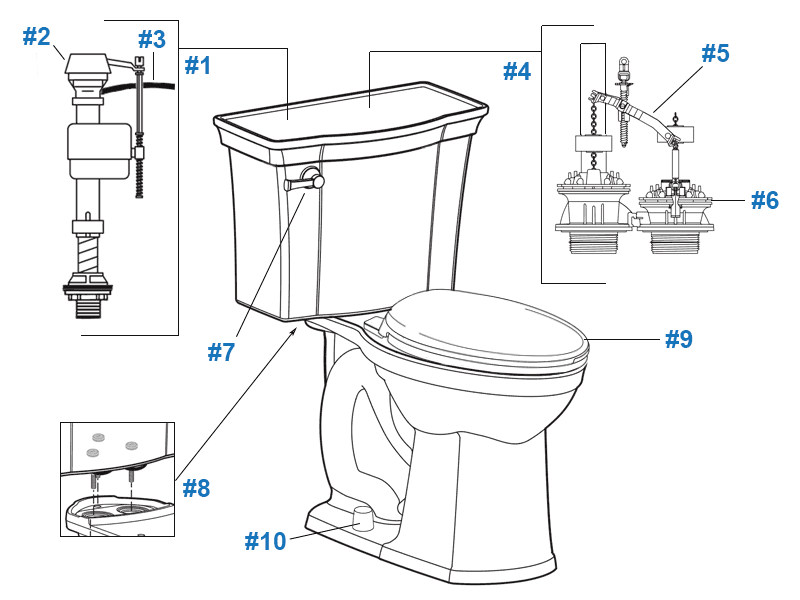

American Standard VorMax Estate Series toilet parts diagram - tank #4570
Item # Part # Description Price & Quantity
1 7381125-400.0070A Fluidmaster Fill Valve $40.09 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.67 Enter a quantity and
4 7381655-200.0070A Vormax Flush Valve Assembly - includes complete dual flapper assembly - view dimensions $87.85 Enter a quantity and
5 7381657-200.0070A Vormax Flapper Assembly - includes dual flappers with silicone seals & teeter bar $48.08 Enter a quantity and
6 7381424-100.0070A Silicone Seals for Vormax Flapper Assembly (PAIR) $32.64 Enter a quantity and
7 7381458-201.2240A Front Mount Trip Lever - Oil Rubbed Bronze $80.88 Enter a quantity and
8 7381426-100.0070A Tank to Bowl Coupling Kit - Note: This kit included with Vormax Flush Valve Assembly #7381655-200.0070A $21.62 Enter a quantity and
9 5055A Contemporary Vormax Elongated Toilet Seat - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
