Roma Series Toilet Repair Parts
by American Standard

A little preventative maintenance can go a long way in keeping your Roma toilet working properly, and when you need replacement or repair parts for your Roma toilet, we here at PlumbingSupply.com ® have what you're looking for. The American Standard Roma is designed to last with proper care, so if you need to fix a leaking fill valve or replace the actuating unit, you'll find it here.

Roma 2009 VA toiletRoma 2009
Roma 2012 toiletRoma II 2012
Roma 2080 toiletRoma 2080


Replacement Parts for American Standard Roma Series Toilets
One Piece Vent-Away Models - #2009.017, 2009.115

American Standard Roma toilet parts diagram with ventaway mechanism

Item # Part # Description Price & Quantity
1 047135-0070A Complete Water Control Assembly with Vent-Away Discontinued
2 012981-0070A Plunger Repair Kit - plastic construction $21.95
012981-0900 Plunger Repair Kit - brass construction $15.24
8339-0700 Brass Plunger ONLY $9.01 Enter a quantity and
3 010551-0070A Lever Assembly with Screws $21.75 Enter a quantity and
4 073014-0070A Float Rod $6.79 Enter a quantity and
5 047381-0070A Float Ball - Replaced by "will fit" float ball $3.70 Enter a quantity and
6 033626-0070A Supply Tube Discontinued
033252-0070A Male Elbow Discontinued
7 010765-0070A Volume Regulator with O-ring $6.32 Enter a quantity and
8 072541-0070A Refill Tube - Replaced by "will fit" refill tube $1.71 Enter a quantity and
9 067651-0070A Vacuum Breaker Kit $20.07 Enter a quantity and
10 067652-0070A Diverter Stem Kit $28.57 Enter a quantity and
11 067653-0070A Diverter Valve Kit $33.37 Enter a quantity and
12 047398-0070A Water Control Mounting Kit - (washer and brass shank nut) Discontinued
13 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
14 047138-0070A Complete Flush Valve Assembly - aka #6 New Style $94.54 Enter a quantity and
15 073380-0070A Actuating Unit with Seat Disk & Chain $30.68 Enter a quantity and
16 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
17 033643-0070A Snap-On Seat Disc Discontinued
033643-0700 Seat Disc with Threaded Brass Insert Discontinued
AS444 "Will Fit" Snap-On / Threaded Seat Disc - (remove brass insert for snap-on version) $5.55 Enter a quantity and
18 047397-0070A Flush Valve Mounting Kit - includes nuts, bolts & mounting gasket (flush valve base is not included or available separately) $21.71 Enter a quantity and
19 033633-0070A Backflow Preventer - Replaced with 738050-0070A - (includes lever paddle) $113.69 Enter a quantity and
20 033409-0070A White Paddle Lever ONLY $10.97 Enter a quantity and
21 033492-0070A Vent-Away Assembly (less elbow) - Replaced by SUBKIT039 Discontinued
22 033457-0070A Vacuum Tube Discontinued
23 047054-0070A Discharge Tube Assembly Discontinued
24 033501-0070A Mounting Elbow Discontinued
25 047159-0070A Float Ball Tank Discontinued
26 047160-0070A Spring Clip - for float ball tank $9.21 Enter a quantity and
27 047161-0070A Rubber Pad - for float ball tank $5.16 Enter a quantity and
28 033628-0020A Actuator Button - Chrome - includes hook & clevis $51.44 Enter a quantity and
033628-0990A Actuator Button - Polished Brass - includes hook & clevis $77.89 Enter a quantity and
29 3530.857 Roma Toilet Seat & Cover - White Discontinued
SEAT Premium "Will Fit" Roma Toilet Seat & Cover
Note: Seat has 9-13/16" spread between seat bolts - view seat dimensions
Discontinued
Please Note: The original backflow preventer is no longer available. 738050-0070A is a suitable replacement, but you may need to shim the tank lid in some applications.


Replacement Parts for American Standard Roma Series Toilets
One Piece NON-Vent-Away Models - #2009.026, 2009.125

Parts diagram for American Standard Roma non-ventaway toilets

Item # Part # Description Price & Quantity
1 047136-0070A Complete Water Control Assembly without Ventaway - float ball sold separately - see item #5 $345.47 Enter a quantity and
2 012981-0070A Plunger Repair Kit - plastic construction $21.95
012981-0900 Plunger Repair Kit - brass construction $15.24
8339-0700 Brass Plunger ONLY $9.01 Enter a quantity and
3 010551-0070A Lever Assembly with Screws $21.75 Enter a quantity and
4 073014-0070A Float Rod $6.79 Enter a quantity and
5 047381-0070A Float Ball - Replaced by "will fit" float ball $3.70 Enter a quantity and
6 010765-0070A Volume Regulator with O-ring $6.32 Enter a quantity and
7 070450-0070A Refill Tube - Replaced by "will fit" refill tube $1.71 Enter a quantity and
8 047398-0070A Water Control Mounting Kit - (washer and brass shank nut) Discontinued
9 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
10 047138-0070A Flush Valve Assembly - aka #6 New Style $94.54 Enter a quantity and
11 073380-0070A Actuating Unit with Seat Disk & Chain $30.68 Enter a quantity and
12 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
13 033643-0070A Snap-On Seat Disc Discontinued
033643-0700 Seat Disc with Threaded Brass Insert Discontinued
AS444 "Will Fit" Snap-On / Threaded Seat Disc - (remove brass insert for snap-on version) $5.55 Enter a quantity and
14 047397-0070A Flush Valve Mounting Kit - includes nuts, bolts & mounting gasket (flush valve base is not included or available separately) $21.71 Enter a quantity and
15 033633-0070A Backflow Preventer - Replaced with 738050-0070A - (includes lever paddle) $113.69 Enter a quantity and
16 033409-0070A White Paddle Lever ONLY $10.97 Enter a quantity and
17 047159-0070A Float Ball Tank Discontinued
18 047160-0070A Spring Clip - for float ball tank $9.21 Enter a quantity and
19 047161-0070A Rubber Pad - for float ball tank $5.16 Enter a quantity and
20 33611-0020A Actuator Button $37.25 Enter a quantity and
21 3530.857 Roma Toilet Seat & Cover - White Discontinued
SEAT Premium "Will Fit" Roma Toilet Seat & Cover
Note: Seat has 9-13/16" spread between seat bolts - view seat dimensions
Discontinued
Please Note: The original backflow preventer is no longer available. 738050-0070A is a suitable replacement, but you may need to shim the tank lid in some applications.

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts For American Standard Roma II Series Toilets
One Piece Model - #2012.014

Parts diagram for American Standard 2012.014, Roma II series toilet

Item # Part # Description Price & Quantity
1 047131-0070A Water Control Assembly (fill valve) - float ball sold separately - see item #4 $137.22 Enter a quantity and
2 047217-0070A Pivot Arm Kit $9.05 Enter a quantity and

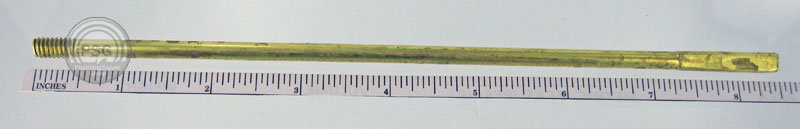

3 33230-0070A Float Rod - 8-1/2" length - brass - flat on one end - for 047131-0070A $10.54 Enter a quantity and
4 047381-0070A Float Ball - Replaced by "will fit" float ball $3.70 Enter a quantity and
5 012971-0070A Plunger Repair Kit $12.00 Enter a quantity and
6 73070-0700 Plunger Gasket ONLY $1.76 Enter a quantity and
7 030079-0070A Refill Tube - Replaced by "will fit" refill tube $1.71 Enter a quantity and
8 047398-0070A Water Control Mounting Kit Discontinued
9 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
10 47107-0070A Flush Valve - Replaced by "Will Fit" - chain sits on TOP of unit, aka #4 New Style $42.60
47250-0070A Flush Valve - chain sits on SIDE of unit $50.49 Enter a quantity and
11 068470-0070A Actuating Unit with Seat Disc & Chain (chain sits on top) $24.20 Enter a quantity and
12 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
13 033643-0070A Snap-On Seat Disc Discontinued
033643-0700 Seat Disc with Threaded Brass Insert Discontinued
AS444 "Will Fit" Snap-On / Threaded Seat Disc - (remove brass insert for snap-on version) $5.55 Enter a quantity and
14 047397-0070A Flush Valve Mounting Kit - includes nuts, bolts & mounting gasket (flush valve base is not included or available separately) $21.71 Enter a quantity and
15 47108-0020A Brass Side Mount Actuator Button - Chrome (4-1/2" plastic arm) $60.90 Enter a quantity and
16 3530.857 Roma Toilet Seat & Cover - White Discontinued
SEAT Premium "Will Fit" Roma Toilet Seat & Cover
Note: Seat has 9-13/16" spread between seat bolts - view seat dimensions
Discontinued
17 034782-0200A Bolt cover plate - white - PAIR Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts For American Standard Roma Series Toilets
Two Piece Model - #2080.018 / Tank 4080.016

Toilet parts diagram for American Standard 2080.018, Roma series

Item # Part # Description Price & Quantity
1 047133-0070A Water Control Assembly - float ball sold separately - see item #4 $95.68 Enter a quantity and
2 047217-0070A Pivot Arm Kit $9.05 Enter a quantity and

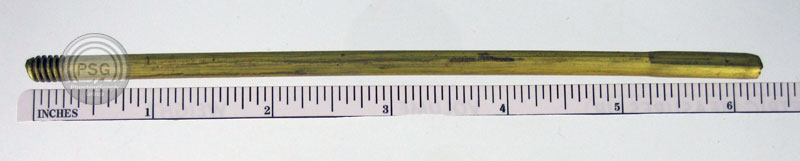

3 30046-0070A Float Rod $10.50 Enter a quantity and
4 047381-0070A Float Ball - Replaced by "will fit" float ball $3.70 Enter a quantity and
5 012971-0070A Plunger Repair Kit $12.00 Enter a quantity and
6 73070-0700 Plunger Gasket ONLY $1.76 Enter a quantity and
7 030079-0070A Refill Tube - Replaced by "will fit" refill tube $1.71 Enter a quantity and
8 047196-0070A Water Control Mounting Kit - (plastic shank nut and washer) $7.95 Enter a quantity and
9 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and

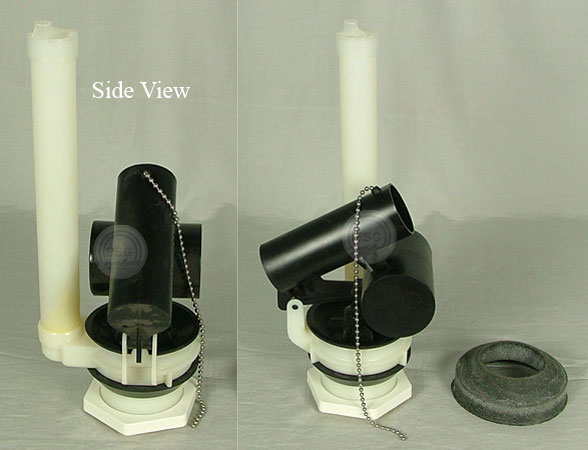

10 047137-0070A Flush Valve $55.44 Enter a quantity and
11 033582-0070A Actuating Unit with Seat Disc & Chain Discontinued
12 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
13 011190-0070A Refill Tube Clip Discontinued
14 033643-0070A Snap-On Seat Disc Discontinued
033643-0700 Seat Disc with Threaded Brass Insert Discontinued
AS444 "Will Fit" Snap-On / Threaded Seat Disc - (remove brass insert for snap-on version) $5.55 Enter a quantity and
15 047195-0070A Flush Valve Mounting Kit $10.53 Enter a quantity and
16 47108-0020A Brass Side Mount Actuator Button - Chrome (4-1/2" plastic arm) $60.90 Enter a quantity and
17 WA75 "Will Fit" Flush Valve 2" Sponge Gasket - View dimensions $4.39 Enter a quantity and
18 V-33 "Will Fit" Brass Tank to Bowl Bolts $6.27 Enter a quantity and
19 3530.857 Roma Toilet Seat & Cover - White Discontinued
SEAT Premium "Will Fit" Roma Toilet Seat & Cover
Note: Seat has 9-13/16" spread between seat bolts - view seat dimensions
Discontinued
20 034782-0200A Bolt cover plate - white - PAIR Discontinued


Frequently Asked Questions

Q. "What is a float ball tank and why is it discontinued if I need it for my toilet?"
A. The float ball tank in the Roma toilets was designed to help maintain proper water levels in the tank. The fill valve refills the tank with water after flushing, and once the water overflows into the float ball tank it turns the fill valve off quickly - eliminating the slow final filling you get with most tanks. The float ball tank is not a necessary component, meaning your toilet will work fine without it as long as the parts actually used in flushing are working, but some plumbers feel that toilets equipped with one will function better. As with almost any toilet that is no longer being made, like the Roma, the manufacturer will slowly phase out and discontinue parts - usually beginning with those that aren't essential to function.

Q. "How do you adjust the water flow of the Fill Valve (Water Control Assembly) for the #2009 Series Roma toilets?"
A. To adjust the water flow of the water control assembly (#047135-0070A with vent-away or #047136-0070A without vent-away ) you tighten or loosen the volume control stem located next to the plunger. For less flow tighten the volume control stem by turning it clockwise or for more flow loosen the stem by turning it counter-clockwise.

Q. "How do you install the Plunger Repair Kit 012981-0900?"
A. First, turn off the water to the fill valve. Unscrew the thumb screws on the lever assembly and slide the lever assembly out from the square hole in the top of the plunger. Pull the old plunger straight up out of the body of the fill valve. With a seat tool, unscrew and remove the old seat directly underneath the plunger. Screw in the new seat until it is snug. Do not over tighten it. At this point put your hand or a cup over the fill valve, turn on the water slowly and let the water run out through the seat for one or two minutes to flush any possible dirt or sediment that might be in the water line. Turn the water off again and slide the new plunger into the body of the fill valve with a slight twist to keep the rubber gasket from being misaligned or torn. Slide the lever assembly back through the square hole in the plunger and tighten the thumb screws. Turn the water back on.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.
