Townsend Series Toilet Repair Parts
by American Standard

The clean contemporary lines of the Townsend Collection make these toilets hard to replace - so why not repair yours instead? Whether you've got the classic two-piece Champion model or the high-tech VorMax one-piece version, we've got the parts you need to get your Townsend toilet working like new again.
Townsend Champion4 2733 & 2735 toiletTownsend Champion®4
Tank #4281
Townsend Vormax one-piece toiletTownsend VorMax
Model #2922A

Replacement Parts for American Standard Townsend Champion®4 Toilets
Two Piece Models - #2733 & 2735 / Tank # 4281

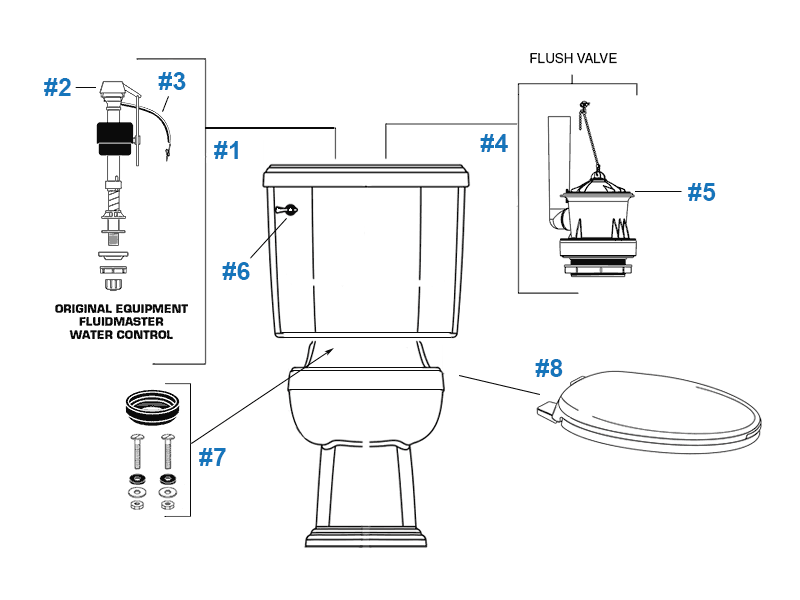

American Standard Townsend Champion 4 Series toilet repair parts diagram
Item # Part # Description Price & Quantity
1 738565-424.0070A Fluidmaster Water Control Assembly - Replaced by 7381125-400-0070A $43.12 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.59 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.45 Enter a quantity and
4 3174.105-0070A Champion 4 Flush Valve (replaces old # 3174.002, 3174.102, & 3175.002)
- includes flush valve seal and o-ring and wrench for easy maintenance
$38.42 Enter a quantity and
5 7301111-0070A Flush Valve Seal and O-Ring - for NEW STYLE flush valve 3174.002 and 3174.105 $10.57
Korky Seal "Will Fit" Flush Valve Seal ONLY - for NEW STYLE flush valve 3174.002 $6.53
738651-0070A "Will Fit" Flush Valve Seal ONLY - for OLD STYLE flush valve 3175.002 $7.59 Enter a quantity and
6 738837-0020A Townsend Champion 4 Trip Lever - Chrome $65.54
J-954 "Will Fit" Townsend Champion 4 Trip Lever - Chrome (view more finish options) $54.60 Enter a quantity and
7 738756-0070A Tank-to-Bowl Seal Kit - includes installation instructions
The MFR recommends ordering this kit when replacing #3174.002-0070A flush valve
$27.38 Enter a quantity and
8 5330.010 Champion Slow Close Round Front Seat with Cover - White Not Available
200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $51.16
5325.010 Champion Slow Close Elongated Front Seat with Cover - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $56.07 Enter a quantity and
9 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $7.69 Enter a quantity and

Replacement Parts for American Standard Townsend VorMax Toilets
One Piece Model - #2922A

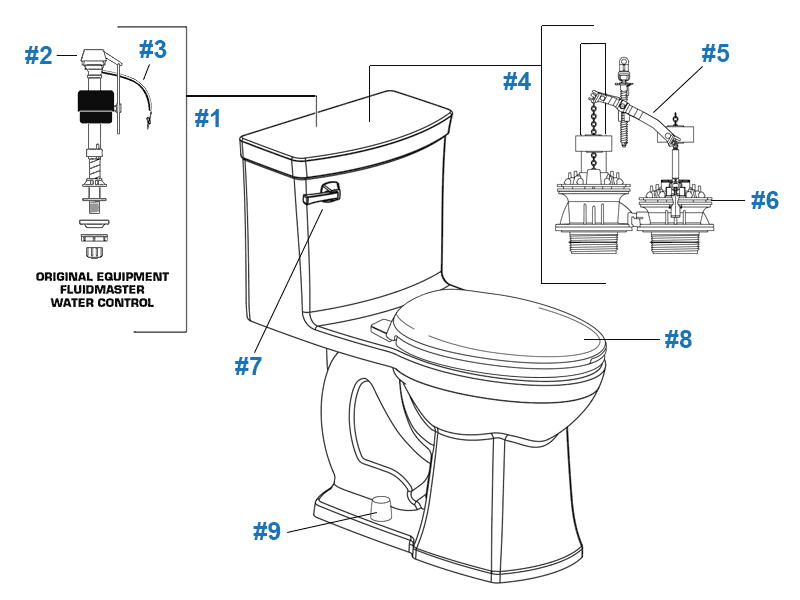

American Standard Townsend VorMax Series toilet parts diagram for one-piece toilets
Item # Part # Description Price & Quantity
1 7381125-400-0070A Fluidmaster Fill Valve $43.12 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.59 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.45 Enter a quantity and

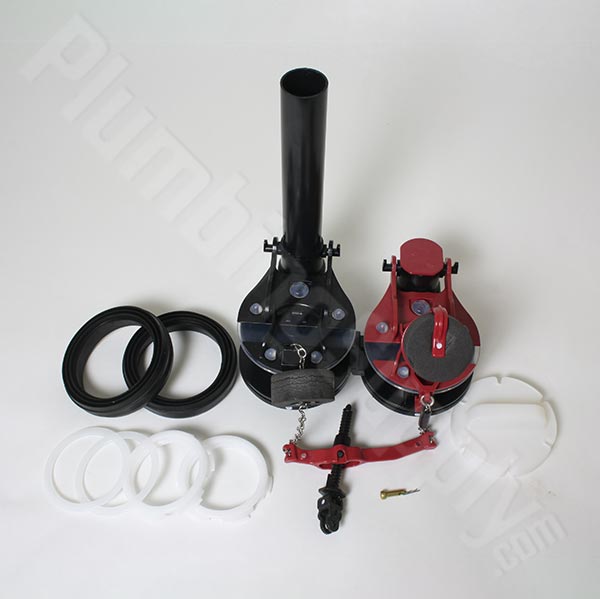

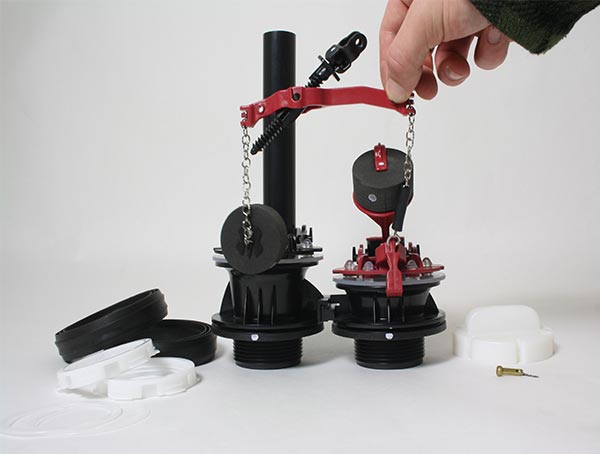

4 7381655-200.0070A Vormax Flush Valve Assembly - includes complete dual flapper assembly - view dimensions $83.67 Enter a quantity and
5 7381657-200.0070A Vormax Flapper Assembly - includes dual flappers with silicone seals & teeter bar $45.79 Enter a quantity and
6 7381424-100.0070A Silicone Seals for Vormax Flapper Assembly (PAIR) $31.09 Enter a quantity and

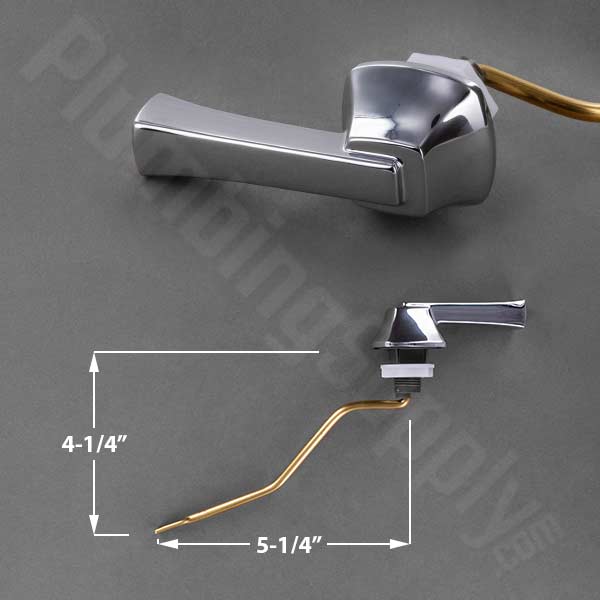

7 7381735-200.0020A Front Mount LEFT Side Trip Lever - Chrome $63.72

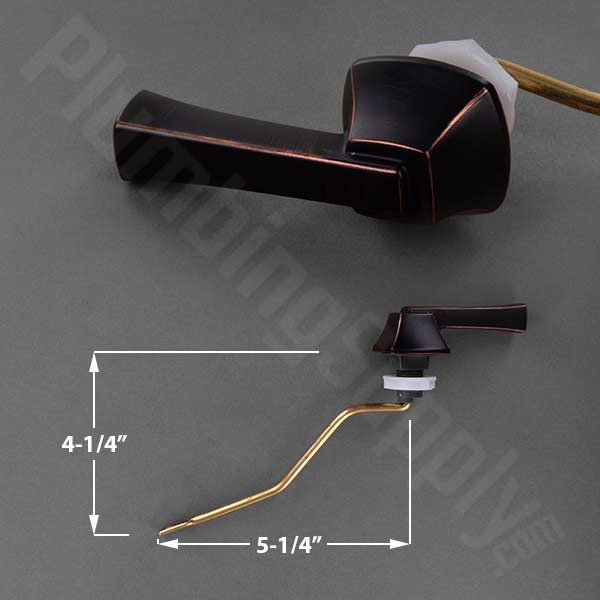

7381735-200.2780A Front Mount LEFT Side Trip Lever - Legacy Bronze $85.65

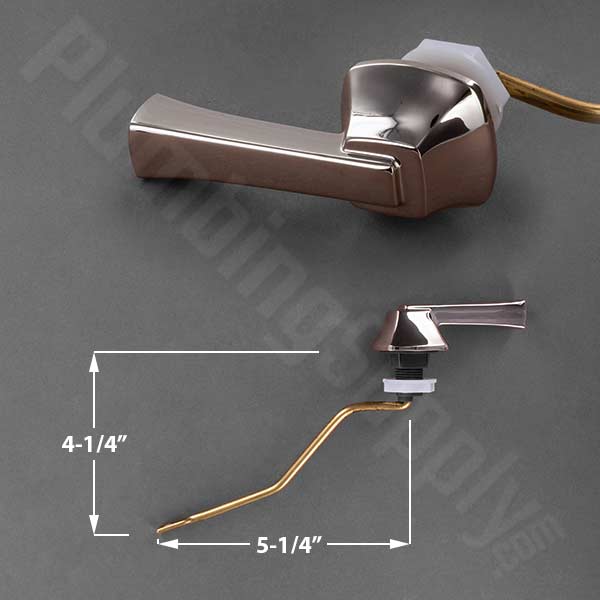

7381735-200.0130A Front Mount LEFT Side Trip Lever - Polished Nickel $62.67

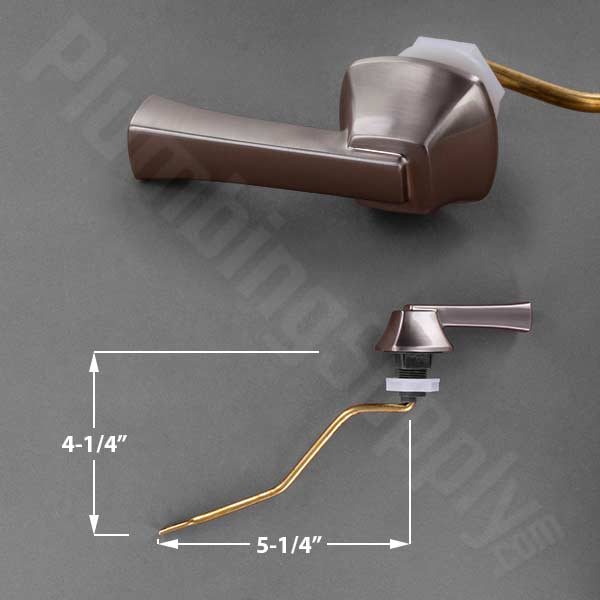

7381735-200.2950A Front Mount LEFT Side Trip Lever - Satin Nickel $68.94

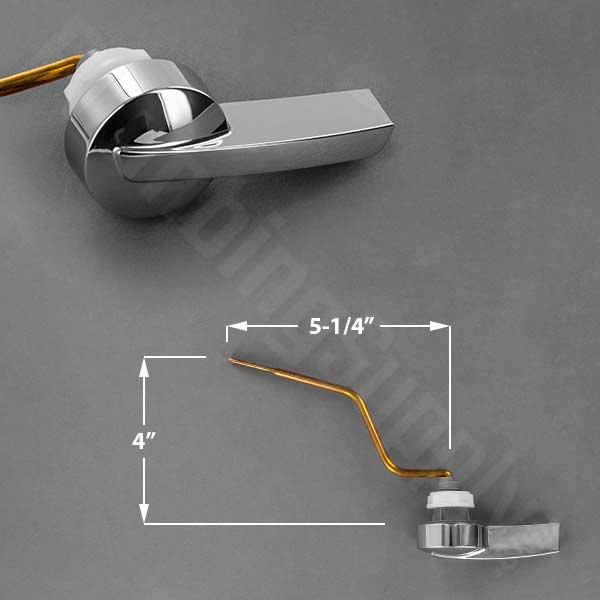

7381800-200.0020A Front Mount RIGHT Side Trip Lever - Chrome $65.56 Enter a quantity and
8 5055A Contemporary Vormax Elongated Toilet Seat - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $56.07 Enter a quantity and
9 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $7.69 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
