Antiquity Series Toilet Repair Parts
by American Standard

If you've been looking for replacement parts for your American Standard Antiquity toilet, your search stops here! Whether you need a fill valve or a flapper and chain, or you need to fix a leak or replace your bolt caps, we have what you need. For many more American Standard products, check out our page.

American Standard - Antiquity one piece toiletOne Piece
American Standard - Antiquity two piece toiletTwo Piece

Replacement Parts for American Standard Antiquity Series Toilet
One Piece Model - #2038.016

American Standard Antiquity series one-piece toilet replacement parts diagram

Item # Part # Description Price & Quantity
1 400A Fluidmaster 400A Fill Valve $16.62
2 738109-0070A Flush Valve Assembly - includes flapper and flush valve wrench $45.63
3 738151-0070A Flapper & Chain - Replaced by "Will-Fit" 047146-0070A $7.65
4 738304-0070A Flush Valve Wrench $10.15
5 730283-0020A Side Mount Trip Lever - Chrome $68.21
730283-0200A Side Mount Trip Lever - White Discontinued
730283-2950A Side Mount Trip Lever - Satin Nickel $91.50
J-928 "Will Fit" Side Mount Trip Lever - Chrome (view more "will fit" finish options) $49.97

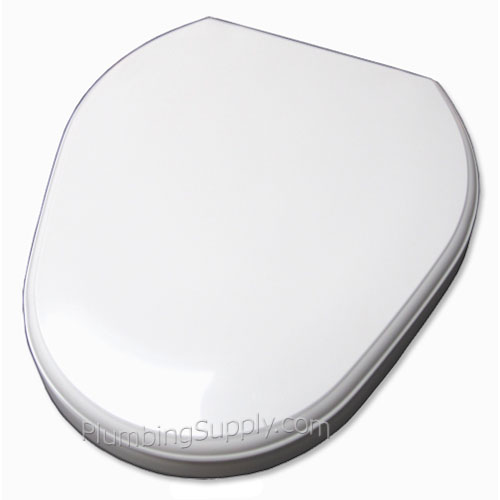

6 5357.016 Antiquity Elongated Toilet Seat - White Discontinued
7 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07

- OR - View Cart

Not sure which model of toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Replacement Parts for American Standard Antiquity Series Toilet
Two Piece Models - #2262.019, 2264.017, 2264.217 & 2464.019 / Tank #4094.015

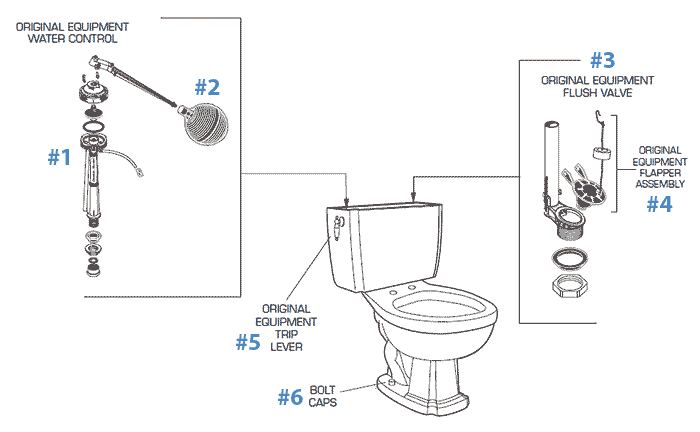

American Standard Antiquity series two piece toilet repair parts diagram

Item # Part # Description Price & Quantity
1 738402-0070A Fill Valve/Water Control Assembly - Replaced by 738066-0070A Discontinued
See 400A
400A "Will Fit" Replacement Fill Valve/Water Control Assembly $16.62
2 Float Ball "Will Fit" Plastic Float Ball $3.70
3 738138-0070A Flush Valve Assembly Discontinued
738360-0070A Replacement Flush Valve Assembly Discontinued
Will-Fit Replacement Flush Valve Assembly $26.62
4 738159-0070A Flapper (for 738138-0070A valve) - Replaced by 7381129-200-0070A $21.56
100BP Flapper for "Will Fit" Flush Valve - set band to closed and #6 hole on dial $6.15
5 730288-2000A Side Mount Trip Lever - Chrome & White Discontinued
730288-2050A Side Mount Trip Lever - Polished Brass & White Discontinued
6 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07
047158-0070A Tank to Bowl Coupling Kit $13.69
5322.011 Rise & Shine Round Toilet Seat - White Discontinued
200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
5324.019 Rise & Shine Elongated Toilet Seat - White Discontinued
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91

- OR - View Cart

Related Items & Information

Frequently Asked Questions

Q. "I purchased the #738109-0070A flush valve. How do you properly install it?"
A. To install the #738109-0070A, use the flat disc (installation driver/flush valve wrench) included with the flush valve and place it inside the flush valve so the slots on the disc line up with the vertical ridges on the plastic insert inside the flush valve. Use a large screwdriver or a 3/8" socket extension and turn the disc counterclockwise to loosen the compression washer to the smallest diameter in order to place the flush valve into the hole in the bottom of the tank. Rotate the flush valve as needed to keep the fill valve rod or tank lever out of the way of the overflow tube. Now turn the flat disc clockwise to begin tightening the flush valve. As the flush valve is tightened the washer will begin to compress evenly on the inside of the tank hole. The flush valve may want to rotate from your set position so you will have to hold the overflow tube with one hand as you are tigtening. Tighten until the flush valve is firmly in place. Remove the disc (installation driver) and install the flapper. Test for leaks.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
