Town Square Series Toilet Repair Parts
by American Standard

Whether your bathroom features the entire line of Town Square fixtures, or you just love the traditional, colonial look of this unique toilet, having the option to repair (rather than completely replace) your toilet can save you time, money, and a headache. We're pleased to offer you a range of repair parts for the Town Square toilet, from trip levers to flush valves. Don't see what you're looking for here? Visit our toilet repair parts index.

Town Square round front toiletModels #2787/2897
Town Square high efficiency toiletModel #2817

Replacement Parts for American Standard Town Square Toilets
Two Piece Models - #2787 & #2797 / Tank #4707

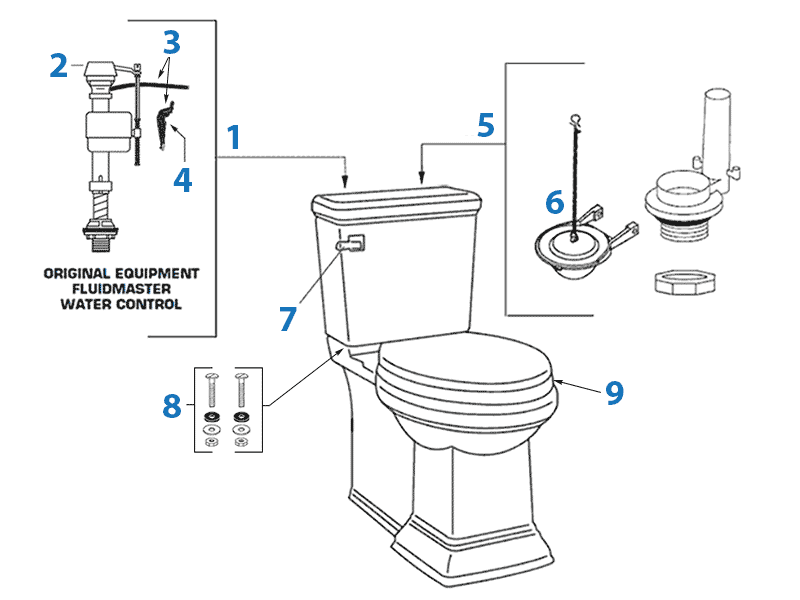

Parts diagram for Town Square toilets

Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a 7381125-400-0070a Fluidmaster Water Control Assembly - Replaces 738565-403.0070A $40.09 Enter a quantity and
2 fluidmaster replacement cap 385 Cap Assembly Fluidmaster Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 fluidmaster refill tube with roller clamp 215 215 Roller Clamp, Refill Tube & Angle Adapter Clip $4.62 Enter a quantity and
4 fluidmaster angle adapter clip for refill tube B12-350 B12-350 Angle Adapter Clip $3.01 Enter a quantity and
5 american standard flush valve 738484-0070A 738484-0070A Flush Valve - includes flapper with chain and locknut Discontinued
american standard flush valve 738360-0070a 738360-0070A Replacement Flush Valve Assembly Discontinued
american standard flush valve will-fit 738360-0070a 738360-0070A
Will-Fit		 "Will-Fit" Replacement Flush Valve $34.61 Enter a quantity and
6 american standard black flapper with chain and float 7381129-200-0070A 7381129-200-0070A Flapper Assembly - for 738484-0070A or 738360-0070A valve - Replaces 738397-0070A original flapper assembly $21.56 Enter a quantity and
korky ultra water saver 100bp 100BP Flapper Assembly - for "will fit" flush valve - set band to closed and #6 hole on dial $6.15 Enter a quantity and

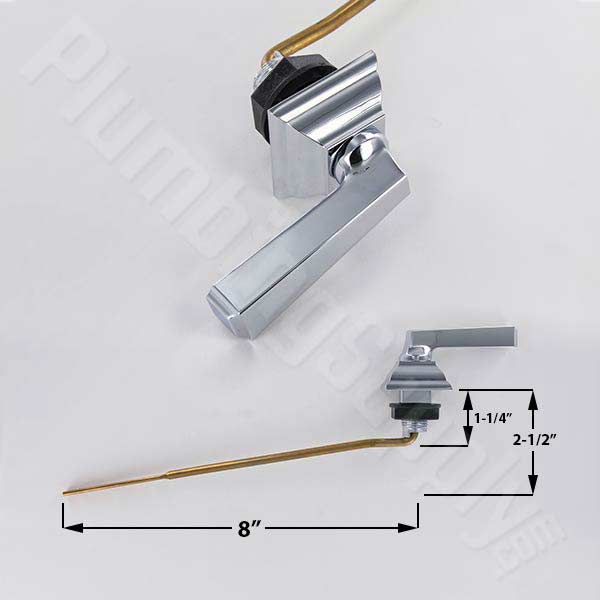

7 american standard left hand trip lever 738547-0020a 738547-0020A Left Hand Trip Lever - Chrome Discontinued
--- 738547-2950A Trip Lever - Satin Discontinued
8 will-fit stainless steel tank to bowl bolt set Bolt Kit "Will Fit" Stainless Steel Tank-to-Bowl Mounting Set - includes 2 stainless steel bolts (5/16" x 3"), 4 rubber washers, 4 nuts, 4 flat steel washers $6.39 Enter a quantity and
will-fit solid brass tank to bowl bolt set v33 Bolt Kit "Will Fit" Solid Brass Tank-to-Bowl Mounting Set - includes 2 solid brass bolts (5/16" x 3"), 4 rubber washers, 2 nuts, 4 flat washers, 2 wing nuts (chrome plated zinc) $6.27 Enter a quantity and
9 american standard toilet bolt cap covers 034783-0200a 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and
10 bemis affinity round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Replacement Parts for American Standard Town Square Toilets
Two Piece Model - #2817 / Tanks #4216.060 (1.6gpf) & #4216.128 (1.28gpf)

Parts diagram for Town Square HET toilets

Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a 7381125-400-0070A Fluidmaster Water Control Assembly - Replaces 738565-445.0070A & 738565-446.0070A $40.09 Enter a quantity and
2 fluidmaster fill valve repair cap assembly Cap Assembly Fluidmaster Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 fluidmaster roller clamp refill tube 215 215 Roller Clamp, Refill Tube & Angle Adapter Clip $4.62 Enter a quantity and
4 fluidmaster angle adapter clip for refill tube B12-350 B12-350 Angle Adapter Clip $3.01 Enter a quantity and
5 american stsandard right flush valve 738921-101-0070a 738921-101.0070A Flush Valve for 1.6gpf models $49.23 Enter a quantity and
american standard flush valve 738921-104-0070a 738921-104.0070A Flush Valve for 1.28gpf models $37.04 Enter a quantity and
6 american standard three inch flapper 738920-0070a 738920-0070A Flapper Assembly for 1.6gpf models $13.07 Enter a quantity and
american standard three inch flapper 7381043-400-0070a 7381043-400.0070A Flapper Assembly for 1.28gpf models $18.74 Enter a quantity and
7 --- 7381105-2950A Trip Lever - Satin $42.17 Enter a quantity and
--- 7381105-2240A Trip Lever - Oil Rubbed Bronze $84.49 Enter a quantity and
8 will-fit stainless steel tank to bowl bolt kit Bolt Kit "Will Fit" Stainless Steel Tank-to-Bowl Mounting Set - includes 2 stainless steel bolts (5/16" x 3"), 4 rubber washers, 4 nuts, 4 flat steel washers $6.39 Enter a quantity and
will-fit solid brass tank to bowl brass bolt set v33 Bolt Kit "Will Fit" Solid Brass Tank-to-Bowl Mounting Set - includes 2 solid brass bolts (5/16" x 3"), 4 rubber washers, 2 nuts, 4 flat washers, 2 wing nuts (chrome plated zinc) $6.27 Enter a quantity and
9 bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 trapway top mounting adapter kit conceal e4 CONCEAL-E4 Concealed Trapway Top Mounting Adapter Kit for 1200E4 Toilet Seats - view detailed installation instructions $6.99 Enter a quantity and

Note: The 2817 Town Square toilets have a concealed trapway and require a top mounted seat. The #1200E4 Bemis toilet seat will usually work as a replacement, but you may need to remove all of your old toilet seat hardware attached to your toilet and replace with the Concealed Trapway Adapter Kit sold separately as item #10 above.
