Luxor Series Toilet Repair Parts
by American Standard

The Luxor by American Standard has a great history of being one of the few toilets that don't seem to overflow when the fill valve is kept in good working condition. As it is often much easier and less costly to repair your toilet, replacing worn out parts is a great way to save money and keep your toilet operating. PlumbingSupply.com ® is proud to offer the replacement parts you need to keep this classic model working and serving your family for many years to come.

American Standard - Luxor

Replacement Parts for American Standard Luxor Series Toilets
One Piece Model - #2002 & 2003 - NON Vent-Away

A.S. Luxor Series

NON Vent-Away Luxor Toilet Complete Parts Kits
Image Part # Description Price & Quantity

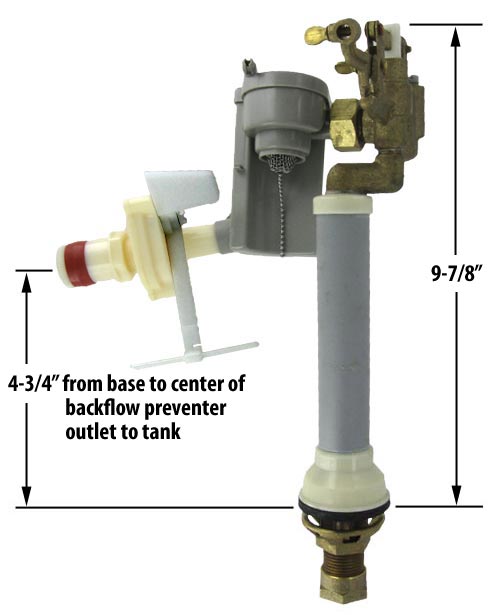

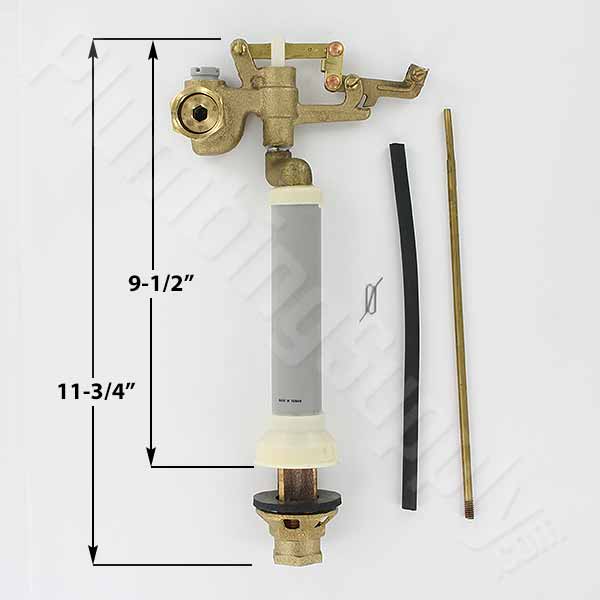

american standard fill valve n30451 with dimensions N3045L Complete Water Control Assembly for Luxor 2002 - WITHOUT ventaway
- 9-7/8" from toilet tank to top of valve
$284.32 Enter a quantity and
american standard fill valve 47136-0070a 47136-0070A Complete Water Control Assembly for Luxor 2003 - WITHOUT ventaway
- float ball sold separately - see item #12 in table below
$345.47 Enter a quantity and
american standard flush valve 47049-0070 047049-0700A Flush Valve for Luxor 2002 & 2003 - view dimensions
- includes valve body, actuating unit with seat disc & chain, and seal
$43.82 Enter a quantity and
american standard backflow preventer 738050-0070a 738050-0070A Backflow Preventer Assembly for Luxor 2002 & 2003 - includes paddle $113.69 Enter a quantity and
american standard 033611-0020A actuator buttom chrome 33611-0020A Actuator Button for Luxor 2002 & 2003 - includes hook & clevis $37.25 Enter a quantity and
Individual Components Available Below

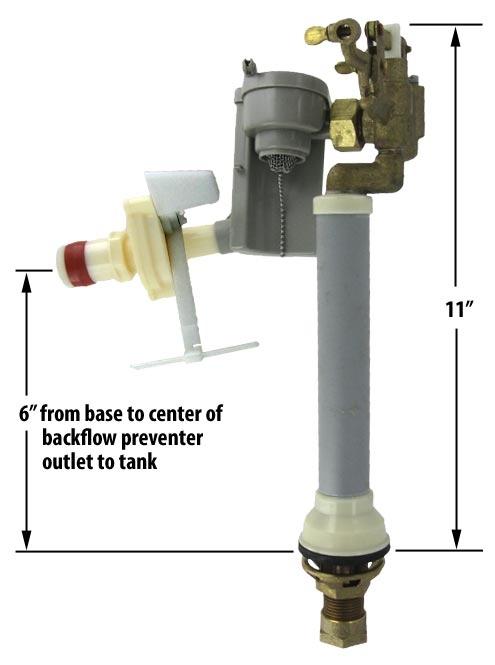

Please Note: The original backflow preventer is no longer available, but the 738050-0070A is a suitable replacement. Depending on your situation, you may need to use the 11" Water Control Assembly with the backflow preventer and you might have to shim the tank lid in some applications. View dimensions of the 11" water control assembly with attached backflow preventer. View dimensions of the 9-7/8" water control assembly with attached backflow preventer.

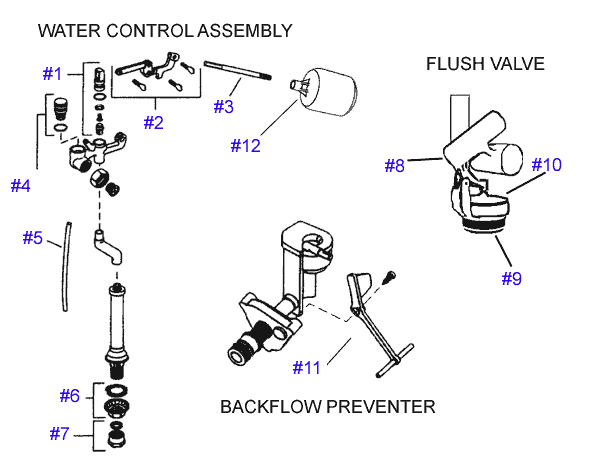

NON Vent-Away Luxor Toilet Parts
Item # Image Part # Description Price & Quantity
1 american standard plastic plunger repair kit 12981-0070A 012981-0070A Plunger Repair Kit (plastic construction) $21.95 Enter a quantity and
american standard brass plunger repair kit with seat 12981-0900 012981-0900 Plunger Repair Kit (brass construction) $15.24 Enter a quantity and
american standard brass plunger only 8339-0700 8339-0700 Plunger ONLY (brass construction) $9.01 Enter a quantity and
2 american standard lever assembly 010551-0070a 010551-0070A Lever Assembly w/ Screws $21.75 Enter a quantity and
3 american standard unique float rod 073014-0070a 073014-0070A Float Rod - included in complete water control assembles; N3045L and 47136-0070A $6.79 Enter a quantity and
4 american standard volume control 10765-0070 010765-0070A Volume Regulator with O-ring $6.32 Enter a quantity and
5 will-fit clear refill tube 070450-0070A Clear "Will-Fit" Refill Tube - Replaces original refill tube $1.71 Enter a quantity and
6 american standard water control mount kit washer brass shank nut 047398-0070a 047398-0070A Water Control Mounting Kit - (brass shank nut and flat rubber washer) Discontinued
american standard 47399-0070a water control mounting kit 047399-0070A Water Control Mounting Kit - (brass shank nut and concave rubber washer) Discontinued
7 american standard brass supply coupling kit 047050-0070a 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and

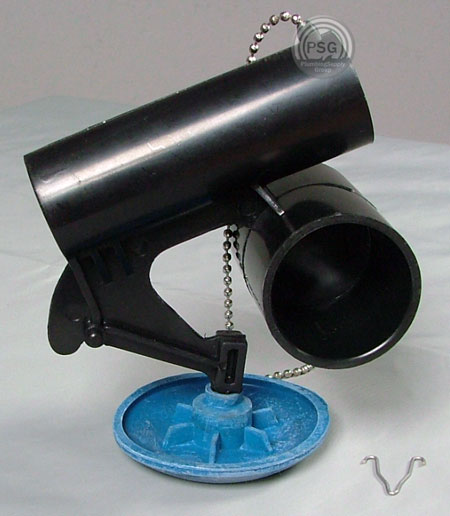

8 american standard actuating unit 073380-0070a 073380-0070A Actuating Unit w/ Seat Disk, and Chain $30.68 Enter a quantity and
9 american standard flush valve washer 33410-0700 33410-0700A Flush Valve Seal $4.34 Enter a quantity and
10 american standard sealdisk for flush valve as444 "Will-Fit" Snap-On
Seat Disc
(includes brass insert, remove to install) - Replaces original 033643-0070A and 033643-0700 $5.55 Enter a quantity and
11 american standard white paddle lever 33409-0070a 033409-0070A White Paddle Lever only - included in backflow preventer assembly $10.97 Enter a quantity and
12 plastic float ball 4 inch by 5 inch 047381-0070A Float Ball - replaced by "will fit" float ball $3.70 Enter a quantity and
Not Shown american standard chain assembly for flush valve actuator 8321-0700A 8321-0700A Chain Assembly For Seat Disk - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts for American Standard Luxor Series Toilets
One Piece Model - #2002 & 2003 - WITH Vent-Away

The Vent-Away toilet ventilator was a system designed by American Standard to remove odors from the toilet bowl through the holes in the flushing rim. This was accomplished by pulling out on the push button to start the Vent-Away action. There is a small water trap assembly in the tank area that would be released when the button was pulled out and within ten seconds a vacuum is created which draws air and odors out through the holes in the flushing rim of the toilet bowl. The air carrying the odors is then discharged into the outlet of the toilet and expelled through the drainage vent piping.

A.S. Roma Series

Vent-Away Luxor Toilet Complete Parts Kits
Image Part # Description Price & Quantity

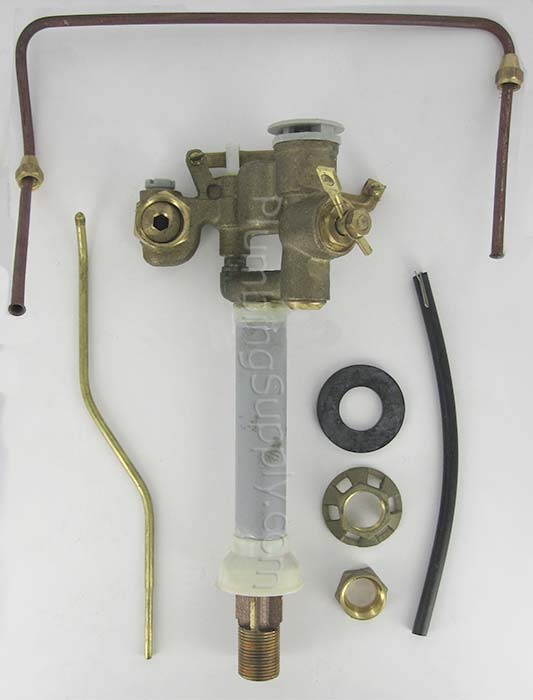

american standard fill valve n3045 N3045LV Complete Water Control Assembly for Luxor 2002 - WITH ventaway
- 9-3/4" from toilet tank to top of valve
Discontinued
american standard ballcock oem style 47135-0070a 047135-0070A Complete Water Control Assembly for Luxor 2003 - WITH ventaway
- 11" from toilet tank to top of valve
Discontinued
american standard old flush valve 47049-0070 047049-0700A Flush Valve for Luxor 2002 & 2003 - view dimensions
- includes valve body, actuating unit with seat disc & chain, and seal
$43.82 Enter a quantity and

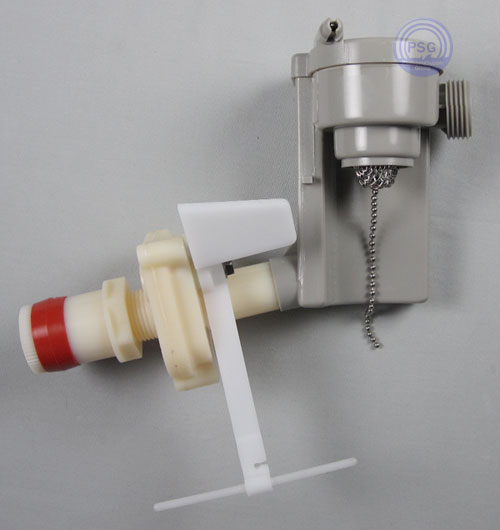

american standard backflow preventer 738050-0070a 738051-0070A Backflow Preventer Assembly for Luxor 2002 & 2003* - includes paddle -
- Replaces 738051-0070a
$113.69 Enter a quantity and
--- 033492-0070A Vent-Away Assembly for Luxor 2002 & 2003 Discontinued
toilet push button american standard ventaway 033628 033628-0020A Actuator Button for Luxor 2002 & 2003 - includes hook & clevis $51.44 Enter a quantity and
american standard actuator button 033628-0990a polished brass 033628-0990A Actuator Button For Luxor 2002 & 2003 - Polished Brass - includes hook & clevis $77.89 Enter a quantity and
Individual Components Available Below

Please Note: The original backflow preventer is no longer available. 738051-0070A is a suitable replacement, but you may need to shim the tank lid in some applications.


Vent-Away Luxor Toilet Parts
Item # Image Part # Description Price & Quantity
1 american standard plastic plunger repair kit 12981-0070A 012981-0070A Plunger Repair Kit (plastic construction) $21.95 Enter a quantity and
american standard brass plunger repair kit with seat 12981-0900 012981-0900 Plunger Repair Kit (brass construction) $15.24 Enter a quantity and
american standard brass plunger only 8339-0700 8339-0700 Plunger ONLY (brass construction) $9.01 Enter a quantity and
2 american standard lever assembly 010551-0070a 010551-0070A Lever Assembly w/ Screws $21.75 Enter a quantity and
3 american standard unique float rod 073014-0070a 073014-0070A Float Rod $6.79 Enter a quantity and
4 --- 033626-0070A Supply Tube Discontinued
--- 033252-0070A Male Elbow Discontinued
5 american standard water control mount kit washer brass shank nut 047398-0070a 047398-0070A Water Control Mounting Kit - (brass shank nut and flat washer) Discontinued
american standard 47399-0070a water control mounting kit 047399-0070A Water Control Mounting Kit - (brass shank nut and concave rubber washer) Discontinued
6 american standard brass supply coupling kit 047050-0070a 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
7 --- 072541-0070A Refill Tube - Replaced by "Will-Fit" black refill tube - without clip $1.71 Enter a quantity and
8 --- 067651-0070A Vacuum Breaker Kit Discontinued
9 american standard diverter stem repair kit 067652-0070a 067652-0070A Diverter Stem Kit $28.57 Enter a quantity and
10 --- 067653-0070A Diverter Valve Kit Discontinued
11 american standard volume control 10765-0070 010765-0070A Volume Regulator with 0-ring $6.32 Enter a quantity and
12 will-fit plastic float ball "Will-Fit" float ball Replaces original float ball $3.70 Enter a quantity and
13 american standard actuating unit 073380-0070a 073380-0070A Actuating Unit w/ Seat Disk, and Chain $30.68 Enter a quantity and
14 american standard flush valve washer 33410-0700 33410-0700A Flush Valve Seal $4.34 Enter a quantity and
15 american standard sealdisk as444 for flushvalve AS444 (includes brass insert, remove to install) - Replaces original seat discs 033643-0070A and 033643-0700 $5.55 Enter a quantity and
16 american standard white paddle lever 33409-0070A 033409-0070A White Paddle Lever only - included in backflow preventer assembly $10.97 Enter a quantity and
17 --- 047054-0070A Discharge Tube Assembly Discontinued
18 --- 033501-0070A Mounting Elbow Discontinued
19 --- 033457-0070A Vacuum Tube Discontinued
Not Shown american standard chain assembly for flush valve actuator 8321-0700a 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

Actuator Button For Luxor Toilets

picture of push button flush actuator(non vent-away shown)

Image Description Price & Quantity
toilet push button american standard ventaway 033628 Actuator Button For Vent-Away toilets - Chrome $51.44 Enter a quantity and
american standard actuator button polished brass 033628-0990a Actuator Button For Vent-Away toilets - Polished Brass $77.89 Enter a quantity and
toilet push button american standard 033611-0020A Actuator Button For Non Vent-Away toilets $37.25 Enter a quantity and

Replacement Toilet Seat For Luxor 2003

Luxor and Roma toilet seat

Toilet seat dimensions for Luxor toilet

White
White
Bone
Bone
Silver
Silver
Discontinued Discontinued Discontinued

Please Note: These toilet seats are no longer being manufactured.



Frequently Asked Questions

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Q. "How do you adjust the water flow of the Fill Valve (Water Control Assembly) for these Luxor toilets?"
A. To adjust the water flow of the water control assembly you tighten (clockwise) or loosen (counter-clockwise) the volume control stem located next to the plunger. Tighten the volume control for less water flow and loosen it for more water flow.

Q. "How do you install the Plunger Repair Kit 012981-0900?"
A. First, turn off the water to the fill valve. Unscrew the thumb screws on the lever assembly and slide the lever assembly out from the square hole in the top of the plunger. Pull the old plunger straight up out of the body of the fill valve. With a seat tool, unscrew and remove the old seat directly underneath the plunger. Screw in the new seat until it is snug. Do not over tighten it. At this point put your hand or a cup over the fill valve, turn on the water slowly and let the water run out through the seat for one or two minutes to flush any possible dirt or sediment that might be in the water line. Turn the water off again and slide the new plunger into the body of the fill valve with a slight twist to keep the rubber gasket from being misaligned or torn. Slide the lever assembly back through the square hole in the plunger and tighten the thumb screws. Turn the water back on.

Customer Testimonials

"Your site is a God send for us as we have 2 vent away toilets. Our next step was to replace the toilets... we received the parts and have installed them (perfect fit). The parts resolved the problem with the leaky toilet! I SHOULD HAVE DONE THIS a long time ago. I shutter to think of the water and money I wasted on these leaky toilets!!! The part cost less than $10.00..."
- Catherine Urbon, Bolinbrook, Illinois 60440-1337

"Love your website. Thanks for your great descriptions, pictures, products and prices. I'll be back and will recommend your company to my friends and associates."
- Laurie Vondung, Conway, Massachusetts 01341-9670

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
