Plaza Suite / Pallas Series Toilet Repair Parts
by American Standard

American Standard Plaza Suite / Pallas toilets are built to last, but over time even the best products need some TLC or replacement parts. We here at PlumbingSupply.com ® are pleased to offer replacement components of the Plaza Suite toilet, and you can find what you need whether it is a supply tube, a plunger repair kit, or a float ball.

American Standard - Plaza Suite

Replacement Parts for American Standard Plaza Suite Toilets
One Piece Model - #2016.019

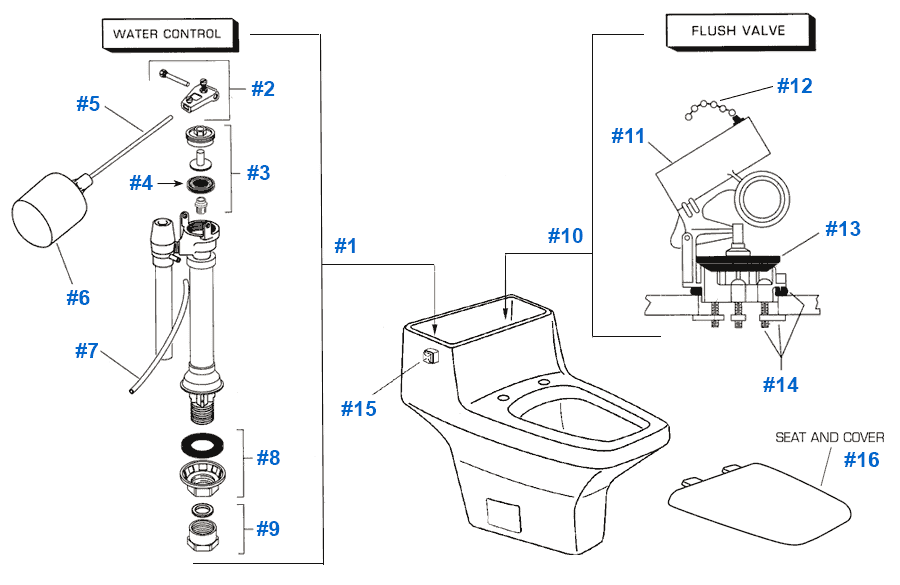

A.S. Plaza Suite Series parts schematic

Item # Image Part # Description Price & Quantity
1 --- 047171-0070A Fill Valve / Water Control Assembly Discontinued
toto will fit fill valve 528t 528T "Will Fit" Replacement Fill Valve - high output (higher refill ratio) than standard fill valves - adjustable 8" to 13-1/2", float rod/ball NOT needed $26.99 Enter a quantity and
2 american standard pivot arm kit for older fill valves 047217-0070a 047217-0070A Pivot Arm - for 047171-0070A $9.05 Enter a quantity and
3 american standard plunger repair kit 12971-0070 012971-0070A Plunger Repair Kit - for 047171-0070A $12.00 Enter a quantity and
4 american standard plunger gasket only 73070-0070 73070-0700 Plunger Gasket ONLY - for 047171-0070A $1.76 Enter a quantity and
5 american standard threaded brass float rod 033230-0070A-WF 033230-0070A Float Rod - 8" length - brass - flat on one end - for 047171-0070A $10.54 Enter a quantity and
6 plastic float ball 4 inch by 5 inch 047381-0070A "Will-Fit" Float Ball - Replaces original float ball - for 047171-0070A $3.70 Enter a quantity and
7 will-fit clear refill tube 030079-0070A "Will-Fit" Refill Tube - Replaces original refill tube $1.71 Enter a quantity and
8 american standard water control mount kit washer brass nut 047398-0070a 047398-0070A Water Control Mounting Kit - for 047171-0070A Discontinued
9 american standard brass supply coupling kit 047050-0070a 047050-0070A Supply Coupling Kit - for 047171-0070A $6.56 Enter a quantity and
10 american standard will fit flush valve 47107-0070a 47107-0070a
"Will Fit" Flush Valve
Flush Valve (aka #4 New Style) - Replaces original 47107-0070A - chain sits at TOP of unit $42.60 Enter a quantity and
american standard flush valve 47250-0070a 47250-0070A Flush Valve - chain sits on SIDE of unit $50.49 Enter a quantity and
11 american standard actuating unit 68470-0070a 068470-0070A Actuating Unit with Seat Disc & Chain $24.20 Enter a quantity and
12 american standard chain assembly for flush valve actuator 8321-0700A 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
13 american standard seat disc 033643-0070a 033643-0070A Snap-On Seat Disc Discontinued
american standard seat disc 033643-0700 033643-0700 Seat Disc with Threaded Brass Insert Discontinued
american standard sealdisk as444 AS444 "Will Fit" Snap-On / Threaded Seat Disc - (remove brass insert for snap-on version) $5.55 Enter a quantity and

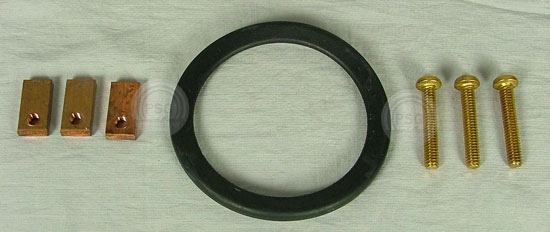

14 american standard flush valve mounting kit 047397-0070a 047397-0070A Flush Valve Mounting Kit Discontinued
15 american standard side mount push button actuator 047108-0020a chrome 47108-0020A Brass Side Mount Actuator Button - 4-1/2" plastic arm - Chrome $60.90 Enter a quantity and
16 --- 5355.017 Plaza Toilet Seat & Cover - White Discontinued

- Toilet tank cleaners break down the materials in your toilet flappers and fill valves -


Replacement Parts for American Standard Pallas (formerly Plaza) Toilets
One Piece Model - #2063.015

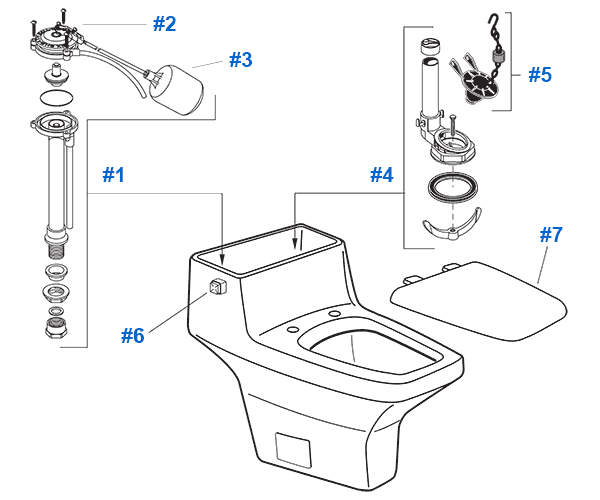

Parts diagram for American Standard Pallas toilet

Item # Image Part # Description Price & Quantity
1 american standard water control assembly 738103-0070a 738103-0070A Fill Valve / Water Control Assembly Discontinued
toto will fit fill valve 528t 528T "Will Fit" Replacement Fill Valve - high output (higher refill ratio) than standard fill valves - adjustable 8" to 13-1/2", float rod/ball NOT needed $26.99 Enter a quantity and
2 rubber repair kit 1b1x fill valve Repair Kit 3-Screw Fill Valve Repair Kit - for original 738103-0070A valve ONLY $3.15 Enter a quantity and
lavelle repair kit Cap Assembly 528T Fill Valve Repair Kit - for "will-fit" high output valve (includes cap and diaphragm) $1.51 Enter a quantity and
3 plastic float ball 4 inch by 5 inch Float Ball "Will Fit" Plastic Float Ball - for original 738103-0070A valve ONLY $3.70 Enter a quantity and
4 --- 738166-0070A Flush Valve Assembly Discontinued
american standard compression style flush valve 738378-0070a 738378-0070A "Will Fit" Replacement Flush Valve - includes flapper and flush valve wrench $45.82 Enter a quantity and
5 american standard black flapper with chain and float 7381129-200-0070A 7381129-200-0070A Flapper & Chain - for 738166-0070A valve - Replaces 738205-0070A $21.56 Enter a quantity and
american standard black flapper 7381129-200-0070A 7381129-200-0070A Flapper & Chain - for "will fit" 738378-0070A valve - Replaces 738380-0070A $21.56 Enter a quantity and
6 american standard side push button actuator 738100-0020a 738100-0020A Actuator Button (8" arm) - Chrome $29.34 Enter a quantity and
--- 738100-0210A Actuator Button (8" arm) - Bone Discontinued
american standard side push button actuator polished brass 738100-0990a 738100-0990A Actuator Button (8" arm) - Polished Brass $49.40 Enter a quantity and
7 --- 5436.018 Pallas Toilet Seat & Cover - White Discontinued


Frequently Asked Questions

Q. "Do you have a toilet seat for the Plaza or Pallas toilets?"
A. At the time of this writing, we are not aware of any currently-produced toilet seats for either the Pallas or the Plaza.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
