Glenwall Series Toilet Repair Parts
by American Standard

Looking for replacement parts for your American Standard Glenwall wall hung toilet? Look no further! Whether you need a plunger repair kit or a flapper and chain, or you need to fix a leak or repair a plunger, we have what you need.


Replacement Parts for American Standard Glenwall Series Toilets
Two Piece Wall Hung Model - Elongated #2093 / Tank #4083

Parts diagram for American Standard Glenwall series

Item # Part # Description Price & Quantity
1 047184-0070A Water Control Assembly - Replaced by 47212-0070A - float ball sold separately - see item #4 $34.06 Enter a quantity and

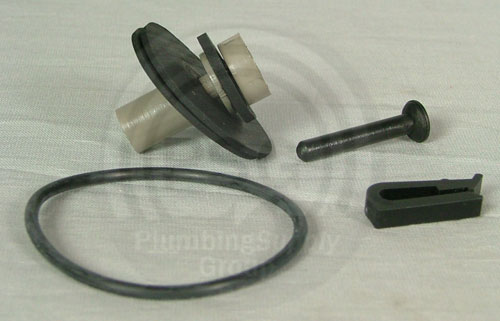

2 011372-0070A Plunger Repair Kit $13.64 Enter a quantity and
3 011396-0070A Float Rod $5.00 Enter a quantity and
4 047381-0070A Float Ball - Replaced by "will fit" float ball $3.70 Enter a quantity and
5 030079-0070A Refill Tube - Replaced by "will fit" refill tube $1.71 Enter a quantity and
6 047094-0070A Water Control Mounting Kit Discontinued
7 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
8 047387-0070A Flush Valve $27.18 Enter a quantity and
9 Cap Refill Tube Support - Replaced by "will fit" refill tube clip $3.01 Enter a quantity and
10 047146-0070A "Will-Fit" Flapper & Chain - Chemical Resistant $7.65
Flapper "Will Fit" Flapper with Strap - chemical resistant $2.99 Enter a quantity and
11 047195-0070A Flush Valve Mounting Kit $10.53 Enter a quantity and
12 047147-0200A Front Mount Tank Lever - Chrome Discontinued
13 047188-0070 Tank To Bowl Kit - includes gasket and mounting hardware $23.03 Enter a quantity and
14 1200E4 Elongated - Quality Bemis "Will Fit" Toilet Seat - WHITE (view more color options) - view Elongated seat dimensions $67.91 Enter a quantity and
15 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts for American Standard Glenwall Series Toilets
Two Piece Model - Round #2094.050 / Tank #4049

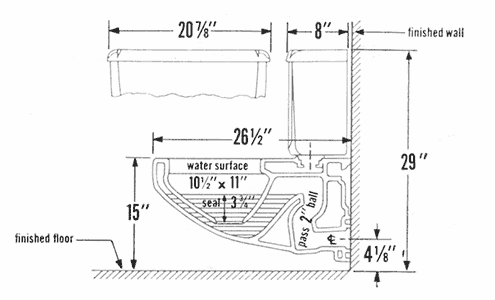

image - American Standard Model #2094.050 complete rough-in dimensions

Our records indicate that American Standard made the original Glenwall toilet in 1965. We believe that it may have been manufactured both prior to that year and after but we are unable to confirm this with American Standard.

Part # Description Price & Quantity
3137-1550 9-3/4" Toilet Fill Valve - most commonly used for American Standard #4049 tanks - Replaced by 7381125-400-0070A American Standard Fill Valve $40.09 Enter a quantity and
3131-0750 11" Toilet Fill Valve - "will fit" some American Standard #4049 tanks - float ball sold separately below $84.20 Enter a quantity and
3137-0980 11-1/2" Toilet Fill Valve - "will fit" some American Standard #4049 tanks - float ball sold separately below $61.53 Enter a quantity and
3136-0580 13-3/4" Toilet Fill Valve - "will fit" some American Standard #4049 tanks Discontinued
47089-0700 Toilet Flush Valve - "will fit" some American Standard #4049 tanks Temporarily
Unavailable
Enter a quantity and
33643-0070A Snap-On Seat Disc - for "will fit" flush valve #47089-0700 - Replaced by "will fit" seat disc (includes brass insert, remove to install) $5.55 Enter a quantity and
33643-0700 Seat Disc with Threaded Insert - for "will fit" flush valve #47089-0700 - Replaced by "will fit" seat disc $5.55 Enter a quantity and
34602-0700 Replacement Tank to Bowl gasket $5.45 Enter a quantity and
47060-0700 Tank to Bowl Bolt Kit - includes tank gasket, U-shaped gasket, bolts/nuts & washers $11.80 Enter a quantity and

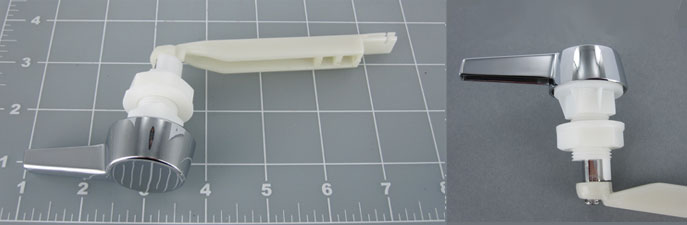

70437-0200 Trip Lever - Chrome - fits some American Standard #4049 tanks $21.50 Enter a quantity and
Float Ball Plastic - "will-fit" - 4" x 5" - 1/4"-20 $3.70 Enter a quantity and
Toilet Seat
200E4
ROUND Front - Quality Bemis "Will Fit" Toilet Seat - White (view more color options) $60.56 Enter a quantity and

Toilet tank cleaners break down the materials in your toilet flappers and fill valves


Trouble Shooting Guide For Your Glenwall Toilet

PROBLEM POSSIBLE CAUSES CORRECTION
Water Control Runs Continuously
Float rod is binding or is set too high Adjust by bending float rod to suit, and set at water line
Flush valve disc is not seating or chain is adjusted too short Replace disc or lengthen chain
Water leakage between tank and bowl Inspect and tighten tank coupling bolts
Dirt under tip valve (adjusting nut)
NOTE: on early models with sheath tube, the water control must be removed from tank and replaced
Move actuating arm up & down several times to dislodge dirt. If unsuccessful, remove plug, screen, & tip valve for cleaning
Damaged water control seats (packing nut or tip valve) Remove and replace
Loose packing nut Tighten packing nut
Poor Flushing Action
Tank water lever too low Bend float rod arm upward
Improper seal between tank and bowl at discharge tube Inspect discharge tube gasket for proper seal
Ventilator Does Not Operate
Linkage arm out of adjustment Inspect operation. Adjust as required
Clogged Screen Shut off water. Remove plug & screen. Replace after cleaning
Clogged venturi orifice Loosen flare nut at male elbow and 4 screws. Lift top vent section carefully. If clogged, clean aspirator openings. Take care not to damage O rings
Ventilator not seated on overflow tube Press ventilator down on overflow gently until seated
