FloodStop Systems

Point-of-use water detection systems help prevent flooding

FloodStop point-of-use water detection devices are an innovative and inexpensive way to help protect you and your home against costly water damage caused by a renegade appliance or exhausted pipe. Install one on your washing machine, water heater, refrigerator, icemaker or other common household water fixture and not only help protect your home from these potential leak sites, but also give you one less thing to worry about.

Choose the appliance or fixture you wish to protect

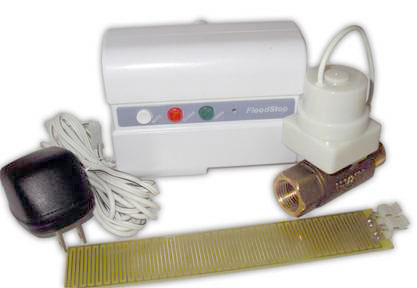

FloodStop system for multi-purpose applicationsMulti-Purpose
(1/2" NPT connections)
FloodStop system for multi-purpose applicationsFaucet
(1/2" NPT connections)
FloodStop FS-14-CRefrigerator Icemakers
& Water Dispensers

(1/4" compression connections)
FloodStop system for Sinks/BasinsSinks & Basins
(paired 3/8" compression connections)
FloodStop system for DishwashersDishwashers
(single 3/8" compression connections)
FloodStop system for Commercial useWhole House Water Filter
(1-1/4" NPT connections)
FloodStop system for washing machinesWashing Machine
(paired indoor 3/4" hose thread connections)
FloodStop system for ToiletsToilet
(single 3/8" compression connections)
FloodStop system 3/4 inch NPT for water heatersResidential Water Heater
(3/4" & 1" NPT connections)
FloodStop system 3/4 inch NPT for water heatersResidential Water Softener
(3/4" & 1" NPT connections)
FloodStop system for Commercial useCommercial Water Heater
(1-1/4" NPT connections)
FloodStop system for Commercial useCommercial Water Softener
(1-1/4" NPT connections)

Frequently Asked Questions

Q. "How does it work?"

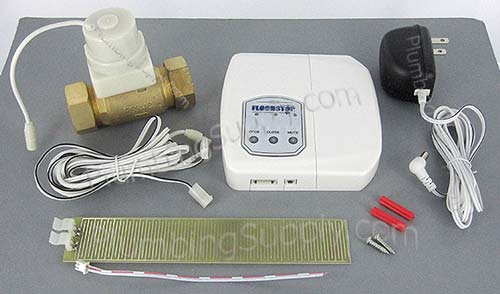

A. Simple! You'll install a FloodStop motorized ball valve(s) upstream of each supply line and place our water sensor on the floor behind the unit that needs detection. If water leaks due to a broken line or the failure of ANY internal component of your plumbing fixture, the control unit tells the motorized ball valve(s) to shut off the water and sound an alarm.

Q. "So these systems can help prevent leaks or flooding?"
A. Yes they can; whether it's a small leak or large flood, FloodStops shut off the water at the appliance. They can help protect against broken lines, bursting lines and failure of internal components of your plumbing fixture.

Q. "If there is no electricity running to the valve (either because they haven't been hooked up or the sensor has touched water), are the valves normally open or closed?"
A. In their normal position, the FloodStop valves are open and will allow water to pass through; once water touches their sensor, the motorized ball valve is tripped and the valves are closed. The valve(s) will remain closed until the sensors are dried and the reset "Open" button is pressed. The Controller has a battery port for 4 X AA size batteries, which will serve as a battery backup in case of a power outage. The same batteries will serve as the primary power source if a nearby electrical outlet is not available (battery life 1 year).

Q. "Does the FloodStop system shut off water to the whole house?"
A. No, this is a point of use product; it only shuts the water off at the source of the leak. Why shut off the water to your whole house if the cause of the problem is just at the washing machine, for instance? Whole house systems are much more expensive and usually require a plumber to install.

Q. "What should I do after the system has detected a leak?"
A. If a leak has occurred, turn the manual valve(s) to the off position, investigate and repair/stop the leak, dry the sensor, and reset the controller by pressing the "Open" button.

Q. "Are FloodStop systems difficult to install?"
A. No, if you can install a garden hose, you can install FloodStop. Installation takes 5 to 10 minutes, and your home will be protected against many sources of water damage.

Q. "Why would I need to use the transformer extension wire?"
A. Unlike the washing machine and the icemaker, the water heater is not always located next to an electrical outlet, and so you may need to use the 15-foot-long low-voltage extension wire.

Q. "Why would I need an additional sensor?"
A. You can increase your area of protection by adding extra sensors near the fixtures or appliances you have selected to protect. If you want more protection for your washing machine FloodStop valves you can add another sensor behind your dryer or laundry tray/sink or maybe a low spot on the floor where water tends to puddle. Or if the water heater FloodStop is purchased then additional sensors can also be placed in your water heater's drain pan, as well as on the floor nearby (in case a leak sprays outside the pan). Or if you want a quicker detection for your icemaker FloodStop, you may choose to install a sensor under your icemaker valve, another behind the refrigerator and a third near your icemaker's filter (if you have one).

Q. "What about braided hoses, aren't they burst proof?"
A. You should use braided hoses whenever you can (especially on your washing machine), and take every precaution to avoid water damage, but hoses are not the only source of flooding. And, braided hoses are not burst proof, but only burst resistant. There are a wide variety of clamps, valves, pumps, drains, etc. inside many fixtures that can fail. (FloodStop was designed after the inventor suffered a home flood due to a switch failure that did not tell his washing machine when to stop filling with water. Water continued to run into the washer and flooded the house for 3 hours before it was discovered).

Q. "Can these systems be used in low lead applications?"
A. All units aside from the FS 3/4-H and FS 3/4-H90 have been certified as compliant with Federal Safe Drinking Water Act requirements. Please note that as the FS 3/4-H and FS 3/4-H90 are for use with washing machines, they are not for use in potable water applications and are not required to meet national or state low-lead standards.

Q. "I'm hearing a lot about lead-free these days. What does that have to do with plumbing products and how does the new lead-free legislation affect me?"
A. Basically, the laws implemented Jan. 1st, 2014 require plumbing products that come in contact with drinking water to be "essentially lead free" (less than 0.25% weighted average). For further information about how the law determines what is "lead free", rules regarding which plumbing products must be "lead free", and who these laws will affect, please view our page.

Q. "If I purchase the WaterWatcher system, why would I need to purchase the FloodStop system?"
A. The WaterWatcher is designed to turn off the electrical power to the appliance, but will not turn off the water supply if a hose was to break. The FloodStop will turn off the water supply but not the electrical power.
