Heritage Series Toilet Repair Parts
by American Standard

Finding replacement parts for older American Standard toilets such as the low-profile Heritage can be difficult, but we here at PlumbingSupply.com ® are pleased to offer a huge selection of replacement parts - from water control assemblies to trip levers.
American Standard Heritage One-Piece Toilet - Model #2071Heritage One-Piece
Model #2071
American Standard Heritage One-Piece Toilet - Model #2031Heritage One-Piece
Model #2031
American Standard Heritage Two-Piece Toilet - Tank #2176Heritage Two-Piece
Tank #4074
American Standard Heritage VorMax toilet - Tank #4270Heritage VorMax
Tank #4270

Replacement Parts For American Standard Heritage Series Toilets
One Piece Model - #2071

Repair parts diagram for American Standard Heritage one-piece toilet - model 2071
Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a with dimensions 7381125-400.0070A Aquamaster Water Control Assembly - Replaces 738350-0070A $40.09 Enter a quantity and
2 fluidmaster replacement cap 385 Cap Assembly Fluidmaster Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 fluidmaster 215 refill tube with roller clamp 215 Roller Clamp, Refill Tube & Angle Adapter Clip $4.62 Enter a quantity and
4 fluidmaster angle adapter clip for refill tube B12-350 Angle Adapter Clip $3.01 Enter a quantity and

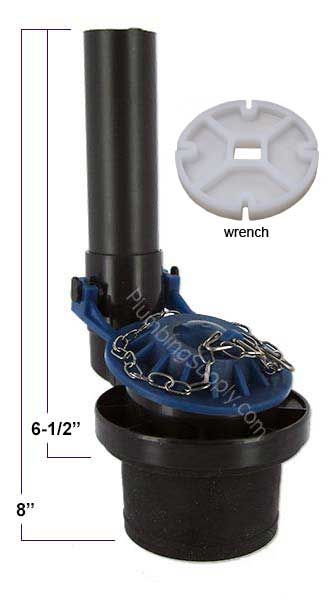

5 american standard flush valve 738109-0070a 738109-0070A Flush Valve - includes flapper assembly & flush valve wrench $45.63 Enter a quantity and
6 american standard flapper with chain 47146-0070a 047146-0070A "Will-Fit" Flapper & Chain - Replaces original flapper $7.65 Enter a quantity and
7 american standard flush valve wrench 738304-0070a 738304-0070A Flush Valve Wrench $10.15 Enter a quantity and
8 american standard chrome trip lever 730283-0020a 730283-0020A Side Mount Trip Lever - Chrome $82.29 Enter a quantity and
american standard satin nickel trip lever 730283-2950a 730283-2950A Side Mount Trip Lever - Satin Nickel $91.50 Enter a quantity and
9 american standard heritage toilet seat 5357 white 5357.016 Heritage Elongated Toilet Seat - White Discontinued

Replacement Parts for American Standard Heritage Series Toilets
One Piece Model - #2031

Repair parts diagram for American Standard Heritage series one-piece toilet - model #2031
Item # Image Part # Description Price & Quantity

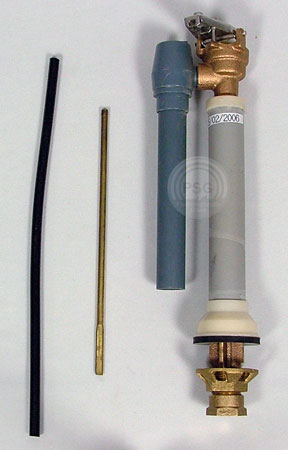

1 american standard fill valve 47174-0070a with dimensions 047174-0070A Water Control Assembly aka Fill Valve - float ball sold separately $122.91 Enter a quantity and
2 plastic float ball 4 inch by 5 inch "Will-Fit" Float Ball Float Ball - Replaces 047381-0070A float ball $3.70 Enter a quantity and

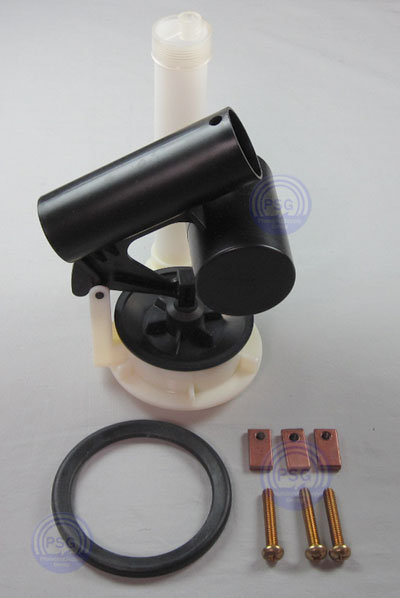

3 american standard flush valve 047230-0070a 047230-0070A Flush Valve Assembly Discontinued
4 american standard seat disc 033643-0070a 033643-0070A Snap-On Seat Disc Discontinued
american standard seat disc 033643-0700 033643-0700 Seat Disc with Threaded Brass Insert Discontinued
american standard seal disk for flushvalve as444 AS444 "Will Fit" Snap-On OR Threaded Seat Disc
(includes brass insert, remove for snap-on version)
$5.55 Enter a quantity and

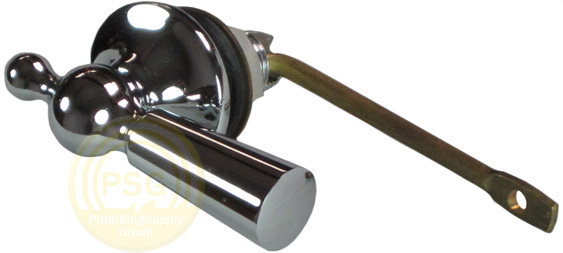

5 american standard trip lever 047231-0020a 047231-0020A Side Mount Trip Lever - Chrome Discontinued
6 american standard heritage toilet seat 5357 5357.016 Heritage Elongated Toilet Seat - White Discontinued

Replacement Parts For American Standard Heritage Series Toilets
Two Piece Model - #2176.124 / Tank #4074

Repair parts diagram for American Standard Heritage two-piece toilet - tank #4074
Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a with dimensions 7381125-400.0070A Fluidmaster Fill Valve / Water Control Assembly - Replaces 738565-406.0070A $40.09 Enter a quantity and
2 fluidmaster 400a fill valve replacement cap 385 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 fluidmaster 215 refill tube with roller clamp 215 Roller Clamp, Refill Tube & Angle Adapter Clip $4.62 Enter a quantity and
4 fluidmaster angle adapter clip for refill tube B12-350 Angle Adapter Clip $3.01 Enter a quantity and
5 american standard flush valve 738181-0070a 738181-0070A Flush Valve Assembly Discontinued
korky plus 87 flush valve with dimensions 87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, will need to be cut down to height of original valve (altered valves are non-returnable) $14.99 Enter a quantity and
6 american standard black flapper with chain and float 7381129-200-0070A 7381129-200-0070A Flapper & Chain - Replaces 738258-0070A - for original 738181-0070A Flush Valve $21.56 Enter a quantity and
korky flapper 2001BP 2001BP Replacement flapper only - for #87 Will-Fit 2" Flush Valve $4.17 Enter a quantity and
7 american standard chrome trip lever 730283-0020a 730283-0020A Side Mount Trip Lever - Chrome $82.29 Enter a quantity and
american standard satin nickel 730283-2950a 730283-2950A Side Mount Trip Lever - Satin Nickel $91.50 Enter a quantity and
8 american standard tank to bowl kit 47158-07070a 047158-0070A Tank to Bowl Coupling Kit $13.69 Enter a quantity and
9 american standard heritage toilet seat 5357 white 5357.016 Heritage Elongated Toilet Seat - White Discontinued

Replacement Parts for American Standard VorMax Heritage Toilets
Two Piece Model - #205AA / Tank #4270

American Standard VorMax Heritage Series toilet parts diagram - tanks #4270
Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a with dimensions 7381125-400.0070A Fluidmaster Fill Valve $40.09 Enter a quantity and
2 fluidmaster fill valve replacement cap 385 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 fluidmaster 215 refill tube with roller clamp 215 Roller Clamp, Refill Tube & Angle Adapter Clip $4.62 Enter a quantity and
4 fluidmaster angle adapter clip for refill tube B12-350 Angle Adapter Clip $3.01 Enter a quantity and
5 american standard vormax flush assembly side view 7381655-200-0070A 7381655-200.0070A Vormax Flush Valve Assembly - includes complete dual flapper assembly - view dimensions $87.85 Enter a quantity and
6 american standard vormax flapper assembly 7381657-200-007 7381657-200.0070A Vormax Flapper Assembly - includes dual flappers with silicone seals & teeter bar $48.08 Enter a quantity and
7 american standard silicone seals for vormax flapper 7381424-100-007 7381424-100.0070A Silicone Seals for Vormax Flapper Assembly (PAIR) $32.64 Enter a quantity and
8 american standard trip lever chrome 7381459-200-002 7381459-200.0020A Front Mount Trip Lever - Chrome $57.94 Enter a quantity and
american standard trip lever satin nickel 7381459-200-295 7381459-200.2950A Front Mount Trip Lever - Satin Nickel Temporarily
Unavailable
american standard trip lever oil rubbed bronze 7381459-200-224 7381459-200.2240A Front Mount Trip Lever - Oil Rubbed Bronze $42.26 Enter a quantity and
9 american standard tank to bowl coupling kit 7381426-100-007 7381426-100.0070A Tank to Bowl Coupling Kit $21.62 Enter a quantity and
10 --- 5055A Contemporary Vormax Elongated Toilet Seat - White Not Available
bemis affinity premium elongated toilet seat 1200e4 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
11 american standard toilet bolt cap covers 034783-0200a 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "I purchased the #738109-0070A flush valve. How do you properly install it?"
A. To install the #738109-0070A, use the flat disc (installation driver/flush valve wrench) included with the flush valve and place it inside the flush valve so the slots on the disc line up with the vertical ridges on the plastic insert inside the flush valve. Use a large screwdriver or a 3/8" socket extension and turn the disc counterclockwise to loosen the compression washer to the smallest diameter in order to place the flush valve into the hole in the bottom of the tank. Rotate the flush valve as needed to keep the fill valve rod or tank lever out of the way of the overflow tube. Now turn the flat disc clockwise to begin tightening the flush valve. As the flush valve is tightened the washer will begin to compress evenly on the inside of the tank hole. The flush valve may want to rotate from your set position so you will have to hold the overflow tube with one hand as you are tigtening. Tighten until the flush valve is firmly in place. Remove the disc (installation driver) and install the flapper. Test for leaks.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
