American Standard Champion Series Toilet Repair Parts

Champion, Skyline, Oakmont, Doral, & Townsend Toilets



Champion4 two-pieceChampion®4 Two-Piece
2002/2018/2023 - Tank 4260/4266
Champion4 one-pieceChampion®4 One-Piece
2004/2034

Doral Champion4Doral Champion®4
2367/2368/2369 - Tank 4272
Doral Classic Champion4Doral Classic Champion®4
2058/2074/2076 - Tank 4281

Oakmont Champion4Oakmont Champion®4
2625/2627/2738 - Tank 4272
Skyline Champion4Skyline Champion®4
2067/2219/2221 - Tank 4077
Townsend Champion4 2733 & 2735 toiletTownsend Champion®4
2733/2735 - Tank 4281

Replacement Parts for American Standard Champion®4 Toilets
Two Piece Models - Tank #'s 4077, 4260, 4266, 4272 & 4281

These two piece Champion®4 toilets use the same internal components, but may have different trip levers. Additionally, please note that many older Champion toilets can use the parts listed below in place of their original components.

American Standard Champion Series toilet repair parts diagram

Please note: The 738611 series trip levers were included with the original Champion #4260 tanks. As with any replacement part, we strongly suggest you compare your existing lever to the photos provided to ensure you are getting the correct part.

Item # Part # Description Price & Quantity
1 738565-424-0070A Fluidmaster Water Control Assembly - Replaced by "will fit" 400A fill valve $9.95
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $4.98
3 Tube & Adapter Refill Tube & Angle Adapter $3.99
4 3175.002 Flush Valve - Originally replaced by 3174.002 Discontinued
3174.105-0070A NEW STYLE Flush Valve (8-1/2" tall) - Will fit in place of old style Champion valves
- includes flush valve seal and wrench for easy maintenance
$30.91
5 7301111-0070A Flush Valve Seal and O-Ring - for NEW STYLE flush valve 3174.002 $7.59
Korky Seal "Will Fit" Flush Valve Seal ONLY - for NEW STYLE flush valve 3174.002 $5.93
738651-0070A "Will Fit" Flush Valve Seal ONLY - for OLD STYLE flush valve 3175.002 $6.89
6 738995-0020A Champion 4 LEFT Side Trip Lever - Chrome - fits Tank #4266 $23.81
738997-0020A Champion 4 RIGHT Side Trip Lever - Chrome - fits Tank #4266 $23.31
738835-0020A Doral/Oakmont Champion 4 Trip Lever - Chrome - fits Tanks #4272, #4281 $49.68
738837-0020A Doral Classic/Townsend Champion 4 Trip Lever - Chrome - fits Tank #4281 $56.69
J-954 "Will Fit" Doral Classic/Townsend Champion 4 Trip Lever - Chrome
(view more finish options) - fits Tank #4281
$52.19
738922-0020A Skyline Champion 4 Trip Lever - Chrome - fits Tank #4077 Discontinued
738611-0020A Trip Lever for Older Champion 4 #4260 Tanks (with white flush valves) - Chrome $26.95
738611-0990A Trip Lever for Older Champion 4 #4260 Tanks (with white flush valves) - Polished Brass $37.56
7 738756-0070A Tank-to-Bowl Seal Kit - includes installation instructions
(The MFR recommends ordering this kit when replacing #3174.002 flush valve)
$20.42
8 5330.010 Champion Slow Close Round Front Seat with Cover - White Not Available
200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $47.60
5325.010 Champion Slow Close Elongated Front Seat with Cover - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $51.88
9 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $5.68

- OR - View Cart

Replacement Toilet Parts for American Standard Champion®4
One Piece Models - #2004 & #2034 (Right Height)

American Standard Champion Series toilet parts diagram for one-piece toilets

Item # Part # Description Price & Quantity
1 738565-425-0070A Fluidmaster Water Control Assembly - Replaced by "will fit" 400A fill valve $9.95
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $4.98
3 Tube & Adapter Refill Tube & Angle Adapter $3.99
4 3280-040-0070A Flush Valve Assembly - includes seal (adapter assembly sold separately) $36.51
5 7301111-0070A Flush Valve Seal and O-Ring - for NEW STYLE flush valve 3174.002 $7.59
Korky Seal "Will Fit" Flush Valve Seal ONLY - for NEW STYLE flush valve 3174.002 $5.93
6 738826-0070A Adapter Assembly $83.27

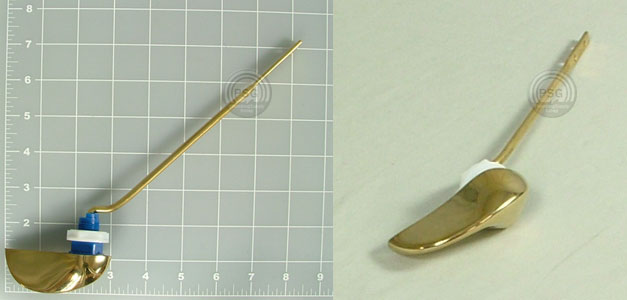

7 738772-0020A Front Mount Trip Lever - Chrome $19.83
738772-2950A Front Mount Trip Lever - Satin $35.98
8 5325.010 Champion Slow Close Elongated Front Seat with Cover - White Not Available
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $51.88
9 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $5.68

- OR - View Cart

Old Style One-Piece Champion Toilet
Replacement Parts for OLD Models 2000, 2005, 2149 (4049 tank model number)

Image of American Standard old style one-piece toilet

You will need to measure your existing fill valve to know which valve you need to order

Part # Description Price & Quantity

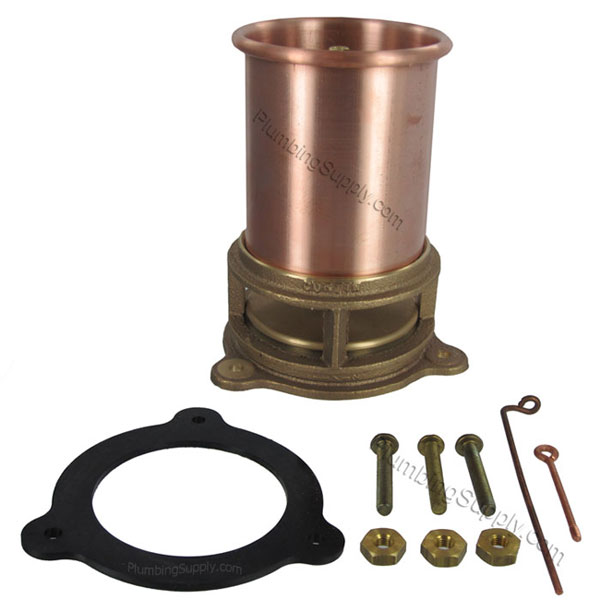

Curtin 50 Canister Style Flush Valve (replaced old #3) - find parts for Curtin #50 Flush Valve here $108.11
47086-0700 Actuator Style Flush Valve (replaced old #4) $36.82
3137-1550 9-3/4" Toilet Fill Valve - "will fit" some one-piece American Standard #2149 Toilets $49.99
3131-0750 11" Toilet Fill Valve - "will fit" some one-piece American Standard #2149 Toilets $65.89
3137-0980 11-1/2" Toilet Fill Valve - "will fit" some one-piece American Standard #2149 Toilets $48.95
3136-0580 13-3/4" Toilet Fill Valve - "will fit" some one-piece American Standard #2149 Toilets $49.53
3518-0160 Tank Lever - Chrome - for use with Curtin 50 flush valve $10.72

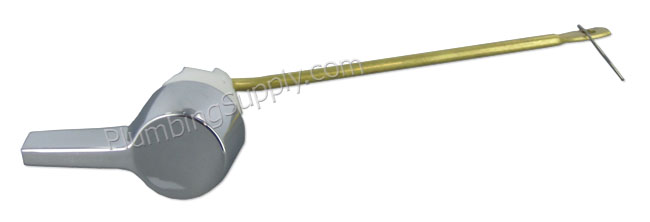

73439-0200 Tank Lever - Chrome - for use with 47086-0700 flush valve $12.39

- OR - View Cart


Frequently Asked Questions

Q. "Can I change my 1.2 gpf Champion 4 to a 1.6?"
A. According to American Standard, to do this, you would replace your 1.2 gpf Champion 4 flush valve with a 1.6 gpf model #3174.002 Champion 4 flush valve.

Q. "How are the toilet fill valve lengths measured?"
A. The toilet fill valve measurements we show are measured from the inside bottom of the tank to the top of the fill valve. The threaded water supply shank that fits through the bottom of the tank is not included in this measurement.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
