Platner Series Toilet Repair Parts
by American Standard

Your search for parts to keep your American Standard Platner Toilet working properly is over! Finding replacement parts can be difficult, and replacing a toilet is not always desireable. Finding plunger repair kits, flush valve mounting kits, actuating units and more is easy with PlumbingSupply.com ®.

American Standard Platner toilet

Replacement Parts for American Standard Platner Series Toilets
One Piece Model - #2029.600

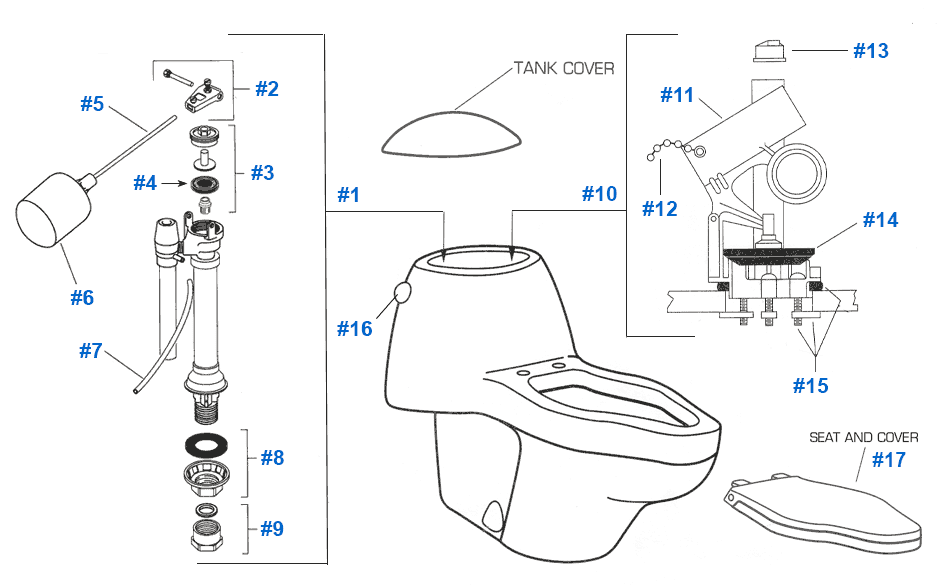

Parts diagram for American Standard Platner toilet - 2029.600

Item # Image Part # Description Price & Quantity
1 american standard fill valve 47174-0070a with dimensions 47174-0070A Fill Valve / Water Control Assembly - float ball sold separately - see item #6 $122.91 Enter a quantity and
2 american standard pivot arm kit 047217-0070a 047217-0070A Pivot Arm Kit $9.05 Enter a quantity and
3 american standard plunger repair kit 12971-0070 012971-0070A Plunger Repair Kit $12.00 Enter a quantity and
4 american standard plunger gasket only 73070-0070 73070-0700 Plunger Gasket ONLY $1.76 Enter a quantity and
5 american standard threaded brass float rod 033230-0070A-WF 033230-0070A Float Rod - 8" length - brass - flat on one end $10.54 Enter a quantity and
6 plastic float ball 4 inch by 5 inch "Will-Fit" Float Ball Float Ball - Replaces original 047381-0070A float ball $3.70 Enter a quantity and
7 clear refill tube "Will-Fit" Refill Tube Refill Tube - Replaces 030079-0070A refill tube $1.71 Enter a quantity and
8 american standard water control mount kit washer brass shank nut 047398-0070a 047398-0070A Water Control Mounting Kit - (washer and brass shank nut) Discontinued
9 american standard brass supply coupling kit 047050-0070a 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
10 american standard flush valve 47201-0070a 047201-0070A Flush Valve (aka #5 New Style) Discontinued
lavelle flush valve 723x with korky plus flapper with dimensions 723X Possible "Will-Fit" Flush Valve $19.99 Enter a quantity and

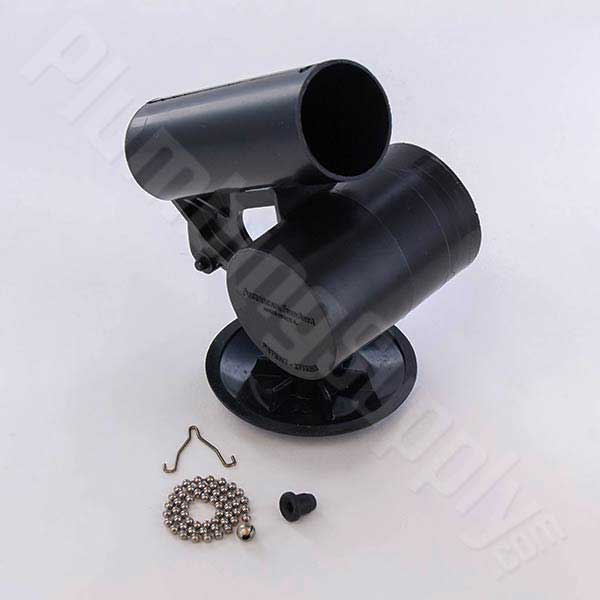

11 american standard actuating unit flush valve 073373-0070a 073373-0070A Actuating Unit with Seat Disc & Chain $29.58 Enter a quantity and
12 american standard chain assembly for flush valve actuator 8321-0700A 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
13 --- 011190-0070A Refill Tube Clip Discontinued
14 american standard seatdisc 033643-0070a 033643-0070A Snap-On Seat Disc Discontinued
american standard seatdisc 033643-0700 033643-0700 Seat Disc with Threaded Brass Insert Discontinued
american standard sealdisk for flush valve as444 AS444 "Will Fit" Snap-On / Threaded Seat Disc - (remove brass insert for snap-on version) $5.55 Enter a quantity and
15 american standard flush valve mounting kit 047397-0070a 047397-0070A Flush Valve Mounting Kit Discontinued
16 --- 047396-0210A Side Mount Actuator Button - Bone Discontinued
17 --- 5335.019 Platner Toilet Seat - for toilets with 3-1/2" bolt spread - Bone Discontinued
--- 5338.012 Platner Toilet Seat - for toilets with 7-3/4" bolt spread - Bone Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.



Frequently Asked Questions

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
