Lexington Series Toilet Repair Parts
by American Standard

We here at PlumbingSupply.com ® are pleased to offer American Standard Lexington replacement parts. Replacement parts for many toilets are sometimes difficult to find, but if you need a flush valve mounting kit or an actuating unit, we have what you need!

Lexington

Replacement Parts for American Standard Lexington Series Toilets
One Piece Model - #2037.100 (Elongated)

Toilet parts diagram for American Standard - Lexington series

Please note: If your toilet model number is 2037 and you have a trip lever instead of a push button, you most likely have an Inga toilet. American Standard discontinued the Inga toilet in 1995, and it was replaced by the Lexington.

Item # Image Part # Description Price & Quantity
1 american standard water control assembly 738103-0070a 738103-0070A Fill Valve / Water Control Assembly Discontinued
fluidmaster 400a fill valve 400A "Will Fit" Replacement Fluidmaster Fill Valve - float ball/rod NOT required $16.62 Enter a quantity and
2 repair kit 1b1 fill valve Repair Kit 3-Screw Fill Valve Repair Kit - for original 738103-0070A valve ONLY $3.15 Enter a quantity and
fluidmaster replacement cap 385 Cap Assembly Fill Valve Repair Kit - for Fluidmaster 400A valve (includes diaphragm and float lever fulcrum) $5.87 Enter a quantity and
3 plastic float ball Float Ball "Will Fit" Plastic Float Ball - for original 738103-0070A valve ONLY $3.70 Enter a quantity and
4 american standard flush valve 738109-0070a 738109-0070A Flush Valve - includes flapper assembly & flush valve wrench, view installation instructions $45.63 Enter a quantity and
5 american standard flapper with chain 47146-0070a 047146-0070A Flapper & Chain - "Will-Fit" Chemical Resistant 047146-0070A Replaces original flapper $7.65 Enter a quantity and
6 american standard flush valve wrench 738304-0070a 738304-0070A Flush Valve Wrench $10.15 Enter a quantity and
7 american standard side push button actuator 738100-0020a 738100-0020A Side Mount Actuator Button - chrome $29.34 Enter a quantity and
--- 738100-0210A Side Mount Actuator Button - bone Discontinued
american standard polished brass side push button actuator 38100-0990a 738100-0990A Side Mount Actuator Button - polished brass $49.40 Enter a quantity and
8 american standard rise and shine elongated toilet seat 5324 5324.019 Rise & Shine Elongated Toilet Seat - White Discontinued
bemis affinity premium elongated toilet seat 1200e4 1200E4 Premium Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 american standard white bolt cover plate 034782-0200A 034782-0200A Bolt cover plate - white - PAIR Discontinued

- Chlorine, hard, and acidic water is what breaks down the rubber in your flapper and fill valves -
- Save money and water by replacing these toilet parts before they wear out -


Replacement Parts for American Standard Lexington Series Toilets
One Piece Models - #2007.012 & 2006.014

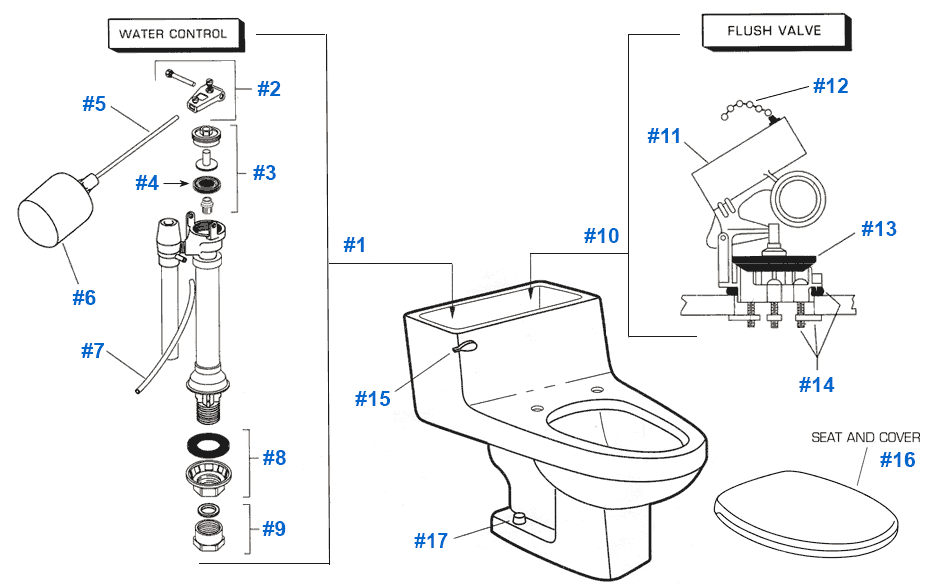

Diagram of replacement toilet parts for American Standard - Lexington series

Item # Image Part # Description Price & Quantity

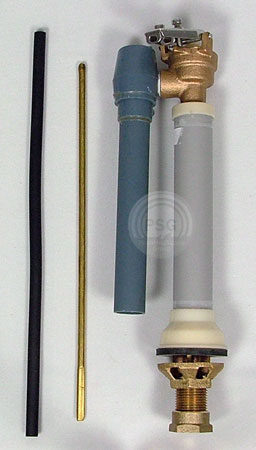

1 american standard fill valve 47130-0070a with dimensions 47130-0070A Water Control Assembly / Fill Valve - float ball sold separately - see item #6 $136.98 Enter a quantity and
2 american standard pivot arm kit for older fill valves 047217-0070a 047217-0070A Pivot Arm $9.05 Enter a quantity and
3 american standard plunger repair kit 12971-0070 012971-0070A Plunger Repair Kit $12.00 Enter a quantity and
4 american standard plunger gasket only 73070-0070 73070-0700 Plunger Gasket ONLY $1.76 Enter a quantity and
5 american standard threaded brass float rod 033230-0070A-WF 033230-0070A Float Rod - 8" length - brass - flat on one end $10.54 Enter a quantity and
6 plastic float ball 4 inch by 5 inch "Will-Fit" Float Ball" Float Ball - Replaces original float ball $3.70 Enter a quantity and
7 will-fit refill tube for toilet fill valves "Will-Fit" Refill Tube Refill Tube - Replaces 030079-0070A $1.71 Enter a quantity and
8 american standard water control mount kit 047398-0070a 047398-0070A Water Control Mounting Kit - (brass shank nut and flat rubber washer) Discontinued
american standard 47399-0070a water control mounting kit 047399-0070A Water Control Mounting Kit - (brass shank nut and concave rubber washer) Discontinued
9 american standard brass supply coupling kit 047050-0070a 047050-0070A Supply Coupling Kit $6.56 Enter a quantity and
10 american standard will-fit flush valve 47107-0070a "Will Fit" Flush Valve Flush Valve aka #4 New Style, chain sits at TOP of unit - Replaces original flush valve 47107-0070A $42.60 Enter a quantity and
american standard flush valve 47250-0070a 47250-0070A Flush Valve - chain sits on SIDE of unit $50.49 Enter a quantity and
11 american standard actuating unit 68470-0070a 068470-0070A Actuating Unit with Seat Disc & Chain $24.20 Enter a quantity and
12 american standard chain assembly for flush valve actuator 8321-0700A 8321-0700A Chain Assembly - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and
13 american standard seat disc 033643-0070a 033643-0070A Snap-On Seat Disc Discontinued
american standard seat disc 033643-0700 033643-0700 Seat Disc with Threaded Brass Insert Discontinued
american standard seal disk for flushvalve as444 AS444 "Will Fit" Seat Disc - includes threaded brass insert, remove for snap-on installation $5.55 Enter a quantity and
14 american standard flush valve mounting kit 47397-0070a 047397-0070A Flush Valve Mounting Kit - includes nuts, bolts and mounting gasket ONLY $21.71 Enter a quantity and
15 american standard cadet tank lever 4 inch chrome "Will-Fit" Trip Lever Trip Lever - Chrome - Replaces original 47123-0020A-CH $12.46 Enter a quantity and
16 american standard rise and shine toilet seat 5322 round white 5322.015 Rise & Shine Round Toilet Seat - White Discontinued
bemis affinity premium toilet seat 200e4 with dimensions 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
american standard rise and shine elongatd toilet seat 5324 5324.019 Rise & Shine Elongated Toilet Seat - White Discontinued
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
17 american standard toilet bolt cap covers 034783-0200a 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and


Frequently Asked Questions

Q. "I purchased the #738109-0070A flush valve. How do you properly install it?"
A. To install the #738109-0070A, use the flat disc (installation driver/flush valve wrench) included with the flush valve and place it inside the flush valve so the slots on the disc line up with the vertical ridges on the plastic insert inside the flush valve. Use a large screwdriver or a 3/8" socket extension and turn the disc counterclockwise to loosen the compression washer to the smallest diameter in order to place the flush valve into the hole in the bottom of the tank. Rotate the flush valve as needed to keep the fill valve rod or tank lever out of the way of the overflow tube. Now turn the flat disc clockwise to begin tightening the flush valve. As the flush valve is tightened the washer will begin to compress evenly on the inside of the tank hole. The flush valve may want to rotate from your set position so you will have to hold the overflow tube with one hand as you are tightening. Tighten until the flush valve is firmly in place. Remove the disc (installation driver) and install the flapper. Test for leaks.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
