Repair Parts for American Standard® Toilets

Instead of buying a new toilet, replace old worn out toilet parts and save money!

PlumbingSupply.com® offers the following repair parts for American Standard® toilets. But did you know that we also offer replacement tank lids for American Standard® toilets? Browse our impressive selection of obsolete tank lids.


Need help figuring out what model toilet you have?
Don't stress - just check out our easy to use American Standard toilet picture reference
OR our complete toilet model number cross reference!

If your toilet is constantly running then you should check your flush valve, fill valve, or the trip lever. An old flapper is the most common source of leaks, with the fill valve being next. Save money and water by replacing these toilet parts before they wear out.


Replacement Flush Valves For American Standard Toilets

image of American Standard toilet flush valves

Flush valve measurements are from the toilet tank to the top of the overflow tube
Part # Description Price & Quantity
3175.002 Flush Valve - Originally replaced by 3174.002 - (8 1/2" tall)
- Replaced again by 3174.105-0070A - (8 1/2" tall)
- Will fit in place of old style Champion flush valves
- includes flush valve seal and o-ring (sometimes comes in blue) and wrench for easy maintenance
- uses New Style flush valve seal
Discontinued
Use
7381983-400-007
7381983-400-007 Champion PRO Flush Valve - Replaces 3175.002  and  3174.105-0070A - $49.39
3280.040-0070A New Style Flush Valve fits some Champion4 toilets (6 3/4" tall)
- uses New Style flush valve seal
$46.04
47049-0700A Old style #6 flush valve complete fits some 1 piece closets - view dimensions
- uses either snap on or threaded 33643 seat disc
$43.82

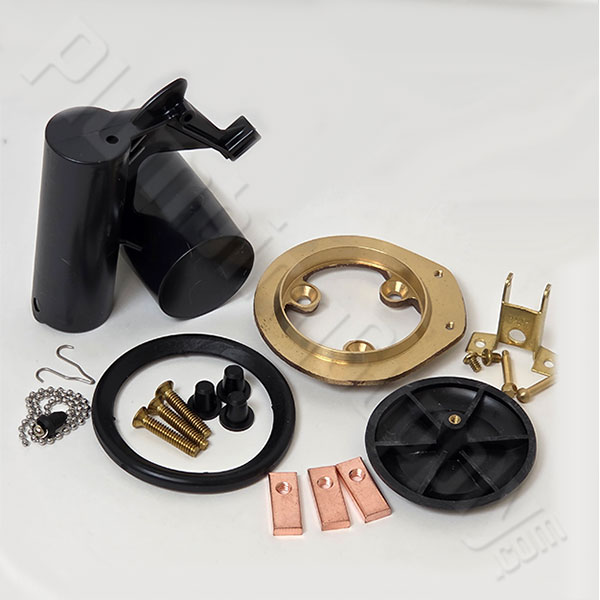

47086-0700 Old style #4 flush valve complete with mounting screws, clamping lugs and tank seal - fits some 1 piece closets (Lexington, Ellisse, Roma II, Plaza Suite, Carlysle 2010); uses #08162-0700 Actuator (included) - view component parts
- uses either snap on or threaded 33643 seat disc - purchase individual parts explore further
$46.75
47088-0700 Flush valve assembly - replaces old style N3055 flush valve - fits models 4040, 4043, 4048 - 14" height overall, 12-1/4" from toilet tank to top of overflow - includes 4" trip lever
- uses either snap on or threaded 33643 seat disc
$60.49
Replacement Flush Valve - Korky #4020 for 47088-0700
Adjustable overflow tube height - 7" to 11-1/2", includes flapper
$10.97
Replacement Flush Valve - Korky #87 for 47088-0700
12" overall height, 10" overflow tube, includes flapper
$14.99
47088-0700-6 Flush valve assembly - replaces old style N3055 flush valve - fits models 4040, 4043, 4048 - 14" height overall, 12-1/4" from toilet tank to top of overflow - includes 6" trip lever
- uses either snap on or threaded 33643 seat disc
$55.19
47089-0700 Flush valve assembly (same as 47089-0070A)
Fits the Glenwall, Cadet and Compton toilets
- uses either snap on or threaded 33643 seat disc
$21.62
47107-0070A New style #4 flush valve fits some 1 piece Ellisse toilets (5-1/2" tall) - Replaced by "Will Fit" - uses either snap on or threaded 33643 seat disc $42.60
47138-0070A New style #6 flush valve complete for 1 piece closets (Roma)
uses # 33642-0070A Actuator (6 7/8" tall) - included
- uses either snap on or threaded 33643 seat disc
$94.54
47139-0070A Flush valve fits some 2 piece Ellisse toilets (8-1/8" tall)
- uses either snap on or threaded 33643 seat disc
$44.13

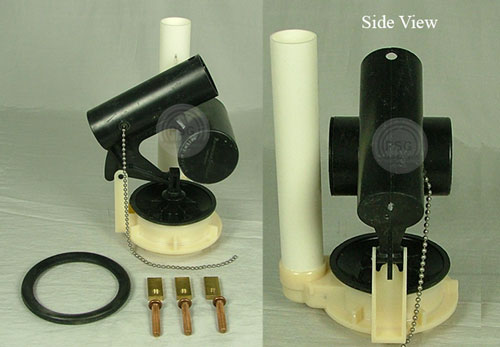

47201-0070A 47201-0070A New Style #5 Flush valve fits some Platner toilets (7" tall)
- uses either snap on or threaded 33643 seat disc
Discontinued
Possible "Will-Fit" Flush Valve - 723X $19.99
47230-0070A Flush Valve fits some Heritage toilets (7-3/4" tall)
- uses either snap on or threaded 33643 seat disc
Discontinued
47250-0070A Flush Valve fits some Ellisse, Lexington, Plaza and Roma toilets (5-1/4" tall)
- uses either snap on or threaded 33643 seat disc
$50.49
47387-0070A Flush Valve fits some Cadet, Glenwall, Plebe and Yorkville toilets (9-1/2" tall overflow)
- uses 047146-0070A replacement flapper
Discontinued
Use #87 will-fit
#87 "Will-Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, may need to be cut down to height of original valve (altered valves are non-returnable) $14.99

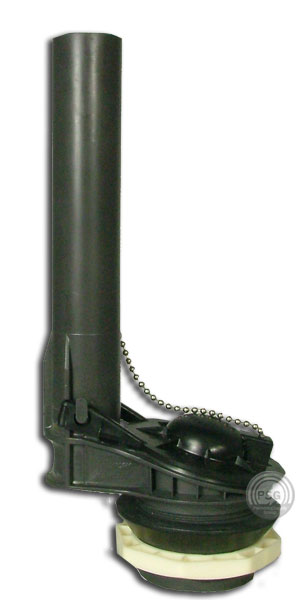

47394-0070A Flush Valve fits some Cadet and Heritage toilets (9 3/8" tall overflow tube)
- uses 047146-0070A replacement flapper
Discontinued
Use #87 above
738069-0070A Flush Valve fits some Lexington, Ellisse and Hamilton toilets (6" tall) - Replaced by 738109-0070A which was also discontinued - see alternative #723X below Discontinued
Lavelle 723X Alternative "Will Fit" Replacement for 738069-0070A - 7-1/2" tall - includes flush valve wrench - view dimensions
- Please Note: The Lavelle 723X may need to be cut down to height of original valve. Altered valves are non-returnable
$19.99
738109-0070A American Standard - Flush Valve fits some Heritage, Ellisse, Hamilton and Lexington toilets (6-1/4" tall) - includes flush valve wrench
- uses 047146-0070A replacement flapper
$45.63
738138-0070A Flush Valve fits some Cadet II, Calais, Clarion and Colony toilets (9 1/4" tall)
- original flush valve uses 7381129-200-0070A replacement flapper
Replaced by "will fit" (10" tall)
Please note: Valve can be cut down if necessary to match your existing flush valve. Modified valves are non-returnable.
$8.38
738181-0070A 738181-0070A Flush Valve fits some Repertoire toilets (8" tall) Discontinued
Use Will-Fit #87
#87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, may need to be cut down to height of original valve (altered valves are non-returnable) $14.99
738360-0070A Flush Valve fits Cadet tank #4112, Ravenna tank #4096 (10-1/2" tall) Discontinued
Use Will-Fit
738360-0070A Will-Fit - Replacement Flush Valve $34.61
738378-0070A Flush Valve fits some Savona, Plaza Suite and Antiquity toilets
- includes flush valve wrench and flapper
- uses 7381129-200-0070A replacement flapper
$45.82
738447-0070A Flush Valve - 10 1/2" overall height - 8 3/4" overflow tube height - uses 7381129-200-0070A replacement flapper
Discontinued
#87 "Will Fit" 2-Inch Flush Valve - 10-1/2" tall overflow, may need to be cut down to height of original valve (altered valves are non-returnable) $14.99
738461-0070A Flush Valve for Cadet and Colony toilets - fits tank #4112.500 (9 1/4" tall) - uses 7381129-200-0070A replacement flapper
Replaced by "will fit" (10" tall)
Please note: Valve can be cut down if necessary to match your existing flush valve. Modified valves are non-returnable.
$8.38
738484-0070A Flush Valve for Cadet toilets - fits tank #4112 (8 7/8" tall)
Replaced by "will fit" (10" tall)
Please note: If necessary, valve can be cut down to match your existing flush valve. Modified valves are non-returnable.
- original flush valve uses 7381129-200-0070A replacement flapper
$8.38

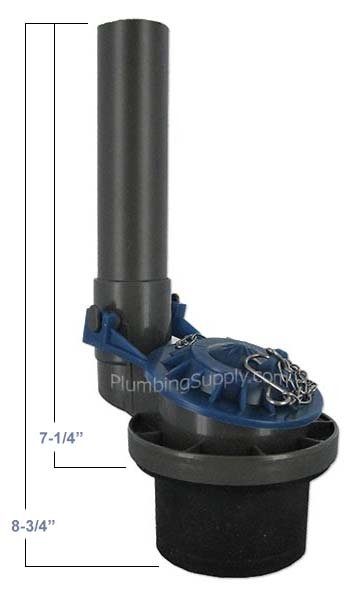

738683-0070A Flush Valve fits some one-piece Cadet toilets (7-1/4" tall)
- uses 047146-0070A replacement flapper
$47.04
738921-100.0070A Flush Valve fits some Cadet 3 toilets - includes 3" flapper for tank #4021
6-1/2" overflow height - (fits 3 3/8" - 3 1/2" diameter hole opening)
- uses 738920-0070A replacement flapper
$19.90
Curtin Valve #50 Curtin #50 - Canister-style brass and copper flush valve - fits some one-piece toilets, including some Champion 4 and Compact El Space Saver - Replacement for original AS #3 flush valve - Find parts for Curtin #50 Flush Valve here Discontinued
American Standard #47087-0700 Flush Valve
- (American Standard suggested replacement flush valve for Curtin 50 - OUTLET must be in center of tank for this replacement flush valve to work)
view installation instructions for #47087-0700 flush valve
$51.02

- OR - View Cart

Replacement Seals For American Standard Toilets

Part # Description Price & Quantity
#738651-0070A Old Style Flush Valve Seal (replaced by "will fit" seal kit #435) - fits old style Champion 4 flush valves - Fits these tank models: 2057, 2087 and 2035 $8.23

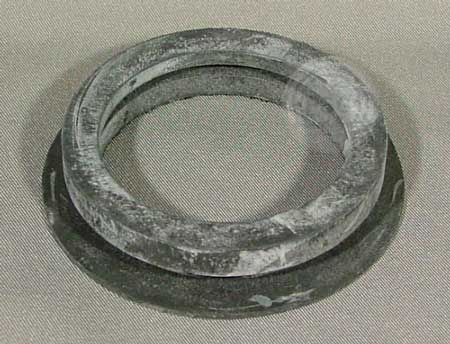

#73069-0700A Seal for N-3055 flush valve $5.53
#7301111-0070A Flush valve seal fits New Style Champion 4 and Flow-wise toilets - 4-1/4" O.D., 2-3/4" I.D.
(sometimes comes in blue)
$12.27
#715-2700 Seal fits some flush valves - view dimensions $3.78
#7381042-0070A Flush Valve Seal - 2-5/8" diameter $3.77

- OR - View Cart

Fill Valves (aka Ballcocks) For American Standard Toilets

variety of american standard fill valves

Part # Description Price & Quantity
1B1X OEM Fill Valve (ballcock) WITHOUT diverter assembly - includes plastic fill valve, clear vinyl outlet tube, slip joint nut and washer, friction ring, shank nut and washer, and float rod
- float ball sold separately
Discontinued
1B1X - "Will-Fit" "Will-Fit" 1B1X Fill Valve - Fits #2014.14 Galleria toilet and many other one-piece toilets
- Includes: plastic ballcock/fill valve, refill tube, brass float rod and mounting hardware (washers, nuts and screws) - WITHOUT float ball & diverter assembly. Complete repair kit, plunger/washer, and top assembly also available
$51.57
1B1X-Complete Complete Fill Valve Assembly - fits many one-piece toilets
-Includes brass 1B1X fill valve, refill tube, brass float rod, black plastic float ball, diverter assembly and mounting hardware (washers, nuts & screws) - without flapper and flush valve - durable BRASS construction
Complete repair kit, plunger/washer, and top assembly also available
Discontinued
Plastic Will-Fit
Available Above
3131-0750 Toilet fill valve without Vent-Away - 11" Length - fits some Cadet, Glenwall, Carlyle and Compton toilets - most common fill valve used for #4052 - float ball sold separately $84.20
3136-0580 Toilet fill valve without Vent-Away - 13-3/4" Length - fits some Cadet, Glenwall, Carlyle and Compton toilets Discontinued
3137-0980 Toilet fill valve without Vent-Away - 11-1/2" Length - fits some Cadet, Glenwall, Carlyle and Compton toilets - most common fill valve used for #4052 tanks - float ball sold separately $61.53
3137-1550 Toilet fill valve without Vent-Away - 9-3/4" Length - fits some Cadet, Glenwall and Compton toilets - most common fill valve used for #4049 tanks - float ball sold separately Replaced by
7381125-400-007
below
047189-0070A Fill valve fits some Cadet toilets (9 3/8" tall) - Replaced by 7381125-400-007 $40.09
047212-0070A Fill Valve fits some Baby Devoro, Glenwall, Plebe and Yorkville toilets (10 3/8" tall) - float ball sold separately $34.06
738145-0070A Fill Valve fits some Cadet, Colony, El-Space-Saver and Repertoire toilets (10 1/4" tall)    replaced by Korky® QUIETFILL Toilet Fill Valve
(float ball or rod NOT required)
$11.95
738103-0070A Fill Valve fits some Lexington, Pallas, and Ellisse toilets - 10-1/2" tall
- Replaced by Fluidmaster 400A - adjustable 9" to 14" - includes float assembly
$16.62
047130-0070A Fill Valve fits some Lexington toilets (9-5/8" tall) - float ball sold separately $136.98

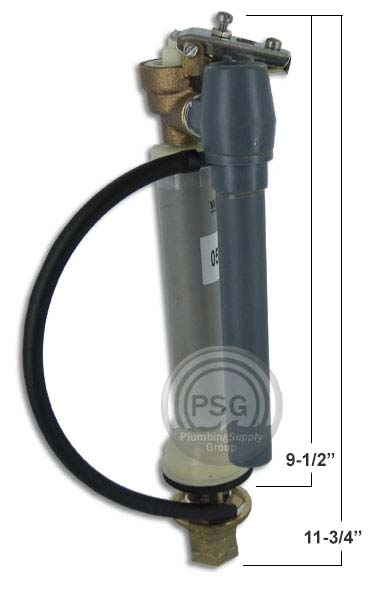

047131-0070A Fill Valve fits some Roma, Ellisse and Lexington toilets - 9-1/2" tall - float ball sold separately $114.95
047133-0070A Fill Valve fits some Roma 2-piece toilets - float ball sold separately $95.68
047135-0070A Fill Valve fits some Roma and (Luxor post 1967) toilets - with vent-away (6 1/4" tall) Discontinued
047136-0070A Fill Valve fits some Roma, Concord and (Luxor post 1967) toilets (11" tall) - without vent-away - float ball sold separately $345.47
047174-0070A Fill Valve fits some Heritage and Platner toilets (10" tall) - float ball sold separately $122.91
738565-401-0070A Fill Valve fits some Cadet toilets adjustable Height
- Replaced by 7381125-400-0070A - adjustable: 9" to 12.5"
$40.09
738053-0070A Fill Valve fits some Plaza, Inga, and Lexington toilets (12 1/2" tall) - Replaced by Korky® QUIETFILL Toilet Fill Valve USA flag button $11.95
738351-0070A Fill Valve fits some Line Series toilets (10-1/2" tall)
- Replaced by Fluidmaster 400A - adjustable 9" to 14" - includes float assembly
$16.62

- OR - View Cart

Plunger Repair Kits For American Standard Toilet Fill Valves

Part # Description Price & Quantity
11372-0070 Plunger repair kit fits some Yorkville, Glenwall and Cadet toilets $13.64
12971-0070 Plunger repair kit fits some Plaza Suite, Platner, Lexington and Ellisse toilets $12.00
73070-0070A - Gasket ONLY $1.76

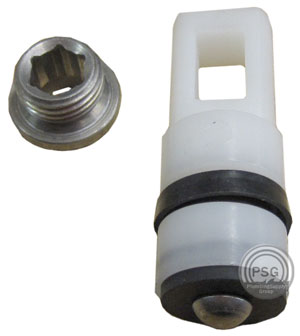

12981-0070A Plunger repair kit fits some Luxor & Roma toilets (plastic construction) $21.95

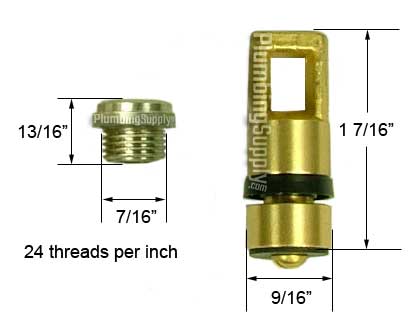

12981-0900 Plunger repair kit fits some Luxor & Roma toilets (brass construction) $15.24
8339-0700 Plunger Only - fits some Luxor & Roma toilets (brass construction) $9.01
011172-0070A Plunger repair kit fits some Baby Devoro and Plebe toilets $6.14

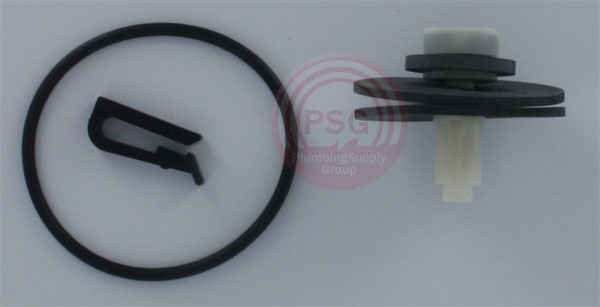

047243-0070A Plunger repair kit fits some Repertoire and Cadet toilets $19.16
038203-0070A "Will-Fit" Plunger repair kit - fits some Galleria toilets $9.00
068290-0070A Plunger repair kit fits some Ellisse toilets with 4075 tanks $11.80
1B1X-KIT
Will-Fit
"Will-Fit" Repair Kit for the 1B1X fill valves
Includes large o-ring and plunger with washers
$5.59
1B1X-BCRKC Complete Repair Kit for the 1B1X
Includes top assembly, large o-ring, plunger with washers and 3 screws
Discontinued

- OR - View Cart

Toilet Flappers For American Standard Toilets

Part # Description Price & Quantity
738071-0070A Flapper fits some Clarion toilets $17.79
738159-0070A Flapper fits some Colony and Cadet toilets - Replaced by 7381129-200-0070A $21.56
738165-0070A Flapper with beaded chain and float - Replaced by 7381129-200-0070A $21.56
738258-0070A Flapper fits some Repertoire toilets - Replaced by 7381129-200-0070A $21.56
7381129-200-0070A Flapper fits many toilet models - See bead setting chart $21.56
7381193-200-007 3" Flapper fits many Cadet PRO toilet models $14.90
738358-0070A Flapper and chain with float - Replaced by 7381129-200-0070A $21.56
738359-0070A Flapper fits some Cadet toilets - Replaced by 7381129-200-0070A $21.56
738380-0070A Flapper fits some Cadet toilets - Replaced by 7381129-200-0070A $21.56
738392-0070A Flapper fits some Colony and Cadet toilets - Replaced by 7381129-200-0070A $21.56
738395-0070A Flapper and chain - Replaced by 7381129-200-0070A $21.56
738397-0070A Flapper fits some Colony and Cadet toilets - Replaced by 7381129-200-0070A $21.56
047146-0070A "Will-Fit" Flapper fits some Glenwall, Galleria, Cadet, Baby Devoro, Antiquity, Yorkville, Plebe, Lexington, Heritage and Hamilton toilets $7.65
738920-0070A Toilet flapper - fits American Standard "Cadet 3" $13.07
738068-0070A Flapper for some 1.6 gallon toilets, molded white plastic (OEM Certain Seal #400) Discontinued
See 53316 Below
53316 "Will-Fit" Certain Seal replacement flapper $13.64

- OR - View Cart

Trip Levers For American Standard Toilets

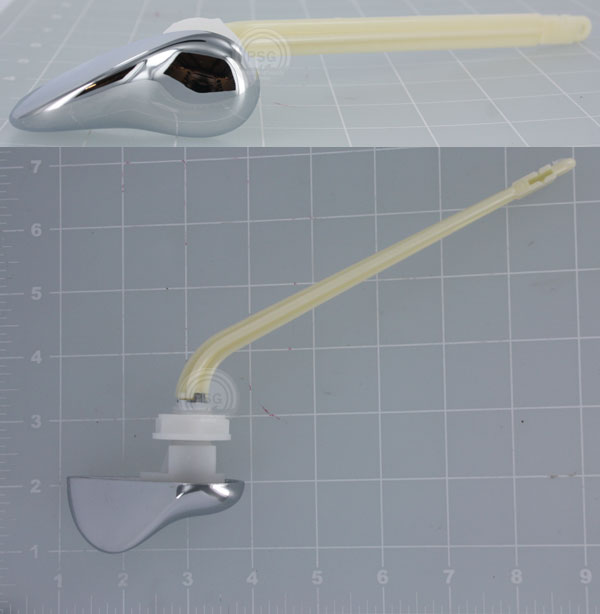

five different american standard trip levers

Part # Description Price & Quantity
3515.012 Trip lever - fits some 4058 toilets - chrome $15.28
33459-0200 Trip lever - fits some Cadet Vent-Away, Glenwall and Compton toilets - chrome $14.76

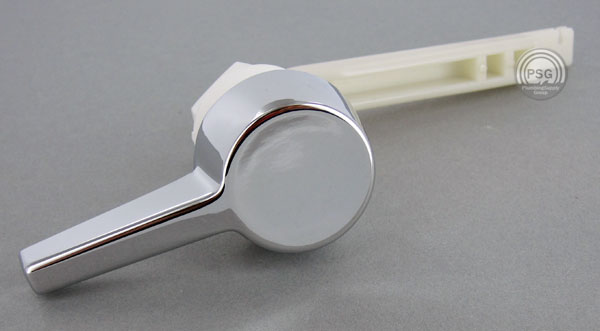

70437-0200 Trip lever - fits some Cadet, Glenwall, Carlyle and Compton toilets - chrome $22.04

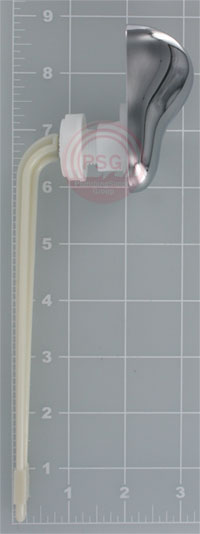

047148-0020A Trip lever fits some Colony toilets - chrome $15.57

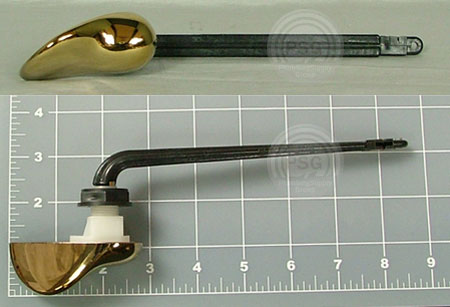

047148-0990A Trip lever fits some Colony toilets - polished brass $23.24

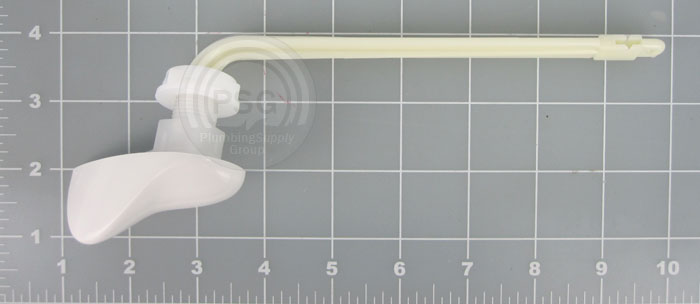

047148-0200A Trip lever fits some Colony toilets - white $16.83
047148-0210A Trip lever fits some Colony toilets - bone $13.64

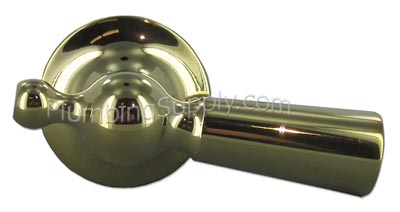

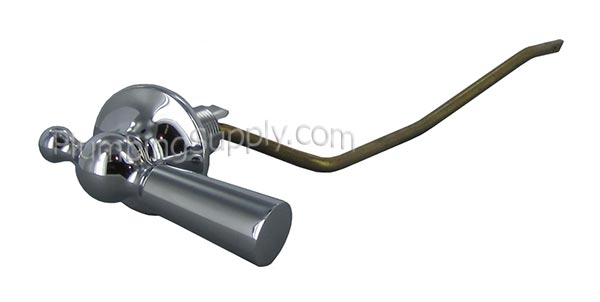

730283-0020A Trip lever fits some Antiquity, Retrospect, and Heritage toilets ("will fit" American Standard) - chrome $82.29
730283-0200A Trip lever fits some Antiquity, Heritage, and Retrospect toilets - white Discontinued
730283-2950A Trip lever fits some Antiquity, Heritage, and Retrospect toilets - satin nickel $91.50
7381231-200-002 Left hand trip lever for Cadet tank #4188A - Chrome $41.87
7381231-200-224 Left hand trip lever for Cadet tank #4188A - Oil Rubbed Bronze $62.49
7381231-200-099 Left hand trip lever for Cadet tank #4188A - Polished Brass Discontinued
7381231-200-295 Left hand trip lever for Cadet tank #4188A - Satin $50.47
7381231-200-020 Left hand trip lever for Cadet tank #4188A - White $35.93
738171-0020A Right hand trip lever fits some Cadet toilets - chrome $15.96
738171-0200A Right hand trip lever fits some Cadet toilets - white $15.11
047192-0020A Trip lever fits some Colony and Cadet toilets - chrome $28.29
047192-0200A Trip lever fits some Colony and Cadet toilets - white $25.63
047192-0210A Trip lever fits some Colony and Cadet toilets - bone $28.69
047192-0990A Trip lever fits some Colony and Cadet toilets - polished brass $29.38
047242-0020A Trip lever fits some Savona, Hamilton, El-Space-Saver and Cadet toilets - chrome $23.57
047242-0200A Trip lever fits some Savona, Hamilton, El-Space-Saver and Cadet toilets - white $22.41
047242-1780A Trip lever fits some Savona, Hamilton, El-Space-Saver and Cadet toilets - black Discontinued
047242-0210A Trip lever fits some Savona, Hamilton, El-Space-Saver and Cadet toilets - bone $31.98
738772-0020A Trip lever fits some Champion 4 toilets - chrome $26.41
738772-2950A Trip lever fits some Champion 4 toilets - satin $43.20
738903-0020A Trip lever fits some Cadet toilets - chrome $31.68
738922-0020A Trip lever fits some Skyline Champion® 4 toilets - chrome Discontinued
738837-0020A Trip lever fits some Doral Classic/Townsend Champion® 4 toilets - chrome $56.49
738835-0020A Trip lever fits some Oakmont Champion® 4 toilets - chrome Discontinued
738995-0020A Trip lever fits some Champion® 4 toilets - chrome $33.87
047231-0020A Trip lever fits some Heritage toilets - chrome Discontinued
738100-0020A Actuator button fits some Lexington, Pallas, and Ellisse toilets - chrome $29.34
738100-0210A Actuator button fits some Lexington and Ellisse toilets - bone Discontinued
738100-0990A Actuator button fits some Lexington and Ellisse toilets - polished brass $49.40
730288-002.020 Trip lever fits some Repertoire toilets - chrome & white Discontinued
047237-0020A Trip lever fits some Clarion toilets - chrome - find possible replacement tank lever Discontinued
047237-0200A Trip lever fits some Clarion toilets - white - find possible replacement tank lever

- OR - View Cart

Other American Standard Toilet Parts

Some of the products below might be "will fit" (not O.E.M.)

Part # Description Price & Quantity
1B1X-TOP OEM Top assembly only for the 1B1X - 2 1/4" center to center holes - (not interchangeable with Will-Fit 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws Discontinued
1B1X-TOP-WF Will-Fit top assembly only for the will-fit 1B1X - 2 1/8" center to center holes - (not interchangeable with OEM 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws
Note: We recommend the purchase of the 1B1X-KIT will-fit repair kit if purchasing this 1B1X-TOP-WF (your old plunger assembly may not fit into new top assembly)
$8.03
421BP Seat Disc for older flush valves (fits both screw and snap on style actuators)
- replaces: #1035 & A444
$5.55
722-2700 Leg for flush valve $2.90
8162-0700 Old style #4 actuator unit $11.54

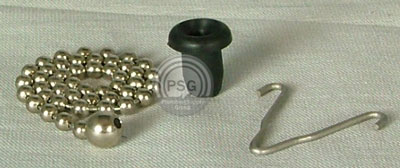

08321-0070A Chain assembly - includes chain, grommet, & trip lever attachment hook $2.75
11176-0070A 10" float rod for 47189 fill valve Discontinued
033230-0070A Float Rod - 8" length - brass - flat on one end - for 047217-0070A pivot arm $10.54

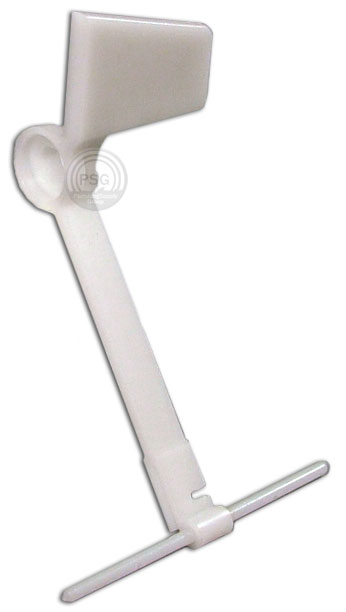

033409-0070A Lever, white paddle $10.97

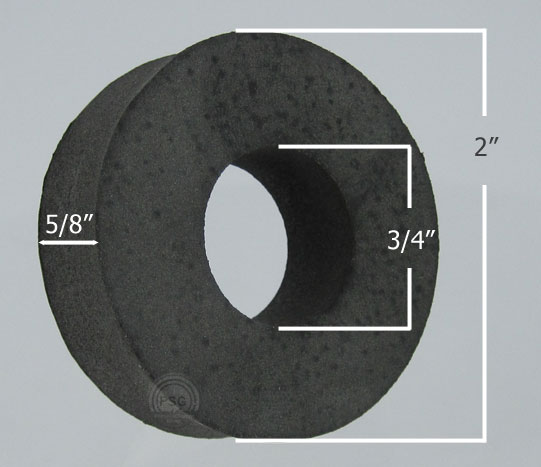

33455-0700 Ventilator Shank Gasket for Ventaway #33488-0700 Assy. - fits some Cadet, Glenwall and Compton toilets $2.65
33582-0070A New style #5 & #6 actuator unit - for 1 and 2 piece closets
(Ellisse, Roma, and other 2 piece units)
$19.95
033643-0070A Snap-on seat disc - Replaced by "will fit" (includes brass insert, remove to install) $5.55
033643-0700 Seat disc with threaded brass insert - Replaced by "will fit"" $5.55
34602-0700
Same American Standard
034602-0070A
Replacement tank to bowl gasket - fits some Glenwall, Cadet and Compton toilets $5.45

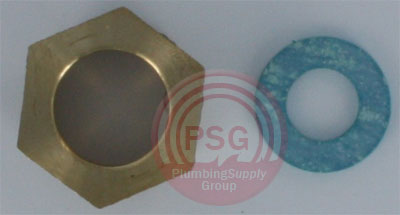

047050-0070A Supply coupling kit $6.56
47060-0700 Tank to bowl bolt kit - fits some #4049 tank models $11.80

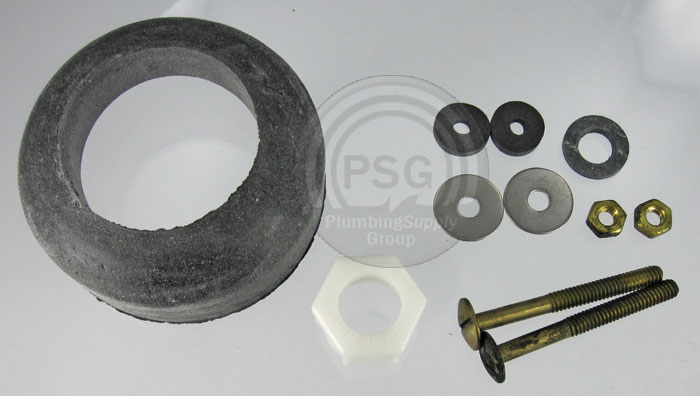

47158-0070A Tank to bowl bolt kit - includes tank to bowl gasket $13.69
047188-0070A Tank to bowl kit - includes U-gasket and tank to bowl gasket $23.03
047195-0070A Flush valve mounting kit $10.53
047196-0070A Water control mounting kit - (plastic shank nut and washer) $5.42

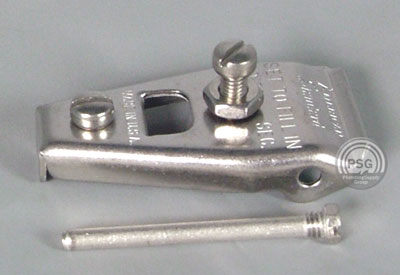

047217-0070A Pivot arm - (may also need brass float rod #033230-0070A) $9.05
047382-0070A Supply coupling kit - Replaced with the #8175 shank gasket $1.47
047397-0070A Flush valve mounting kit for #47107-0070A & #47250-0070A flush valves
a.k.a #4 New Style
Includes nuts, bolts and mounting gasket
$21.71

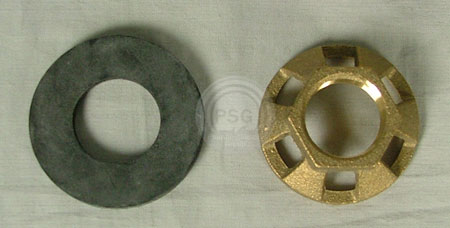

047398-0070A Water control mounting kit - (brass shank nut and washer) Discontinued
047399-0070A Water control mounting kit Discontinued

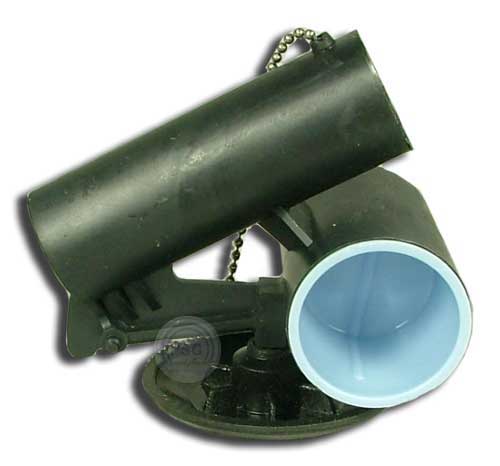

68470-0070A New style #4 actuator unit for 1 piece closets (Lexington, Ellisse, Roma II, Plaza Suite) $24.20

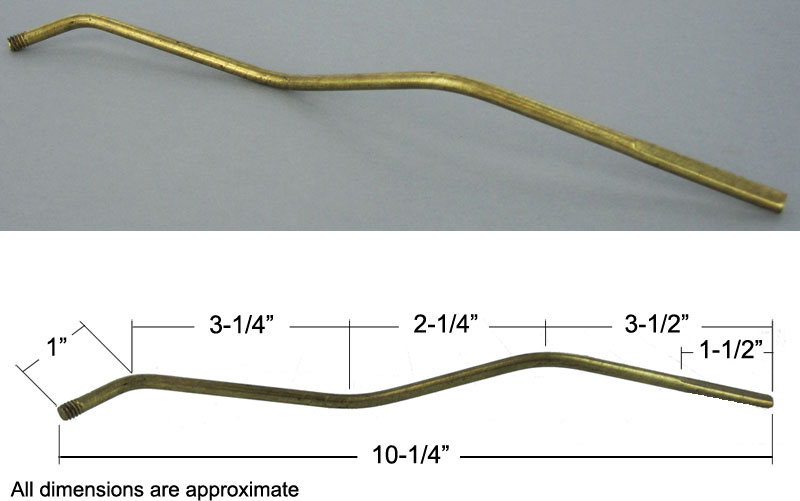

073014-0070A Float Rod for Roma (models 2009.017, 2009.115, 2009.026, 2009.125) $6.79
73058-07 Grommet for N-3055 flush valve $2.99
73059-07 Stop for N-3055 flush valve $5.10
738304-0070A Flush valve wrench $10.15

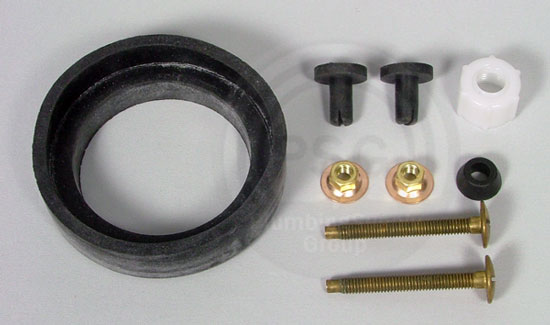

738756-0070A Tank to bowl seal kit fits some Champion 4 and Flow-wise two piece toilets (includes installation instructions)   Please note: gasket color, green or black, will not affect installation or operation - The MFR recommends ordering this kit when replacing #3174.002-0070A flush valve $28.75
7301021-0070A Tank coupling kit (includes installation tool) - replaces old #730935-0070A $24.18
Float Ball Plastic - "will-fit" - 4" x 5" - 1/4"-20 $3.70

- OR - View Cart

Related Items & Articles



Frequently Asked Questions

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Q. "What is the difference between "OEM" and "will-fit" parts? And what does OEM mean anyway?"
A. "OEM stands for "Original Equipment Manufacturer". This means anything from the original manufacturer that is sold to a second company to use in production of that second company's product. In other words, many toilet manufacturers outsource for the internal working parts of the toilet, such as the fill valves, flush valves, or flappers. When this happens, they have the opportunity to use an existing part, or to specify something for a specific toilet. When the toilet manufacturer chooses to use an existing part, the manufacturer of the part can still sell that piece under their own name, just as they had been all along. If the toilet manufacturer chooses to specify something that will only fit a specific toilet, the part manufacturer can often only provide that part to the toilet manufacturer. What this means for you is that you can sometimes get the *exact same part* (by the original manufacturer of the OEM part), but under another name and usually at a better price! So when your toilet's internal working parts need to be replaced, you may have the option to use either the "OEM" part number or use the "will-fit" part number to order what you need. Please note that only some "will-fit" items are manufactured by the OEM manufacturer. If this is essential to your repair, please feel free to contact us and we will be happy to check for you.

Q. "How are the lengths of the toilet fill valves measured?"
A. The toilet fill valve measurements we show are measured from the inside bottom of the tank to the top of the fill valve. The threaded water supply shank that fits through the bottom of the tank is not included in this measurement.

Q. "How do you install the Plunger Repair Kit 012981-0900?"
A. The installation for the Plunger Repair Kit #012981-0900 and the #012981-0070A are the same. First, turn off the water to the fill valve. Unscrew the thumb screws on the lever assembly and slide the lever assembly out from the square hole in the top of the plunger. Pull the old plunger straight up out of the body of the fill valve. With a seat tool, unscrew and remove the old seat directly underneath the plunger. Screw in the new seat until it is snug. Do not over tighten it. At this point put your hand or a cup over the fill valve, turn on the water slowly and let the water run out through the seat for one or two minutes to flush any possible dirt or sediment that might be in the water line. Turn the water off again and slide the new plunger into the body of the fill valve with a slight twist to keep the rubber gasket from being misaligned or torn. Slide the lever assembly back through the square hole in the plunger and tighten the thumb screws. Turn the water back on.

Customer Testimonials

"American Standard referred us to your company. They are correct by advising us that you most likely would have what we needed and that you were very professional and responsible. They said we could depend on you. They are so right. Thank you for being there. We were extremely satisfied with our experience and receipt of the order. Thank you again for your professionalism and commitment to meeting my needs."
- David Libby, North Scituate, RI 02857-1225

"I installed the gasket, it worked great! No soppy soggy bathroom floor for me...thanks again."
- Kenneth Tucker, Myrtle Beach, SC 29579

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!


return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
