Triangle Emblem Series Toilet Repair Parts

by Eljer

The unique tank style of the Eljer Triangle Emblem makes it a style that is easier to keep than replace, and therefore it is more preferrable to repair this particular model. Find just the right parts to keep yours working and looking good for many years to come with a replacement float valve, flappers, or even a flush lever or bolt caps.

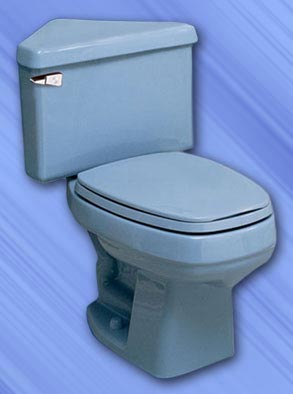

Triangle Emblem toilet by Eljer
Order replacement parts for the Triangle Emblem toilet tank numbers below:

Repair Parts For The Triangle Emblem Toilets
Models # 091-4510 & 091-4515 - Tank # 141-4510

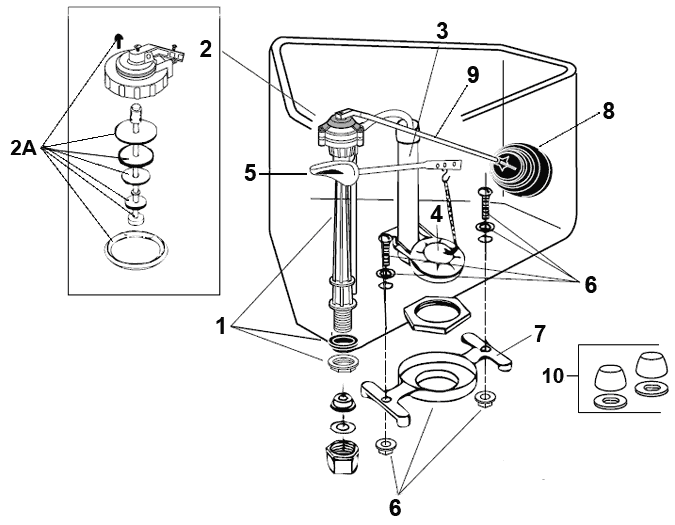

Repair parts for the Triangle Emblem and Triangle Patriot toilets
Item # Part # Description Price & Quantity
1 495-0214-00 Float Valve (Ballcock) - float ball sold separately (see item #8) Discontinued
400A Replacement Fill Valve - Fluidmaster 400A adjustable (9"-14") fill valve $16.62 Enter a quantity and
2 495-0185-00 Float Valve Repair Kit Discontinued
2A MARK4KIT Plunger Repair Kit for Mark IV Fill Valve - (#495-0214-00 fill valve) $5.45 Enter a quantity and
3 495-5551-05 Flush Valve Assembly with Flapper and Chain - (may include Original style or New style flapper) Discontinued
USE 495-5551-05
Flush Valve Assembly with Flapper and Chain $17.68 Enter a quantity and
4 495-6055-00 Original Style Flapper for 495-5551-05 flush valve - Replaced by "will fit"
(use orange insert for the same flow rate)
$9.91 Enter a quantity and
100BP Flapper with stainless steel chain - For 495-5551-05 Will-Fit Flush valve $6.15 Enter a quantity and
5 495-2120-00 Trip Lever - White Discontinued
6 495-5984-00 Replaced by "will fit" parts "Will Fit" Brass Tank to Bowl Bolt Set (pair) - brass bolts, chrome plated zinc nuts, wing nuts, and washers
- does not include tank to bowl gasket (see below)
$6.27 Enter a quantity and
"Will Fit" Tank to Bowl Gasket $4.79 Enter a quantity and
7 495-5702-00 Tank to Bowl Gasket - Replaced by "will fit" $4.79 Enter a quantity and
8 Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
9 Float Rod "Will Fit" 8"" Brass Float Rod - View more sizes $2.25 Enter a quantity and
10 Bolt Caps Bolt Caps (2) - White - View more color options $2.99 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.
