Endicott Series Toilet Repair Parts
by Eljer

Vintage styling and classic details make the Endicott toilet perfect for Victorian homes or old-fashioned bathrooms. With a variety of repair and replacement parts, you don't have to sacrifice your beautiful Eljer Endicott toilet. Whether you need a trip lever, flapper, or whole new ballcock, we've got you covered.
Eljer Endicott Toilet - Tank #141-5400Tank #141-5400

Repair Parts for the Eljer Endicott Series Toilet
Model # 091-5475 - Tank # 141-5400

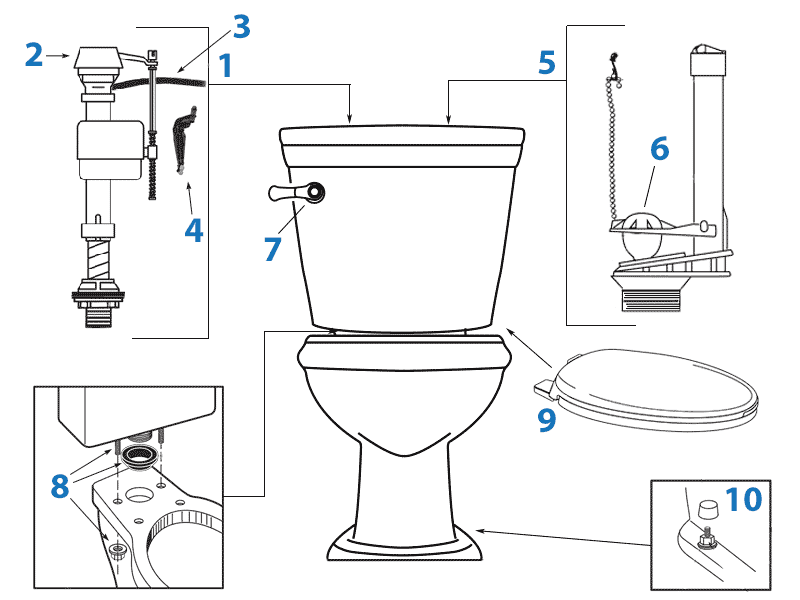

Repair parts diagram for Eljer Endicott two-piece toilet - tank #141-5400
Item # Part # Description Price & Quantity
1 738565-408.0070A Fluidmaster Fill Valve / Water Control Assembly - Replaced by 7381125-400.0070A $43.12 Enter a quantity and
2 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.59 Enter a quantity and
3 Tube & Adapter Refill Tube & Angle Adapter $4.45 Enter a quantity and
4 7381007-400.007 Flush Valve - includes flapper and gasket $21.93
5 7381008-400.0070A Flapper & Chain $10.68 Enter a quantity and
6 738608-0020-222 Front Mount Trip Lever - Chrome and Linen Discontinued
738608-2950-020 Front Mount Trip Lever - Satin Nickel and White Discontinued
7 730505-0070A Tank to Bowl Kit - Replaced by "will fit" gasket and bolt kit - sold separately $1.65
$5.80 Enter a quantity and
8 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $56.07 Enter a quantity and
9 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $7.69 Enter a quantity and

Related Items & Information





Frequently Asked Questions

Q. "I have an Eljer toilet and I ordered Eljer parts, but the box says American Standard. Did you send me the wrong parts?"
A. While we are human and do make mistakes sometimes, most of the time you did receive the correct parts. In 2008, American Standard purchased both Crane (which previously had purchased Universal Rundle) and Eljer. There are many Eljer branded parts still available, especially for many of their older toilets, but their newer toilet model parts and some of the older parts have been replaced with American Standard branded parts. Rest assured that these parts are generally exactly the same and will function the same, even if it says American Standard and not Eljer on the box. If, for some reason, the parts you ordered do not work in your toilet, please contact our customer service representatives who will be happy to help you identify the problem.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
