Tennison Series Toilet Repair Parts

by Eljer

Keep your unique, low profile Eljer Tennison toilet in perfect working condition with the right replacement parts from your friends at PlumbingSupply.com®! Whether you need bolt caps, fill valves, or push button assemblies, you'll find them right here. Looking for other Eljer toilet parts? Click here.
Tennison toilet by Eljer
Order replacement parts for the Tennison one-piece toilet model numbers below:
081-7080

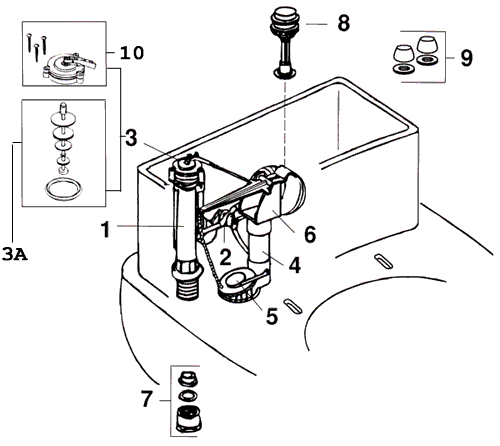

Repair Parts for the Eljer Tennison Series Toilet
Model # 081-7080

Eljer toilet repair parts
Item # Part # Description Price & Quantity

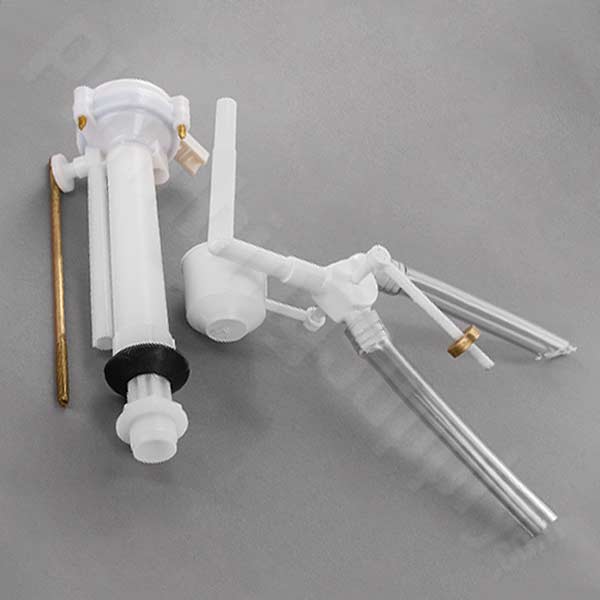

1 495-0260-00 Fill Valve (Ballcock) WITH Diverter Assembly - 11" overall height, 9" from toilet tank to top of valve, includes slip joint nut and washer, friction ring, shank nut and washer, and Float Rod, float ball sold separately - (View old version) Discontinued
1B1X-WF "Will-Fit" Fill Valve WITHOUT Diverter Assembly - includes slip joint nut and washer, friction ring, shank nut and washer, and float rod (float ball sold separately) $51.57 Enter a quantity and

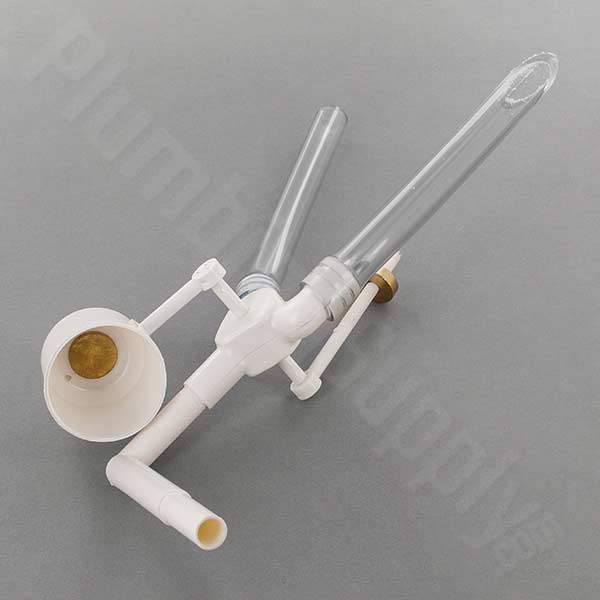

2 495-0184-00 Diverter Assembly only - works with fill valve 495-0260-00 ONLY (WILL NOT work with 1B1X-WF) - (View old version) $57.70 Enter a quantity and

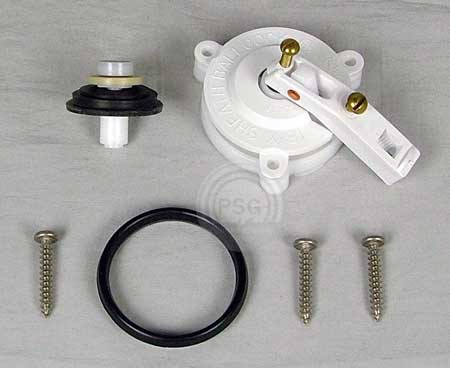

3 495-0187-00 Fill Valve Repair Kit Discontinued
3A 1B1X-KIT
(will-fit)

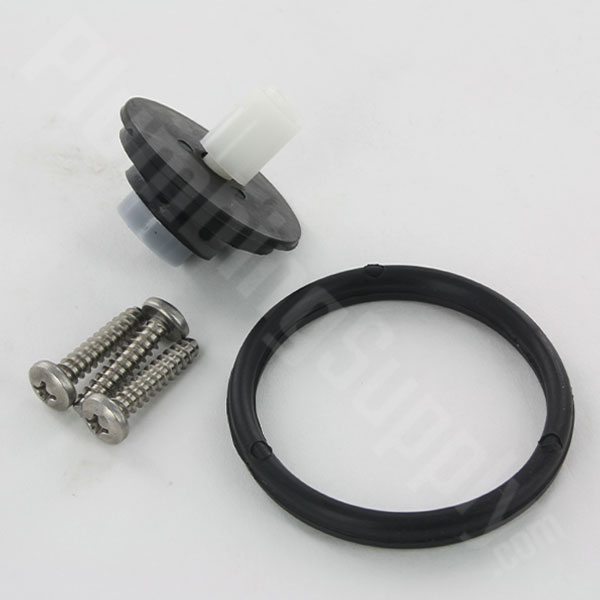

"Will-Fit" Plunger Repair Kit Only - for 1B1X fill valve $7.21 Enter a quantity and
4 495-5517-00 Flush Valve Body only - WITH Holes - For toilets made before the mid 90's
We suggest purchasing recommended tool for installation and removal of flush valve 495-5517-00
Note: The 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes
Discontinued

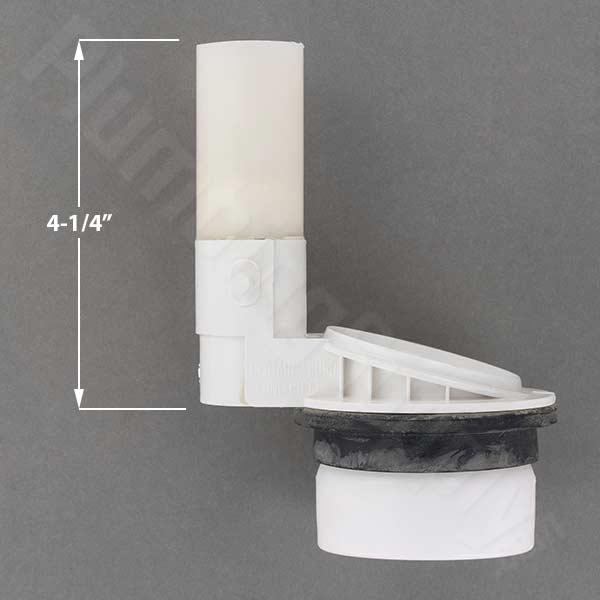

495-5517-00-NH Flush valve body only - WITHOUT holes - For toilets made after the mid 90's
We suggest purchasing recommended tool for installation and removal of flush valve 495-5517-00-NH
Discontinued

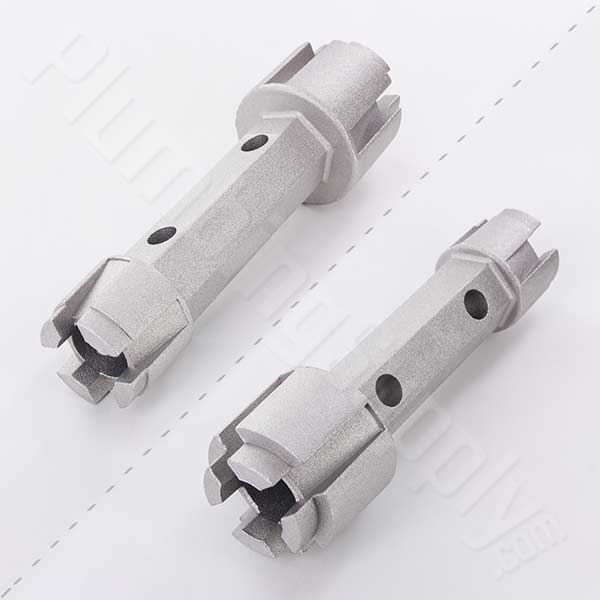

Tool Tool for installing and removing original flush valves (not shown above) - view an example of this tool in use $16.95

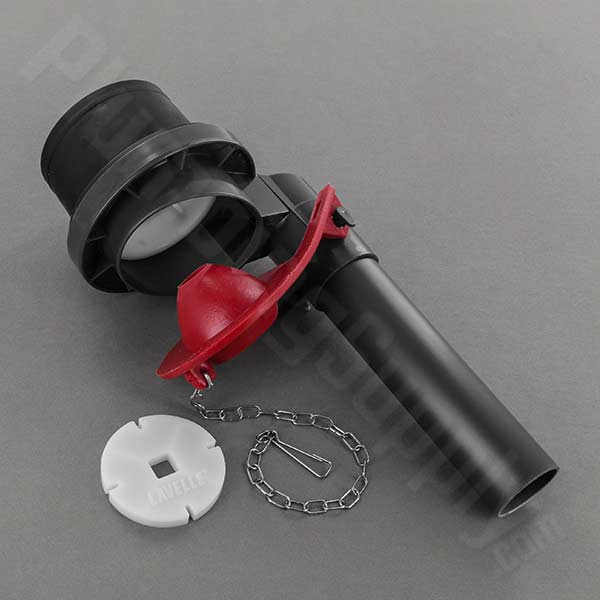

723X Possible replacement flush valve "will fit" - Includes internal plastic wrench - Valve may need to be cut down to fit, altered valves are non-returnable
- view "will fit" dimensions
$19.99 Enter a quantity and

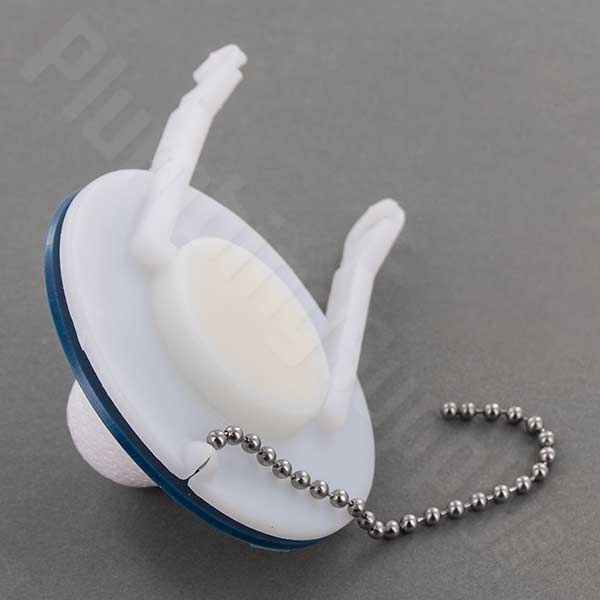

5 495-6031-00 Flapper and 4-1/2" Beaded Chain only (no hook) $8.79 Enter a quantity and
"Will Fit" Replacement Ultra Water Saver "Will Fit" Flapper with 8" kink-resistant link chain and hook - provides maximum flush $6.15 Enter a quantity and

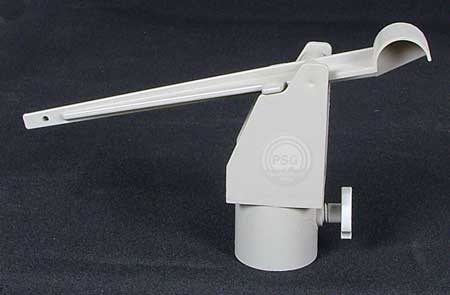

6 495-5560-00 Flush Valve Lever Adapter Discontinued

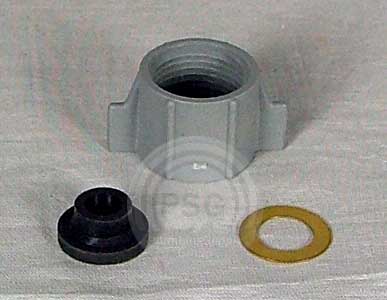

7 495-6028-00 Parts Kit Discontinued

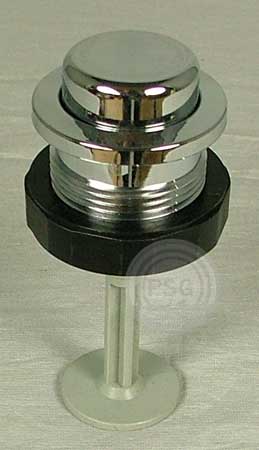

8 596-0715-00 Push Button Assembly Discontinued
9 Bolt Caps Toilet Bowl Bolt Caps - White - click here for more color options $2.99 Enter a quantity and

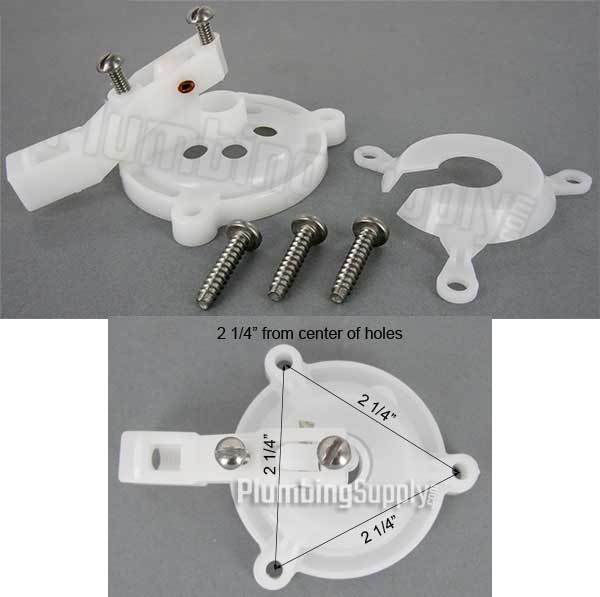

10 1B1XTOP OEM Top Assembly only for Original Fill Valve 495-0260-00 - 2 1/4" center to center holes - (not interchangeable with Will-Fit 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws Discontinued

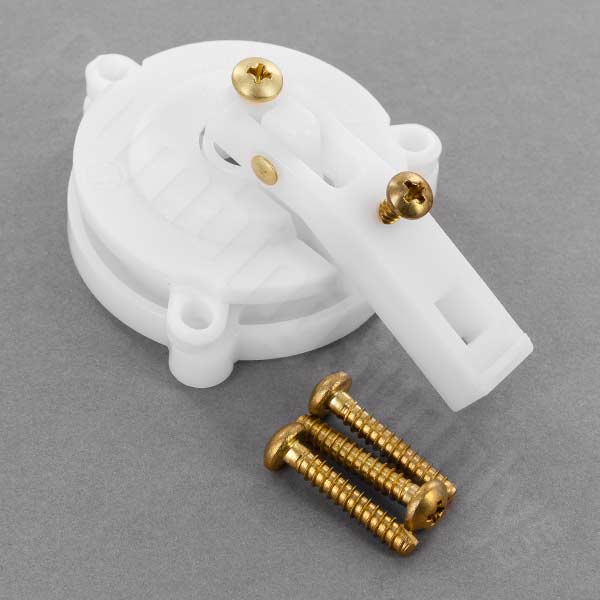

1B1X-TOP "Will-Fit" Top Assembly only - for the "Will Fit" 1B1X - 2 1/8" center to center holes - (not interchangeable with OEM 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws
Note: We recommend the purchase of the 1B1X-KIT will-fit repair kit (item #3A) if purchasing this 1B1X-TOP-WF (your old plunger assembly may not fit into new top assembly)
$8.03 Enter a quantity and
Not Shown Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
Not Shown Float Rod "Will Fit" 9" Brass Float Rod - click here for more sizes $2.25 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information

Frequently Asked Questions

Q. "How do I know if I need the 495-5517-00 flush valve with holes or without holes?"
A. Toilets made BEFORE the mid 1990's used the 495-5517-00 flush valve WITH holes. Toilets made AFTER the mid 1990's used the flush valve WITHOUT holes. Currently the 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes.
