Belmont Series Toilet Repair Parts

by Eljer

Finding replacement parts for your gravity flush high efficiency Eljer Belmont just got a whole lot easier. If you're looking for fill valves, flush levers or even just a gasket, you'll find it here on PlumbingSupply.com®!
Berkeley toilet by Eljer
Order replacement parts for the Belmont toilet tank numbers below:
4061

Repair Parts for the Eljer Belmont Series Toilet
Models # 091-0800 & 091-0870 - Tank # 4061

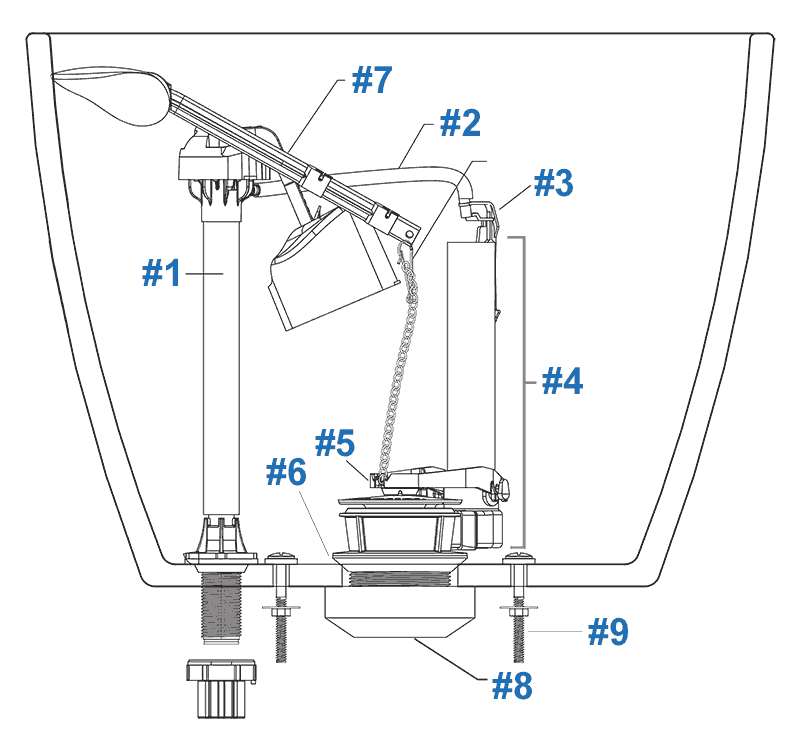

Eljer toilet repair parts diagram - the Belmont series
Item # Part # Description Price & Quantity
1 738565-0070A Fill Valve - Replaced by 7381125-400-0070A - adjustable 9" to 12-1/2" $40.09 Enter a quantity and
2 215 Roller Clamp, Refill Tube & Angle Adapter Clip $4.62 Enter a quantity and
3 B282 Angle Adapter & Clip $3.01 Enter a quantity and

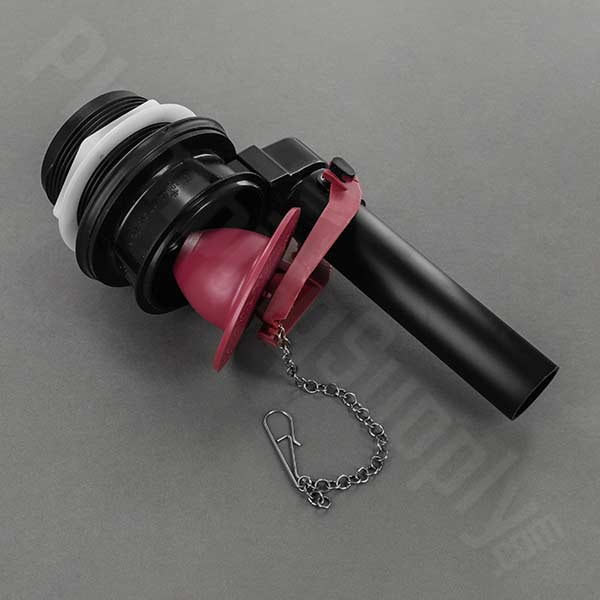

4 7381007-400.007 Flush Valve for 1.6 gpf tanks - includes flapper and gasket - view dimensions Discontinued
7381007-406.007 Flush Valve for 1.28 gpf tanks - includes flapper and gasket - view dimensions Discontinued
Will-Fit "Will-Fit" Flush Valve - includes flapper and gasket - "Will Fit" flush valve will need to be cut down to height of original valve. - Please note: altered valves are non-returnable. $14.99 Enter a quantity and
5 7381008-400.0070A Flapper - fits both 7381007-400.007 & 7381007-406.007 flush valves $11.21 Enter a quantity and
6 WA84 "Will Fit" Flush Valve Gasket $1.44 Enter a quantity and
7 047192-0020A LEFT Side Front Mount Trip Lever - Chrome $24.16
047192-0990A LEFT Side Front Mount Trip Lever - Polished Brass $29.38
047192-0200A LEFT Side Front Mount Trip Lever - White $25.63
047192-0210A LEFT Side Front Mount Trip Lever - Bone $26.89
738171-0020A RIGHT Side Front Mount Trip Lever - Chrome $24.55
738171-0200A RIGHT Side Front Mount Trip Lever - White $23.24 Enter a quantity and
9 WA72 "Will Fit" Tank to Bowl Gasket $1.73 Enter a quantity and
10 730512-0070A Tank to Bowl Bolt Kit - Replaced by "will fit" bolt kit $6.39 Enter a quantity and
Not Shown 034783-0200A Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and
Not Shown Round Premium "Will-Fit" Toilet Seat by Bemis - White (view more color options) $60.56
Elongated Premium "Will-Fit" Toilet Seat by Bemis - White (view more color options) $67.91 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "I have an Eljer toilet and I ordered Eljer parts, but the box says American Standard. Did you send me the wrong parts?"
A. While we are human and do make mistakes sometimes, most of the time you did receive the correct parts. In 2008, American Standard purchased both Crane (which previously had purchased Universal Rundle) and Eljer. There are many Eljer branded parts still available, especially for many of their older toilets, but their newer toilet model parts and some of the older parts have been replaced with American Standard branded parts. Rest assured that these parts are generally exactly the same and will function the same, even if it says American Standard and not Eljer on the box. If, for some reason, the parts you ordered do not work in your toilet, please contact our customer service representatives who will be happy to help you identify the problem.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
