Terrace Emblem Series Toilet Repair Parts

by Eljer

Looking for the right replacement parts for your Eljer Terrace Emblem toilet? You're search is over. Whether you need gaskets, flush levers or fill valves, we've got them here at PlumbingSupply.com®!

Order replacement parts for the Terrace Emblem toilet tank numbers below:

141-1375

141-4500

141-4903

141-5500

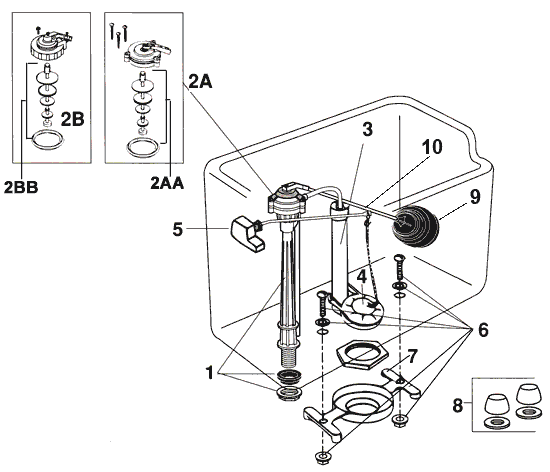

Repair Parts for Terrace Emblem Series Toilets
Models # 091-1300 & 091-1305 - Tanks # 141-1375 & 141-5500

Item #	Part #	Description	Price & Quantity
1	495-0214-00	Fill Valve (Ballcock) - float ball sold separately (see item #9)	Discontinued
1	400A	Suitable Replacement Fill Valve - Fluidmaster 400A adjustable (9"-14") fill valve	$16.62	Enter a quantity and
2A	495-0188-00	OEM 3-screw cap with plunger fill valve repair	Discontinued
2AA	3-Screw Repair Kit	Fill valve repair kit - Use if existing fill valve cap imprinted Coast 1B1	$6.29
2B	495-0185-00	Float Valve Repair Kit	Discontinued
2BB	MARK4KIT	Plunger Repair Kit - (fill valve cap imprinted MARK IV) for #495-0214-00 fill valve	$5.45	Enter a quantity and
3	495-5551-00	Flush Valve Assembly with Flapper and Strap - Replaced by 495-5551-05	Discontinued USE 495-5551-05 Will-Fit
3	495-5551-05 'Will-Fit'	Flush Valve Assembly with Flapper and Chain	$17.68	Enter a quantity and
4	495-6029-00	Replacement Flapper for 495-5551-00 Flush Valve - Replaced by "will fit"	$3.96	Enter a quantity and
4	100BP	Flapper with stainless steel chain - For 495-5551-05 Will-Fit Flush valve	$6.15	Enter a quantity and
5	495-2704-00	Trip Lever - Chrome	$16.15	Enter a quantity and
6	495-5964-00	Tank to Bowl Bolt Kit (less gasket) - replaced by "will fit"	$6.27	Enter a quantity and
7	495-5702-00	Tank to Bowl Gasket - Replaced by "will fit"	$4.79	Enter a quantity and
8	Bolt Caps	Toilet Bowl Bolt Caps - White - click here for more color options	$2.99	Enter a quantity and
9	Float Ball	"Will Fit" Plastic Float Ball	$3.70	Enter a quantity and
10	Float Rod	"Will Fit" 9" Brass Float Rod - click here for more sizes	$2.25	Enter a quantity and
Not Shown	124-0200	Regular Squared Front Toilet Seat - White	$66.84	Enter a quantity and
Not Shown	124-0205	Elongated Squared Front Toilet Seat - White	Discontinued

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Repair Parts for Eljer Terrace Emblem Toilets
Models # 091-4500, 091-4505, 091-4502, 091-4504, 091-4507, 091-4509, 091-5500 & 091-5505
Tanks # 141-4500 & 141-4903

Item #	Part #	Description	Price & Quantity
1	495-0244-03	Float Valve (Ballcock) - 13" tall	Discontinued
	495-0214-00	Fill Valve (Ballcock) - for insulated tank - float ball sold separately below	Discontinued
	400A	Replacement Fill Valve - Fluidmaster 400A adjustable (9"-14") fill valve	$16.62	Enter a quantity and
2	495-5551-03	Flush Valve Assembly with Flapper & Chain - Replaced by 495-5551-05	Discontinued USE 495-5551-05 Will-Fit
2	495-5551-05 'Will-Fit'	Flush Valve Assembly with Flapper and Chain	$17.68	Enter a quantity and
3	495-6051-00	Flapper - Blue with chain & black tip insert - Replaced by "will fit"	$9.91	Enter a quantity and
3	100BP	Flapper with stainless steel chain - For 495-5551-05 Will-Fit Flush valve	$6.15	Enter a quantity and
4	495-2704-00	Trip Lever - Chrome	$16.15	Enter a quantity and
5	495-5984-00 Replaced by "will fit" parts	"Will Fit" Tank to Bowl Gasket	$4.79
		Brass "Will Fit" Tank to Bowl Bolt Set (pair) - brass bolts, chrome plated zinc nuts, wing nuts, and washers	$6.27
		Stainless Steel "Will Fit" Tank to Bowl Bolt Set - Includes 2 stainless steel bolts (5/16" x 3"), 4 rubber washers, 4 nuts, and 4 flat steel washers	$6.39	Enter a quantity and
6	495-5702-00	Tank to Bowl Gasket - Replaced by "will fit"	$4.79	Enter a quantity and
7	Bolt Caps	Toilet Bowl Bolt Caps - White - click here for more color options	$2.99	Enter a quantity and
Not Shown	124-0200	Regular Squared Front Toilet Seat - White	$66.84	Enter a quantity and
Not Shown	124-0205	Elongated Squared Front Toilet Seat - White	Discontinued

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.
