Canterbury Series Toilet Repair Parts

by Eljer

The Eljer Canterbury is a high performance toilet, and finding replacement parts isn't always easy, but if you need diverter assemblies or flappers, you'll find them - and more - here at PlumbingSupply.com®. If you're looking for an Eljer seat or tank lid, we have those, too.
Keep scrolling to order replacement parts for the Canterbury toilet model and tank numbers listed above

Repair Parts for the Eljer Canterbury Series
One-Piece Models # 081-1620, 081-1625 & 081-1630

Repair parts for the Canterbury toilet - #081-1620
Item # Part # Description Price & Quantity
1 495-0218-00 Fill Valve - Must purchase float ball separately Discontinued
495-0256-00 Fill Valve - Must purchase float ball separately Discontinued
7381125-400-0070A Fill Valve with Built-In Float - Replaces 495-0218-00 and 495-0256-00 - (no float ball or float rod needed) $40.09 Enter a quantity and

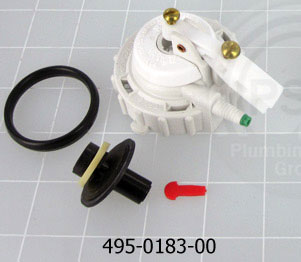

2 495-0183-00 Fill Valve Repair Kit Discontinued
3 FLOAT ROD 8" Brass Float Rod - Replaced by 8" "will fit" $2.25 Enter a quantity and
4 FLOAT BALL Plastic Float Ball - Replaced by "will fit" $3.70 Enter a quantity and
5 495-5514-00 OEM Flush Valve - 5-1/2" tall from toilet to top of overflow - turn internal tabs counterclockwise to loosen and remove old flush valve, see below for optional tool to remove or install original flush valves Discontinued
WF-495-5514-00 Will-Fit Flush Valve - 5-1/2" tall from toilet to top of overflow, includes flapper and chain - fits some Canterbury, Tennison, and Vail toilets $23.80 Enter a quantity and
TOOL Flush Valve Wrench - for installing and removing flush valve 495-5514-00 $16.95 Enter a quantity and
6 495-6046-00 Flapper & Chain - for OEM 495-5514-00 flush valve $8.29
2001 Flapper for "Will Fit" 723X $4.17 Enter a quantity and
7 495-2703-00 Side Mount Trip Lever - Chrome - Replaced by 495-2704-00 $16.15 Enter a quantity and
8 495-0908-00 Bolt Caps - Replaced by "will fit" bolt caps - White (view more color options) $2.99 Enter a quantity and
Not Shown 124-0240 Replaced by Premium "Will-Fit" Round Toilet Seat by Bemis - White
(view more color options)
$60.56
124-0245 Replaced by Premium "Will-Fit" Elongated Toilet Seat by Bemis - White
(view more color options)
$67.91 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

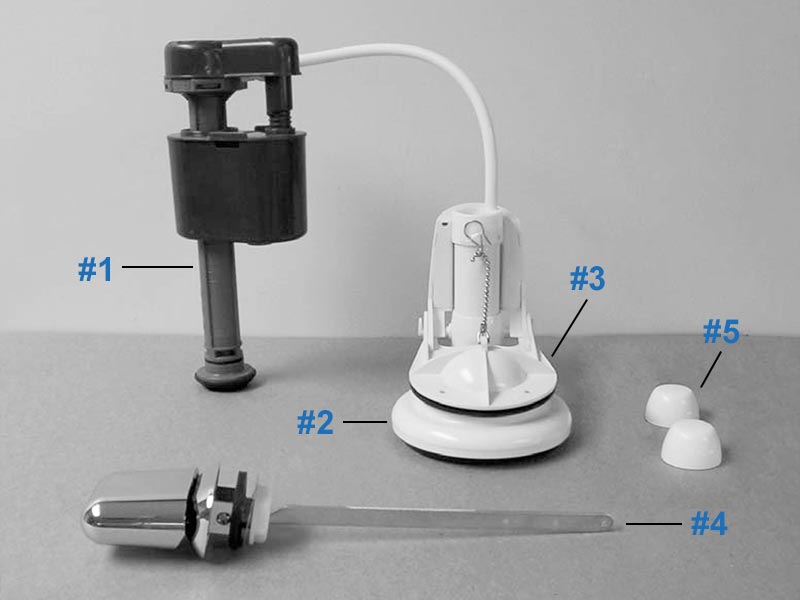

Repair Parts for the Eljer Canterbury Series
One-Piece Model # #081-3025

Repair parts for the Canterbury toilet #081-3025
Item # Part # Description Price & Quantity
1 495-0370-00 Fill Valve - Replaced by 400A $16.62 Enter a quantity and
2 495-5410-00 Flush Valve - includes counterbalance flapper - view dimensions Discontinued
3 495-6070-00 Counterbalance Flapper $11.89 Enter a quantity and
4 495-2737-00 Flush Lever Discontinued
5 495-0908-00 Bolt Caps - Replaced by "will fit" bolt caps - White (view more color options) $2.99 Enter a quantity and
Not Shown 124-0245 Replaced by Premium "Will-Fit" Elongated Toilet Seat by Bemis - White
(view more color options)
$67.91 Enter a quantity and

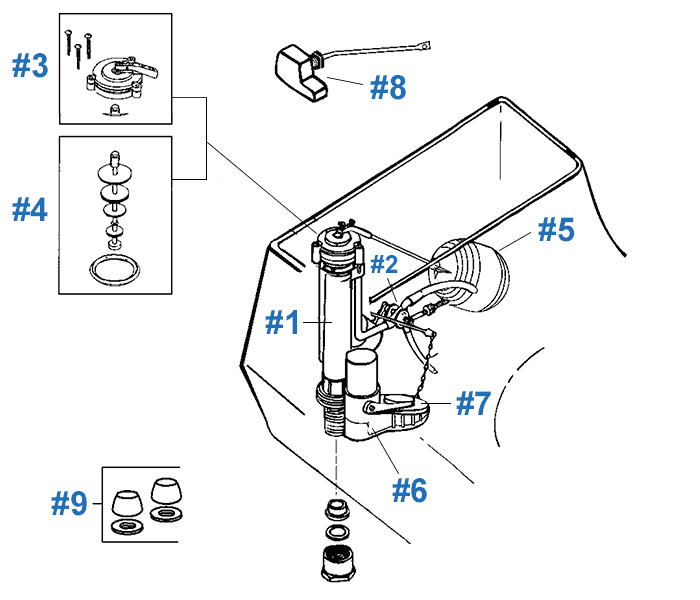

Repair Parts for the Eljer Canterbury Series
3.5gpf One-Piece Models # 081-2400 & 081-2450

Repair parts for the Canterbury toilet #081-2400, 081-2450
Item # Part # Description Price & Quantity
1 495-0260-00 Fill Valve WITH Diverter Assembly - 11" overall height, 9" from toilet tank to top of valve, includes slip joint nut and washer, friction ring, shank nut and washer, and float rod (float ball sold separately) Discontinued
1B1X-WF "Will-Fit" Fill Valve WITHOUT Diverter Assembly - includes slip joint nut and washer, friction ring, shank nut and washer, and float rod (float ball sold separately) $51.57 Enter a quantity and
2 495-0184-00 Diverter Assembly ONLY - works with fill valve 495-0260-00 ONLY (WILL NOT work with fill valve 1B1X or 1B1X-WF) $24.85 Enter a quantity and
3 1B1XTOP OEM Top Assembly - for original fill valve 495-0260-00 - 2 1/4" center to center holes - (not interchangeable with Will-Fit 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws Discontinued
1B1XTOP-WF Top Assembly - for the "will-fit" 1B1X - 2 1/8" center to center holes - (not interchangeable with OEM 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws
Note: We recommend the purchase of the #42393 plunger repair kit (directly below) if purchasing this 1B1X-TOP-WF (your old plunger assembly may not fit into new top assembly)
$8.03 Enter a quantity and
4 42393 Plunger Repair Kit - Replaced by "will fit" - Please note: Large O-ring may fit tight and may need to be slightly stretched out using both hands (no tools) in order to be installed $8.06 Enter a quantity and
5 FLOAT BALL Float Ball - Replaced by "will fit" $3.70 Enter a quantity and
6 495-5517-00 Flush Valve Body ONLY - WITH holes - for toilets made before the mid 90's
We suggest purchasing recommended tool for installation and removal of flush valve 495-5517-00

Note: The 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes
Discontinued
495-5517-00-NH Flush Valve Body ONLY - WITHOUT holes - for toilets made after the mid 90's
We suggest purchasing recommended tool for installation and removal of flush valve 495-5517-00-NH
Discontinued
TOOL Flush Valve Wrench - recommended for installing and removing ORIGINAL flush valves $16.95
723X Possible replacement flush valve "will fit" - Includes internal plastic wrench - Valve may need to be cut down to fit, altered valves are non-returnable - view "will fit" dimensions $19.99 Enter a quantity and
7 495-6031-00 Flapper and 4-1/2" Beaded Chain (no hook) $8.79
100BP "Will Fit" Flapper with 8" Link Chain & Hook - adjustable flush rate $6.15 Enter a quantity and
8 495-2730-00 Trip Lever - Chrome - Replaced by "will fit" version (view more finishes) $26.78 Enter a quantity and
9 495-0908-00 Bolt Caps - Replaced by "will fit" bolt caps - White (view more color options) $2.99 Enter a quantity and

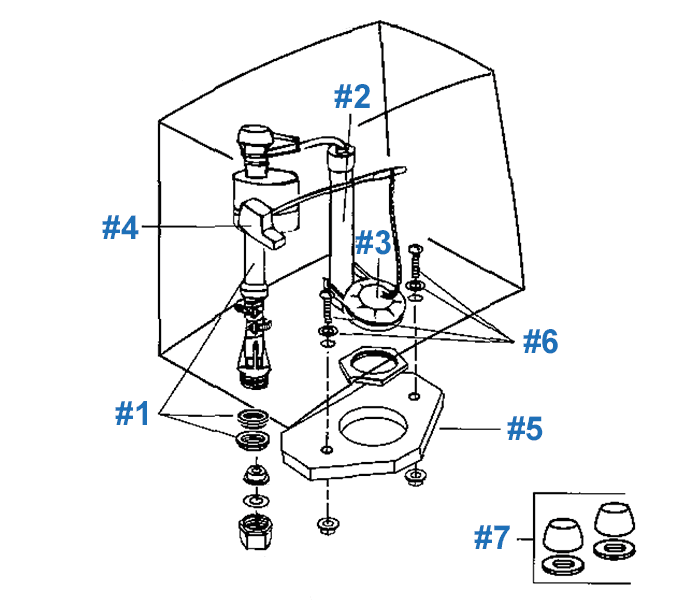

Repair Parts for the Eljer Canterbury Series
Models # 091-2400 & 091-9410 - Tanks # 141-2400 & 141-9410

Repair parts for the Canterbury toilet #091-2400, 091-9410
Item # Part # Description Price & Quantity
1 495-0244-00 Fill Valve - Replaced by Fluidmaster 400A $16.62 Enter a quantity and
2 495-5518-00 Flush Valve Assembly - Replaced by "will fit" (may need to be cut down to height of original valve, altered valves are non-returnable) $14.99 Enter a quantity and
3 495-6029-00 Flapper - Replaced by "will fit" $3.96 Enter a quantity and
4 495-2704-00 Trip Lever $16.15 Enter a quantity and
5 495-5710-00 Tank to Bowl Gasket Discontinued
6 495-5911-00 Mounting Parts Kit - Replaced by solid brass "will fit" tank to bowl bolt kit $6.27 Enter a quantity and
7 Bolt Caps Toilet Bowl Bolt Caps (2) - White (view more color options) $2.99 Enter a quantity and
Not Shown 124-0200 Premium "Will Fit" Regular Squared Front Toilet Seat - White $66.84 Enter a quantity and
124-0205 Premium "Will Fit" Elongated Squared Front Toilet Seat - White Discontinued

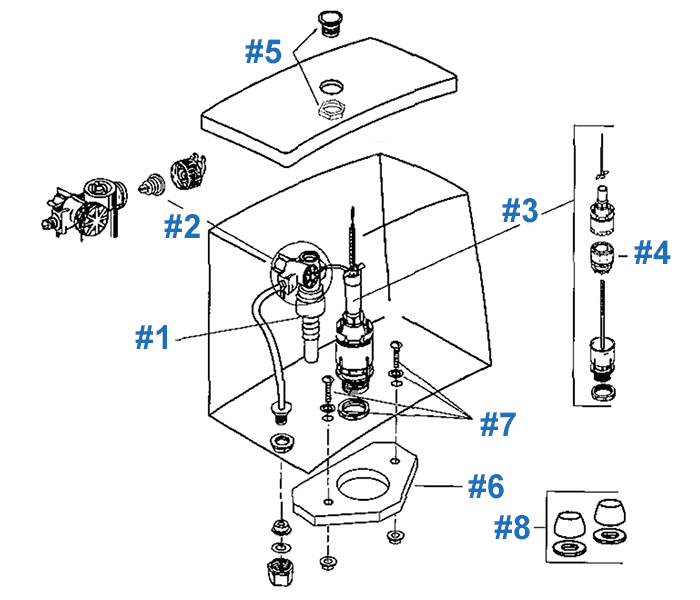

Repair Parts for the Eljer Canterbury Series
Models # 091-1400 & 091-9400 - Tanks # 141-1400 & 141-9400

Repair parts for the Canterbury toilet #091-1400, 091-9400
Item # Part # Description Price & Quantity
1 495-0207-00 Fill Valve Discontinued
2 495-0190-00 Fill Valve Repair Membrane $13.62 Enter a quantity and
3 495-5555-00 Flush Valve Assembly - Replaced by SUBKIT-316 $117.89 Enter a quantity and
4 495-2000-00 Washer Float Insert $21.19 Enter a quantity and
5 596-0315-00 Push Button Flush Assembly Discontinued
6 495-5710-00 Tank to Bowl Gasket Discontinued
7 495-5971-00 Mounting Parts Kit $16.53 Enter a quantity and
8 Bolt Caps Toilet Bowl Bolt Caps (2) - White (view more color options) $2.99 Enter a quantity and
Not Shown 124-0200 Premium "Will Fit" Regular Squared Front Toilet Seat - White $66.84 Enter a quantity and
124-0205 Premium "Will Fit" Elongated Squared Front Toilet Seat - White Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information

Frequently Asked Questions

Q. "How do I know if I need the 495-5517-00 flush valve with holes or without holes?"
A. Toilets made BEFORE the mid 1990's used the 495-5517-00 flush valve WITH holes. Toilets made AFTER the mid 1990's used the flush valve WITHOUT holes. Currently the 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes.
