Tresham Toilet Repair Parts - K3950
By Kohler

Elevate and maintain the sophisticated charm of your Kohler Tresham K3950 toilet with ease, thanks to PlumbingSupply.comĀ®. Our expertly selected range of essential maintenance products are crafted to ensure that your sleek, low-profile toilet continues to operate flawlessly, keeping it in immaculate condition. Trust in our collection to provide the perfect blend of elegance and functionality, enhancing the luxury and efficiency of your bathroom space. For more Kohler parts, visit our page.

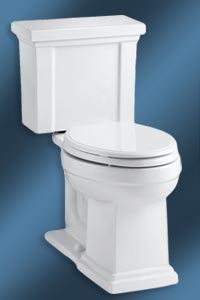

Kohler Tresham toilet - Model - k3950

Kohler Toilet Replacement Parts for the Tresham Toilet
Two-Piece Elongated Model #K-3950 - Tank #K-4899

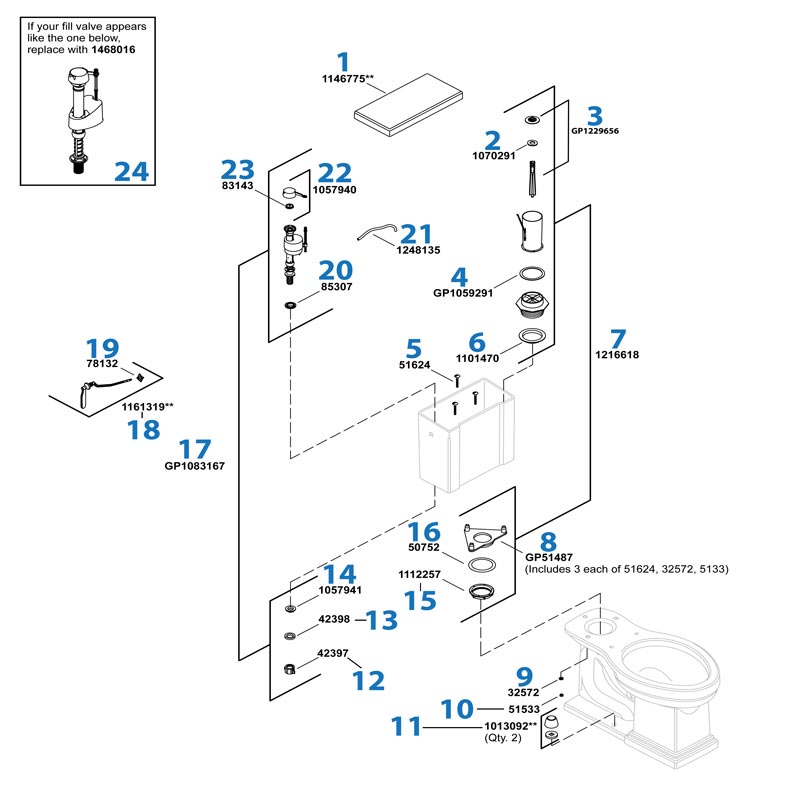

Tresham Toilet repair parts diagram

Item # Part # Description Price & Quantity
1 1146775 Toilet Tank Cover Discontinued
2 1070291 Flush Valve Washer $3.31 Enter a quantity and
3 GP1229656 Aqua Piston Repair Kit $9.51 Enter a quantity and
4 GP1059291 Flush Valve Seal $9.09 Enter a quantity and
5 51624 Screw Bolt (Each) $1.99 Enter a quantity and
6 1101470 Flush Valve Gasket $2.07 Enter a quantity and
7 1216618 Canister Flush Valve $21.83 Enter a quantity and
8 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $14.53 Enter a quantity and
9 32572 Washer $1.49 Enter a quantity and
10 51533 Nut $1.57 Enter a quantity and
11 1013092 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and
12 42397 Nut $1.90 Enter a quantity and
13 42398 Washer $1.57 Enter a quantity and
14 1057941 Shank Nut $1.59 Enter a quantity and
15 1112257 Flush Valve Nut Discontinued
16 50752 Friction Ring $1.76 Enter a quantity and
17 GP1083167 Class 5 Fill Valve $24.72 Enter a quantity and
18 1161319 Side Mount Trip Lever - Left Side - Chrome $25.01 Enter a quantity and
1161319-BN Side Mount Trip Lever - Left Side - Brushed Nickel $39.36 Enter a quantity and
19 78132 Retainer Nut $1.69 Enter a quantity and
20 85307 Shank Washer $1.67 Enter a quantity and
21 1248135 Refill tube $1.49 Enter a quantity and
22 1057940 Top Assembly - for 1060198, GP1083167 & GP1138930 fill valves $6.63 Enter a quantity and
23 83143 Seal Diaphragm $4.99 Enter a quantity and
24 1468016 Fill Valve Replacement Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
