The Kohler Fleur toilet is a unique toilet with an unusual flair, and replacing them is just not an option sometimes. We here at PlumbingSupply.com® are delighted to offer hard to find replacement parts for the Fleur toilet. Whether you need a plunger assembly, a float assembly or even a replacement toilet seat, you'll find them here.

Kohler Jacob Delafon Fleur toilet - K-3417K-3417
Kohler Jacob Delafon Fleur toilet - K-3447K-3447

Repair Parts for the Fleur Toilet by Kohler
Model # K-3417 - Tank # K-4586

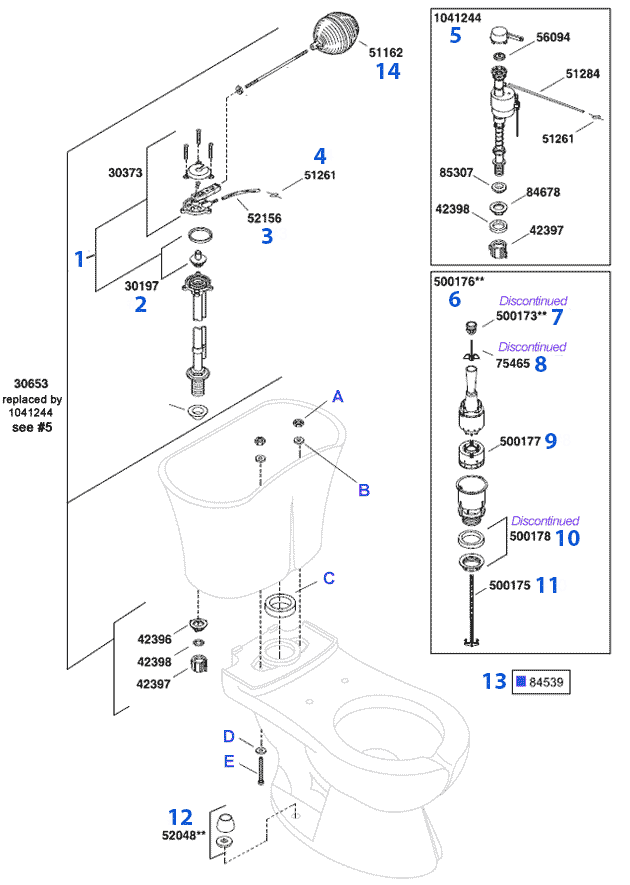

Image of Fleur Toilet Part Breakdown

Item # Part # Description Price & Quantity

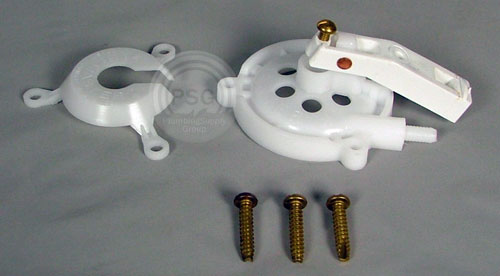

1 30373 Repair Kit for old 30653 valve - Replaced by "OEM" - includes plunger assembly $13.63
Repair Kit for old 30653 valve - Replaced by "Will Fit" - includes plunger assembly $14.22 Enter a quantity and
2 30197 Plunger Assembly $8.01 Enter a quantity and
3 52156 Refill Tube $2.24
1033209 Refill Tube - for GP1083167 fill valve $2.29 Enter a quantity and
4 51261 Refill Clip $3.21 Enter a quantity and
5 1041244 Fill Valve - Replaced by GP1138930 - Includes top assembly, lock nut, washer, supply nut, refill tube clip, and color coded flow restrictors $23.52
GP1083167 Class 5 Fill Valve (refill tube not included - order separately above) $21.42 Enter a quantity and

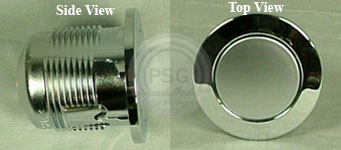

6 500173CP Actuator Kit - Chrome Discontinued
7 75465 Rod Actuator Kit Discontinued

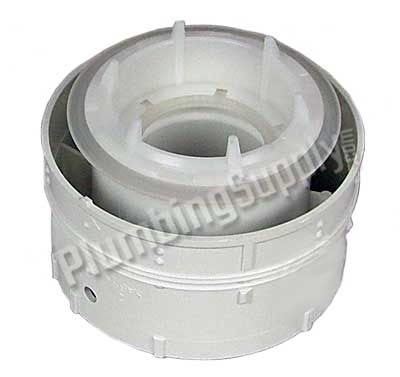

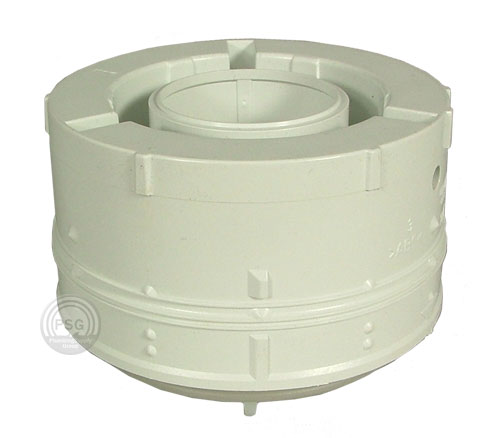

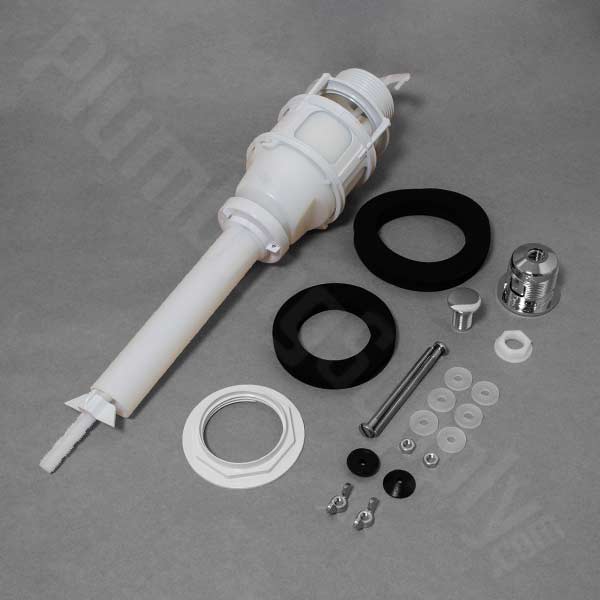

8 500177 Float Assembly Kit - see bottom view of seals $58.50 Enter a quantity and
9 500178 Attachment Kit Discontinued

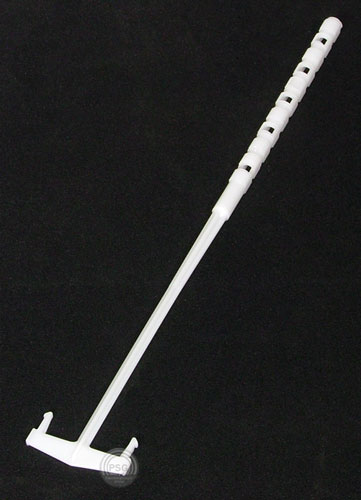

10 500175 Threaded Rod Kit Discontinued
11 52048 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and

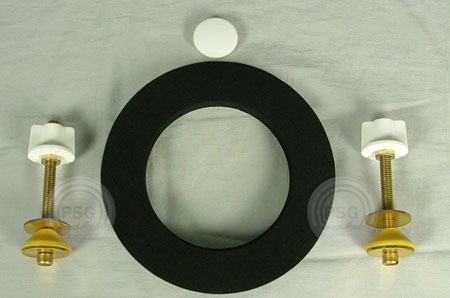

12 84539 Tank to Bowl Mounting Kit - includes A, B, C, D, E $52.58 Enter a quantity and
13 51162 Float Ball - Replaced by "will fit" float ball $3.40 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose


Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Find a toilet seat for the Kohler Fleur Toilets here


Repair Parts for the Fleur Toilet by Kohler

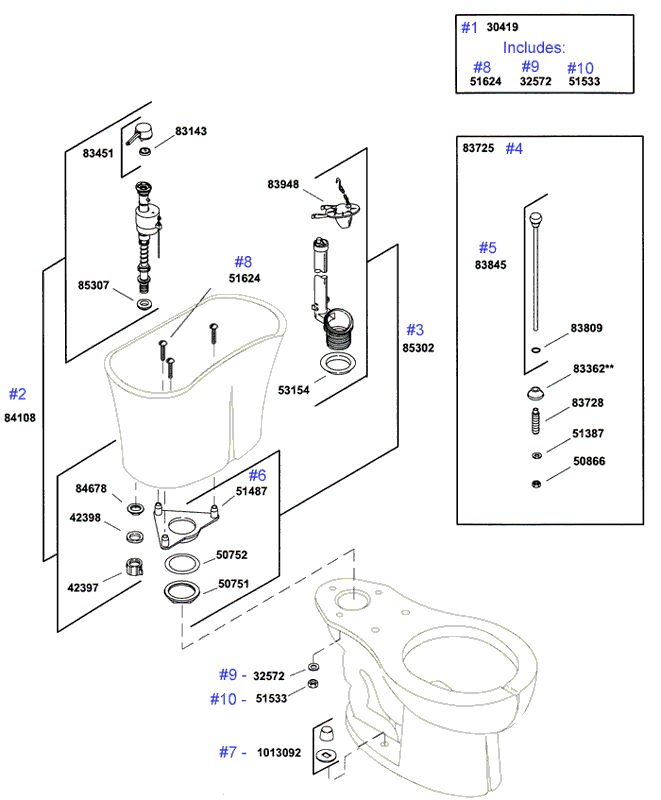

Model # K-3447 - Tank # K-4606

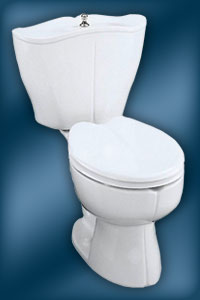

Fleur Toilet by Kohler

Item # Part # Description Price & Quantity
1 30419 Tank To Bowl BOLT KIT - includes #'s 8, 9 & 10 $10.65 Enter a quantity and
2 84108 Fill Valve - Replaced by GP1138930 - Includes top assembly, lock nut, washer, supply nut, refill tube clip, and color coded flow restrictors $23.52
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $21.42 Enter a quantity and
3 85302 Flush Valve Kit - includes flapper (83948), rubber washer (53154), tank gasket (51487), washer (50752), nut (50751) $21.34
83948 Flapper & Chain - Replaced by GP87449 $8.68 Enter a quantity and
4 83725 Trip Lever Assembly - includes handle/rod (83845), flange (83362), sleeve (83728), washer (51387, nut (50866) $50.31 Enter a quantity and
5 83845 Trip Lever Handle & Rod ONLY $40.14 Enter a quantity and
6 51487 Tank to Bowl Gasket with Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and
7 1013092 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Not Shown 1033209 Refill Tube - for GP1083167 fill valve $2.29 Enter a quantity and
*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose
