Trocadero Toilet Repair Parts
By Kohler

Looking for replacement or repair parts for your Kohler Trocadero toilet? Look no further than PlumbingSupply.com®! From seals to switches, we have what you're looking for to keep this unique toilet working properly.

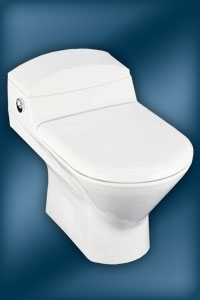

Trocadero one-piece toilet - K-3437

Kohler Toilet Replacement Parts for the Trocadero Series
Power Lite Twin Touch Actuator Model # K-3437

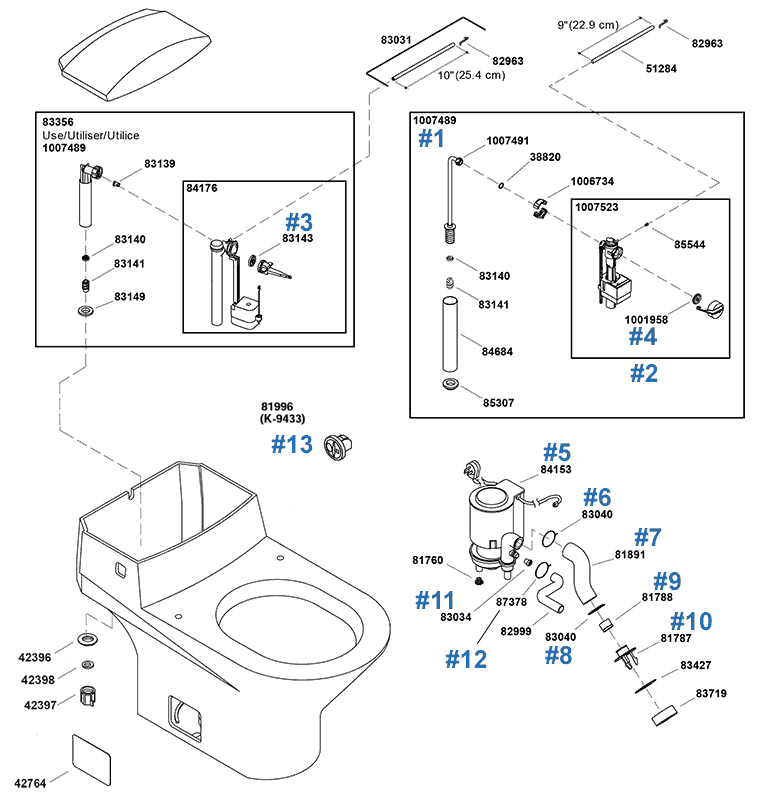

Trocadero toilet repair parts diagram

Item # Part # Description Price & Quantity
1 1007489 Complete Fill Valve Assembly $61.25 Enter a quantity and
2 1007523 Fill Valve Service Kit - Replaced by "will fit" Fluidmaster 747 $13.97 Enter a quantity and
3 1001958 Seal Diaphragm - for 1007489 fill valve $4.14 Enter a quantity and
4 83143 Seal Diaphragm - for 84531 fill valve $4.38 Enter a quantity and
5 84153 Pump Flush Assembly $348.85 Enter a quantity and
6 83040 Hose Clamp (1.62 I.D) $6.37 Enter a quantity and
7 81891 Bowl Supply Hose $11.42 Enter a quantity and
8 83040 Hose Clamp (1.62 I.D.) $6.37 Enter a quantity and
9 81788 Locking Ring $10.62 Enter a quantity and
10 81787 Snap Spud $30.14 Enter a quantity and
11 83034 Flow Restrictor $8.46 Enter a quantity and
12 87378 Hose Clamp (.94 O. D.) $4.13 Enter a quantity and
13 81996 Switch Assembly - Polished Chrome $86.25
Switch Assembly - Brushed Nickel $156.33 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "How do I install the Fluidmaster 747 Fill Valve Service Kit?"
A. To install the Fluidmaster 747 Fill Valve Service Kit, you need to first turn the water supply to the toilet off. Using your fingers, turn the cap (usually blue but not always) connected to the copper riser tube a quarter of a turn counterclockwise to release the cap from the float assembly. A wrench should not be required. Once the cap is disconnected from the tabs keeping it in place, pull the float assembly straight off. Align the replacement Fluidmaster 747 fill valve service kit (float assembly) up and push it back into the cap and turn the cap clockwise a quarter of a turn until it tightens onto the tabs on the float assembly (fill valve service kit). Turn your water back on and check for leaks.

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
