Archer Toilet Repair Parts

by Kohler

Make your toilet work like new with replacement parts for your Kohler Archer toilet, straight from your friends at®! From fill valves to trip levers, or bolt caps and gaskets, we have what you need. For many more Kohler parts, visit our complete Kohler toilet parts listing.

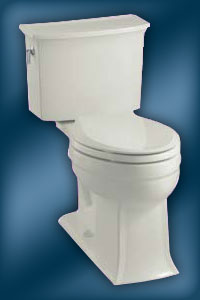

Kohler Archer toilet

Kohler Toilet Replacement Parts for the Archer Series
Models # K-3517 & K-3551 - Tanks # K-4431 & K-4493

Parts diagram for Archer toilets

Item # Image Part # Description Price & Quantity
1 kohler fill valve 1083167 GP1083167 Class 5 Fill Valve - includes top assembly, seal diaphragm, refill tube, shank washer, locknut, washer, supply nut $24.72 Enter a quantity and
2 kohler cap assembly 1057940 1057940 Top Assembly $6.63 Enter a quantity and
3 kohler seal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
4 kohler refill tube 1033209 1033209 Refill Tube $2.65 Enter a quantity and
5 kohler canister flush valve 1070282 1070282 Class 5 Canister Flush Valve Assembly - includes valve gasket, tank gasket & locknut $30.64 Enter a quantity and
6 kohler flush valve washer 1070291 1070291 Flush Valve Washer $3.31 Enter a quantity and
7 kohler seal 1059291 1059291 Flush Valve Flat Seal $9.09 Enter a quantity and
8 kohler flush valve seal 1097686 1097686 Flush Valve Gasket - for canister & regular valve
Replaces 1016219
$4.13 Enter a quantity and
9 kohler tank plate 1014065 1014065 Tank Attachment Plate $10.98 Enter a quantity and
10 kohler flush valve nut 1014580 1408436 (old #1107006 & old #1014580) 3" Flush Valve Nut $3.29 Enter a quantity and
11 kohler gasket 1018165 1018165-F Tank Gasket - Replaces 1018165-A $6.87 Enter a quantity and
12 kohler tank accessory pack 1024390 1024390 Tank To Bowl Accessory Bolt Kit $6.76 Enter a quantity and

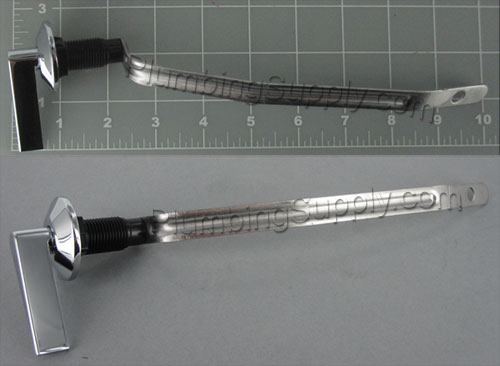

13 kohler polished chrome trip lever 1067577 1067577 Side Mount Trip Lever - Chrome $21.79 Enter a quantity and

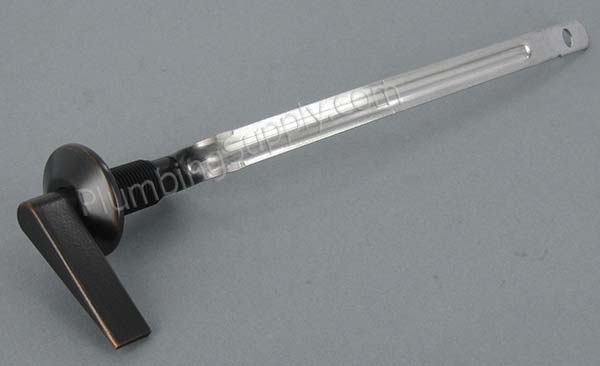

kohler tank lever oil rubbed bronze 1067577 Side Mount Trip Lever - Oil Rubbed Bronze $57.79 Enter a quantity and
14 kohler bolt caps white 1013092 1013092 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and
bemis affinity premium round toilet seat 200e4 200E4 Premium Bemis "Will Fit" Round Front Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $67.91 Enter a quantity and
Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Related Items & Information

Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.

Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
