Wellesley Wall Mount Toilet Repair Parts
By Kohler

The sleek lines of the Wellesley wall mount toilet give it a timeless look, so there is no need to update it when you can repair or replace the internal parts to make it work like new. From flush valve kits to flappers, we have what you need to keep your Kohler toilet in tip top shape. View our extensive collection of Kohler parts here.

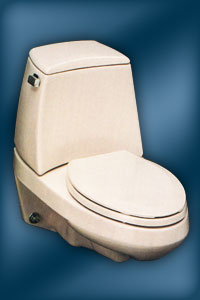

Wellesley toilet model K-3441

Kohler Toilet Replacement Parts for the Wellesley Toilet
Model # K-3441 - Tank # K-4504

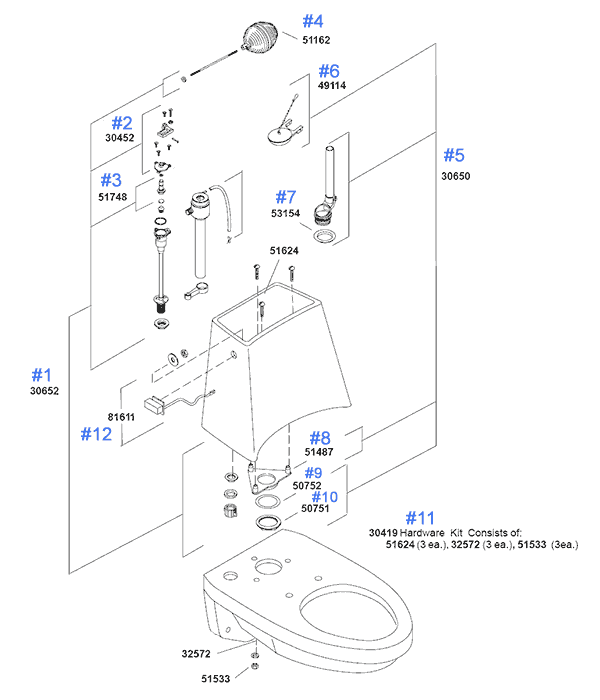

Wellesley toilet repair parts

Item # Part # Description Price & Quantity
1 30652 Fill Valve Assembly - 13-5/8" overall height - view dimensions
Includes fill valve body, refill tube, curved 7-1/2" float rod, float ball, washers, and locknut
30672 Alternative "Will-Fit" Fill Valve Assembly - 12" overall height - view dimensions
Includes fill valve body, refill tube, straight 9" float rod, float ball, washers, and locknut
Temporarily Unavailable Enter a quantity and
2 30452 Fill Valve Cap Assembly $34.29 Enter a quantity and
3 51748 Replacement Plunger Assembly $6.37 Enter a quantity and
4 51162 Float Ball - Replaced by "will fit" $3.70 Enter a quantity and
5 30650 Flush Valve - Replaced by 1003068
Includes flush valve body, flapper, chain with float, rubber washer, tank gasket, washer and nut
$26.19 Enter a quantity and
6 49114 Flapper - Replaced by "Will Fit" $8.46 Enter a quantity and
7 53154 Rubber Washer - Replaced by 1145626 $4.31 Enter a quantity and
8 51487 Tank to Bowl Gasket & Bolt Kit - Includes 3 of each: 5/16" bolts, washers, and nuts $14.53 Enter a quantity and
9 50752 Friction Ring $1.76 Enter a quantity and
10 50751 Lock Nut $5.12 Enter a quantity and
11 30419 Tank Mounting Accessory Pack - Includes 3 of each: tank bolt (51624), washer (32572), and nut (51533) $12.31 Enter a quantity and
12 81611-CP Side Mount Trip Lever - Left Side - Chrome - Replaced by #1013521 (below) Discontinued
1013521 Side Mount Trip Lever - Left Side - Chrome - view dimensions $26.44 Enter a quantity and
Toilet Seat 1200E3 Premium Bemis "Will Fit" Elongated Front Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Related Items & Information

Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.

Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
