Highline Toilet Repair Parts
By Kohler

The Highline toilet is a slender, attractive toilet that is often a perfect fit in your bathroom. Replacing the toilet is not your first choice, and repair parts are sometimes hard to find. Don't despair! We at PlumbingSupply.com® are pleased to offer replacement parts for this Kohler toilet, and with a selection ranging from float valve kits to flappers, you're sure to find just what you need. We are pleased to offer these and many other Kohler replacement parts.

Kohler Toilet Replacement Parts for the Highline Series

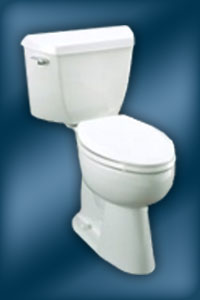

Models # K-3518 & K-3527 - Tank #K-4518

Highline repair parts by Kohler

Item # Part # Description Price & Quantity
1 30671 Complete Fill Valve Assembly $78.75 Enter a quantity and

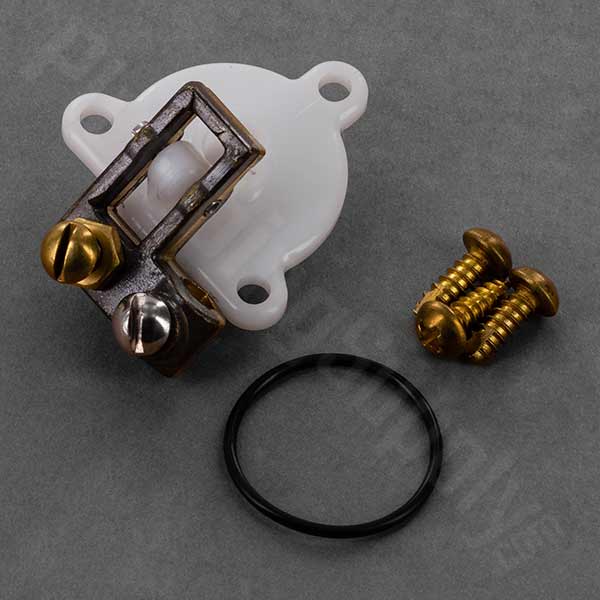

2 30452 Cap Assembly $22.78 Enter a quantity and
3 51748 Plunger Assembly $5.52 Enter a quantity and
4 51081 Brass Float Rod - Replaced by "will fit" float rod $2.25 Enter a quantity and
5 51162 Float Ball - Replaced by "will fit" float ball $3.52 Enter a quantity and
6 39236 Refill Tube with Clip $2.96 Enter a quantity and
7 30680 Flush Valve - This item was replaced by 89187 which has also been discontinued Discontinued
"Will Fit" "Will Fit" Flush Valve - 10-1/2" tall overflow tube - will need to be cut down to original valve height - can use any type of saw (wood saw, hack saw, etc.) - altered valves are non-returnable $9.19 Enter a quantity and

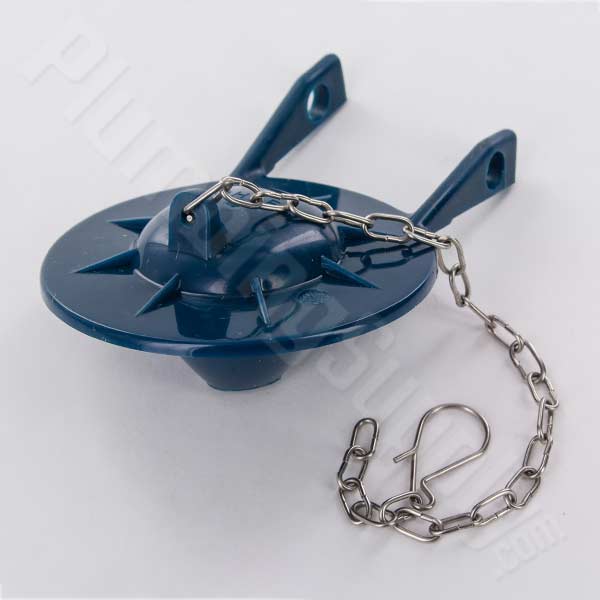

8 87449 Flapper - for new style flush valve $8.68 Enter a quantity and
9 49114 Flapper - for old style flush valve - Replaced by "will fit" $8.07 Enter a quantity and

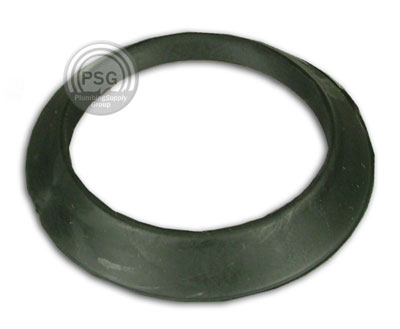

10 53154 Flush Valve Gasket - Replaced by GP1145626 $3.73 Enter a quantity and
11 51487 Tank to Bowl Gasket & Bolt Kit - includes triangle gasket, washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and

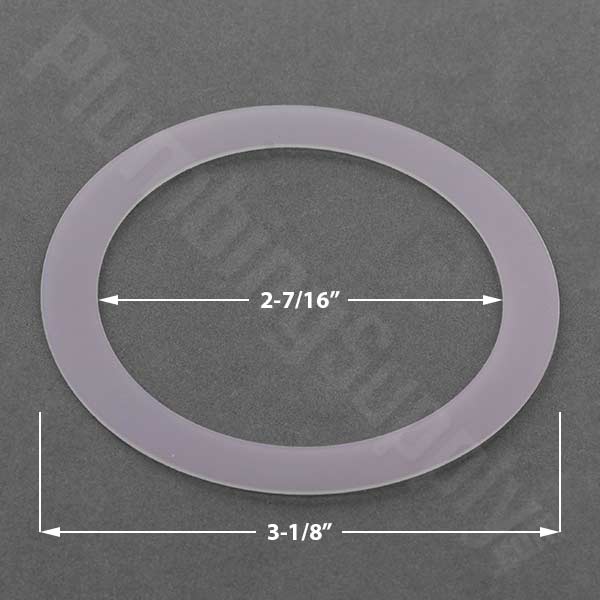

12 50752 Friction Ring $1.53 Enter a quantity and

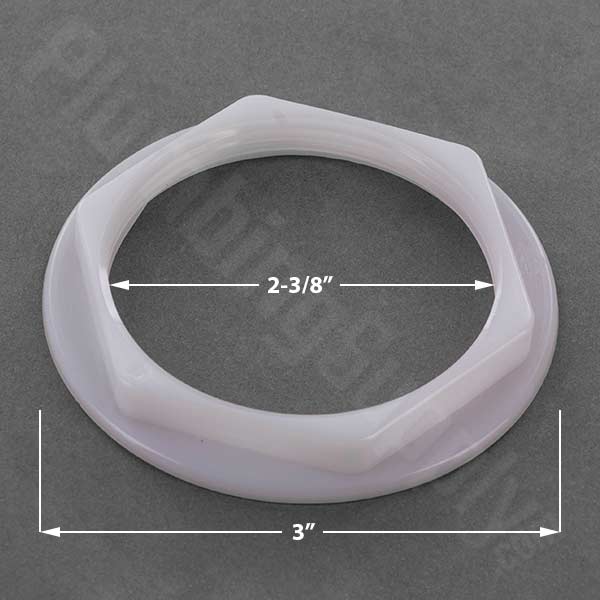

13 50751 Lock Nut $4.44 Enter a quantity and

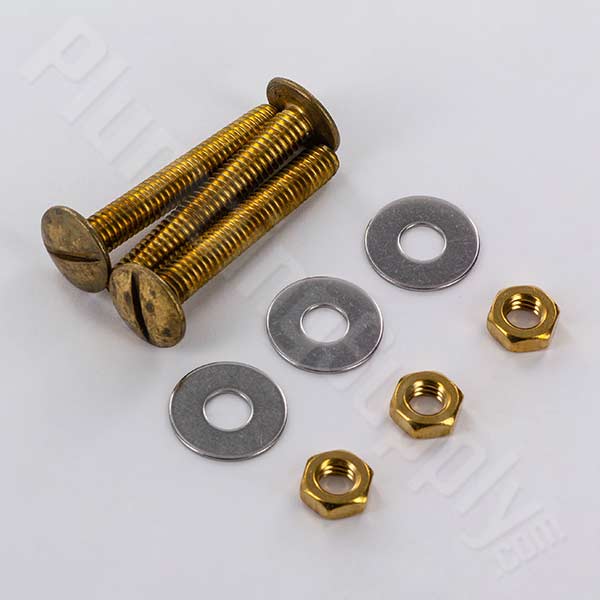

14 30419 Tank to Bowl Bolt Kit ONLY - includes washers (3), 5/16" bolts (3) and nuts (3) $10.65 Enter a quantity and

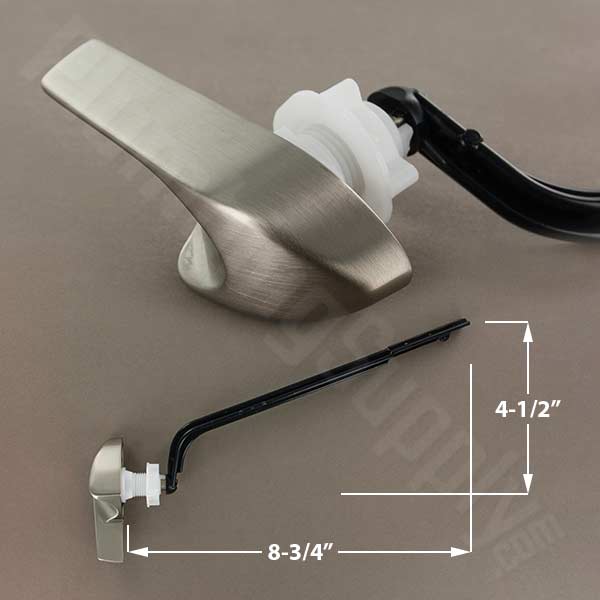

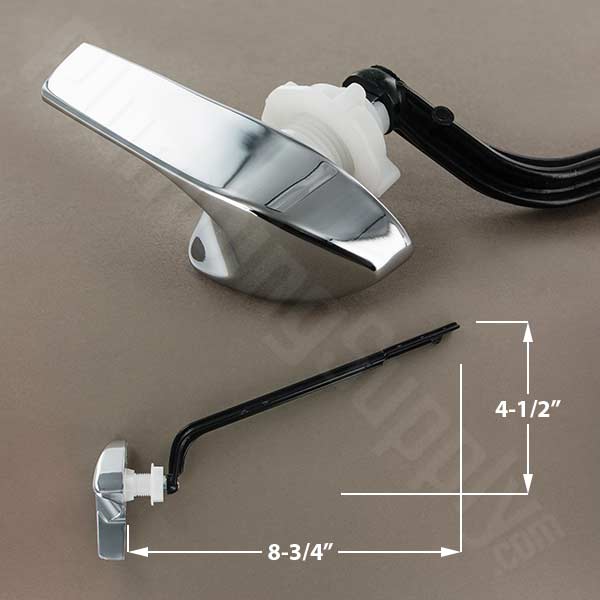

15 30324 Side Mount Trip Lever - LEFT Side - Chrome $15.41

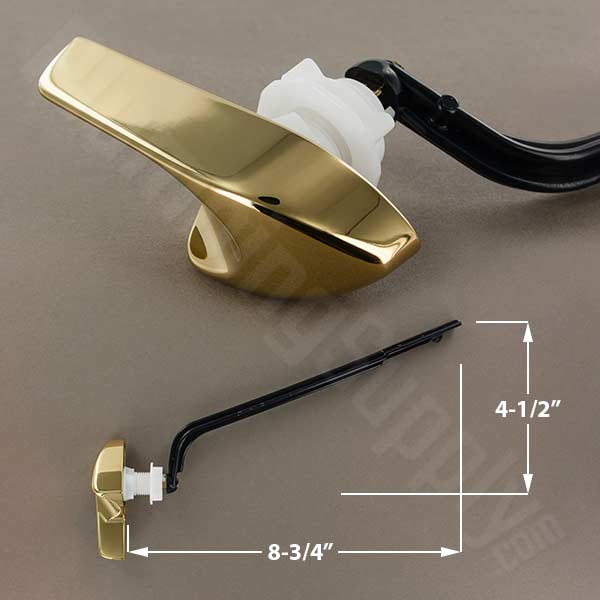

Side Mount Trip Lever - LEFT Side - Polished Brass $43.90
Side Mount Trip Lever - LEFT Side - Brushed Nickel $62.44

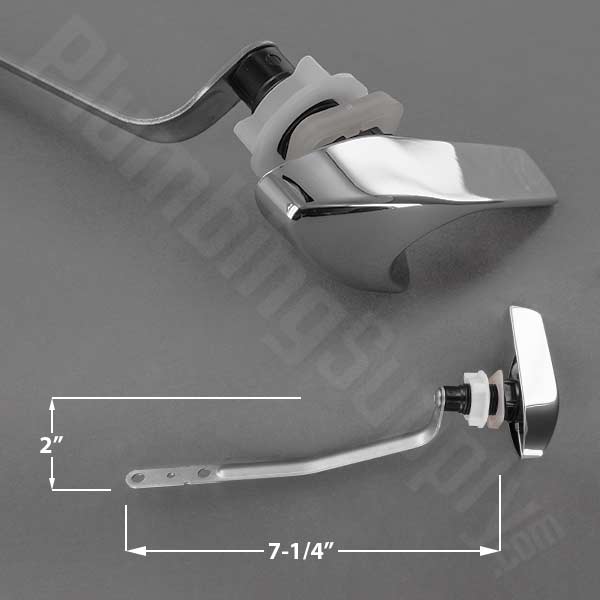

87114 Side Mount Trip Lever - RIGHT Side - Chrome $16.02 Enter a quantity and
16 52048 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Toilet Seat 200E3 Premium Bemis "Will Fit" Round Front Seat - White (view more color options) $51.18
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.10 Enter a quantity and

Kohler Toilet Replacement Parts for the Highline Series

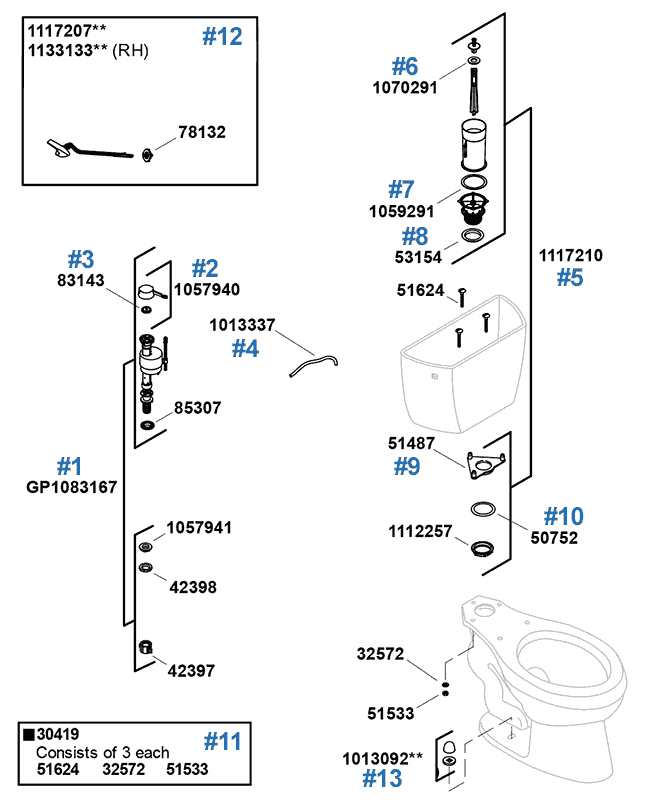

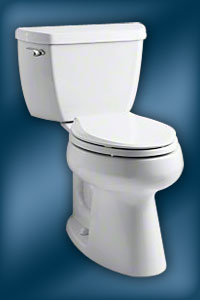

Model # K-3658 - Tank #K-4436

Highline repair parts by Kohler

Item # Part # Description Price & Quantity
1 GP1083167 Class 5 Fill Valve - includes top assembly, seal diaphragm, shank washer, locknut, washer, supply nut (refill tube not included - order separately below) $21.42
GP1138930 Fill Valve - includes top assembly, seal diaphragm, shank washer, locknut, washer, supply nut (refill tube not included - order separately below) $23.52 Enter a quantity and
2 1057940 Top Assembly $5.75 Enter a quantity and
3 83143 Seal Diaphragm $4.38 Enter a quantity and
4 1033209 Refill Tube $2.29 Enter a quantity and

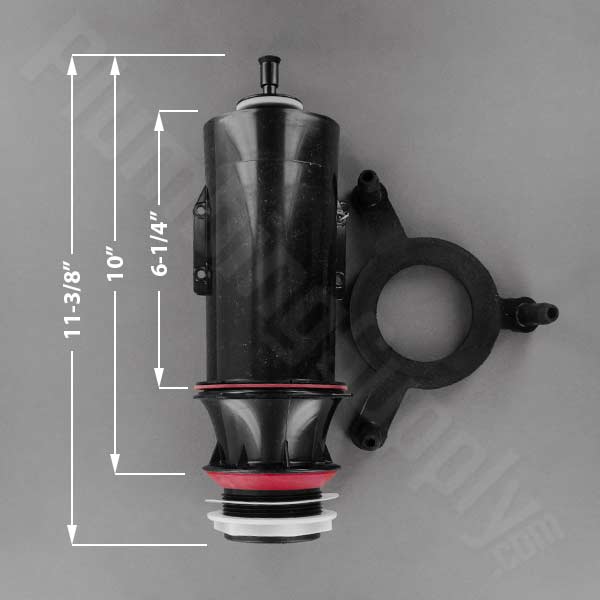

5 1117210 Class 5 Flush Valve - Canister Style $16.44
Tool Multi-Purpose Strap Wrench - for easier flush valve removal and installation $10.93 Enter a quantity and
6 1070291 Flush Valve Washer $2.86 Enter a quantity and
7 1059291 Flush Valve Flat Seal $7.88 Enter a quantity and
8 53154 Flush Valve Gasket - Replaced by GP1145626 $3.73 Enter a quantity and
9 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) Enter a quantity and $13.84
10 50752 Friction Ring $1.53 Enter a quantity and
11 30419 Tank to Bowl Bolt Kit ONLY - includes washers (3), 5/16" bolts (3) and nuts (3) $10.65 Enter a quantity and

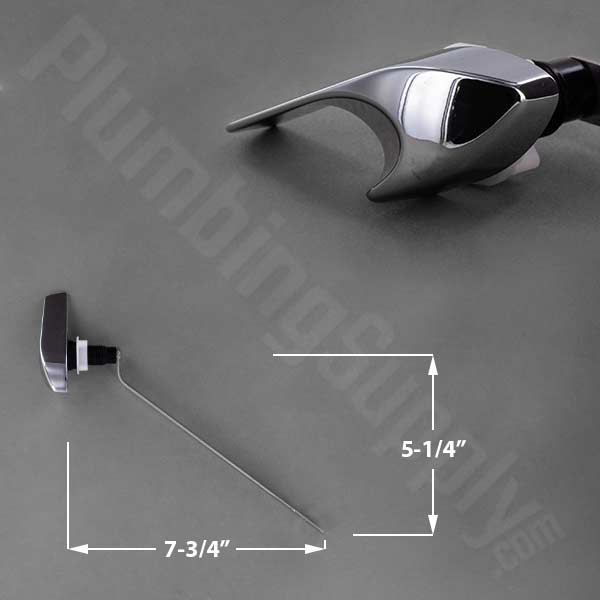

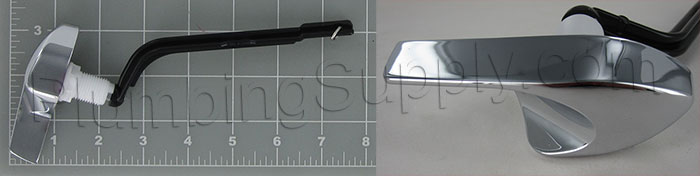

12 1117207 Left Hand Side Mount Trip Lever - Plastic Arm - Chrome $6.94

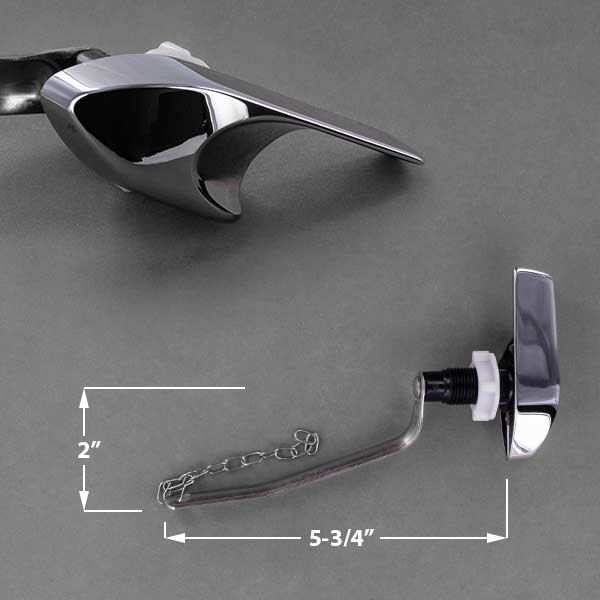

1133133 Right Hand Side Mount Trip Lever - Metal Arm - Chrome $14.84 Enter a quantity and
13 1013092 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Toilet Seat 200E3 Premium Bemis "Will Fit" Round Front Seat - White (view more color options) $51.18
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.10 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose

Kohler Toilet Replacement Parts for the Highline Series

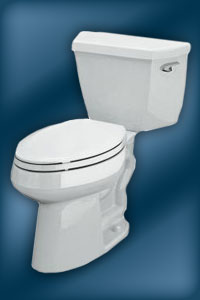

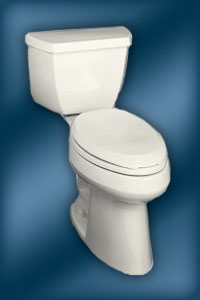

Models # K-3427 & K-11450 - Tank # K-4620

Highline classic toilet repair parts by Kohler

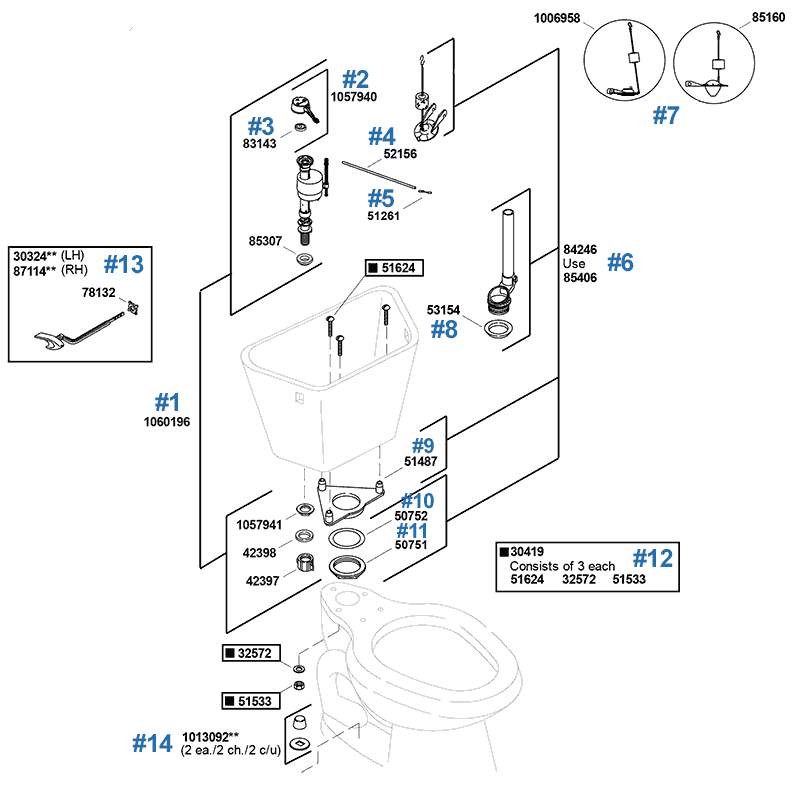

Item # Part # Description Price & Quantity

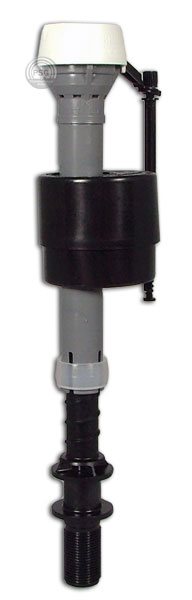

1 1060196 Fill Valve - Replaced by GP1138930 - includes top assembly, lock nut, washer, supply nut, refill tube clip, and color coded flow restrictors (refill tube not included - order separately below) $23.52
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $21.42 Enter a quantity and

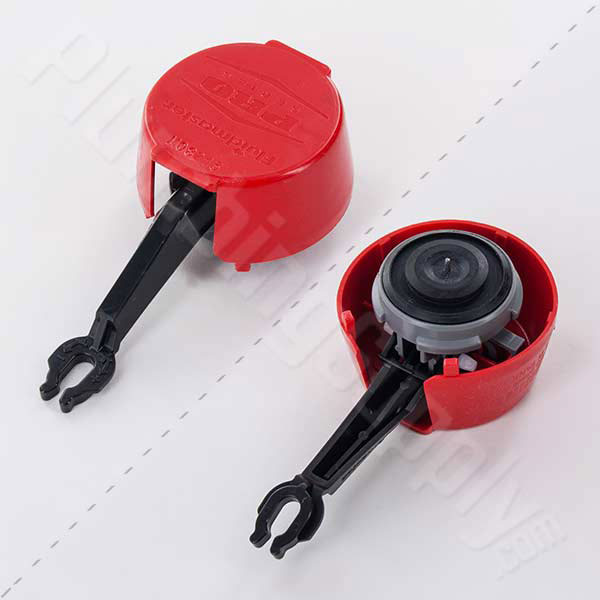

2 1057940 Cap Assembly - Replaced by "will fit" - for GP1083167 & GP1138930 fill valves $5.59 Enter a quantity and
3 83143 Seal Diaphragm - for 1060196, GP1083167 & GP1138930 fill valves $4.38 Enter a quantity and

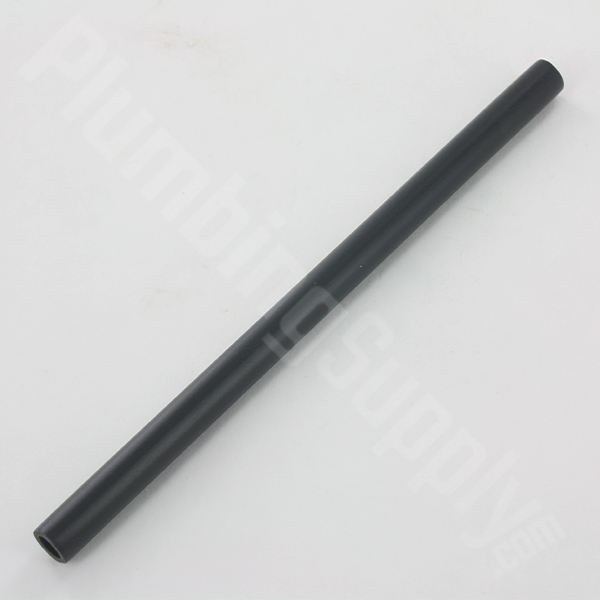

4 52156 Refill Tube - for 1060196 and GP1138930 fill valves $2.24
1033209 Refill Tube - for GP1083167 fill valve $2.29 Enter a quantity and
5 51261 Refill Tube Clip $3.21 Enter a quantity and
6 84246 Flush Valve - Replaced by 85406 - includes flapper, flush valve gasket & tank to bowl gasket $26.52 Enter a quantity and

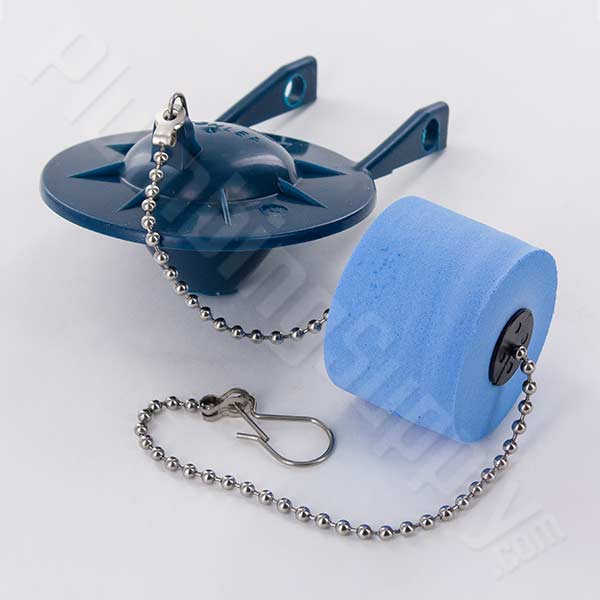

7 1006958 Flapper - Replaced by GP85160 $10.96 Enter a quantity and
8 53154 Flush Valve Gasket - Replaced by GP1145626 $3.73 Enter a quantity and
9 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) Enter a quantity and $13.84
10 50752 Friction Ring $1.53 Enter a quantity and
11 50751 Lock Nut $4.44 Enter a quantity and
12 30419 Tank to Bowl Bolt Kit ONLY - includes washers (3), 5/16" bolts (3) and nuts (3) $10.65 Enter a quantity and
13 30324 Side Mount Trip Lever - LEFT Side - Chrome $15.41
Side Mount Trip Lever - LEFT Side - Polished Brass $43.90
Side Mount Trip Lever - LEFT Side - Brushed Nickel $62.44
87114 Side Mount Trip Lever - RIGHT Side - Chrome $16.02 Enter a quantity and
14 1013092 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Toilet Seat 200E3 Premium Bemis "Will Fit" Round Front Seat - White (view more color options) $51.18
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.10 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose

Kohler Toilet Replacement Parts for the Highline Peacekeeper Series
Model # K-3427-X - Tank # K-4620-X

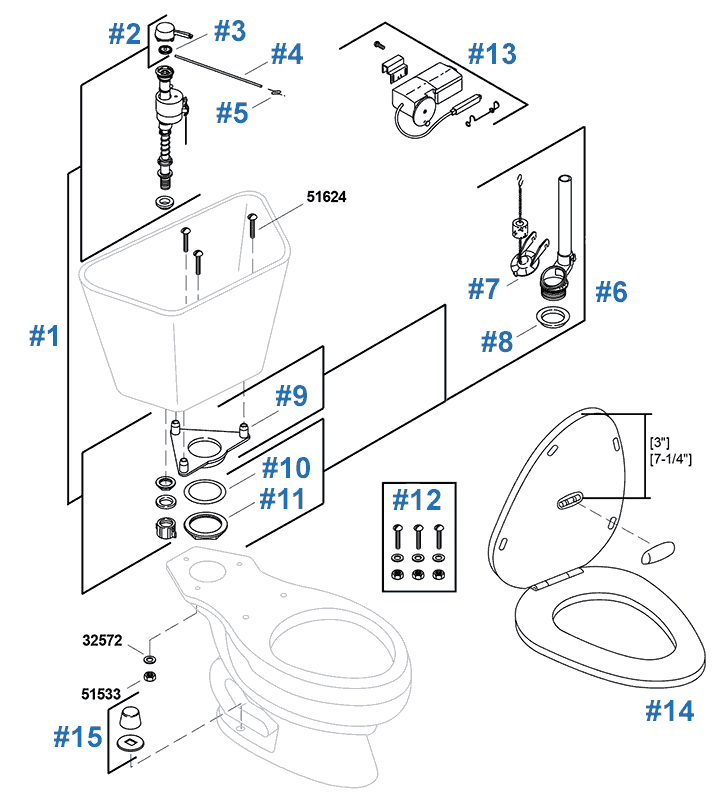

Highline Peacekeeper seat flush repair parts by Kohler

Item # Part # Description Price & Quantity
1 1059500 Fill Valve - Replaced by GP1138930 - includes top assembly, seal diaphragm, washers, locknut, supply nut, color coded flow restrictors $23.52
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $21.42 Enter a quantity and
2 1057940 Top Assembly - fits 1059500 and GP1138930 fill valves $5.75 Enter a quantity and
3 83143 Seal Diaphragm - for 1059500, GP1083167 & GP1138930 fill valves $4.38 Enter a quantity and
4 52156 Refill Tube - for 1059500 and GP1138930 fill valves $2.24
1033209 Refill Tube - for GP1083167 fill valve $2.29 Enter a quantity and
5 51261 Refill Tube Clip $3.21 Enter a quantity and
6 85406 Flush Valve - includes flapper, flush valve gasket & tank to bowl gasket $26.52 Enter a quantity and
7 1006958 Flapper - Replaced by GP85160 $10.96 Enter a quantity and
8 53154 Flush Valve Gasket - Replaced by GP1145626 $3.73 Enter a quantity and
9 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and
10 50752 Friction Ring $1.53 Enter a quantity and
11 50751 Lock Nut $4.44 Enter a quantity and
12 30419 Tank to Bowl Bolt Kit ONLY - includes washers (3), 5/16" bolts (3) and nuts (3) $10.65 Enter a quantity and

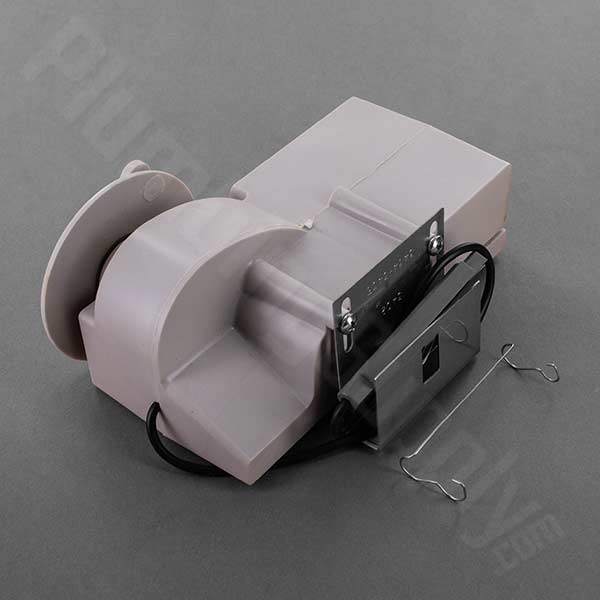

13 81764 Flush Actuator Housing Assembly $292.12 Enter a quantity and
14 93226 (3") 93228 (7") Flush Actuator Toilet Seat - This specialty toilet seat is required for the flush actuator to work properly and is not replaceable with our standard "will fit" seats. Not Available
15 1013092 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Packaging for this item may state to use a different valve (GP1083167). Please note that both valves work the same but may have slightly different tank/bowl refill times.

Kohler Toilet Replacement Parts for the Highline Series

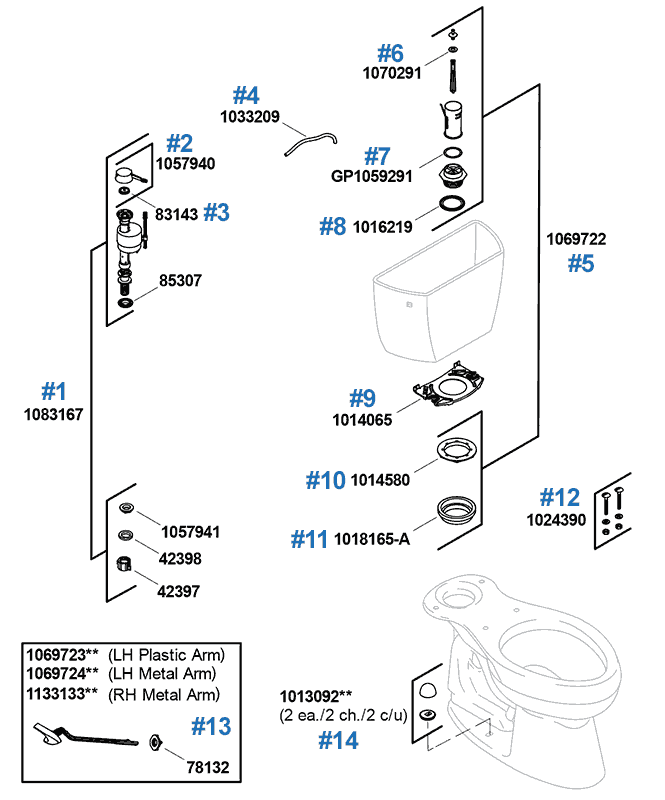

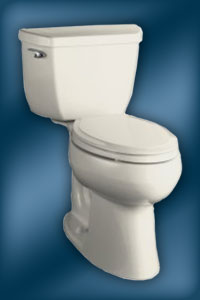

Model # K-3611 - Tank #K-4632

Highline repair parts by Kohler

Item # Part # Description Price & Quantity
1 GP1083167 Class 5 Fill Valve - includes top assembly, seal diaphragm, shank washer, locknut, washer, supply nut (refill tube not included - order separately below) $21.42
GP1138930 Fill Valve - includes top assembly, seal diaphragm, shank washer, locknut, washer, supply nut (refill tube not included - order separately below) $23.52 Enter a quantity and
2 1057940 Top Assembly $5.75 Enter a quantity and
3 83143 Seal Diaphragm $4.38 Enter a quantity and
4 1033209 Refill Tube $2.29 Enter a quantity and

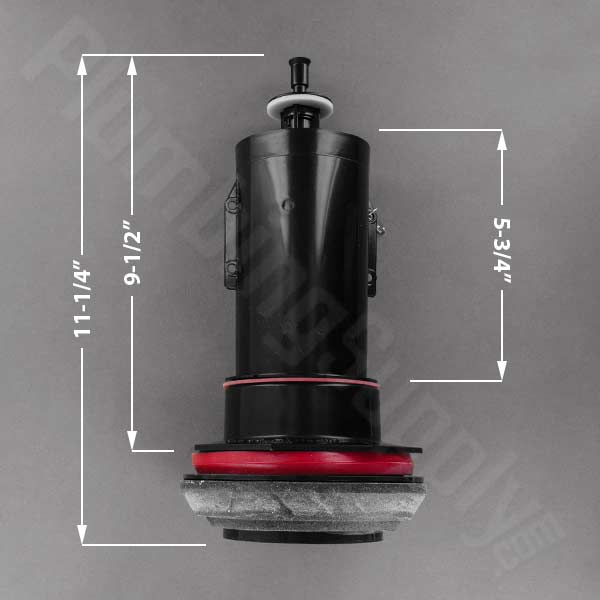

5 1069722 Class 5 Flush Valve Assembly - Canister Style $30.98
Tool Multi-Purpose Strap Wrench - for easier flush valve removal and installation $10.93 Enter a quantity and
6 1070291 Flush Valve Washer $2.86 Enter a quantity and
7 GP1059291 Flush Valve Flat Seal $7.88 Enter a quantity and
8 1016219 Flush Valve Gasket - Replaced by 1097686 $3.57 Enter a quantity and
9 1014065 Tank Plate $6.59 Enter a quantity and
10 1014580 Flush Valve Nut $2.63 Enter a quantity and
11 1018165-A Tank Gasket - Replaced by 1018165-F $5.71 Enter a quantity and
12 1024390 Tank To Bowl BOLT Kit $5.85 Enter a quantity and

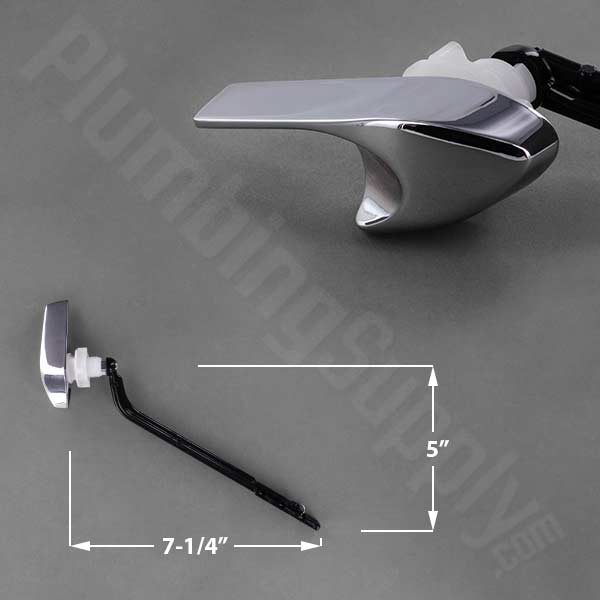

13 1069723 Side Mount Trip Lever with Plastic Arm - LEFT Side - Chrome $8.99
1069724 Side Mount Trip Lever with Metal Arm - LEFT Side - Chrome $12.62
1133133 Side Mount Trip Lever with Metal Arm - RIGHT Side - Chrome $14.84 Enter a quantity and
14 1013092 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Toilet Seat 200E3 Premium Bemis "Will Fit" Round Front Seat - White (view more color options) $51.18
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.10 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose

Related Items & Information



Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight
