Elliston Toilet Repair Parts
By Kohler

Get your classy Elliston toilet back in top notch working condition with genuined Kohler repair parts from your friends at PlumbingSupply.com®. Whether you need a whole tank makeover or just need to replace a few seals, we've got everything you're looking for right here.

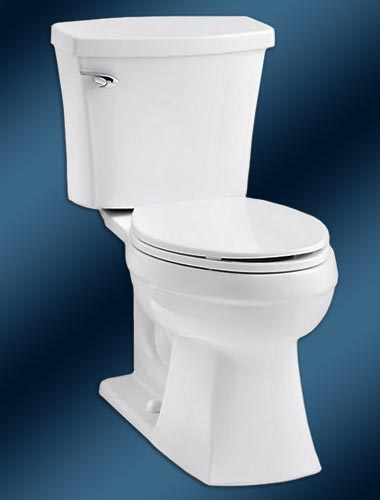

Kohler Elliston two-piece toilet - tank #K-5380Tank #K-5380

Replacement Parts for Kohler Elliston Toilets
Two Piece Model - Tank #5380

Parts diagram for Kohler Elliston two-piece toilet - tank #K-5380
Item # Part # Description Price & Quantity
1 GP1083167 Class 5 Fill Valve - includes top assembly, seal diaphragm, refill tube, shank washer, locknut, washer, and supply nut $24.72 Enter a quantity and
2 1057940 Top Assembly $6.63 Enter a quantity and
3 83143 Seal Diaphragm $4.99 Enter a quantity and
4 1033209 Refill Tube $2.65 Enter a quantity and

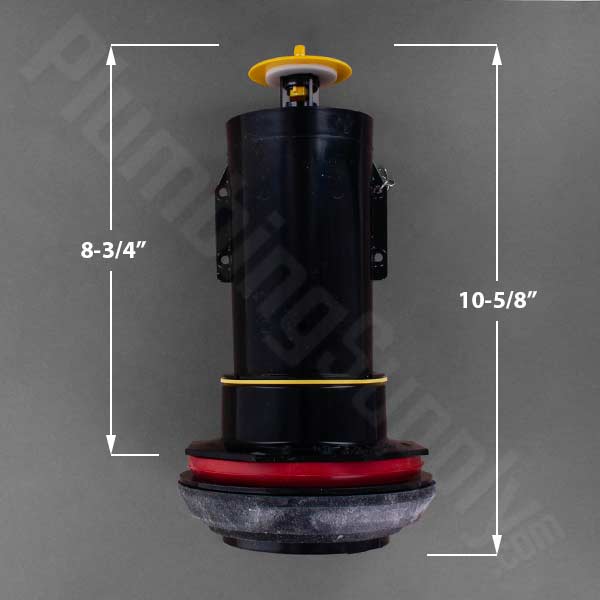

5 1090618 Canister Flush Valve - Replaced by 1216610 - includes flush valve nut and tank-to-bowl gasket $23.40 Enter a quantity and
6 1070291 Flush Valve Washer $3.31 Enter a quantity and
7 1063553 Flush Valve Repair Kit - includes cap, center guide, chain - Replaced by GP1229656 $9.51 Enter a quantity and
8 1059291 Flush Valve Flat Seal $9.09 Enter a quantity and
9 1016219 Flush Valve Gasket - Replaced by 1097686 $4.13 Enter a quantity and

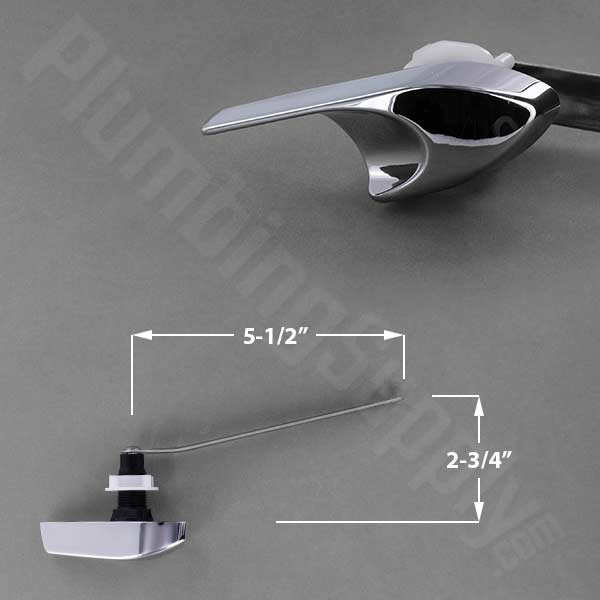

10 1213839 Front Mount Trip Lever - Chrome $13.84 Enter a quantity and
11 1014065 Tank Attachment Plate Temporarily
12 1107006 3" Flush Valve Nut - Replaced by 1408436 $3.29 Enter a quantity and
13 1018165-F Tank to Bowl Gasket $6.87 Enter a quantity and
14 1024390 Tank To Bowl Bolt Kit $6.76 Enter a quantity and
15 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
16 1013092 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and

Related Items & Information

Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.

Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
