Champlain Toilet Repair Parts
by Kohler

If you're looking for replacement parts for your Kohler Champlain toilet, your search is over! From plunger assemblies and gaskets to trip lever assemblies and bolt caps, we have what you need. Let PlumbingSupply.com® be your source for these and many other Kohler replacement parts.
Kohler Champlain one-piece toilet - model K-3390Model #K-3390

Repair Parts for Kohler Champlain Toilets
One Piece Model #K-3390 - for toilets made AFTER 1973

Repair parts diagram for Kohler Champlain one-piece toilets - post-1973
Item # Image Part # Description Price & Quantity
1 kohler fill valve 30669 30669 Complete Retrofit Kit (Limited quantity!) - Replaces old style AND new style flush valve & fill valve (includes or replaces all repair parts shown in diagram except trip lever components, toilet seat & hinges, and bolt caps) - $519.79 Enter a quantity and
2 kohler valve servier kit 30166 30166 Plunger Service Kit - New Style (includes plunger, o-ring, washer, seat, and gasket) $7.43 Enter a quantity and
3 kohler plunger for fill valve 51429 51429 Plunger Assembly - New Style (includes plunger and o-ring) $2.98 Enter a quantity and
4 kohler plunger service kit 30100 30100 Plunger Service Kit - Old Style (includes plunger, o-ring, washer, and seat) $7.62 Enter a quantity and
5 kohler plunger assembly 51748 51748 Plunger Assembly - Old Style (includes plunger, o-ring, and washer) $6.37 Enter a quantity and
6 kohler cap float lever assembly 51425 51425 Cap & Float Lever Assembly - New Style $70.90 Enter a quantity and
7 brass float rod 10 inch "Will Fit" Float Rod Float Rod - Replaces 51341 - 10" length (may be cut to fit - altered rods are non-returnable), for both styles of fill valves $2.66 Enter a quantity and
8 plastic float ball "Will Fit" Float Ball Float Ball - Replaces 51162 - for both styles of fill valves $3.70 Enter a quantity and
9 kohler guide assembly 51288 51288 Check Guide Assembly - for both styles of fill valves $27.39 Enter a quantity and
10 kohler gasket 20504 20504 Gasket - 1" x 1-1/8" - for Old Style fill valve $2.64 Enter a quantity and
11 kohler check plunger 51291 51291 Check Plunger - for both styles of fill valves $8.33 Enter a quantity and
12 kohler flush tube 51384 51384 Flush Tube - for both styles of valves $16.65 Enter a quantity and
13 kohler rotor 51344 51344 Rotor - for both styles of valves $3.92 Enter a quantity and
14 kohler locking gland 34635 34635 Rotor Locking Gland - for both styles of valves $15.59 Enter a quantity and
15 kohler diverter lever assembly 51272-CC 51272 Diverter Lever Assembly $27.49 Enter a quantity and
16 kohler lift wire 87269 87269 Lift Wire - for both styles of valves - Replaces 51218 $6.50 Enter a quantity and
17 kohler flush ball 88921 88921 Flush Ball - replaces both the old style 51200 and new style 51230 $14.74 Enter a quantity and
18 kohler toilet supply washer 50881 50881 Supply Washer - for both styles of fill valves $2.64 Enter a quantity and
19 kohler rubber washer gp1145626 GP1145626 Rubber Washer - Replaces 53154 $4.31 Enter a quantity and
20 kohler toilet part ball seat kit 3400kit 3400KIT Ball Seat Kit - for both styles - includes screw (34612), bushing (51999), and clamp (34611) $33.69 Enter a quantity and
21 kohler trip lever assembly 77046 77046 Trip Lever Assembly - Chrome - for both styles (includes handle and flange/sleeve) Discontinued
kohler trip lever assembly 500195 500195 Trip Lever Assembly - Chrome (new re-designed style) Discontinued
22 kohler trip lever 51170 51170 Trip Lever Handle ONLY - Chrome - for both styles $28.49 Enter a quantity and
23 kohler support 51171-C for trip arm assembly 51171 Trip Lever Support - for both styles $13.86 Enter a quantity and
24 kohler subkit 409 SUBKIT409 Trip Arm Assembly - Old Style - Replaces 51446 - includes chain assembly (51447), and trip arm (51446) $29.45 Enter a quantity and
25 kohler trip lever nut 50866 50866 Nut for Trip Lever $14.37 Enter a quantity and
26 kohler trip lever screw 51033 51033 Screw for Trip Lever $0.71 Enter a quantity and

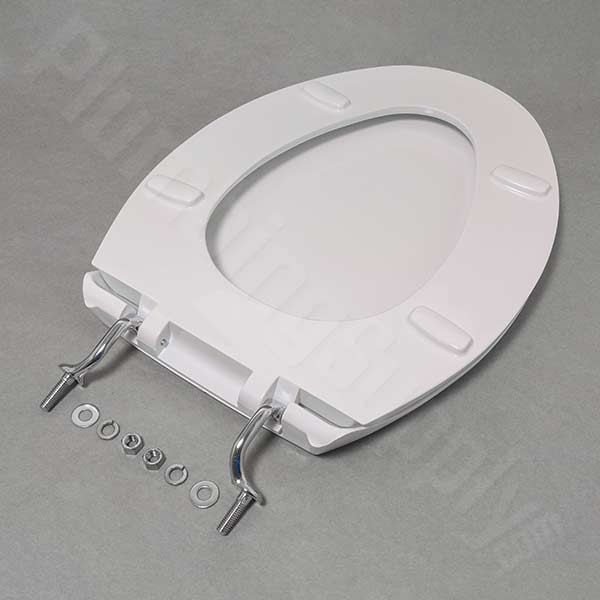

27 will-fit kohler champlain toilet seat white with chrome hinges 83787 "Will Fit" Seat for Champlain Toilet - White with Chrome Hinges - view dimensions Discontinued
28 kohler bolt caps white 1013092 52048 Bolt Cap Covers - White (PAIR) - view more color options $7.50 Enter a quantity and

Repair Parts for Kohler Champlain Toilets
One Piece Model #K-3390 - for toilets made BEFORE 1973

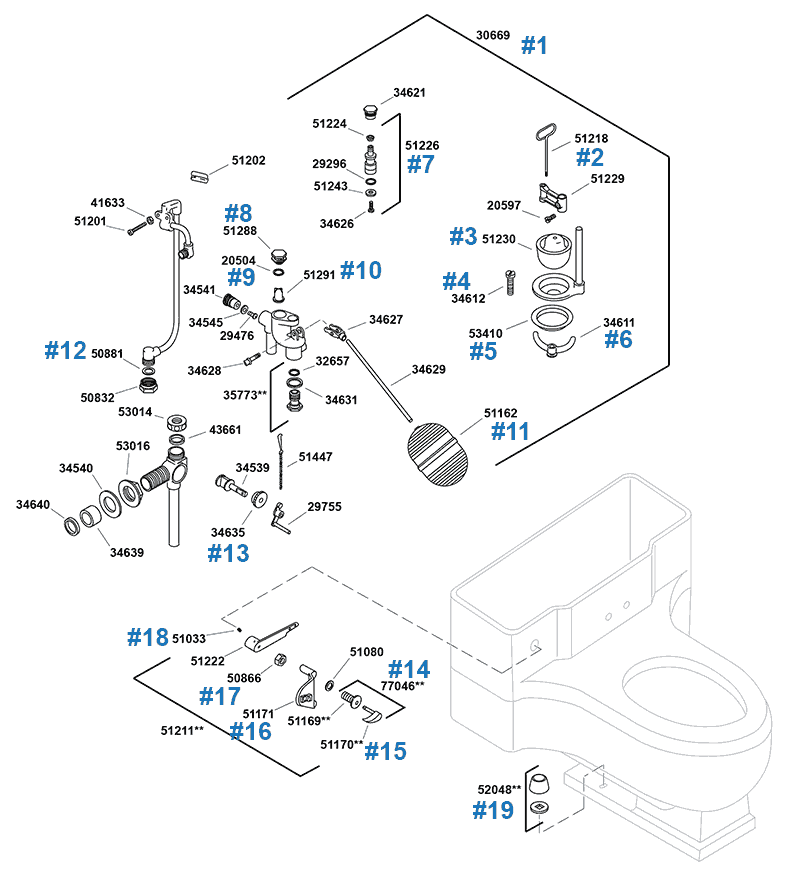

Repair parts diagram for Kohler Champlain one-piece toilets - pre-1973
Item # Image Part # Description Price & Quantity
1 kohler fill valve 30669 30669 Complete Retrofit Kit (Limited quantity!) - Replaces old style flush valve & fill valve (includes or replaces all repair parts shown in diagram except trip lever components, toilet seat & hinges, and bolt caps) $519.79 Enter a quantity and
2 kohler lift wire 87269 87269 Lift Wire - Replaces 51218 $6.50 Enter a quantity and
3 kohler flush ball 88921 88921 Tank Ball - Replaces 51230 $14.74 Enter a quantity and
4 image unavailable 34612 Flush Valve Screw (not available separately, use 3400KIT below) use 3400KIT
5 kohler washer 53410 53410 Flush Valve Gasket $6.27 Enter a quantity and
6 image unavailable 34611 Flush Valve Clamp (not available separately, use 3400KIT below) use 3400KIT
4 & 6 kohler toilet part ball seal kit 3400kit 3400KIT Ball Seat Kit - includes screw (34612) and clamp (34611) $33.69 Enter a quantity and
7 kohler plunger for champlain 51226 51226 Plunger Assembly (includes cap, packing, o-ring, washer, and screw) Discontinued
8 kohler guide assmelbly 51288 51288 Check Guide Assembly - for fill valve $27.39 Enter a quantity and
9 kohler gasket 20504 20504 Gasket - 1" x 1-1/8" - for fill valve $2.64 Enter a quantity and
10 kohler check plunger 51291 51291 Check Plunger - for fill valve $8.33 Enter a quantity and
11 plastic float ball "Will Fit" Float Ball Float Ball - Replaces 51162 - 4" x 5" - 1/4"-20 threaded $3.70 Enter a quantity and
12 kohler toilet supply washer 50881 50881 Supply Washer $2.64 Enter a quantity and
13 kohler locking gland 34635 34635 Rotor Locking Gland $15.59 Enter a quantity and
14 kohler trip lever assembly 77046 77046 Trip Lever Assembly - Chrome (includes handle and flange/sleeve) Discontinued
15 kohler trip lever 51170 51170 Trip Lever Handle ONLY - Chrome $28.49 Enter a quantity and
16 kohler support 51171-c 51171 Trip Lever Support $13.86 Enter a quantity and
17 kohler trip lever nut 50886 50866 Nut for Trip Lever $14.37 Enter a quantity and
18 kohler trip lever screw 51033 51033 Screw for Trip Lever $0.71 Enter a quantity and
19 kohler bolt caps white 1013092-0 52048 Bolt Cap Covers - White (PAIR) - view more color options $7.50 Enter a quantity and
