Alouette Toilet Repair Parts
By Kohler

Keep your Kohler Alouette toilet in perfect working order with all the repair and replacement parts you need, brought to you by PlumbingSupply.com®! Whether you need the fill valve service kit, a flapper, or a tank to bowl kit, we have them here.

Kohler Toilet Replacement Parts for the Alouette Series
Model # K-3491 - Tank # K-4601

Alouette repair parts by Kohler

Item # Part # Description Price & Quantity
1 75422 Fill Valve - Replaced by GP1138930 - includes top assembly, lock nut, washer, supply nut, refill tube clip, and color coded flow restrictors $23.50
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $21.40 Enter a quantity and
2 1057940 Top Assembly - for GP1083167 and GP1138930 fill valves $5.74 Enter a quantity and
3 83991 Flush Valve Service Kit - Replaced by 1003068 $22.67 Enter a quantity and
4 1006958 Flapper - Replaced by the GP85160 (fits 83991 flush valve only) $10.97
1006958 Flapper - Replaced by "Will Fit" (fits 1003068 flush valve only) $6.87 Enter a quantity and
5 53154 Rubber Washer - Replaced by GP1145626 $3.73 Enter a quantity and
6 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and
7 52048 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
8 51261 Refill Tube Clip $3.21 Enter a quantity and
9 30419 Tank to Bowl Bolt Kit ONLY - includes #'s 10, 11 & 12 $10.65 Enter a quantity and
10 51624 Bolt ONLY - for tank to bowl, not sold separately see item 9
11 32572 Washer ONLY - for tank to bowl, not sold separately see item 9
12 51533 Nut ONLY - for tank to bowl, not sold separately see item 9
13 51284 Refill tube - 9" length - Replaced by "Will-Fit" Refill Tube - 12" length $1.71
1033209 Refill Tube - for GP1083167 fill valve $2.29 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose

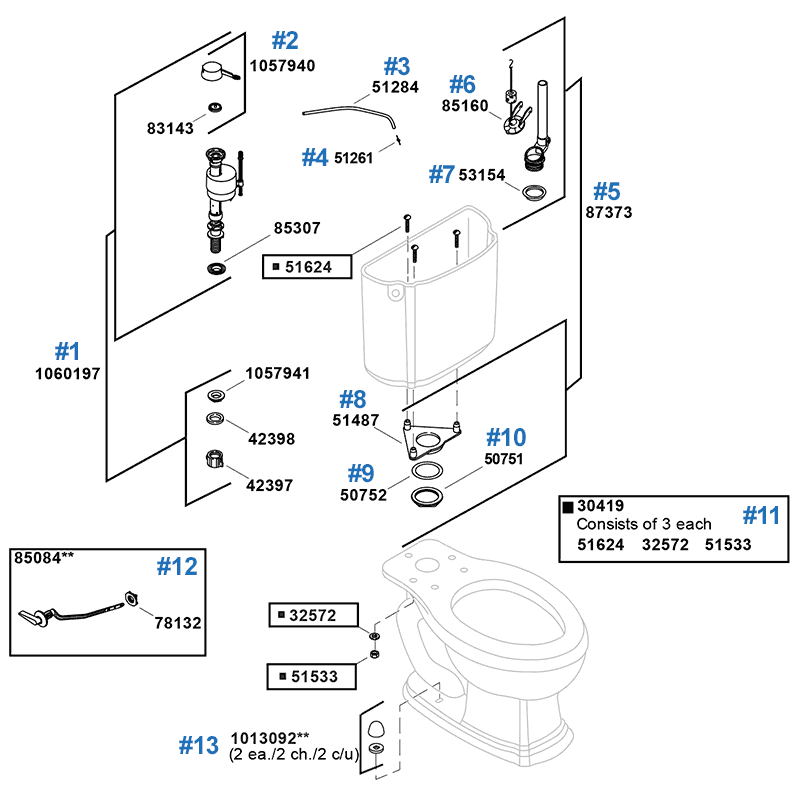

Kohler Toilet Replacement Parts for the Alouette Series
Model # K-14247-NA - Tank # K-14249-NA

Alouette repair parts by Kohler

Item # Part # Description Price & Quantity
1 1060197 Fill Valve - Replaced by GP1138930 - includes top assembly, lock nut, washer, supply nut, refill tube clip, and color coded flow restrictors $23.50
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $21.40 Enter a quantity and
2 1057940 Top Assembly $5.74 Enter a quantity and
3 51284 Refill tube - 9" length - Replaced by "Will-Fit" Refill Tube - 12" length $1.71
1033209 Refill Tube for GP1083167 fill valve $2.29 Enter a quantity and
4 51261 Refill Tube Clip $3.21 Enter a quantity and
5 87373 Flush Valve $26.33 Enter a quantity and
6 85160 Flapper $10.97 Enter a quantity and
7 53154 Rubber Washer - Replaced by GP1145626 $3.73 Enter a quantity and
8 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and
9 50752 Friction Ring $1.53 Enter a quantity and
10 50751 Lock Nut $4.44 Enter a quantity and
11 30419 Tank to Bowl Bolt Kit ONLY - includes washers (3), 5/16" bolts (3) and nuts (3) $10.65 Enter a quantity and
12 85084 Side Mount Trip Lever - Chrome $31.87 Enter a quantity and
13 52048 Bolt Caps (2) - White (view more color options) $5.91 Enter a quantity and
Toilet Seat 1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.07 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167. View this fill valve comparison to help you choose

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information



Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
