Devonshire Toilet Repair Parts
By Kohler

The Kohler Devonshire is a regal, classically lined toilet that you'll want to keep rather than replace, so repairing and replacing the internal parts makes much more sense. Get a new flapper, flush valve or trip lever, and your Devonshire will be ready to go for the future. PlumbingSupply.com® is your source for these and many other Kohler toilet parts.

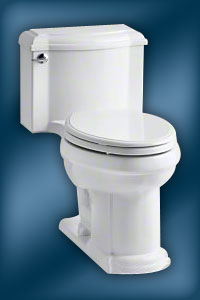

Kohler Devonshire toilet - K-3488K-3488

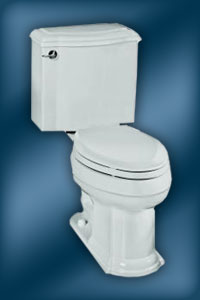

Kohler Devonshire toilet - K-3457K-3457

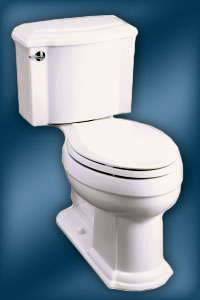

Kohler Devonshire toilet - K-3503K-3503 & K-3837

Kohler Toilet Replacement Parts - The Devonshire
One-Piece Model # K-3488


Item # Part # Description Price & Quantity
1 1059493 Fill Valve - Replaced by GP1138930 - includes color coded flow restrictors $25.85
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $23.54 Enter a quantity and
2 1057940 Top Assembly - for GP1083167 and GP1138930 fill valves $6.31 Enter a quantity and
3 52156 Refill Tube - for 1059493 and GP1138930 fill valves $2.46
1033209 Refill Tube - for GP1083167 fill valve $2.52 Enter a quantity and
4 51261 Refill Tube Clip $3.53 Enter a quantity and
5 1032640 Flush Valve - includes valve, gasket and flapper $23.53 Enter a quantity and
6 84138 Flapper - Replaced by GP1078440 $10.09
Flapper - "Will Fit" 2012BP $6.95 Enter a quantity and
7 83996 Flush Valve Gasket $6.42 Enter a quantity and

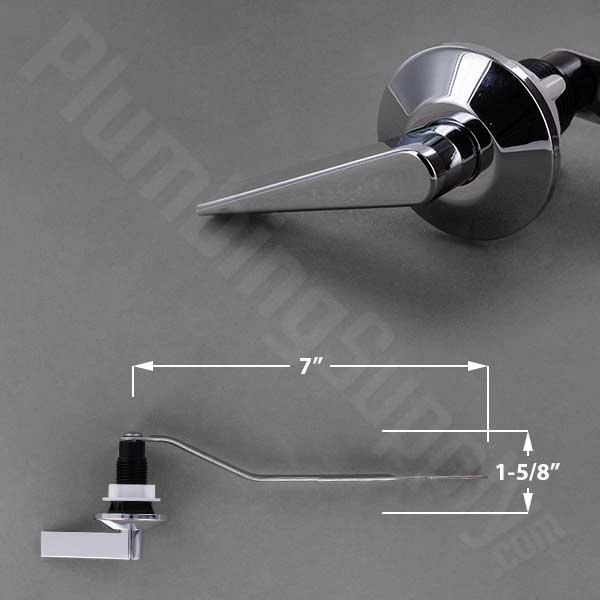

8 1031599 Trip Lever Kit - Chrome $15.25

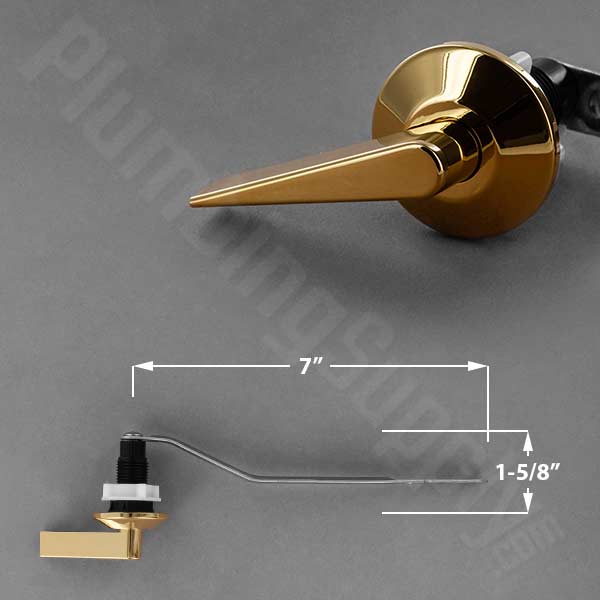

Trip Lever Kit - Polished Brass (view dimensions) $42.66

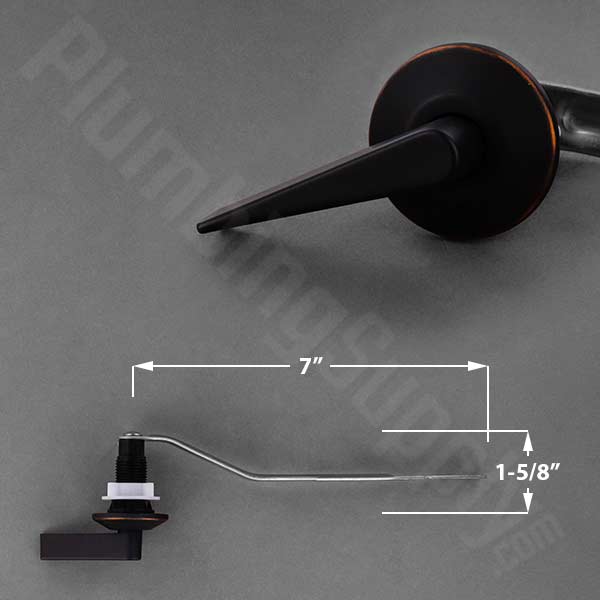

Trip Lever Kit - Oil Rubbed Bronze $46.84 Enter a quantity and
9 1013092 Bolt Caps (2) - White (view more color options) $6.50 Enter a quantity and

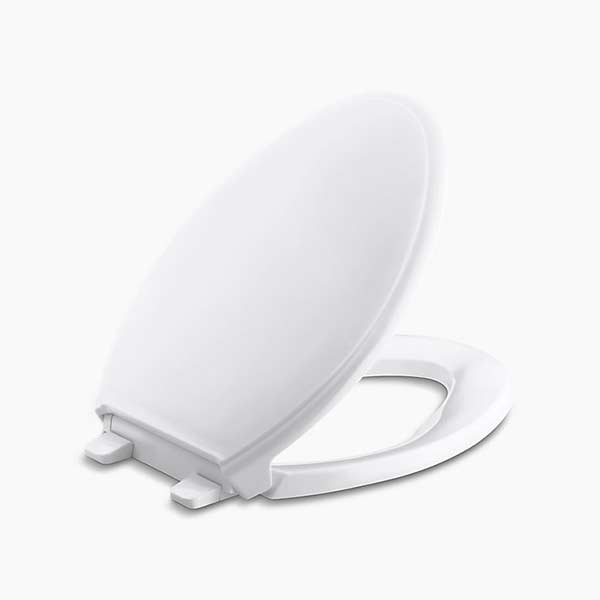

10 K-4733 French Curve Elongated Toilet Seat - White use "will fit" below
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.07 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

Kohler Toilet Replacement Parts - The Devonshire

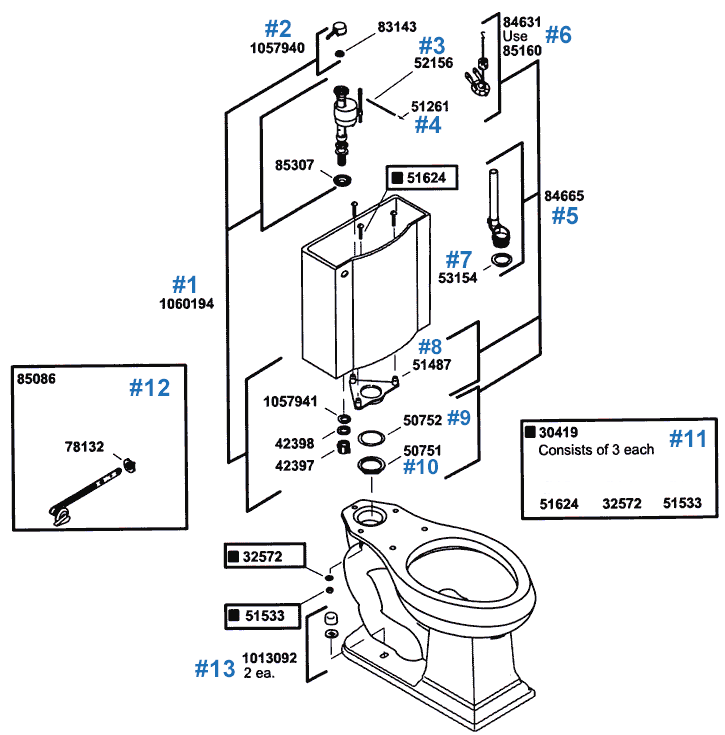

Model # K-3457 - Tank # K-4619

Devonshire toilet replacement parts

Item # Part # Description Price & Quantity

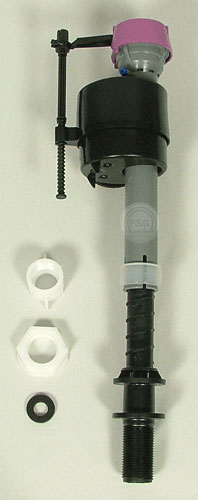

1 1060194 Fill Valve - Replaced by GP1138930 - includes color coded flow restrictors $25.85
GP1083167 Class 5 Fill Valve (refill tube not included - order separately below) $23.54 Enter a quantity and
2 1057940 Top Assembly - for GP1083167 and GP1138930 fill valves $6.31 Enter a quantity and
3 52156 Refill Tube - for 1060194 and GP1138930 fill valves $2.46
1033209 Refill Tube - for GP1083167 fill valve $2.52 Enter a quantity and
4 51261 Refill Tube Clip $3.53 Enter a quantity and
5 84665 Flush Valve Assembly - includes flapper, rubber washer, tank gasket, washer, nut $25.97 Enter a quantity and
6 GP85160 Flapper $12.07 Enter a quantity and
7 53154 Rubber Washer - Replaced by GP1145626 $4.10 Enter a quantity and
8 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and
9 50752 Friction Ring for Flush Valve $1.68 Enter a quantity and
10 50751 Lock Nut for Flush Valve $4.88 Enter a quantity and
11 30419 Tank to Bowl Bolt Kit - includes washers (3), 5/16" bolts (3) and nuts (3) $11.72 Enter a quantity and

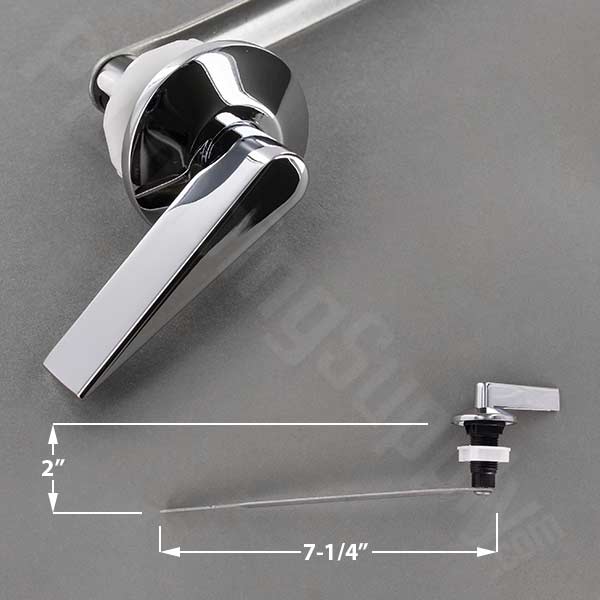

12 85086 Trip Lever - Chrome - Replaced by: 77940-CP $31.83
Trip Lever - Brushed Nickel Currently Unavailable

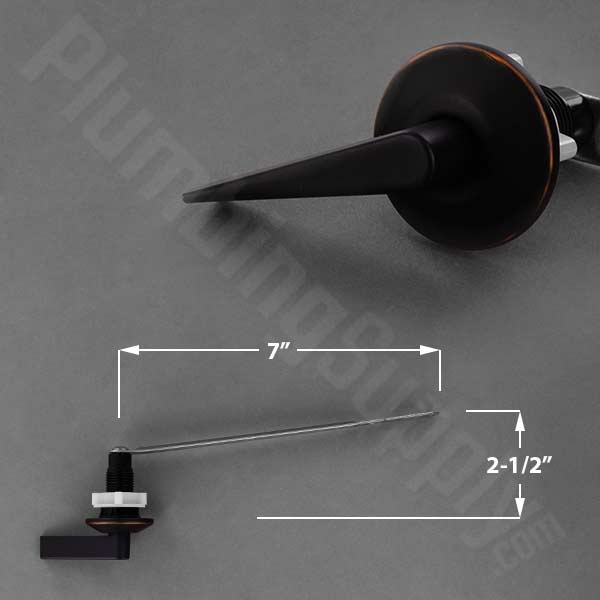

Trip Lever - Oil Rubbed Bronze - Replaced by 77940-BRZ $45.72 Enter a quantity and
13 1013092 Bolt Caps (2) - White (view more color options) $6.50 Enter a quantity and
Toilet Seat K-4733 French Curve Elongated Toilet Seat - White use "will fit" below
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.07 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

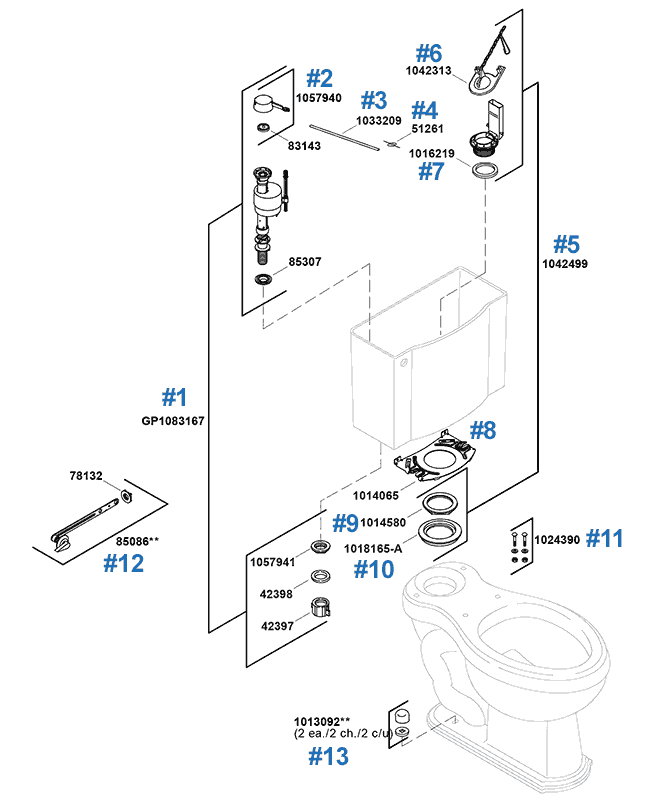

Kohler Toilet Replacement Parts - The Devonshire
Model # K-3503 - Tank # K-4708


Item # Part # Description Price & Quantity
1 GP1083167 Class 5 Fill Valve includes top assembly (1057940), seal diaphragm (83143), shank washer (85307), locknut (1057941), washer (42398), supply nut (42397) - (refill tube not included - order separately below) $23.54
GP1138930 Fill Valve - includes color coded flow restrictors $25.85 Enter a quantity and
2 1057940 Top Assembly - for GP1083167 and GP1138930 fill valves $6.31 Enter a quantity and
3 1033209 Refill Tube - for GP1083167 and GP1138930 fill valves $2.52 Enter a quantity and
4 51261 Refill Tube Clip $3.53 Enter a quantity and
5 1042499 Class 5 Flush Valve - includes flapper (1042313), flat seal (1016219), flush valve nut (1014580), tank gasket (1018165-F) $24.15
Tool Multi-Purpose Flush Valve Installation/Removal Strap Wrench $10.93 Enter a quantity and
6 1042313 Flapper - Replaced by 1078441 $15.41
3010BP "Will Fit" Replacement Flapper - Proudly made in the USA USA flag button $10.97 Enter a quantity and
7 1016219 Flush Valve Gasket - Replaced by "Will Fit" $3.93 Enter a quantity and
8 1014065 Tank Plate $7.25 Enter a quantity and
9 1014580 Flush Valve Nut $2.88 Enter a quantity and
10 1018165-A Tank to Bowl Gasket - Replaced by 1018165-F $6.28 Enter a quantity and
11 1024390 Tank to Bowl Bolt Kit $6.44 Enter a quantity and
12 85086 Trip Lever - Chrome - Replaced by: 77940-CP $31.83
Trip Lever - Brushed Nickel Currently Unavailable
Trip Lever - Oil Rubbed Bronze - Replaced by 77940-BRZ $45.72 Enter a quantity and
13 1013092 Bolt Caps (2) - White (view more color options) $6.50 Enter a quantity and
Toilet Seat K-4733 French Curve Elongated Toilet Seat - White use "will fit" below
1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.07 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

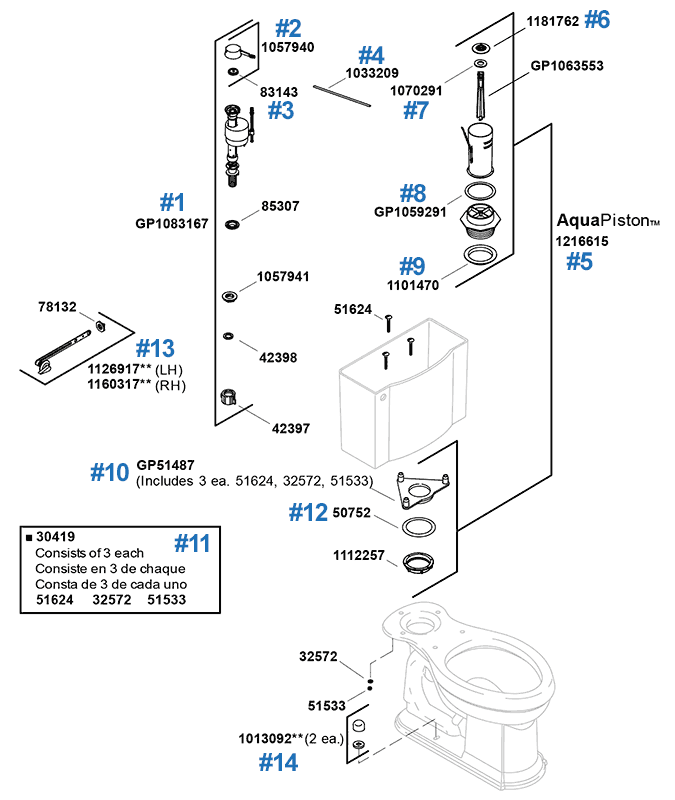

Kohler Toilet Replacement Parts - The Devonshire
Model # K-3837 - Tank # K-4438


Item # Part # Description Price & Quantity
1 GP1083167 Class 5 Fill Valve includes top assembly, seal diaphragm, shank washer, locknut, washer, supply nut (refill tube not included - order separately below) $23.54
GP1138930 Fill Valve - includes color coded flow restrictors $25.85 Enter a quantity and
2 1057940 Top Assembly $6.31 Enter a quantity and
3 83143 Seal Diaphragm $4.82 Enter a quantity and
4 1033209 Refill Tube $2.52 Enter a quantity and

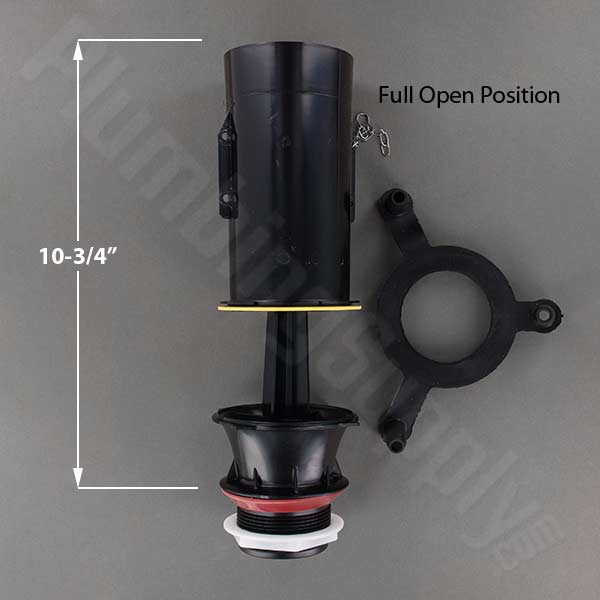

5 1216615 AquaPiston Flush Valve - includes cap, center guide, chain, washer, flat seal, tank gasket, friction ring, locknut $17.90
Tool Multi-Purpose Flush Valve Installation/Removal Strap Wrench $10.93 Enter a quantity and
6 1181762 Flush Valve Repair Kit - Replaced by GP1229656 - includes cap, center guide, chain $9.06 Enter a quantity and
7 1070291 Flush Valve Washer $3.15 Enter a quantity and
8 GP1059291 Flush Valve Flat Seal $8.66 Enter a quantity and
9 1101470 Flush Valve Gasket $1.97 Enter a quantity and
10 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $13.84 Enter a quantity and
11 30419 Tank to Bowl Bolt Kit - includes washers (3), 5/16" bolts (3) and nuts (3) $11.72 Enter a quantity and
12 50752 Friction Ring for Flush Valve $1.68 Enter a quantity and

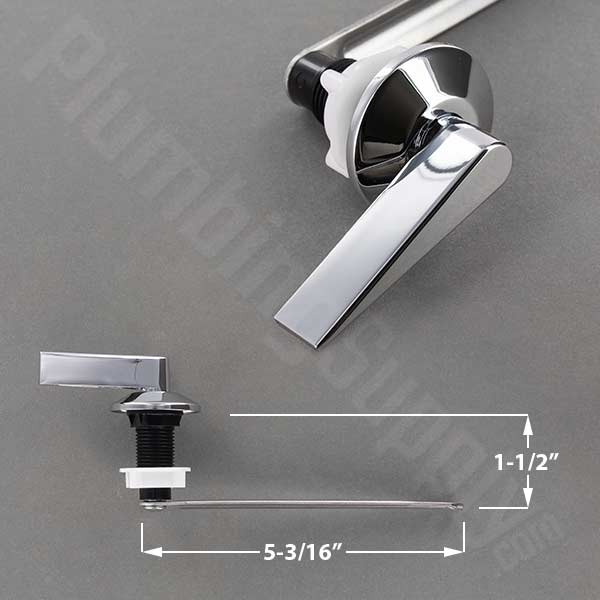

13 1126917 Left Hand Trip Lever - Chrome - Replaced by: 1160316-CP $12.93 Enter a quantity and
14 1013092 Bolt Caps (2) - White (view more color options) $6.50 Enter a quantity and
Toilet Seat 1200E3 Premium Bemis "Will Fit" Elongated Front Seat - White (view more color options) $56.07 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

Related Items & Information




Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
