Highline Classic Toilet Repair Parts - K75790
By Kohler

Upgrade your bathroom with PlumbingSupply.com® – your source for superior quality Kohler parts. Our selection ensures seamless function and style, enhancing your bathroom's luxury and efficiency effortlessly. Choose us for a superior bathroom experience. For more Kohler parts, visit our page.

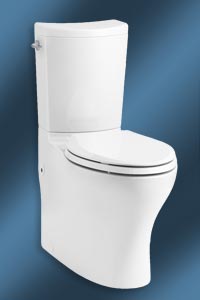

Kohler Persuade Curv toilet - Model -5709

Kohler Toilet Replacement Parts for the Persuade Curv Toilet
Two-Piece Elongated Model #K-75790 & #K-19042 Tank

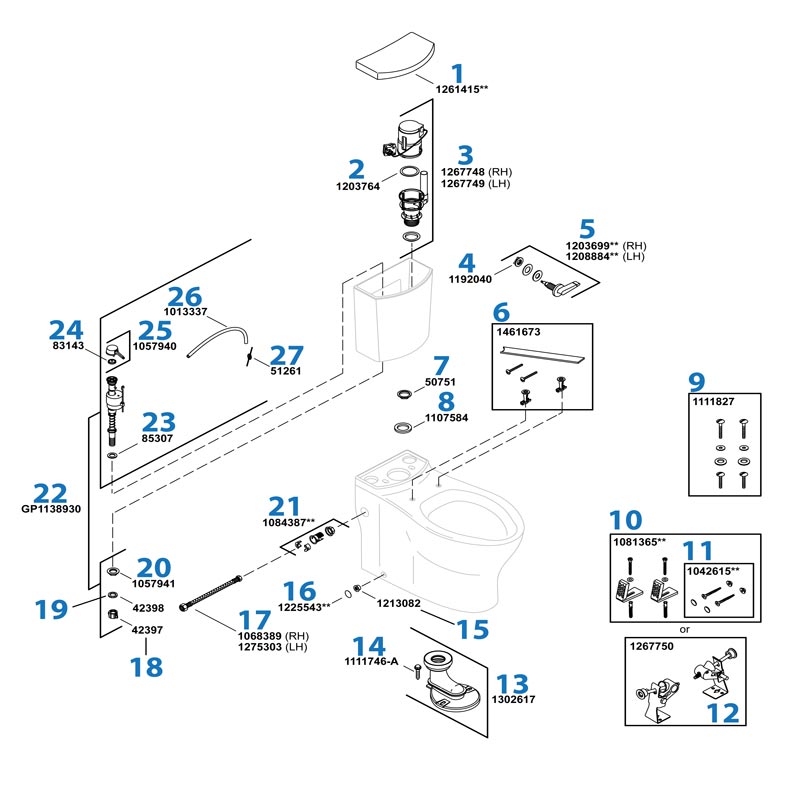

Highline Classic Toilet repair parts diagram

Item # Part # Description Price & Quantity
1 1261415 Toilet Tank Cover Discontinued
2 1203764 Canister Seal Discontinued
3 1267748 Right Hand DFV Flush Valve Kit Discontinued
1267749 Left Hand DFV Flush Valve Kit $26.39 Enter a quantity and
4 1192040 Trip Lever Nut Discontinued
5 1203699 Right Hand Trip Lever $23.85 Enter a quantity and
1208884 Left Hand Trip Lever $23.97 Enter a quantity and

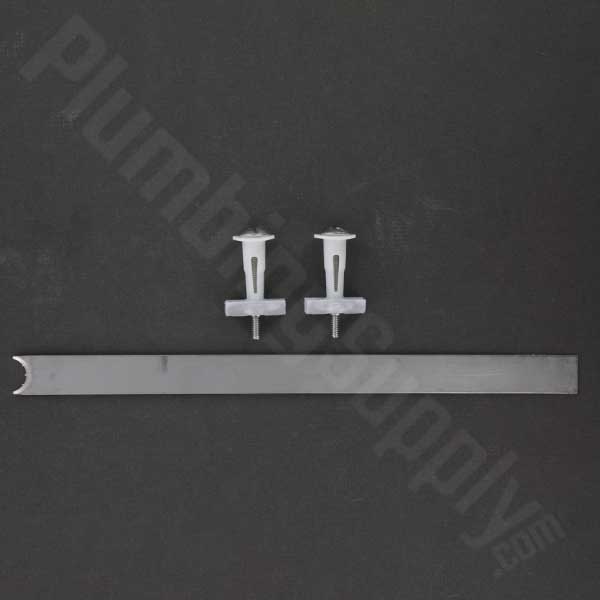

6 1461673 Readylatch Anchor Kit $11.89 Enter a quantity and
7 50751 Lock Nut $5.12 Enter a quantity and
8 1107584 Tank to Bowl Gasket $5.87 Enter a quantity and
9 1111827 Tank Accessory Kit $4.83 Enter a quantity and
10 1081365 Floor Mounting Kit - White $22.54 Enter a quantity and
11 1042615 White Hold Down Covers $8.86 Enter a quantity and
12 1267750 Cam Assembly Kit $55.59 Enter a quantity and
13 1302617 Trapway Service Kit - Plastic $63.39 Enter a quantity and
14 1111746-A Screw Discontinued
15 1213082 Bushing Spherical $2.48 Enter a quantity and
16 1225543 Bolt Cap Covers (2) - White $3.68 Enter a quantity and
17 1068389 Right Hand Connector Hose Discontinued
1275303 Left Hand Connector Hose Discontinued
18 42397 Nut $1.90 Enter a quantity and
19 42398 Washer $1.57 Enter a quantity and
20 1057941 Shank Nut $1.59 Enter a quantity and
21 1084387 Inlet Cover Assembly - White $5.34 Enter a quantity and
22 GP1138930 Fill Valve $27.14 Enter a quantity and
23 85307 Shank Washer $1.67 Enter a quantity and
24 83143 Seal Diaphragm $4.99 Enter a quantity and
25 1057940 Top Assembly $6.63 Enter a quantity and
26 1013337 Refill Tube Discontinued
27 51261 Refill Tube Clip $3.71 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
