Highline Toilet Repair Parts - K3989
By Kohler

If your toilet is leaking, or you need to replace a worn down part, then look no further. Here at PlumbingSupply.comĀ®, we have every toilet repair part you will need to turn your toilet into a well functioning masterpiece. Search below and buy now! For more Kohler parts, visit our page.

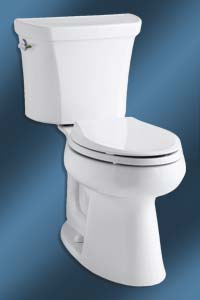

Kohler Highline toilet - Model - K3989

Kohler Toilet Replacement Parts for the Highline Toilet
Two-Piece Elongated Model #K-3989 - #K-4458 Tank

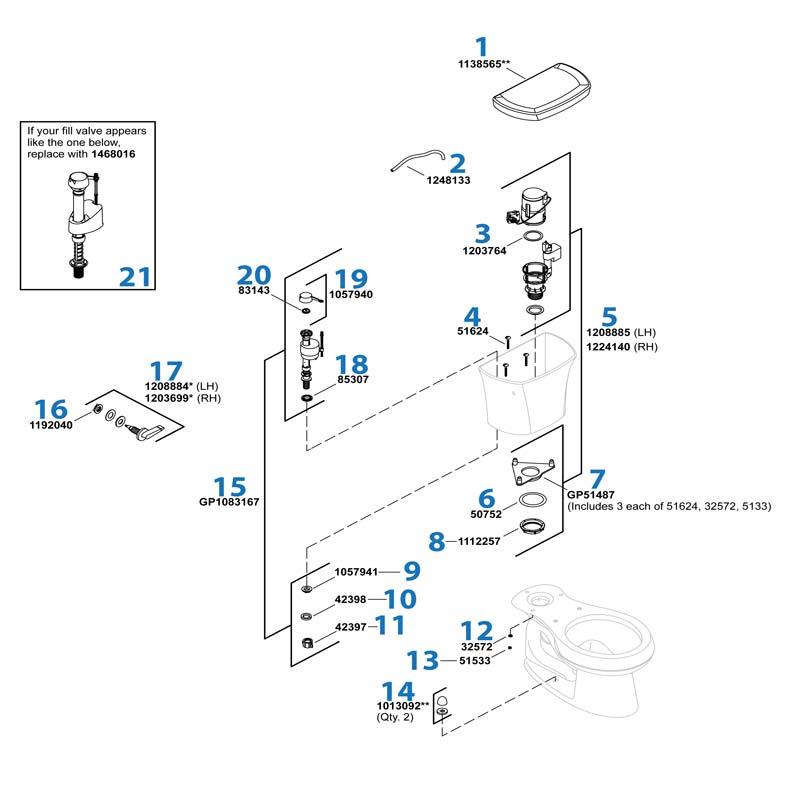

Highline Toilet repair parts diagram

Item # Image Part # Description Price & Quantity
1 image unavailable 1138565 Toilet Tank Cover Discontinued
2 kohler refill tube 1033209 1033209 Refill Tube - for GP1083167 fill valve - Replaces 1248133 $2.65 Enter a quantity and
3 kohler canister flush valve seal 1203764 Flush Valve Seal $5.25 Enter a quantity and
4 image unavailable 51624 Screw Bolt (Each) - 3 required $1.99 Enter a quantity and
5 image unavailable 1208885 Dual Flush Valve Kit - Left $35.79 Enter a quantity and
kohler toilet part flush valve kit 1224140 1224140 Dual Flush Valve Kit - Right $35.29 Enter a quantity and
6 kohler washer 50752 50752 Friction Ring $1.76 Enter a quantity and
7 kohler toilet part tank to bowl gasket k51487 51487 Tank to Bowl Gasket & Bolt Kit - includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3) $14.53 Enter a quantity and
8 image unavailable 1112257 Flush Valve Nut Discontinued
9 image unavailable 1057941 Shank Nut $1.59 Enter a quantity and
10 kohler washer 42398 42398 Washer $1.57 Enter a quantity and
11 image unavailable 42397 Nut $1.90 Enter a quantity and
12 image unavailable 32572 Washer $1.49 Enter a quantity and
13 image unavailable 51533 Nut $1.57 Enter a quantity and
14 kohler bolt caps white 1013092-0 1013092 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and
15 kohler fill valve 1083167 GP1083167 Class 5 Fill Valve - includes top assembly, shank gasket, shank nut, washer, and supply nut $24.72 Enter a quantity and
16 image unavailable 1192040 Trip Lever Nut Discontinued
17 image unavailable 1208884 Left Hand Trip Lever $23.97 Enter a quantity and
image unavailable 1203699 Right Hand Trip Lever $23.85 Enter a quantity and
18 kohler shank washer 85307 85307 Shank Washer $1.67 Enter a quantity and
19 kohler cap assembly 1057940 1057940 Top Assembly - for 1039862, 1059494, GP1083167 & GP1138930 fill valves $8.62 Enter a quantity and
20 kohler seal diaphragm 83143 83143 Seal Diaphragm - for GP1083167 fill valve $4.99 Enter a quantity and
21 image unavailable 1468016 Replacement Fill Valve Kit Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight
