Wellworth Toilet Repair Parts
By Kohler

Whether you need a top assembly or a tank to bowl kit, replacement parts for your Wellworth 4500 series toilet are right here at PlumbingSupply.com®! These and many other parts are here to help keep your classic toilet working at it's best. Looking for more Kohler toilet parts? Click here.

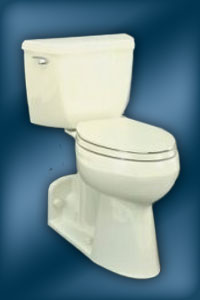

Wellworth toilet

Kohler Toilet Replacement Parts - Wellworth Series Toilets
Model #'s K4512, K4512-EU, K4512-PU, K4512-X, K4512-XE, K4512-XR, K4512-XU

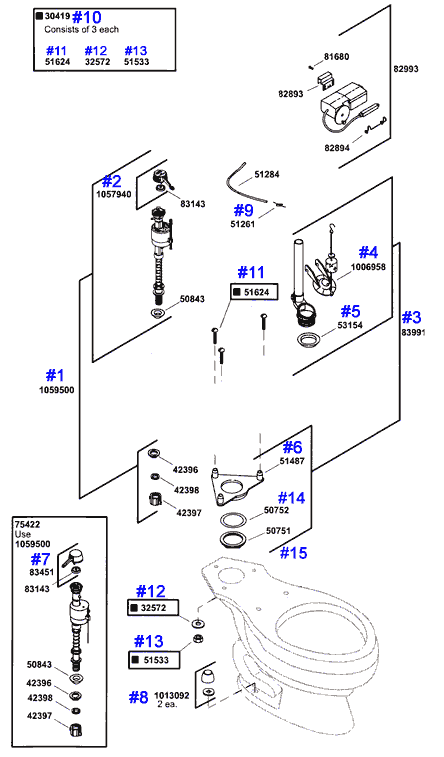

Wellworth repair parts by Kohler

Item # Part # Description Price & Quantity
1 1059500 Fill Valve - replaced by *GP1138930 - Includes color coded flow restrictors $21.95
2 1057940 Top Assembly - fits fill valves 1059500 and GP1138930 $5.24
3 83991 Flush Valve - replaced by 1003068 flush valve kit
- Includes tank gasket (51487) -   bolt kit sold separately below (#10)
$21.13
4 1006958 Flapper - replaced by GP85160 $9.95
5 53154 Rubber Washer - replaced by GP1145626 $3.34
6 51487 Tank To Bowl Gasket With 30419 Bolt Kit
Includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3)
$12.85
7 83451 Top Assembly fits discontinued fill valve 75422 Discontinued
8 1013092 Bolt Caps (2) - White - Click here for more color options $5.39
9 51261 Refill Tube Clip $2.79
10 30419 Tank To Bowl BOLT KIT - Includes: #'s 11, 12 & 13 $9.67
#11, #12, and #13 not available separately - please order #10 tank to bowl bolt kit above
14 50752 Friction Ring For Flush Valve $1.33
15 50751 Lock Nut $3.97
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Kohler Toilet Replacement Parts
The Wellworth Series - Model #'s K4512-JA, K4512-K, K4512-KU, K4512-U

Wellworth repair parts by Kohler

Item # Part # Description Price & Quantity
1 84150 Fill Valve - replaced by *GP1138930 - Includes color coded flow restrictors $21.95
2 83451 Top Assembly - fits discontinued fill valve 84150 Discontinued
1057940 Top Assembly - fits new style fill valve GP1138930 $5.24
3 84355 Float Discontinued
4 84143 Flapper - replaced by "will fit" flapper with float $9.95
5 84144 Flush Valve - Replaced by "will fit" 84144 - Includes flapper, rubber washer (53154), tank & nut (50751), tank to bowl gasket (51487) $21.13
6 53154 Rubber Washer - replaced by GP1145626 $3.34
7 51487 Tank To Bowl Gasket With 30419 Bolt Kit
Includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3)
$12.85
8 52048 Bolt Cap - White - Click here for more color options $5.39
9 51261 Refill Tube Clip $2.79
10 30419 Tank to Bowl BOLT KIT - Includes: #'s 11, 12 & 13 $9.67
#11, #12, and #13 not available separately - please order #10 tank to bowl bolt kit above
14 50752 Friction Ring For Flush Valve $1.33
15 50751 Lock Nut $3.97
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

- OR - View Cart

Kohler Toilet Replacement Parts
The Wellworth Series - Model #'s K4512-T, K4512-UT

Wellworth repair parts by Kohler

Item # Part # Description Price & Quantity
1 75422 Fill Valve - replaced by *GP1138930 - Includes color coded flow restrictors $21.95
2 83451 Top Assembly - fits discontinued fill valve 75422 Discontinued
1057940 Top Assembly - fits new style fill valve GP1138930 $5.24
3 83991 Flush Valve - replaced by 1003068 flush valve kit
- Includes tank gasket (51487) - gasket bolt kit sold separately below (#6)
$21.13
4 81217 Flapper - replaced by GP85160 $9.95
5 53154 Rubber Washer - replaced by GP1145626 $3.34
6 51487 Tank To Bowl Gasket With 30419 Bolt Kit
Includes gasket (1), 5/16" washers (3), bolts (3) and nuts (3)
$12.85
7 52048 Bolt Cap - White - Click here for more color options $5.39
8 51261 Refill Tube Clip $2.79
9 30419 Tank to Bowl BOLT KIT - Includes: #'s 10, 11 & 12 $9.67
#10, #11, and #12 not available separately - please order #10 tank to bowl bolt kit above
13 50752 Friction Ring For Flush Valve $1.33
14 50751 Lock Nut $3.97
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Kohler Toilet Replacement Parts - Wellworth Series Toilets
Model #'s K4519, K4519-CE, K4519-CJ, K4519-CM, K4519-CR, K4519-CU, K4519-CV, K4519-CW, K4519-CY, K4519-JA, K4519-JB, K4519-TR

kohler toilet repair parts - k4519

Item # Part # Description Price & Quantity
1 1041244 Fill Valve - replaced by *GP1138930 - Includes color coded flow restrictors $21.95
2 30373 Repair Kit for old 30653 valve - Replaced by "OEM" - Includes Plunger Assembly #30197 $12.59
Repair Kit for old 30653 valve - Replaced by "Will Fit" - Includes Plunger Assembly #30197  N/A
3 30197 Plunger Assembly $7.25
4 1001906 Flush Valve Assembly - replaced by 85406
- Includes tank gasket (51487) - gasket bolt kit sold separately below (#10)
$24.79
5 87449 Flapper - replaced by GP87449 - fits original flush valve 1001906 $7.89
Flapper - replaced by GP85160 - fits replacement valve 85406 only $9.95
6 53154 Rubber Flush Valve Washer - replaced by GP1145626 $3.34
7 51487 Tank To Bowl Gasket With 30419 Bolt Kit
Includes gasket (1), washers (3), 5/16" bolts (3) and nuts (3)
$12.85
8 52048 Bolt Caps (2) - White $5.39
9 51261 Refill Tube Clip $2.79
10 30419 Tank to Bowl BOLT KIT - Includes: #'s 11, 12, & 13 $9.67
11 51624 Brass Bolt - sold only in 30419 kit - see item 10 --
12 32572 Washer - sold only in 30419 kit - see item 10 --
13 51533 Brass Nut - sold only in 30419 kit - see item 10 --
14 83451 Top Assembly - fits discontinued fill valve 1041244 Discontinued
385 Top Assembly for fill valve GP1138930 $4.98
15 50752 Friction Ring For Flush Valve $1.33
16 50751 Lock Nut $3.97
  30324-CP Left Hand Trip Lever - Chrome $14.23
  30324-VF Left Hand Trip Lever - Polished Brass $41.19
  30324-BN Left Hand Trip Lever - Brushed Nickel $59.51
GP1083167 *Replacement Class 5 Fill Valve $19.91

*If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

- OR - View Cart

Kohler Toilet Replacement Parts - Wellworth Series Toilets
Model # K4520

kohler toilet repair parts - k4520

Item # Part # Description Price & Quantity
1 30672 Complete Fill Valve Assembly - view dimensions $78.77
2 30453 Brass Cap Kit $48.15
3 30452 Cap Assembly - available separately $19.83
4 51748 Plunger Assembly - available separately $5.00
5 89187 Flush Valve - Includes:
- flush valve, flapper (87449), rubber washer (53154), tank gasket (51487), tank gasket (51531), washer (50752), nut (50751) - NOTE: Original 30680 was discontinued and replaced by 89187 which has now also been discontinued
Discontinued
Alternative
Solution
Replacement "Will-Fit" 10" tall - Flush Valve - will need to be cut down to original valve height - can use any type of saw (wood saw, hack saw, etc.) - Please note: altered valves are non-returnable.

Order tank to bowl gasket with bolts separately - See Item #7 below (#51487 with bolt kit)
OR - #51531 (item 8) Tank to Bowl Gasket and #GP52050 (item 9) Tank to Bowl bolt kit each SOLD SEPARATELY
$8.31
6 87449 Flapper - replaced by GP87449 - for flush valve #89187 $7.89
7 51487 Tank Gasket - available separately - includes: bolts, washers, and nuts $12.85
8 51531 Tank Gasket - available separately $7.19
9 GP52050 Tank To Bowl Accessory Pack - Includes 3ea - #51624 brass bolts, #51743 rubber washers, #51533 nuts, #32572 steel washers and 6ea #51532 rubber washers $9.98
10 52048-0 Bolt Cap - White - click here for more color options $5.39
11 51624 Brass Bolt Not sold separate
use GP52050
see item #9
12 51743 Rubber Washer
13 32572 Steel Washer
14 51533 Nuts
15 51532 Rubber Washer
16 50752 Friction Washer - for flush valve $1.33
17 50751 Flush Valve Jam Nut $3.97
18 53154 Rubber Flush Valve Washer - replaced by GP1145626 $3.34
19 49114 Flapper - original flapper style for discontinued 30680 flush valve Discontinued
use will-fit below
Suitable
Replacement
"Will Fit" flapper fits original 30680 flush valve $7.51
20 30448-CP Tank Flush Lever - Chrome $25.57
77047 Flush Lever - Chrome - with brass lever $16.46
21 51162 Float Ball - Replaced by "Will-Fit" float ball $2.94
  Premium Quality Round Front "Will Fit" Toilet Seat by Bemis - White $47.60
  Premium Quality Elongated Front "Will Fit" Toilet Seat by Bemis - White $51.88
  Click here for many more toilet seats available in a variety of colors

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
