Mansfield Toilet Repair Parts

Save money & conserve natural resources by replacing old toilet parts

Mansfield toilets are durable and dependable, so repairing them is a great option, and a much more cost effective solution than replacing the whole fixture. We offer replacement trip levers, flush valves, seals, and more right here at PlumbingSupply.com®!

Not sure what your toilet model number is? Need help figuring out what parts you need? Check out our Mansfield toilet parts finder

click any image to jump directly to that section

Flapper Flush Valves

Flapper-Less Flush Valves

Specialty Flush Valves

Fill Valves

Flappers & Seals

Repair Kits & Misc Parts

Front Mount Tank Levers

Side Mount Tank Levers

Specialty Tank Levers

Toilet Seats

Replacement Mansfield Flush Valves with Flappers

Not sure what size your flush valve is?
Find out how to determine your flush valve size here

Description	Price & Quantity

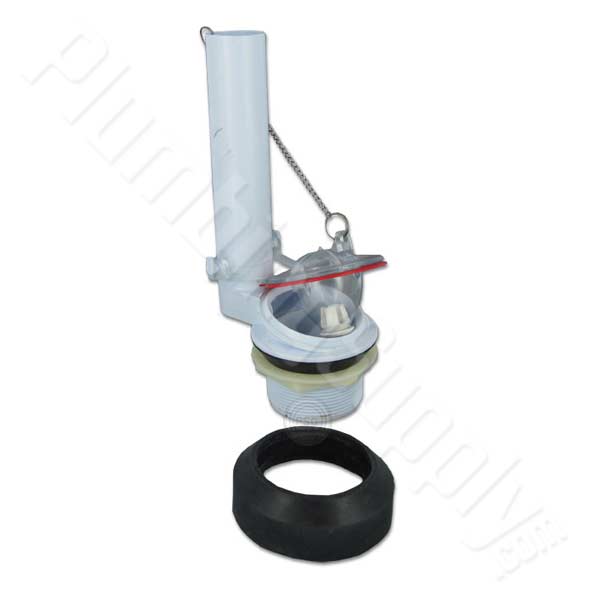

#202-1012 Flush Valve - 1.6 gpf Fits tanks: 392 & 395 Uses 2" flapper Replaced by #87 "Will Fit" valve Replacement valve - 10" from tank to top of overflow (may need to be cut down to fit - altered valves are non-returnable) Replacement valve proudly made in the USA	$10.57	Enter a quantity and

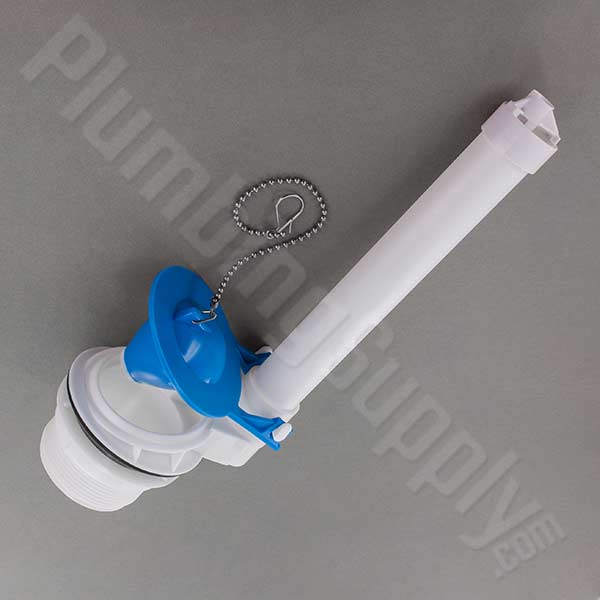

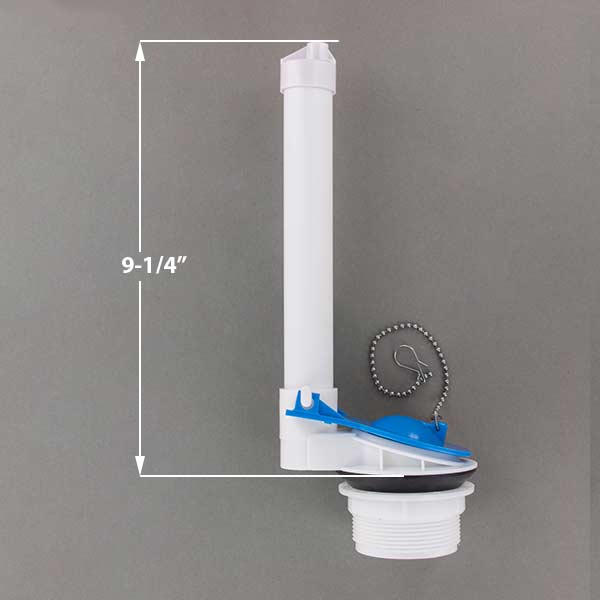

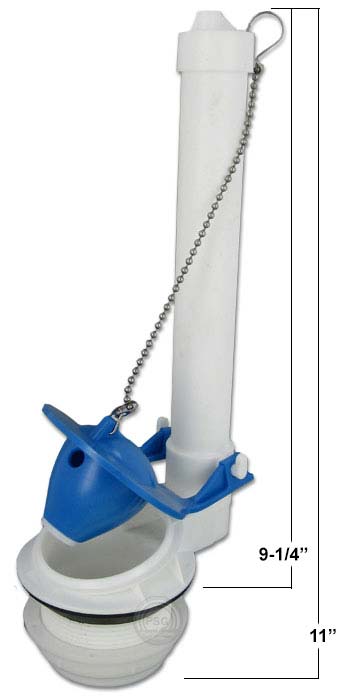

#203A Flush Valve - 1.6 gpf Fits tanks: 172, 173 & 174 Uses 2" flapper 11 overall height, 9-1/4" from tank to top of overflow Includes flapper, chain, stainless steel clip, gasket, and nut	$11.13	Enter a quantity and

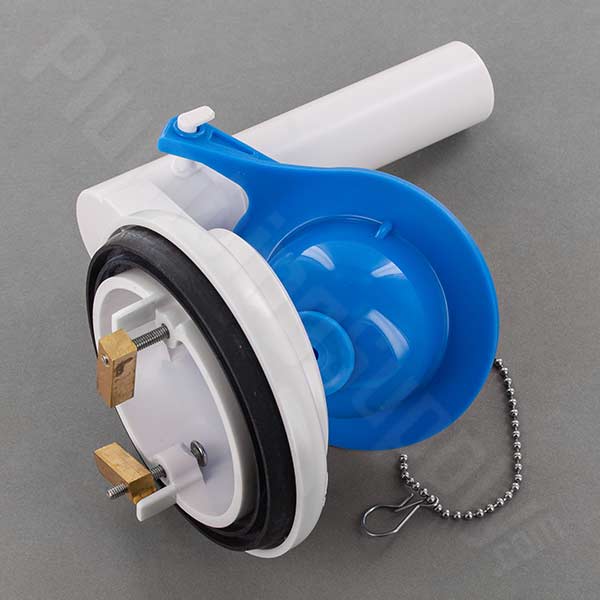

#204 Flush Valve - 1.6 gpf Fits tanks: 705NS, 708, 722 & WC6003 Uses 3" flapper 7-3/4" overall height, 6-3/4" from tank to top of overflow Includes flapper, chain, stainless steel clip, gasket & lugs	$15.38	Enter a quantity and

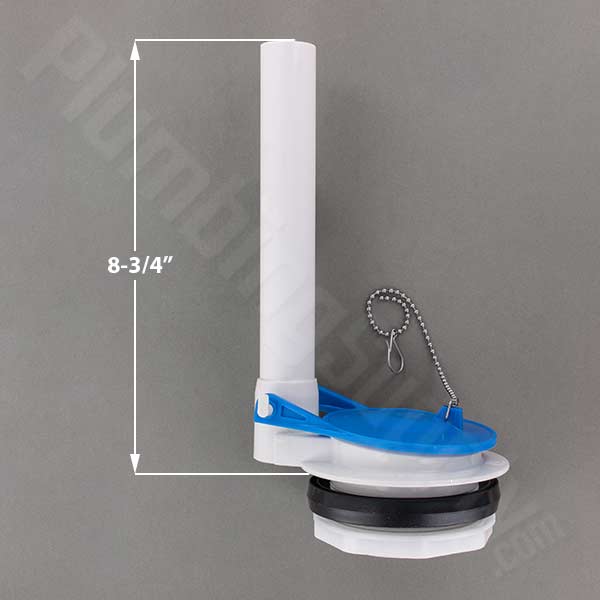

#206-1112 Flush Valve - 1.28 gpf or 1.6 gpf Fits tanks: 102, 106, 108, 109, 112, 185, 187, 188, 195, 3106, 3108, 3147, 3185 & 3195 Uses 3" flapper 8-3/4" from tank to top of overflow Includes flapper, chain, stainless steel clip, gasket, and nut	$15.40	Enter a quantity and
#206-1212 Flush Valve - 1.28 gpf or 1.6 gpf Fits tanks: 386 & 387 Uses 3" flapper 12-3/16" overall height, 10-1/2" from tank to top of overflow Includes flapper, chain, plastic overflow clip, gasket, and nut	Discontinued Replaced by 2036-1212 1.28 gpf 2037-1212 1.6 gpf

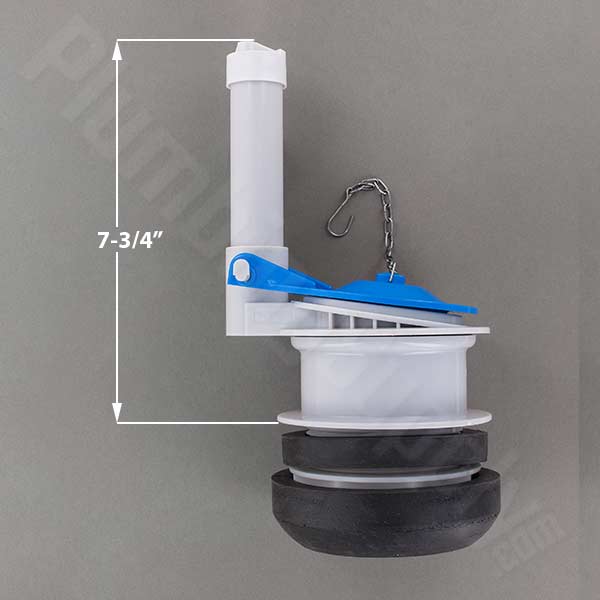

#216 Flush Valve - 1.28 gpf Fits tanks: 3816 Uses 3" flapper 7-3/4" from tank to top of overflow Includes flapper, chain, stainless steel clip, tank to bowl gasket, spud gasket, and nut	$18.30	Enter a quantity and

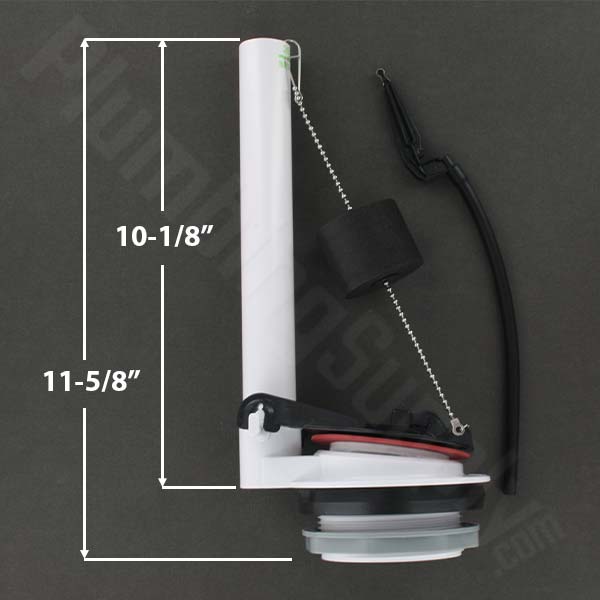

#2036-1212 Flush Valve - 1.28 gpf Fits Summit tanks: 387, 387LT, 387RH Uses 3" rigid flapper 10-3/8" from tank to top of overflow Includes hard plastic flapper, flapper seal, green float arm, chain, flush valve gasket, and nut Replaceable flapper seal. No need to replace complete flapper	$19.00	Enter a quantity and

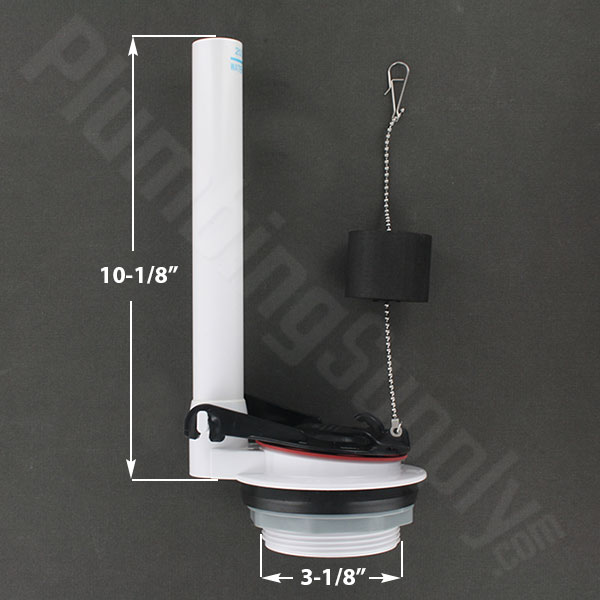

#2037-1212 Flush Valve - 1.6 gpf Fits Summit tanks: 386, 386LT, 386FM, 386RH Uses 3" rigid flapper 10-3/8" from tank to top of overflow Includes hard plastic flapper, flapper seal, blue float arm, chain, flush valve gasket, and nut Replaceable flapper seal. No need to replace complete flapper	$19.02	Enter a quantity and

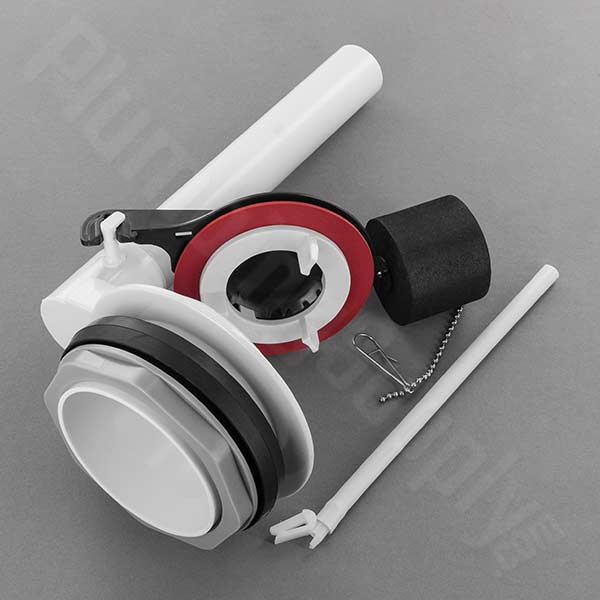

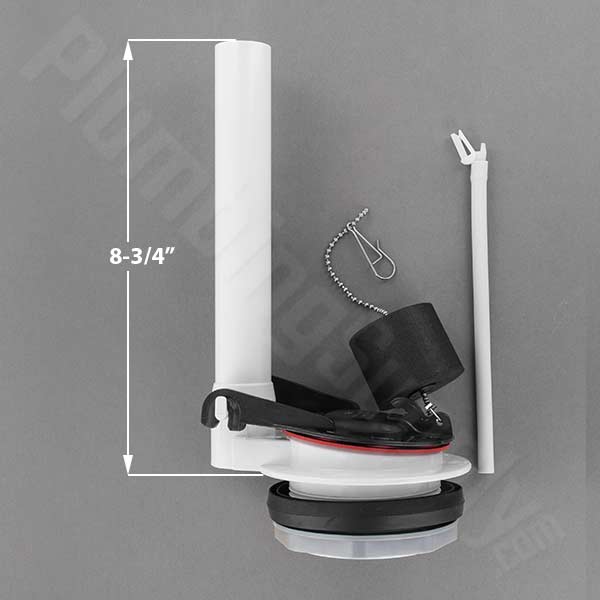

#3987-1112 Flush Valve - 1.6 gpf Fits Vanquish 1.6 gpf Uses 3" rigid flapper Adjustable chain float 8-3/4" from tank to top of overflow Includes hard plastic rigid flapper, flapper seal, chain with adjustable float, flush valve gasket, and nut Replaceable flapper seal. No need to replace complete flapper	$19.03	Enter a quantity and

- OR - View Cart

Replacement Mansfield Flapper-Less Flush Valves

Description	Price & Quantity
#210-1034 Flush Valve - 3.5 gpf Fits tanks: 010, 011, 020, 021, 025 & 026 Accommodates both direct connect and chain connect trip levers 11" overall height, 9-1/2" from tank to top of valve Includes seal, gasket, and locknut	$17.99	Enter a quantity and

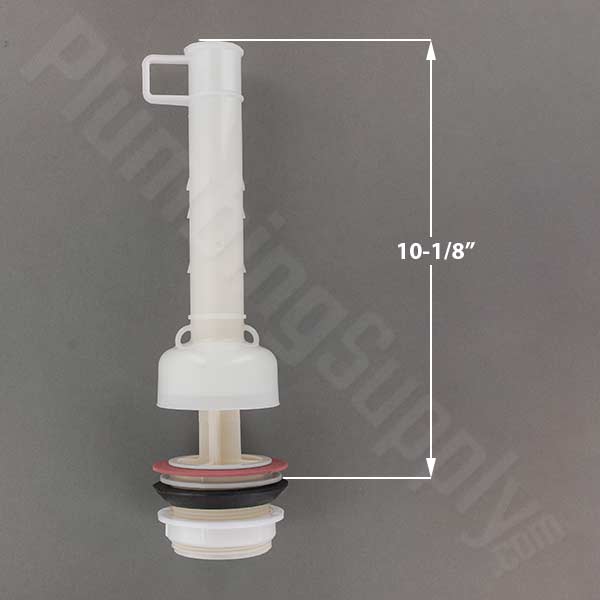

#210-1112 Flush Valve - 3.5 gpf Fits tanks: 011, 021, 026 & 035 Also fits Kilgore brand 201-WS toilet 11-3/4" overall height, 10-1/8" from tank to top of valve Includes seal, gasket, and locknut	$17.94	Enter a quantity and
#210-1212 Flush Valve - 3.5 gpf Fits tanks: 035LT & 045 Replaced by #87 "Will Fit" valve with flapper Replacement valve - 10" from tank to top of overflow (may need to be cut down to fit - altered valves are non-returnable) Replacement valve proudly made in the USA You must use #42 trip lever (or similar trip lever) for replacing the Mansfield flush valve with the #87 "Will-Fit" flush valve	$10.57	Enter a quantity and

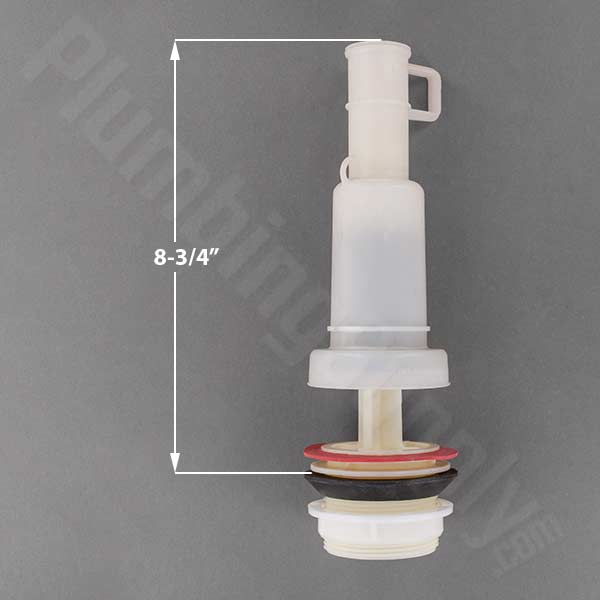

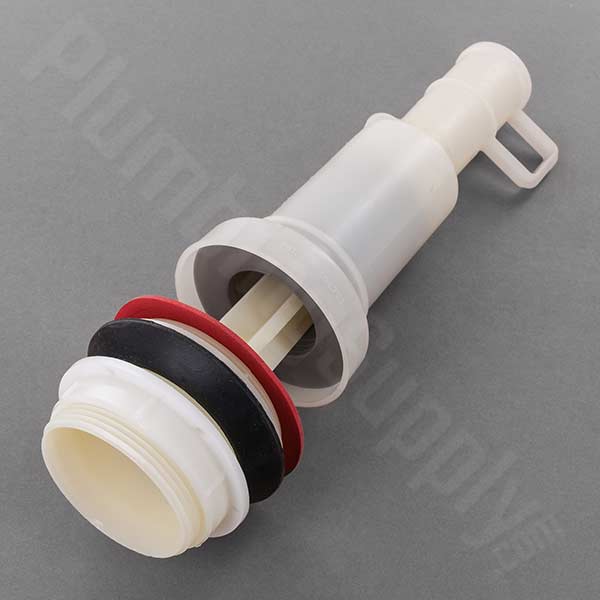

#211-1000 Flush Valve - 1.6 gpf Fits tanks: 163 Provides 1.6 gallons per flush 10" overall height, 8-1/2" from tank to top of valve Includes seal, gasket, and locknut	$17.82	Enter a quantity and
#211-1034 Flush Valve - 1.6 gpf Fits tanks: 127, 162, 164 & 174 Provides 1.6 gallons per flush 11" overall height, 9-1/4" from tank to top of valve Includes seal, gasket, and locknut	$17.80	Enter a quantity and

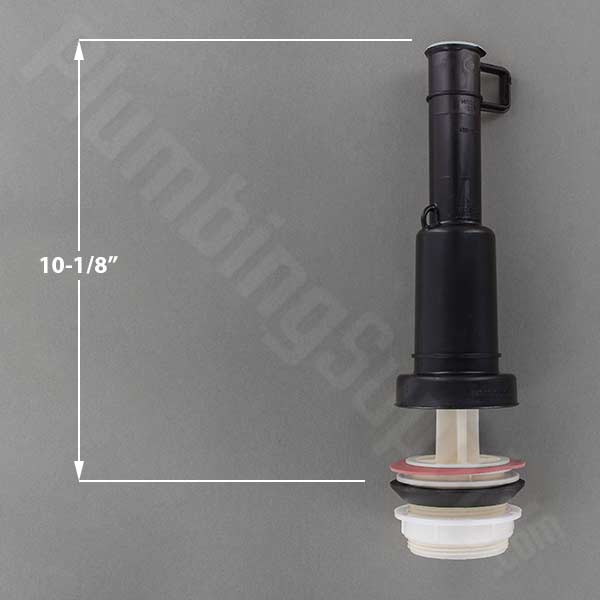

#211-1112 Flush Valve - 1.6 gpf Fits tanks: 125, 127, 159, 160, 161, 165, 170, 171, 175, 180, 181, 189, 190, 192 & WC6002 Provides 1.6 gallons per flush 12" overall height, 10-1/8" from tank to top of valve Includes seal, gasket, and locknut	$19.92	Enter a quantity and

- OR - View Cart

Replacement Mansfield Specialty Flush Valves

Description	Price & Quantity
#212-1034 Threadless 2" Flush Valve - 1.6 gpf Fits tanks: 700 & 705 Glue-in style seals tight every time (waterproof sealant sold separately) 10" overall height, 9-1/2" from tank to top of valve Includes styrofoam float, seal, and chain	Discontinued

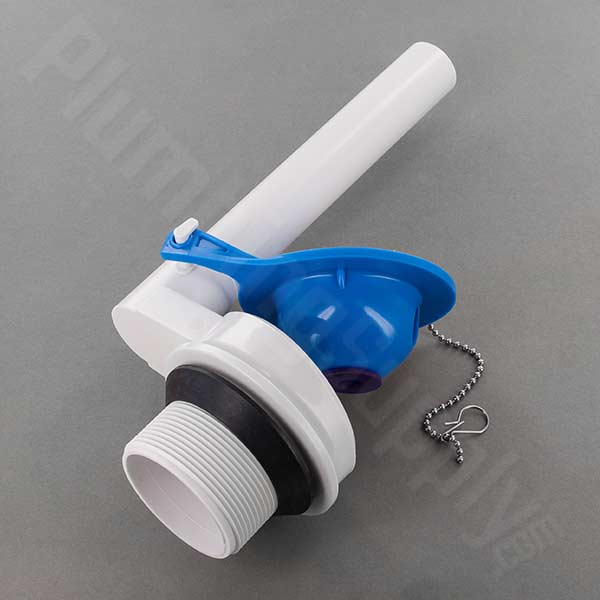

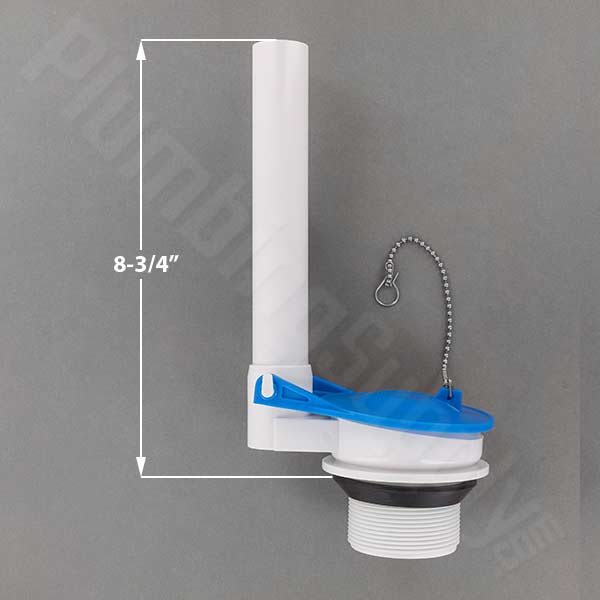

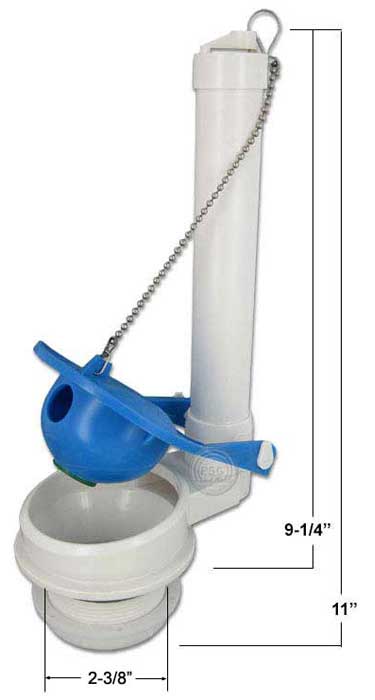

#228 Hybrid 2" Flush Valve - 1.28 gpf Fits tanks: 3120, 3121, 3122, 3125, 3172, 3173, 3174 & 3260 Fits 2" ID outlet hole, but uses 3" flapper Provides 1.28 gallons per flush 11" overall height, 9-1/4" from tank to top of overflow Includes flapper, chain, stainless steel clip, gasket, and nut Please note: This flush valve will not work with toilets that have a built-in overflow, like the Eljer Touch Flush. Additionally, the flush valve outlet INSIDE DIAMETER measures 2", but the OUTSIDE DIAMETER is 2-3/8" - please be sure to measure your outlet prior to ordering.	$18.65	Enter a quantity and

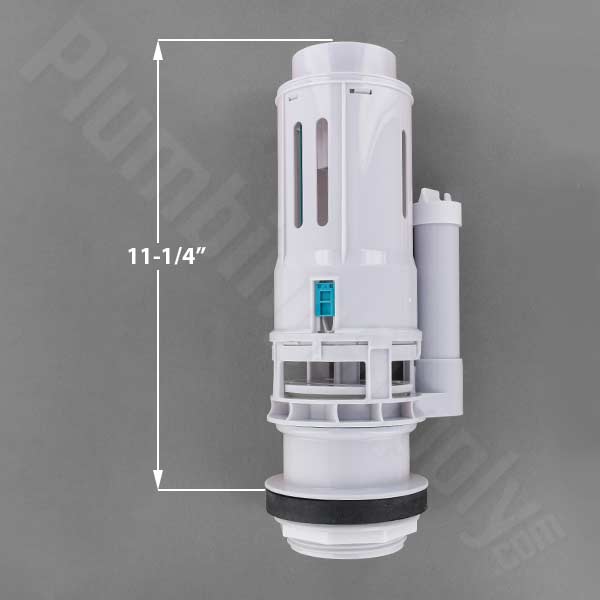

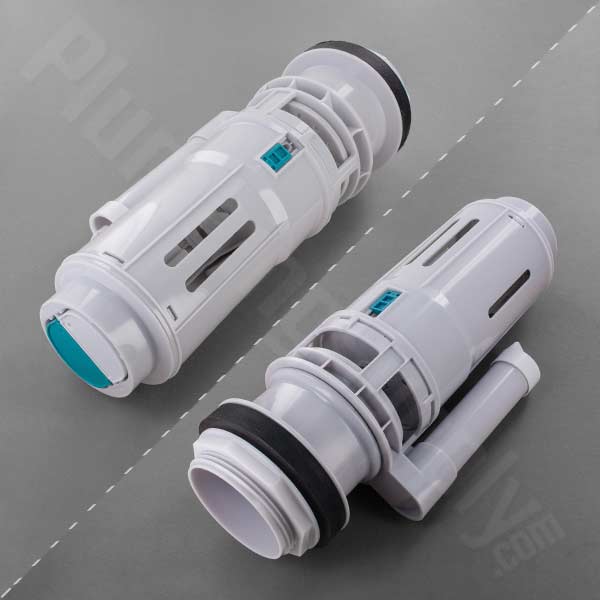

#208E Dual 3" Flush Valve - 1.1 gpf and 1.6 gpf Fits tanks: 178 Provides 1.1 and 1.6 gallons per flush 11-1/4" from tank to top of valve Includes flush valve seal #741-0016, tank gasket, and locknut	$23.70	Enter a quantity and

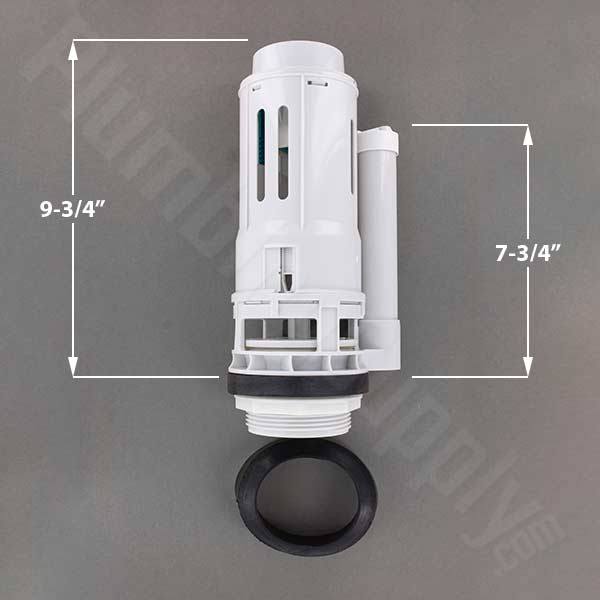

#209 Super Low Flow 3" Flush Valve - 1.0 gpf Fits tanks: 1012 & 3012 Provides 1.0 gallon per flush 11-3/8" overall height, 9-3/4" from tank to top of valve Includes flush valve seal #741-0016, tank gasket, and locknut	$20.18	Enter a quantity and

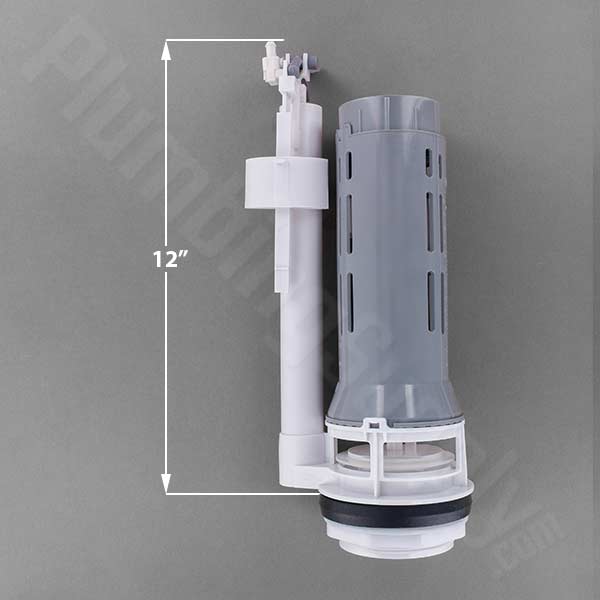

#308 Dual 3" Flush Valve - 1.1 gpf and 1.6 gpf Fits tanks: 3386 Provides 1.1 and 1.6 gallons per flush 13-1/2" overall height, 12" from tank to top of valve Includes flush valve seal #741-0308, tank gasket, locknut, and refill diverter mechanism	$23.71	Enter a quantity and

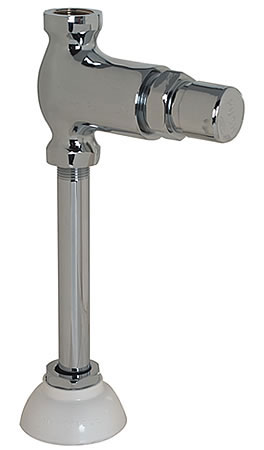

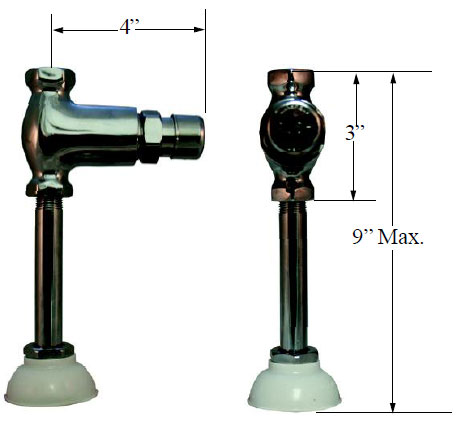

#190-0 Straight Pattern Urinal Flush Valve Casted brass body that is triple-chrome plated for years of durability Automatic metering and balanced cartridge assembly allows it to operate equally well at high or low pressures It is efficient, dependable, quiet and versatile Push button activated Vandal resistant View dimensions here	$132.86

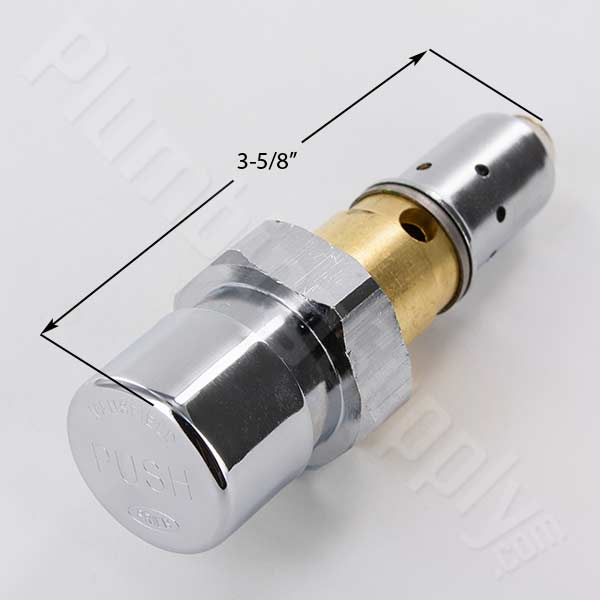

Valve Service Kit for the #190-0 Straight Pattern Urinal Flush Valve	$69.49	Enter a quantity and

- OR - View Cart

Replacement Mansfield Fill Valves

Need help figuring out what parts you need? Check out our Mansfield toilet parts finder

We offer information to help you measure and determine which fill valve you need

Description	Price & Quantity

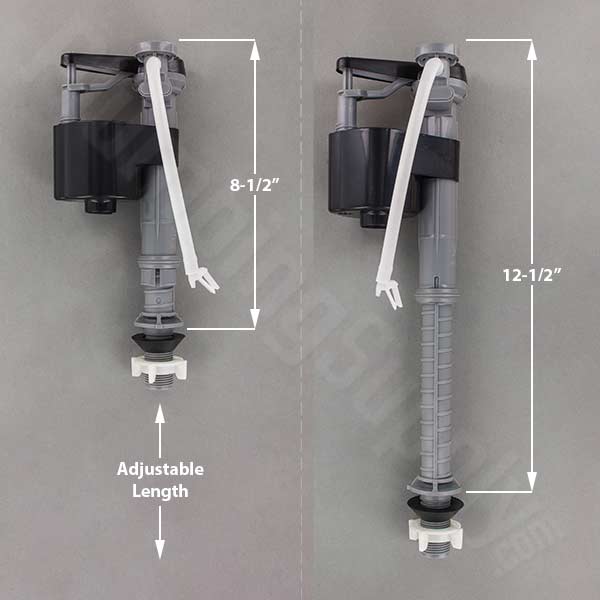

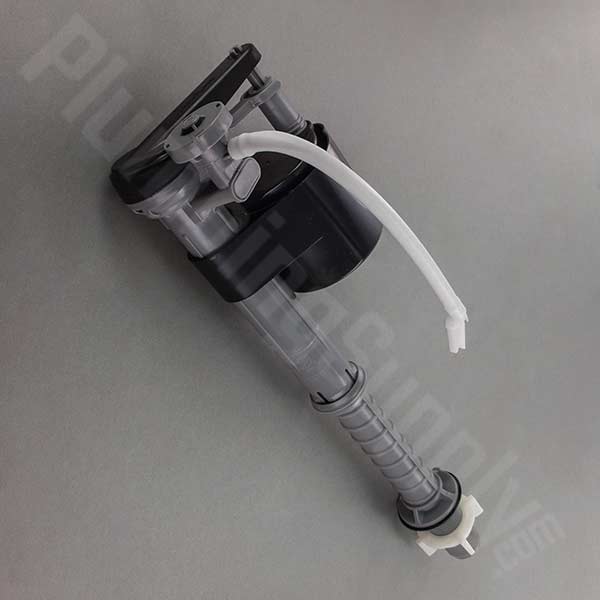

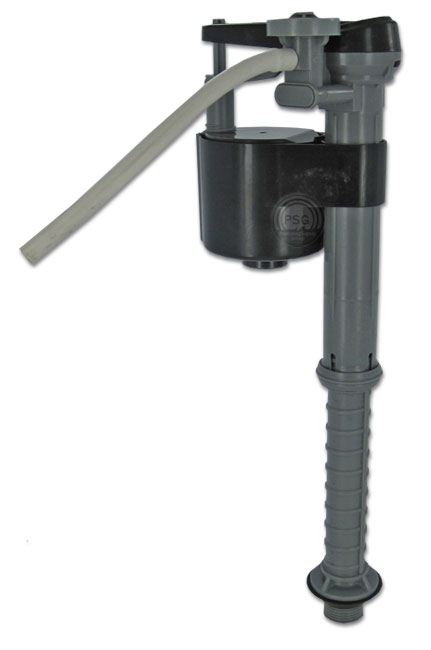

#2206 Pilot Operated Anti-Siphon Fill Valve Fits tanks: 102, 106, 109, 112, 185, 187, 188, 192, 195, 386, 387, 705NS, 708, 722, 3106, 3108, 3125, 3147, 3172, 3173, 3174, 3185, 3195, 3260, 3386 & 3816 Efficient operation at low or high water pressures Positive shut-off design Adjustable 8-1/2" - 12-1/2" height Includes 6" refill tube and plastic coupling nut *Replacement for G300 & M400 fill valves*	$20.52	Enter a quantity and

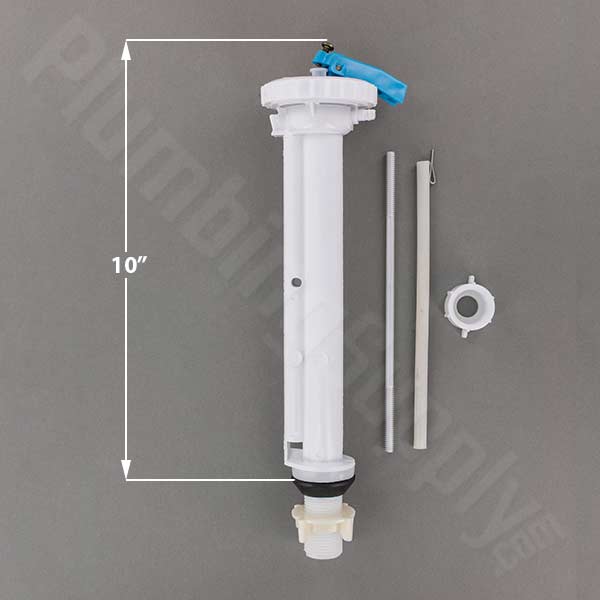

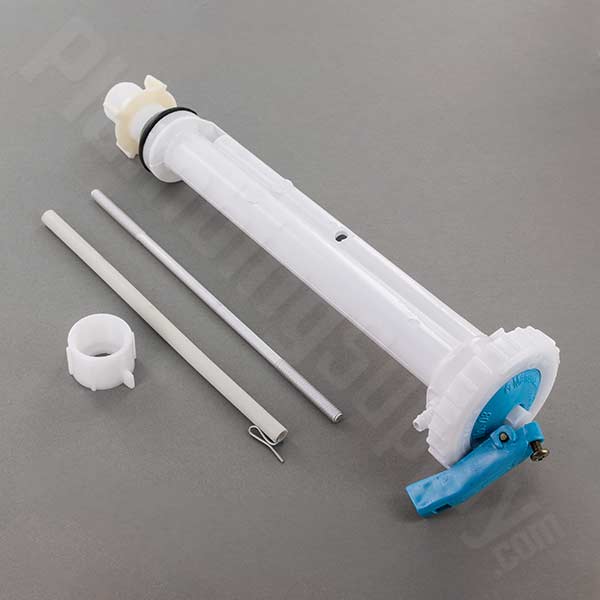

#08-10 Fill Valve Works for both 3.5gpf & 1.6gpf tanks 10" overall height Snap action shut-off Includes 7-1/2" float rod, 7" refill tube, acetal locknut and coupling nut Fits some Aleur toilets	$16.55	Enter a quantity and

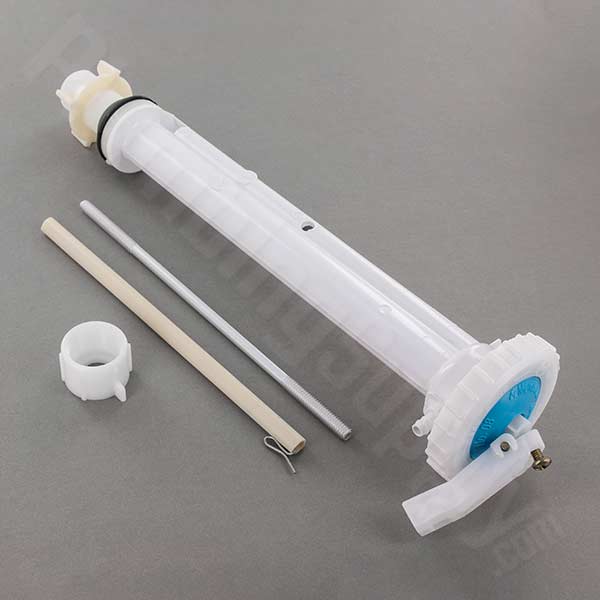

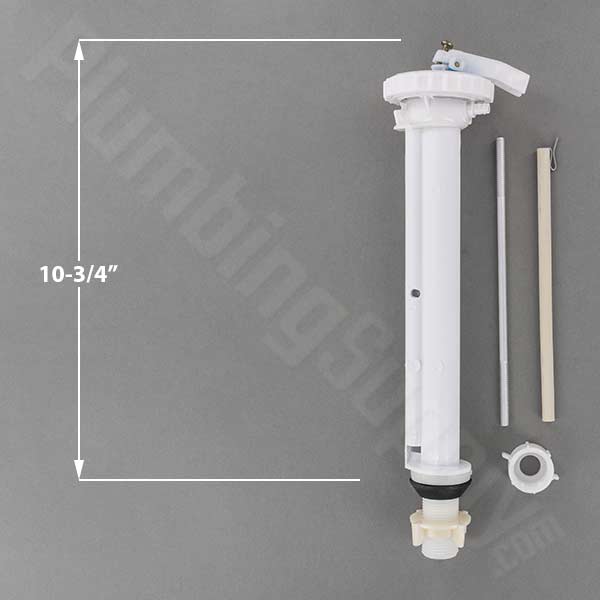

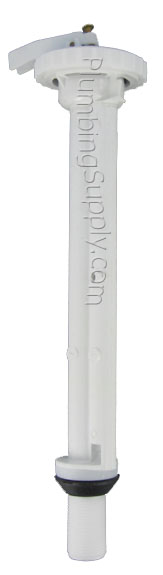

#08-1034 Fill Valve Fits tanks: 011, 020, 021, 025, 026, 164 & 167 10-3/4" overall height Snap action shut-off Includes 7-1/2" float rod, 7" refill tube, acetal locknut and coupling nut	$16.48	Enter a quantity and

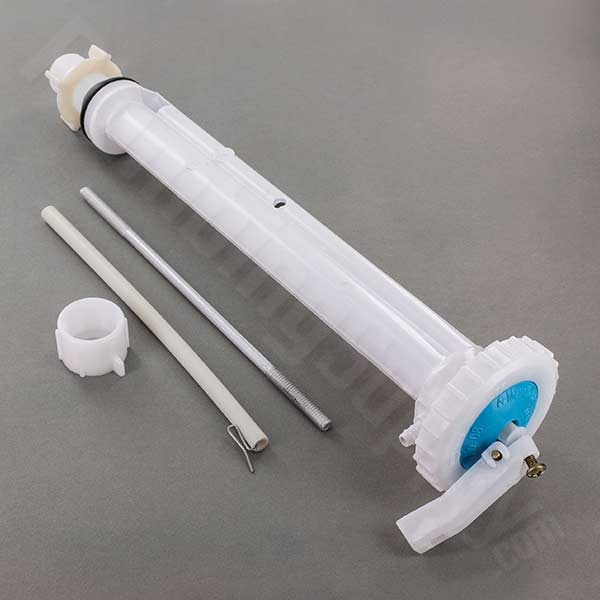

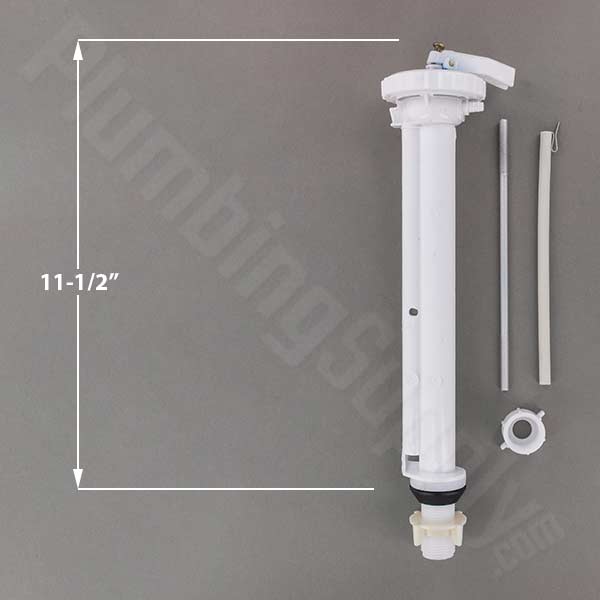

#08-1112 Fill Valve Fits tanks: 035, 125, 160, 165, 163/163NS, 170, 172, 173, 174, 175, 180 & 190 11-1/2" overall height Snap action shut-off Includes 7-1/2" float rod, 7" refill tube, acetal locknut and coupling nut	$16.52	Enter a quantity and

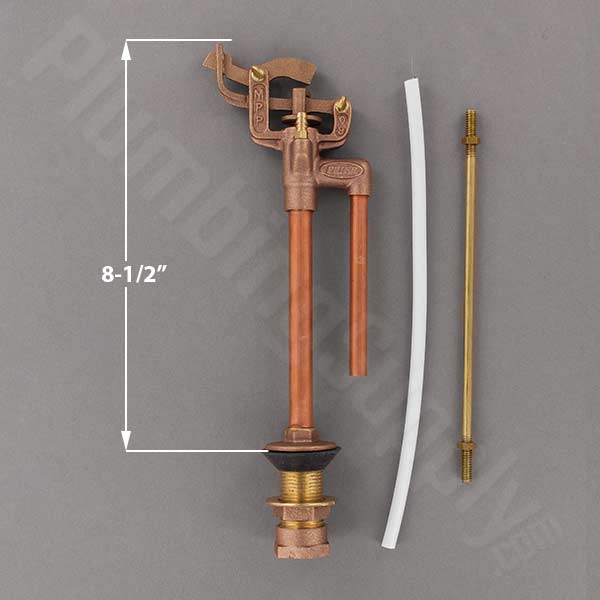

#09 Brass Fill Valve For use with 3.5gpf or 1.6gpf toilets Compound lever action with positive opening and closing Heavy patterned brass construction 8-1/2" overall height Includes brass rod and fill tube	$43.09	Enter a quantity and
#400A Fill Valve Fits tanks: 108, 127, 395, 700, 702, 705, 707, WC5080, WC6002 & WC6003 Adjustable 9-5/8" - 13-3/8" height For use with 3.5gpf or 1.6gpf 2-piece toilets Includes refill tube, locknut and coupling nut *Replaces 89-1012 fill valve*	$12.23	Enter a quantity and

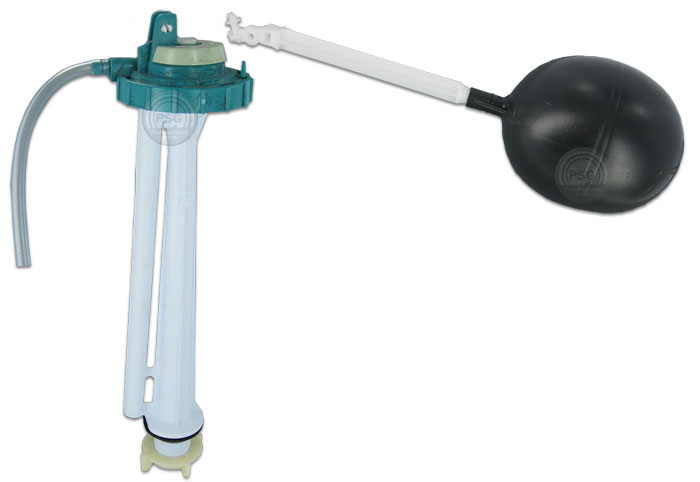

#90 Fill Valve Fits tanks: 178 Adjustable 9-5/8" - 13-3/8" height Includes refill tube, locknut and coupling nut	$21.46	Enter a quantity and

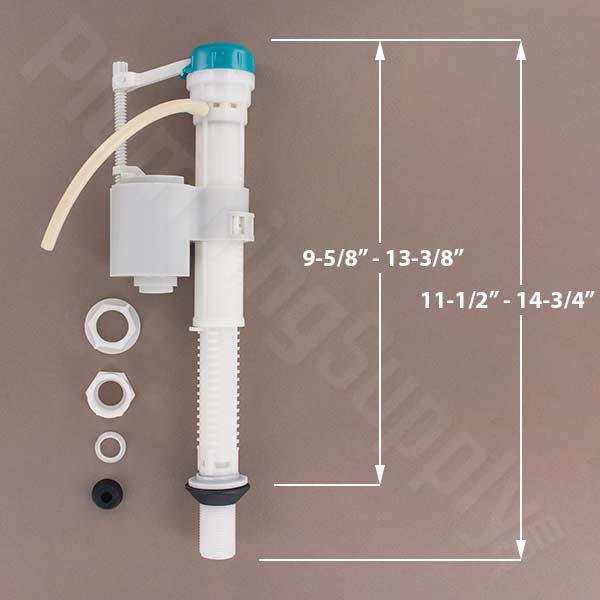

#90-9000 Fill Valve Fits tanks: 1012 & 3012 Adjustable 9-5/8" - 13-3/8" height Includes refill tube, locknut and coupling nut	$21.54	Enter a quantity and

- OR - View Cart

Flappers, Seals, Repair Kits & Related Parts

Description	Price & Quantity

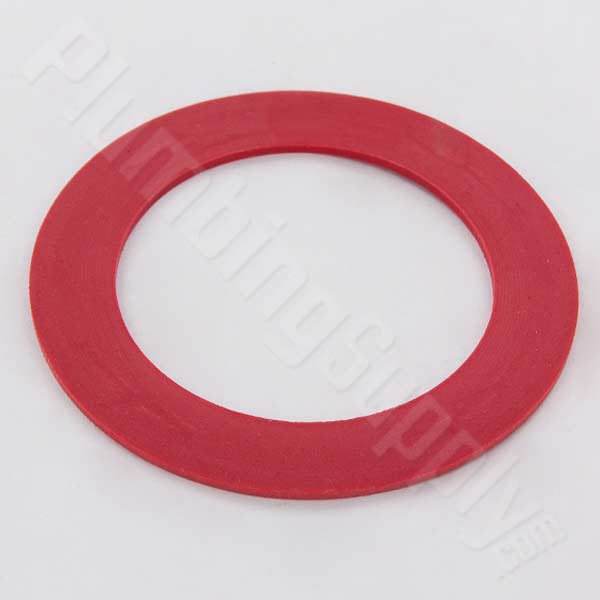

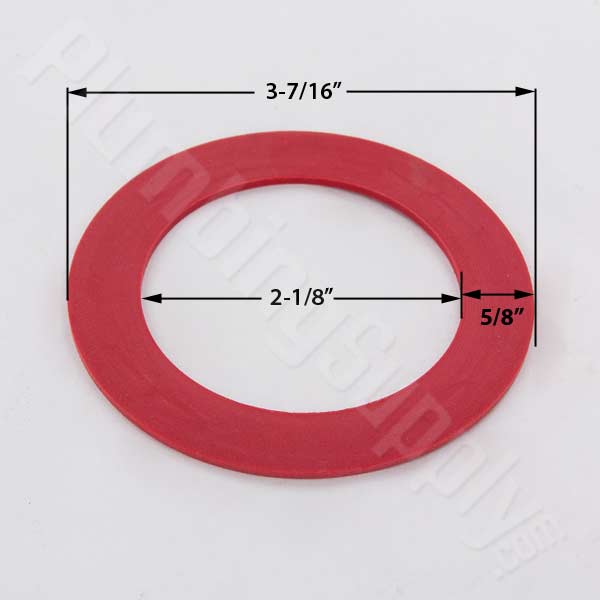

#630-0030 Flapper Seal Only Fits 2036-1212 and 2037-1212 fush valves 3-7/16" OD x 2-1/8" ID x 5/8" wide View dimensions	$5.51	Enter a quantity and

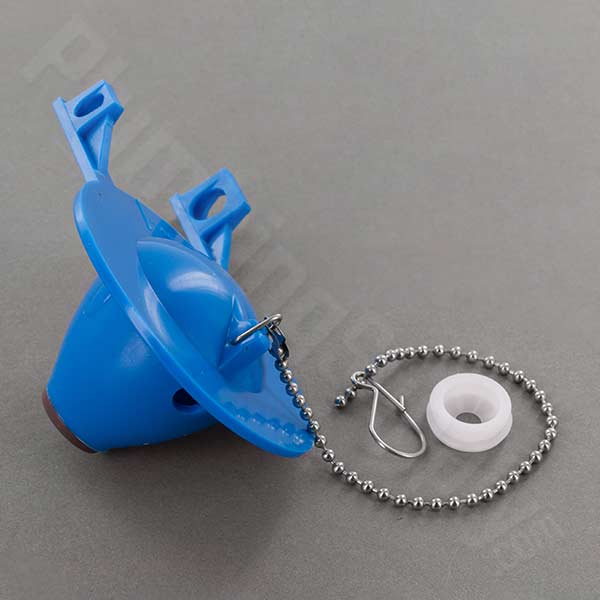

#630-0173 Flapper 2" flapper Fits ALL 2" Mansfield flapper-style flush valves Includes insert for both 1.6gpf and 3.5gpf	$8.10	Enter a quantity and

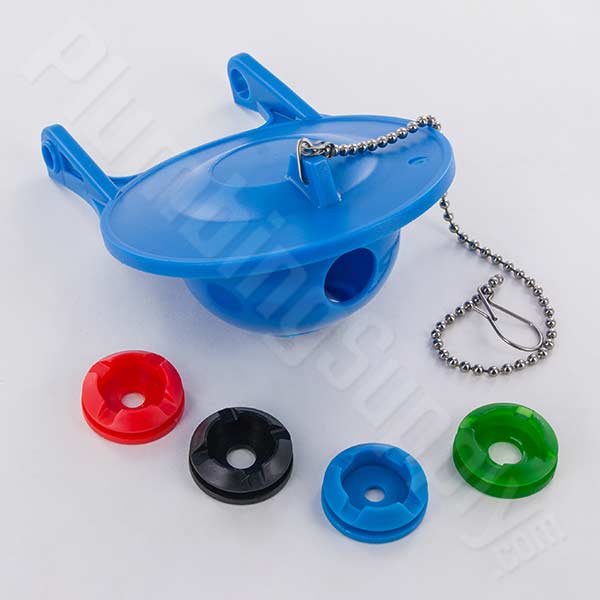

#630-0207 Flapper 3" flapper Fits ALL 3" Mansfield flapper-style flush valves Includes insert for both 1.6gpf and 3.5gpf	$11.49	Enter a quantity and

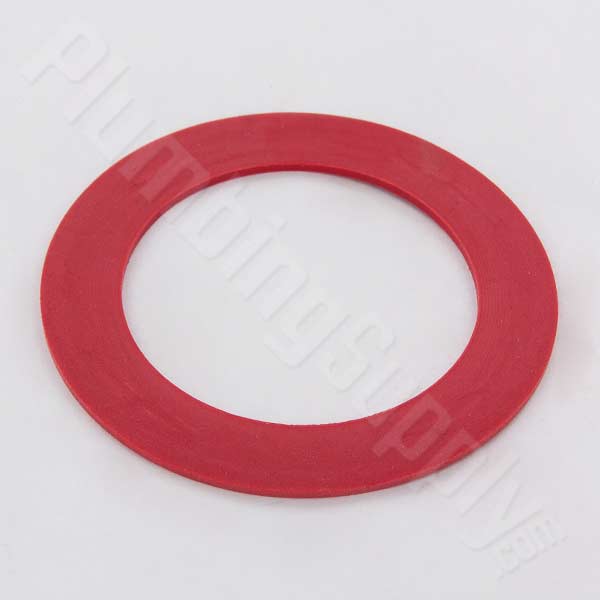

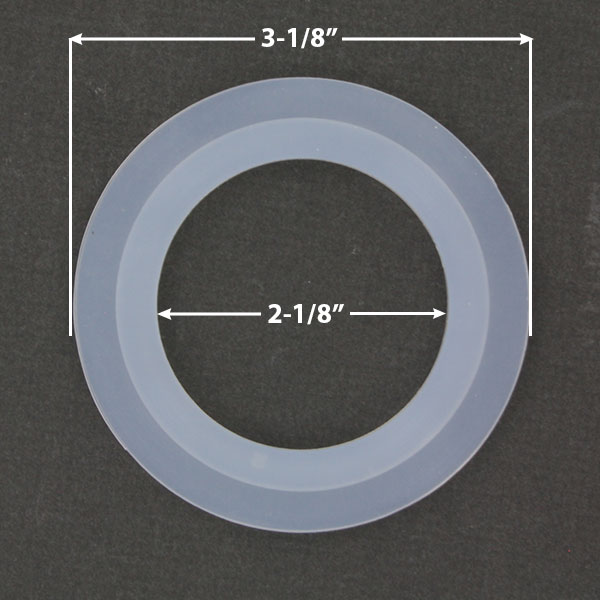

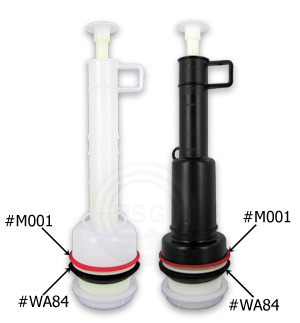

#M001 Flush Valve Seal Fits #210 and #211 flush valves 3-1/8" OD x 2-1/8" ID Seal location example	Each $3.60
	10 Pack $28.31
	100 Pack $215.86	Enter a quantity and
#741-0308 Flush Valve Seal Fits #308 dual flush valve Blue	$3.14	Enter a quantity and

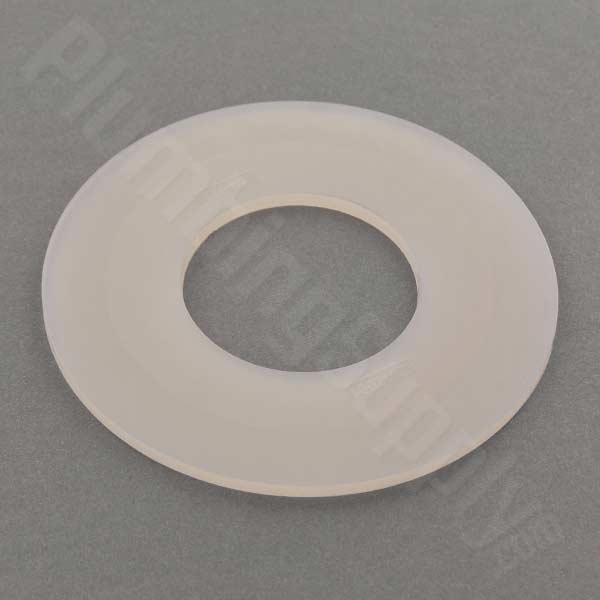

#741-0016 Flush Valve Seal Fits #208E 3" dual flush valve Fits #209 3" super low flow flush valve 3-1/2" OD x 1-1/2" ID	$5.42	Enter a quantity and

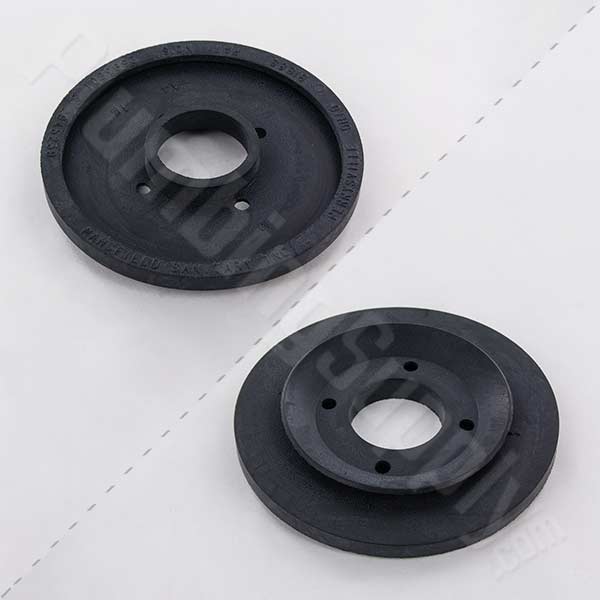

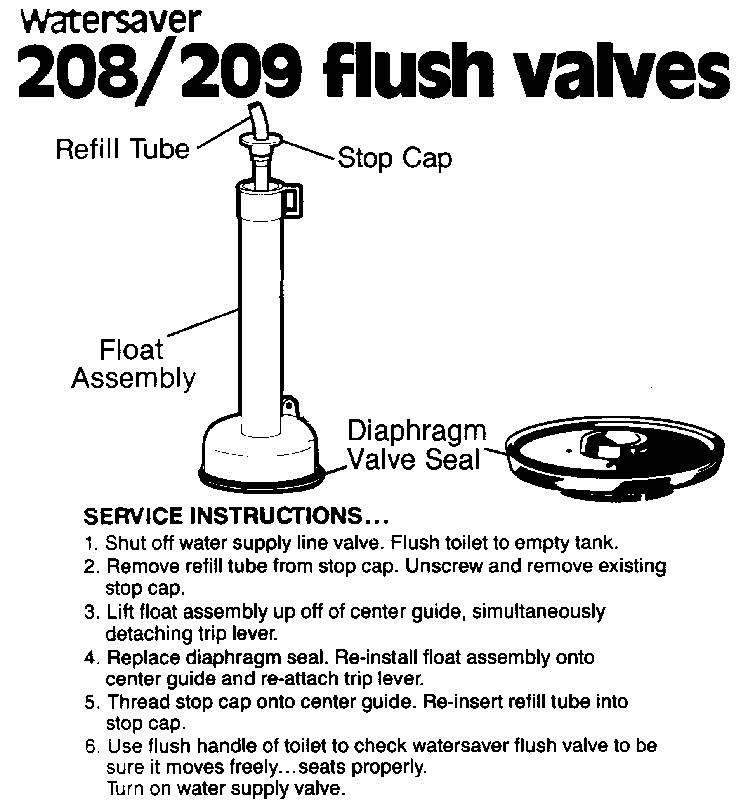

#342-1685 Diaphragm Seal Fits #208 and #209 older 2" flush valves See instructions & location example	$4.72	Enter a quantity and

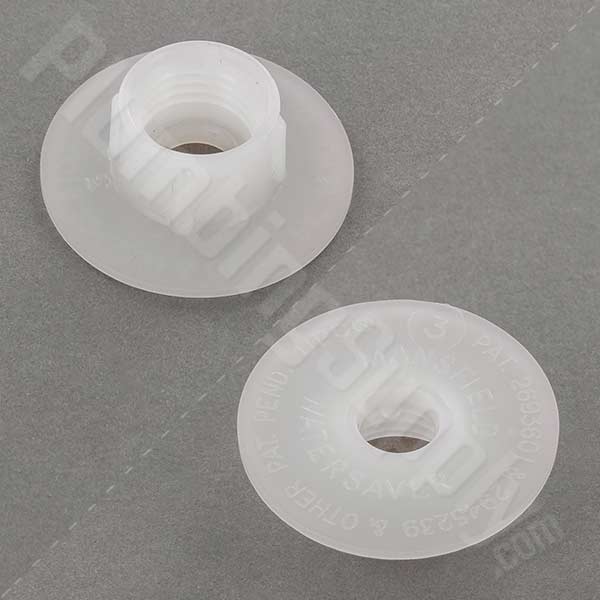

#225-5907 Stop Cap Fits #210 and #211 flush valves Limits vertical movement of canister	$2.62	Enter a quantity and

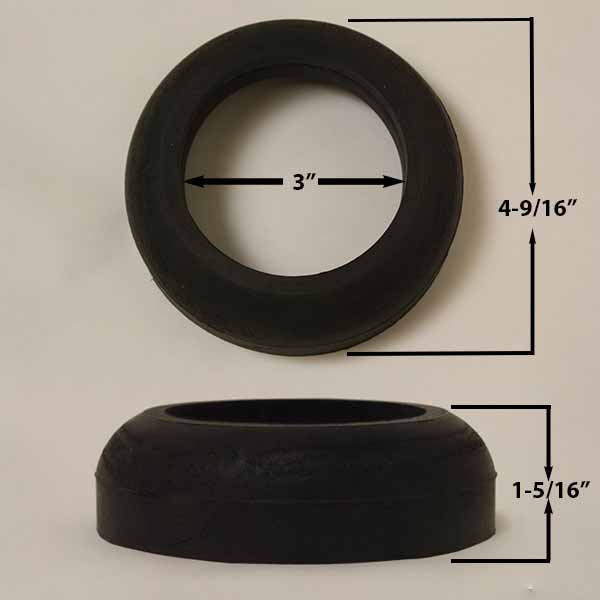

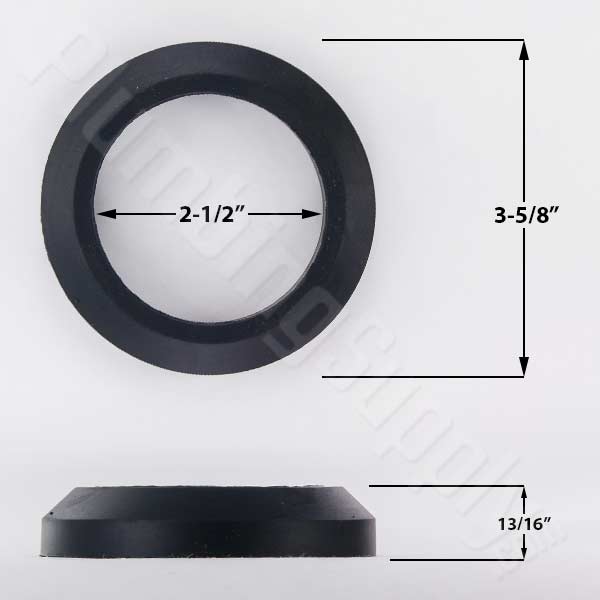

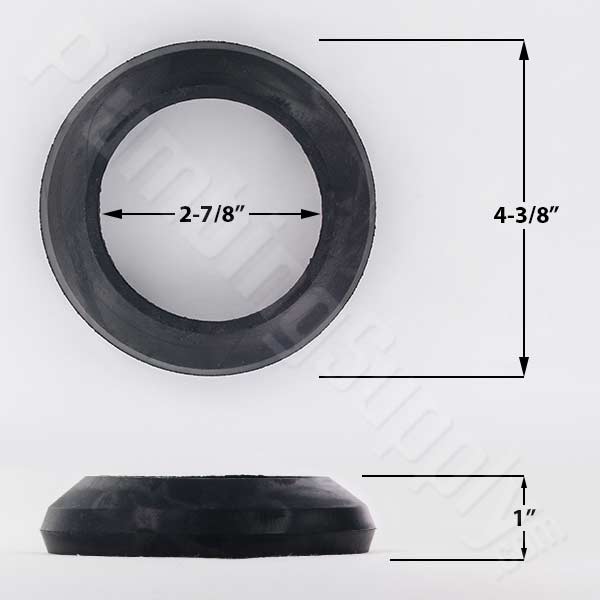

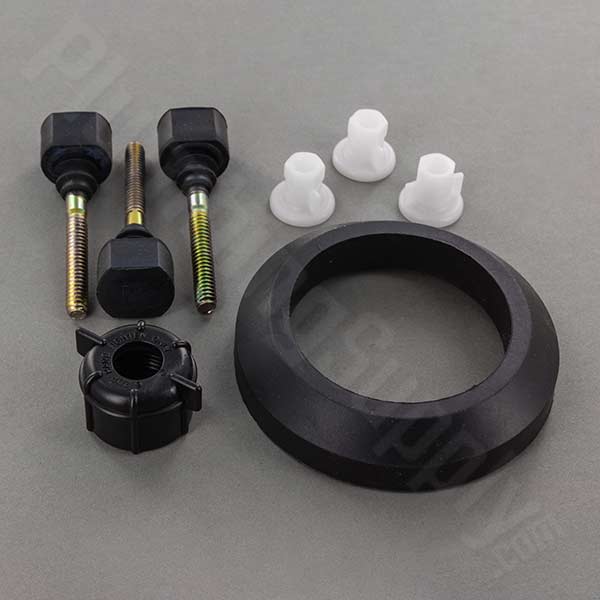

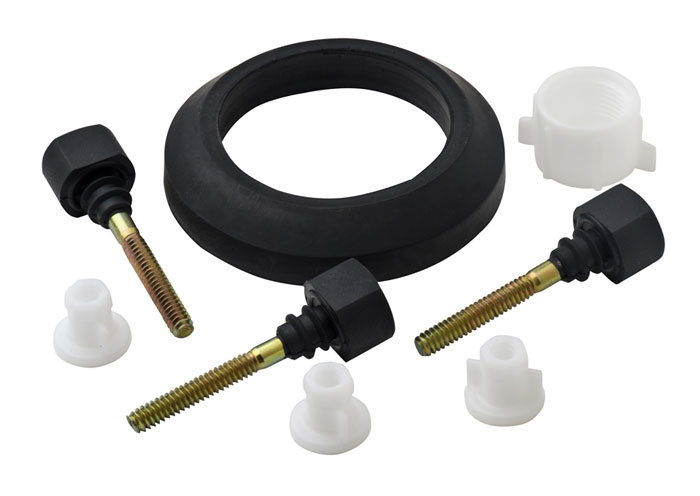

SmartFasten™ Tank to Bowl Kit Includes tank to bowl gasket, three bolts, three nuts, and coupling nut Hassle Free: The bolt locks in place, so no reaching into the tank while tightening the nuts. Washer Free: A rubber seal is already molded onto the bolt. Rust Free: Since the bolt's head is rubber, water never comes into contact with metal. Please note: The 2" and 3" versions look similar, the only difference is size of the gaskets. Gasket measurements refer to the size flush valve they will fit.	2" Kit $7.31
	3" Kit $9.33	Enter a quantity and

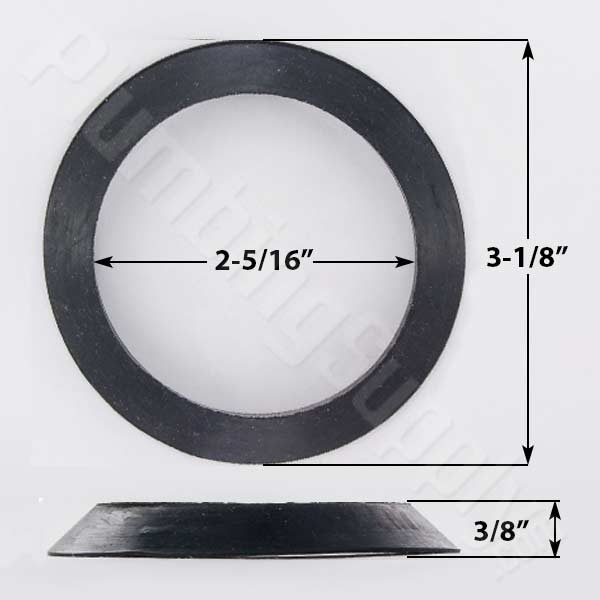

#WA84 Flush Valve Gasket "Will fit" 2-inch flapper-style flush valves	$1.58	Enter a quantity and

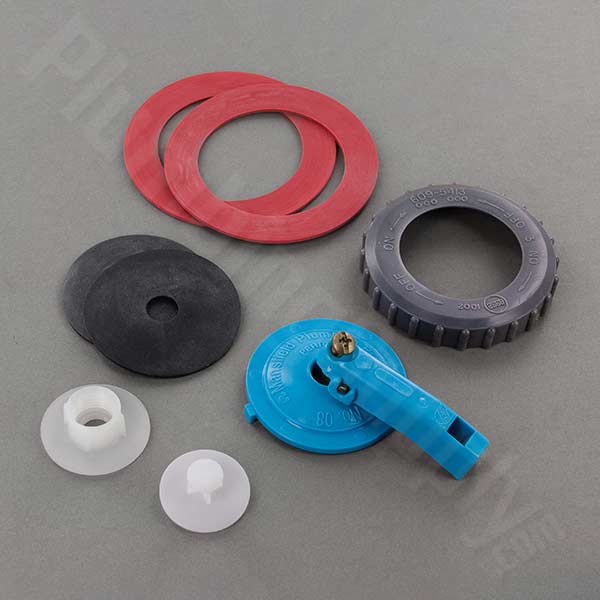

#630-6003 Fill Valve Rebuild Kit with Flush Valve Washers Fits all #08 or #88 fill valves and #210 or #211 flush valves Includes one (1) each upper diaphragm, lower diaphragm, cap, lever assembly, cap nut, and plunger (for fill valve repair) Includes one (1) flush valve stop and two (2) seals (for flush valve) Order 10 or more kits for additional savings!	$10.90	Enter a quantity and

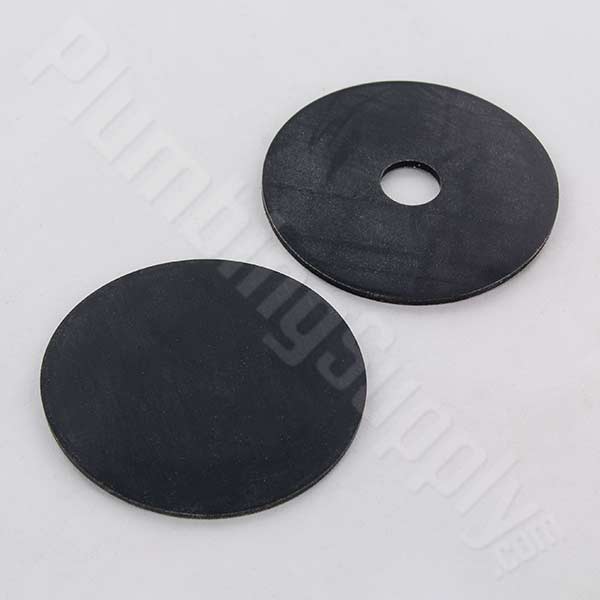

#630-7984 Fill Valve Repair Kit Fits #08 or #88 fill valves 2-1/8" diameter Includes one (1) each upper diaphragm and lower diaphragm Order 10 or more kits for additional savings!	$5.73	Enter a quantity and

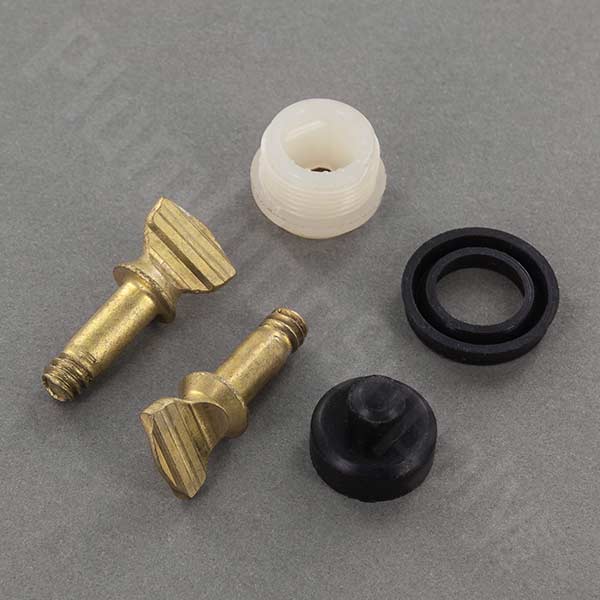

#630-7066 Fill Valve Repair Kit Fits #09 fill valve	$11.45	Enter a quantity and

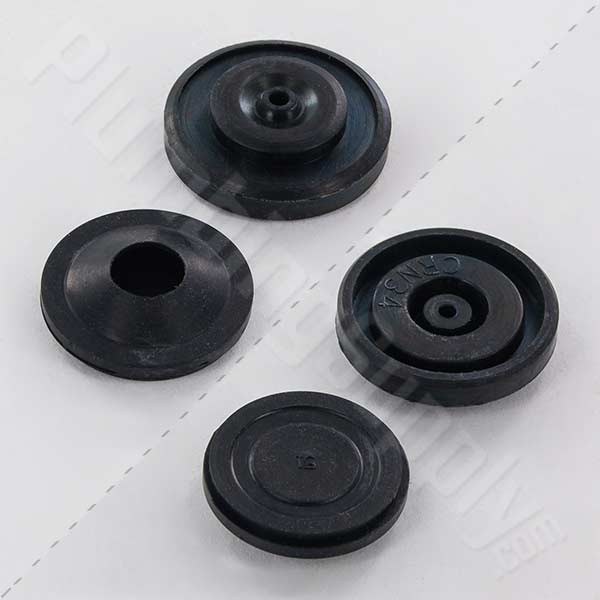

#630-2206 Fill Valve Repair Seal Kit Fits #2206 fill valve Includes one (1) each upper diaphragm and lower diaphragm	$4.54	Enter a quantity and
Plastic Float Ball "Will fit" #09, #08 and #88 fill valves 4" x 5"	$4.05	Enter a quantity and
Brass Float Rod "Will fit" #09, #08 and #88 fill valves 8" long - click for more float rod lengths	$2.59	Enter a quantity and
Refill Tube Only "Will fit" all Mansfield fill valves Clear 12" length	$1.97	Enter a quantity and

Repair Kits For Mansfield Urinal Flush Valves

Description	Price & Quantity

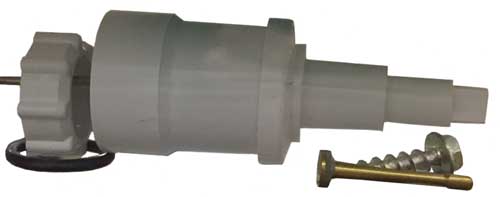

Urinal valve service kit for #1150 (1.5gpf) urinal valve	$111.24	Enter a quantity and

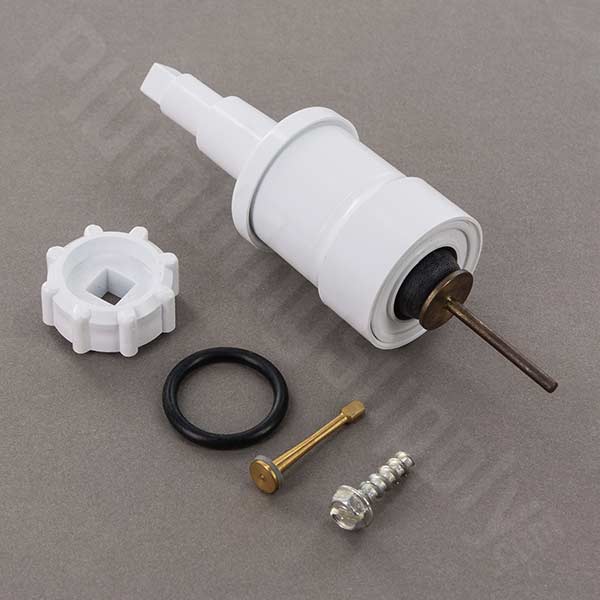

Torpedo urinal timer cartridge kit for #1075 (.75gpf) urinal valve	$110.53	Enter a quantity and

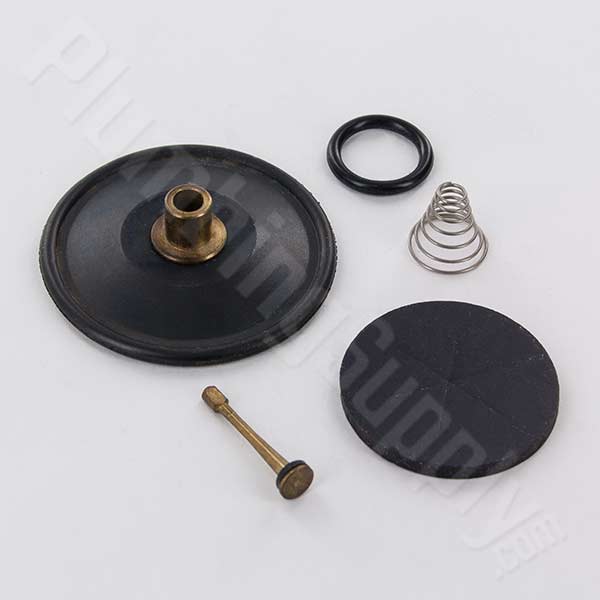

Torpedo urinal repair kit for #1075 (.75gpf) urinal valve	$31.32	Enter a quantity and

- OR - View Cart

Replacement Toilet Tank Levers for Mansfield

Front Mount Trip Levers

Description	Finish	Price & Quantity

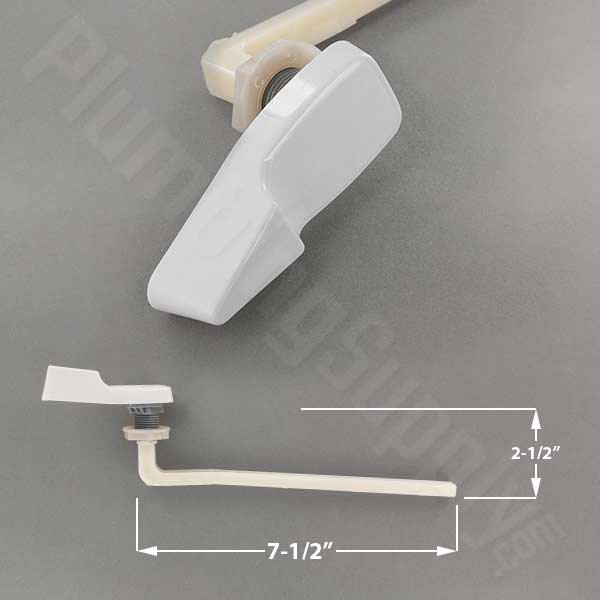

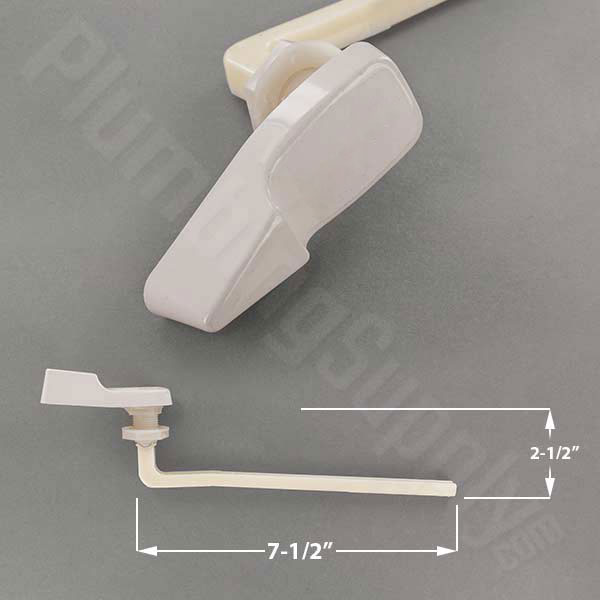

Mansfield #31 Front left hand mount Plastic handle and plastic arm Fits tanks: 172, 173, 174, 3120, 3121, 3122, 3125, 3172, 3173, 3174 & 3260 Chrome and White versions replaced by Mansfield #40	Chrome	$9.51
	White	$9.51
	Bone	$7.77
	Biscuit	$7.75	Enter a quantity and

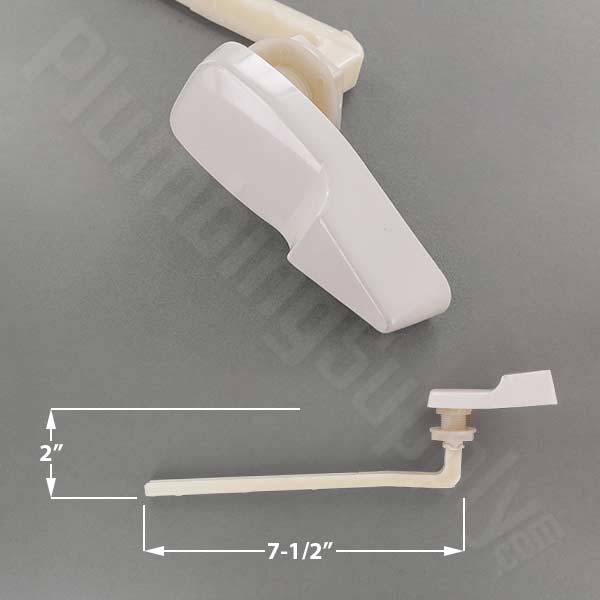

Mansfield #31RH Front right hand mount Plastic handle and plastic arm Fits tanks: 172RH, 173RH, 174RH, 3120RH, 3121RH, 3122RH, 3125RH, 3172RH, 3173RH, 3174RH & 3260RH Chrome version replaced by Mansfield #40RH	Chrome	$12.90
	White	$11.32	Enter a quantity and

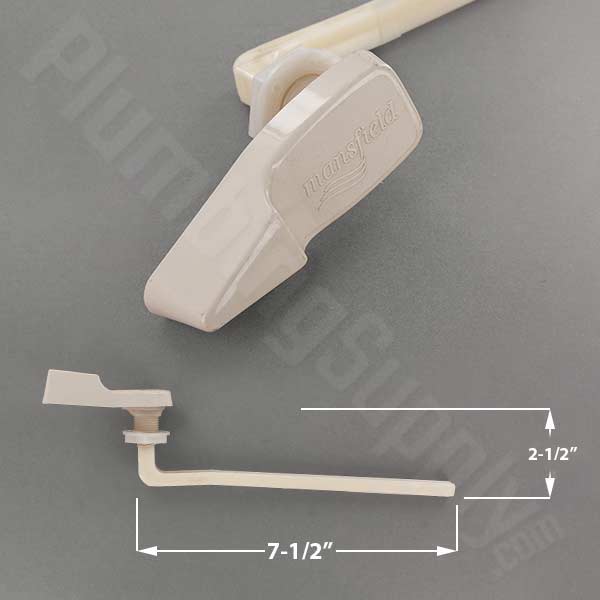

Mansfield #40 Front left hand mount Plastic handle and plastic arm Fits tanks: 125, 160, 161, 165, 170, 171, 172, 173, 174, 175, 180, 181, 190, 3120, 3121, 3122, 3125, 3172, 3173, 3174 & 3260	Chrome	$9.51
	White	$9.51
	Bone	$13.08	Enter a quantity and
	Biscuit	$13.16	Enter a quantity and
Mansfield #40RH Front right hand mount Plastic handle and plastic arm Fits tanks: 125RH & 160RH	Chrome	$12.90	Enter a quantity and

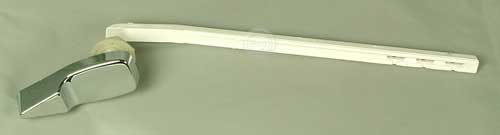

Mansfield #41 Front left hand mount Plastic handle and plastic arm with slots	Chrome	$9.58	Enter a quantity and
"Will Fit" Mansfield #41 Front left hand mount Plastic handle and plastic slotted arm	Polished Brass	$16.04	Enter a quantity and

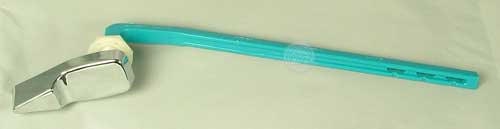

Mansfield #42 Front left hand mount Plastic handle and blue plastic arm	Chrome	$10.01	Enter a quantity and
"Will Fit" Mansfield #42 (Old Style) Front left hand mount Brass handle and brass arm	Chrome	$14.48	Enter a quantity and
Mansfield #43 Front left hand mount Plastic handle and plastic arm Fits tanks: 011, 021, 026 & 164	Chrome	$9.43	Enter a quantity and
Mansfield #44 Front left hand mount Plastic handle and plastic arm	Chrome	$8.71	Enter a quantity and
Mansfield #45 Front left hand mount Metal handle and brass arm Fits tanks: 123 & 153	Chrome	$14.84	Enter a quantity and

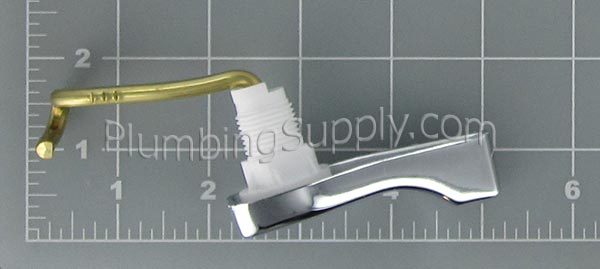

Mansfield #49 Front right hand mount Metal handle and brass arm Fits tanks: 123RH & 153RH	Chrome	$18.55	Enter a quantity and

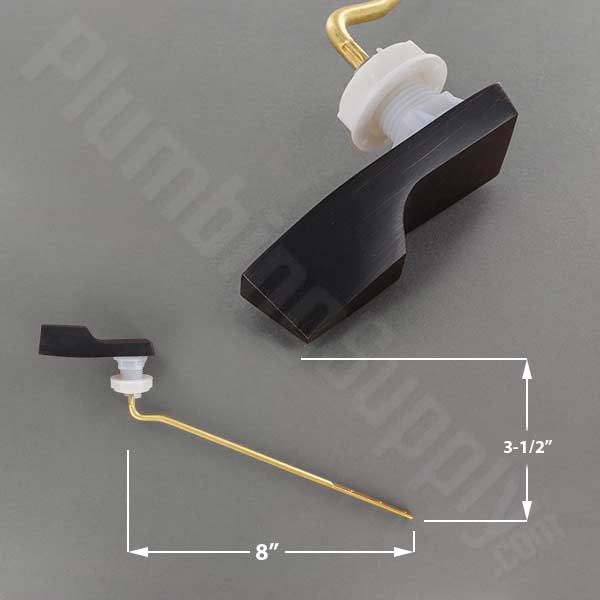

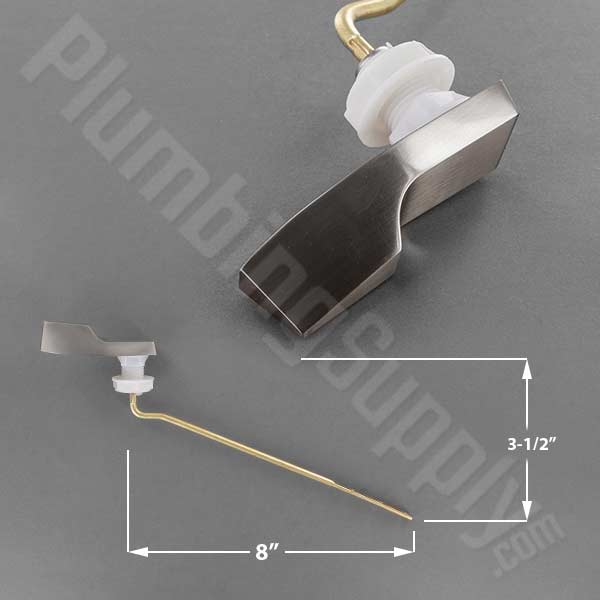

Mansfield #55 Front left hand mount Brass handle and brass arm Fits tanks: 125, 160, 161, 163/163NS, 165, 170, 171, 175, 180, 181, 189, 190, 386, 386LT, 387 & 387LT	Chrome	$17.37
	Satin Nickel	$43.81
	Sicilian Bronze	$49.17	Enter a quantity and

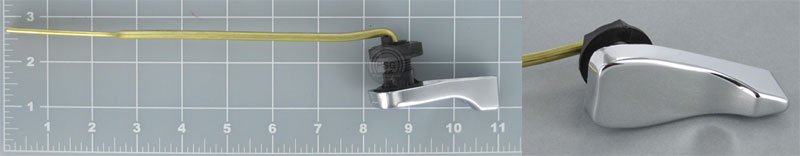

Mansfield #55RH Front right hand mount Brass handle and brass arm Fits tanks: 125RH, 160RH, 161RH, 165RH, 170RH, 171RH, 175RH, 180RH, 181RH, 189RH, 190RH, 386RH & 387RH	Chrome	$17.39	Enter a quantity and
Mansfield #56 Front left hand mount Plastic handle and plastic arm Fits tanks: 392 & 395	Bone	$12.95
Mansfield #58 Front left hand mount Plastic handle and plastic arm Fits tanks: 3816	Chrome	$21.36	Enter a quantity and

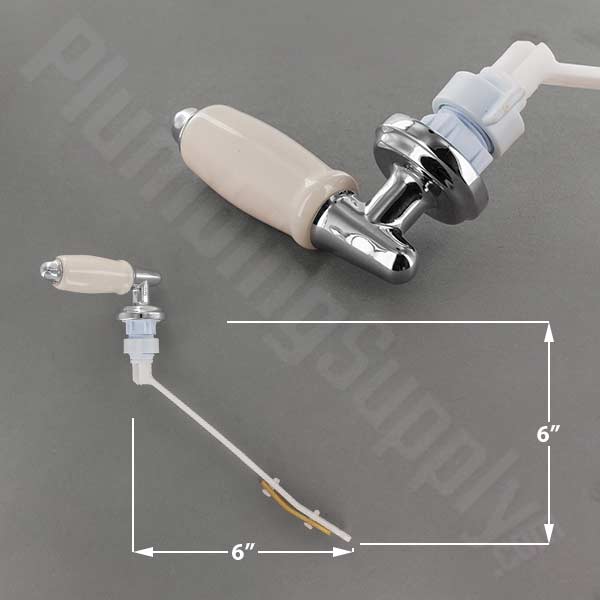

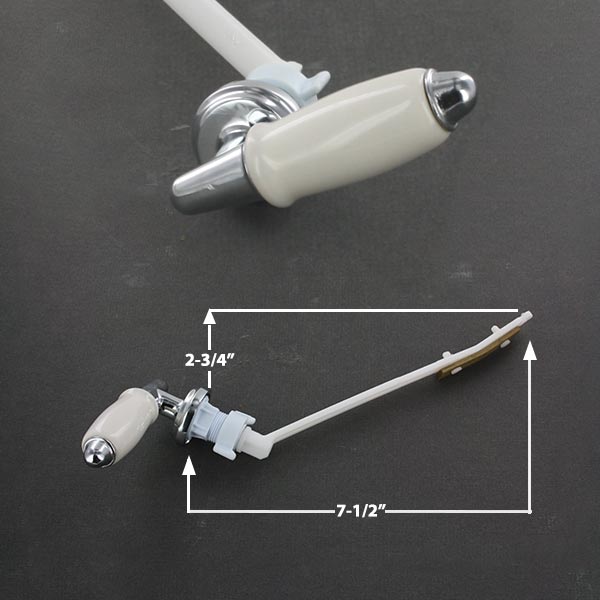

Mansfield #72 Front left hand mount Two tone handle with metal reinforced plastic arm Fits tanks: 195 & 3195 Fits some Waverly toilets	Chrome & White	$33.84
	"Chrome & Bone	$33.94
	Chrome & Biscuit	$34.00
	Satin Nickel & White	$56.07
	Satin Nickel & Bone	$54.66
	Satin Nickel & Biscuit	$56.37	Enter a quantity and

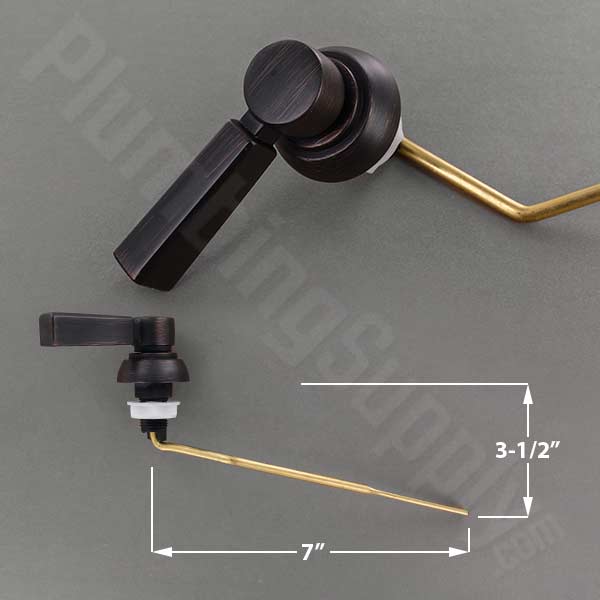

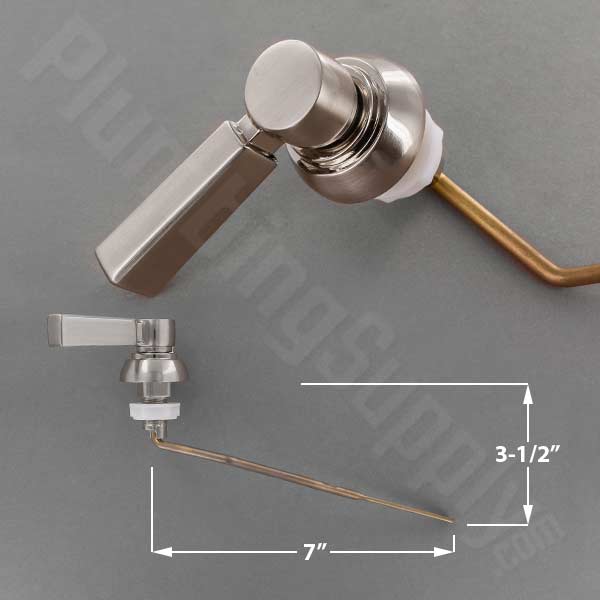

Mansfield #76 Front left hand mount Metal handle and metal arm Fits tank: 3147 - Brentwood Series Toilet	Chrome	$29.26
	Satin Nickel	$48.33
	Sicilian Bronze	$46.95	Enter a quantity and
Mansfield #85 Front left hand mount Plastic handle and plastic arm Fits tanks: 185 & 3185	Chrome	$24.19	Enter a quantity and
Mansfield #87 Front left hand mount Chrome plated Plastic handle, mounting spud, and arm Fits tanks: 187 & 188	Chrome	$24.33	Enter a quantity and

- OR - View Cart

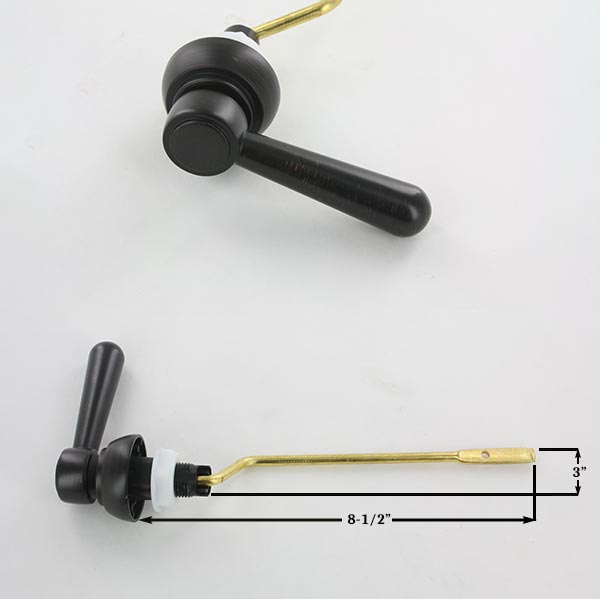

Side Mount Trip Levers

Description	Finish	Price & Quantity

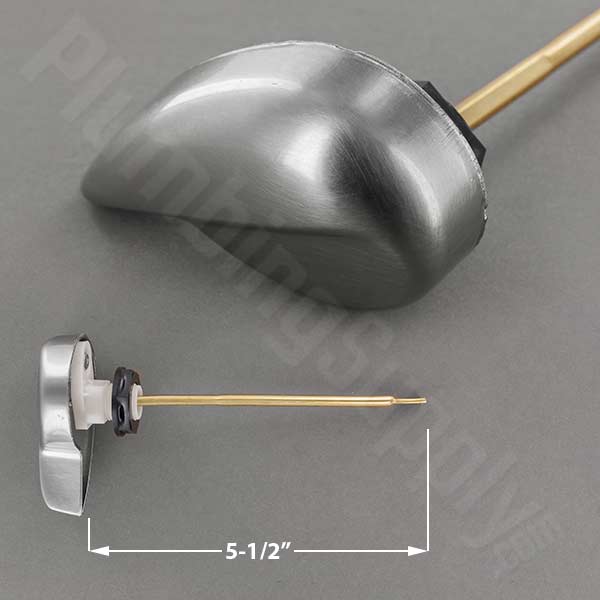

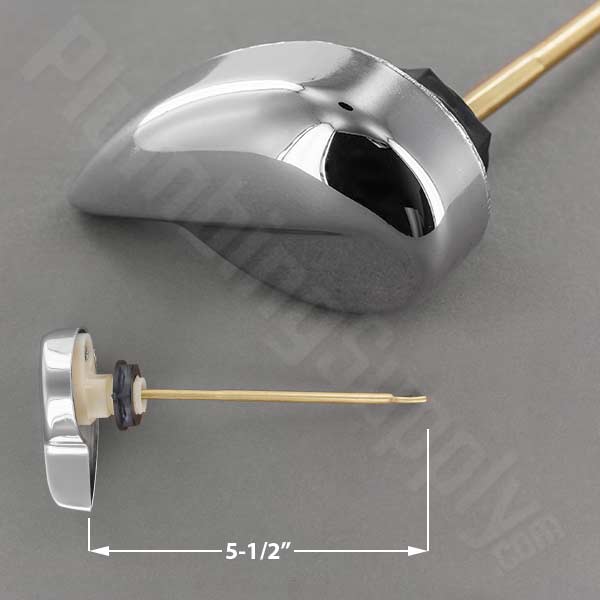

Mansfield #46 Side mount Metal handle and metal arm Fits tanks: 700, 702, 705 & 707 Fits some Aegean toilets	Chrome	$31.12
	Satin Nickel	$48.25

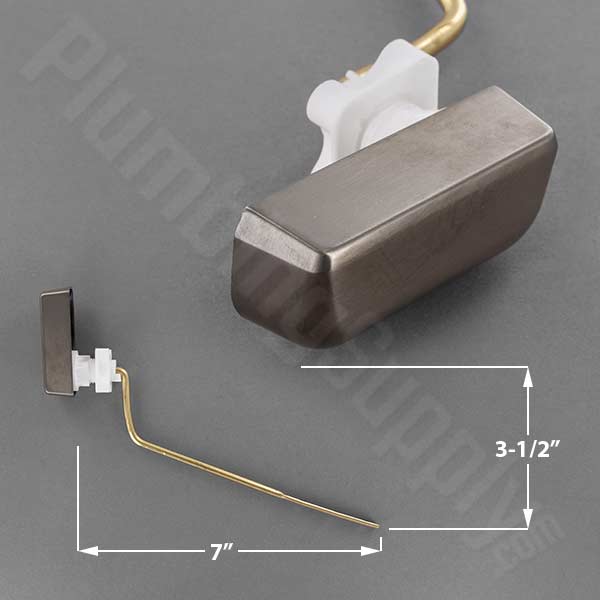

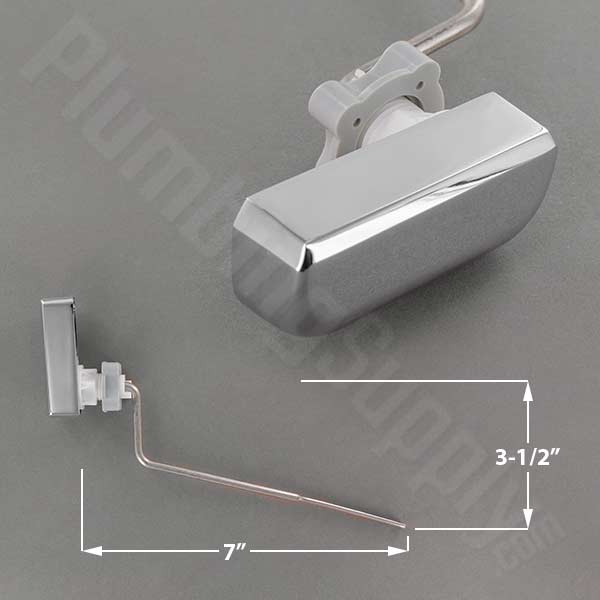

Mansfield #51 Side mount Metal handle and brass arm Fits tanks: 102, 109, & 112	Chrome	$23.89
	Satin Nickel	$48.54	Enter a quantity and

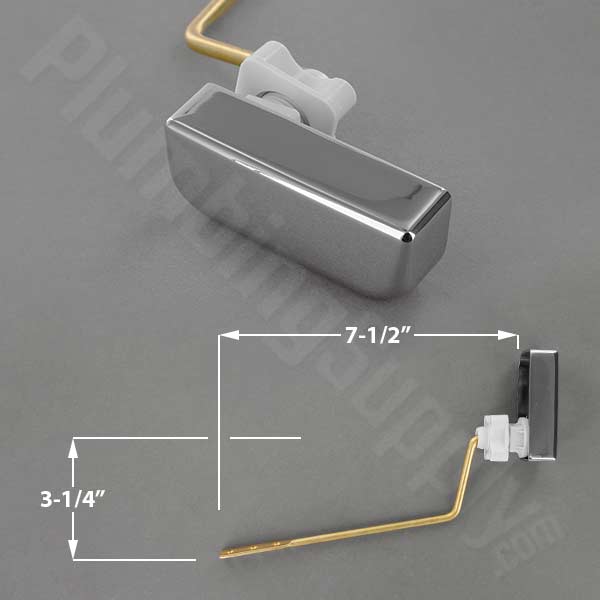

Mansfield #51RH Right hand side mount Metal handle and brass arm Fits tanks: 102, 109, & 112	Chrome	$31.07	Enter a quantity and

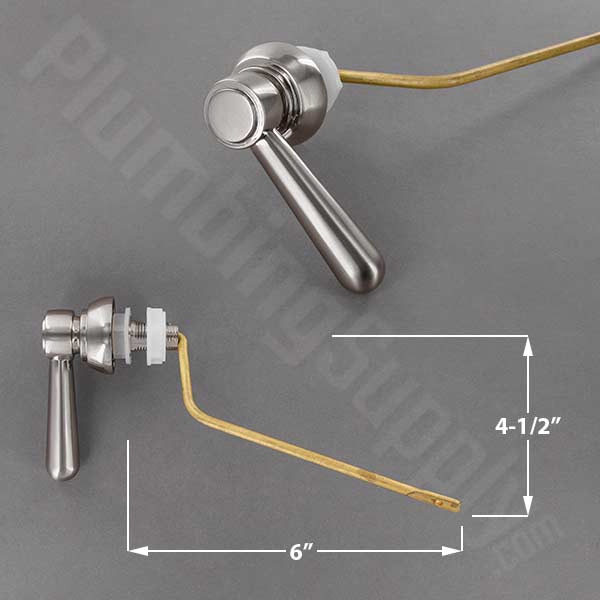

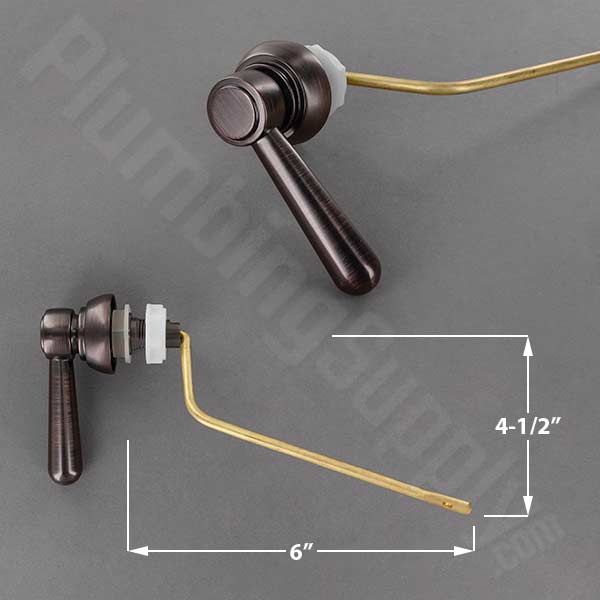

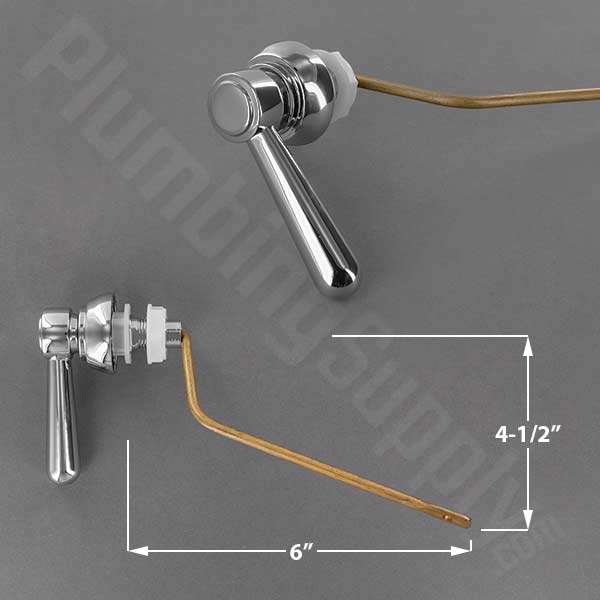

Mansfield #66 Side mount Metal handle and metal arm Fits tanks: 108 & 3108	Chrome	$34.25
	Satin Nickel	$47.76
	Sicilian Bronze	$57.52	Enter a quantity and

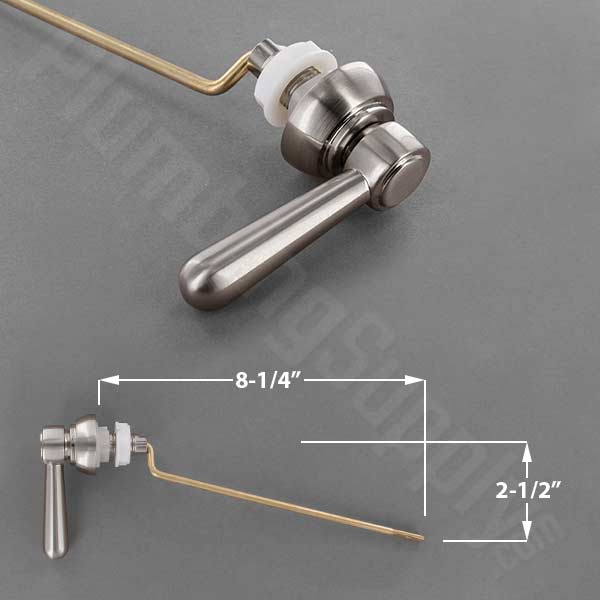

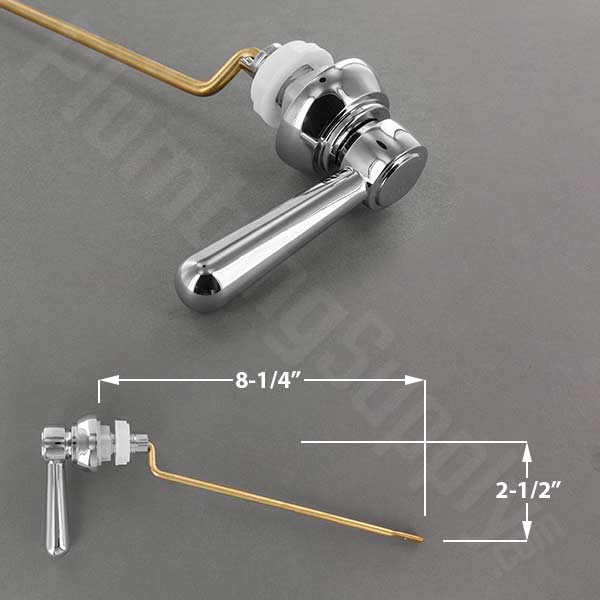

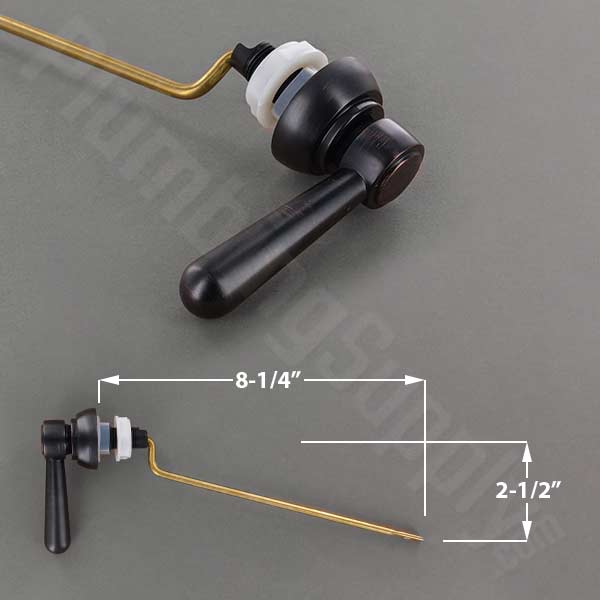

Mansfield #69 Side mount Metal handle and metal arm Fits tanks: 106, 3106 & WC5080	Chrome	$21.49
	Satin Nickel	$46.78
	Sicilian Bronze	$45.63	Enter a quantity and

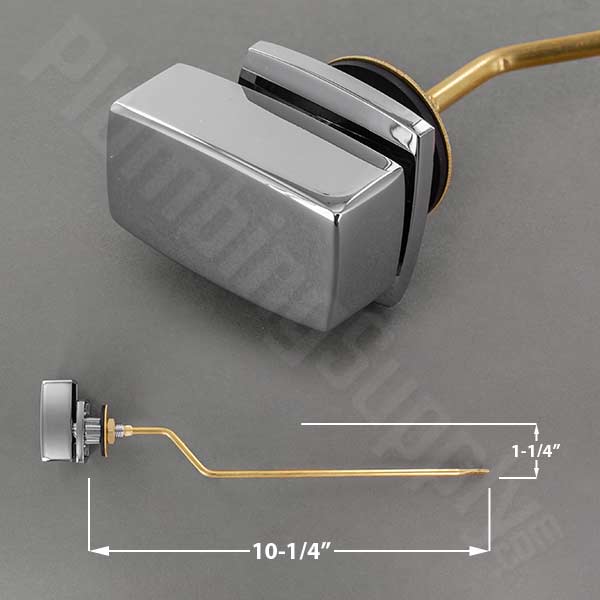

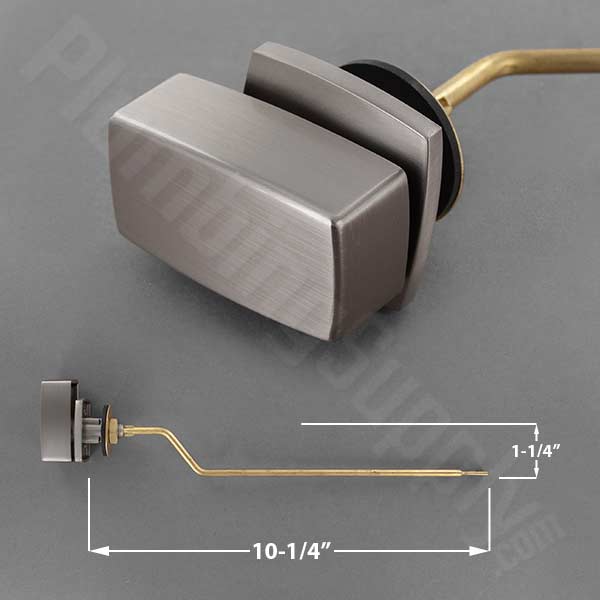

Mansfield #70 Side mount Metal handle and metal arm Fits tanks: 722	Chrome	$24.78
	Satin Nickel	$55.21

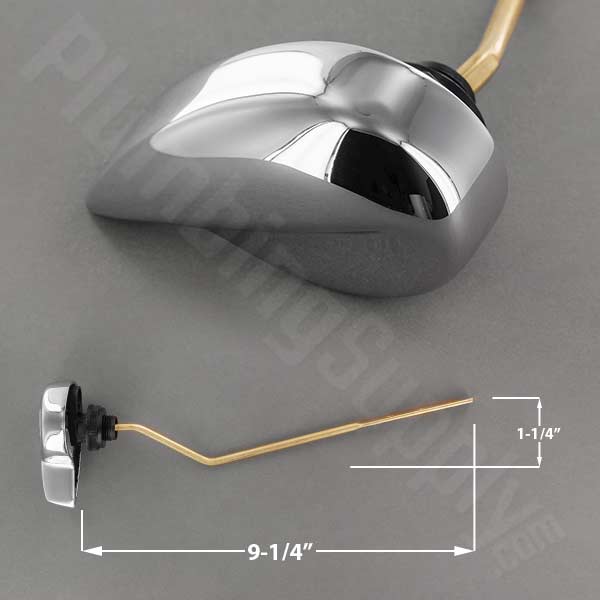

Mansfield #73 Side mount Metal handle and metal arm Fits tanks: 705NS & 708	Chrome	$29.96	Enter a quantity and

- OR - View Cart

Push-Button & Specialty Trip Levers

Description	Finish	Price & Quantity

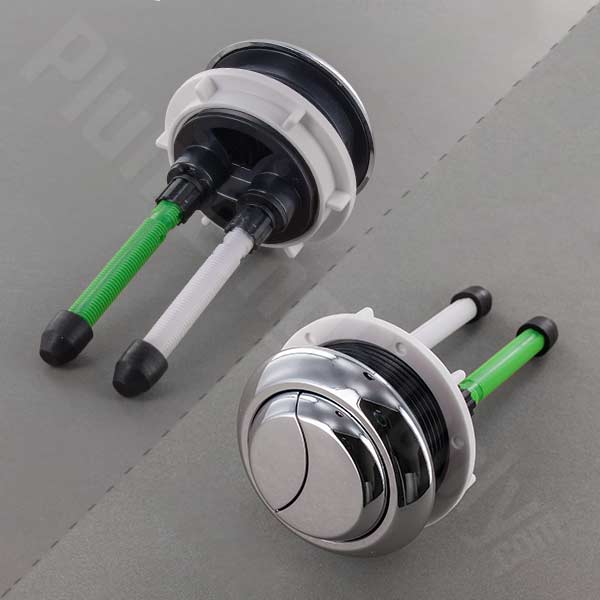

Mansfield #33 Top mount actuator button Plastic construction Fits tanks: 3386	Chrome	$35.14	Enter a quantity and

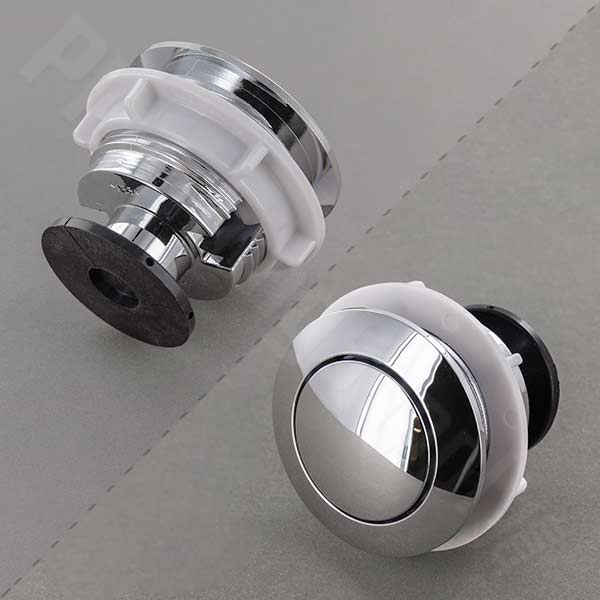

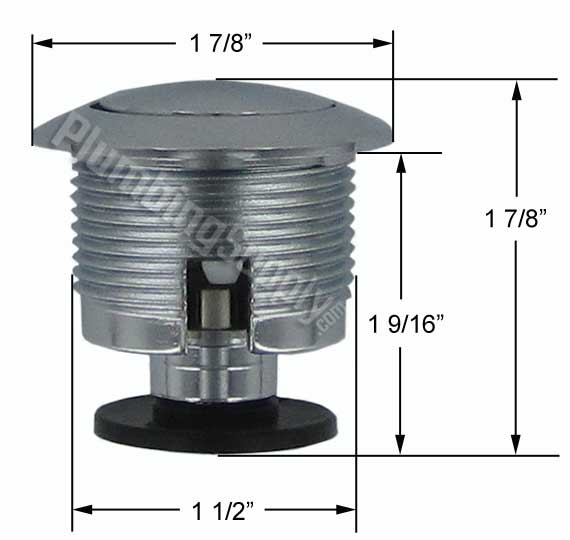

Mansfield #47 Top mount actuator button - view detailed dimensions Plastic construction Fits tanks: 122, 154 & 704	Chrome	$32.08	Enter a quantity and

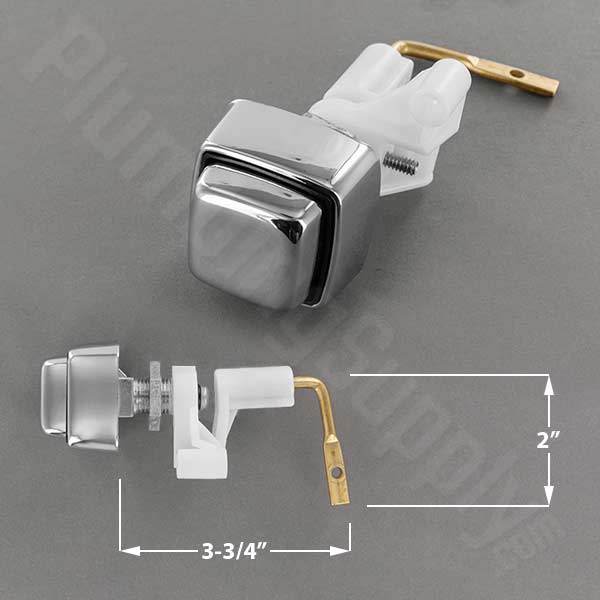

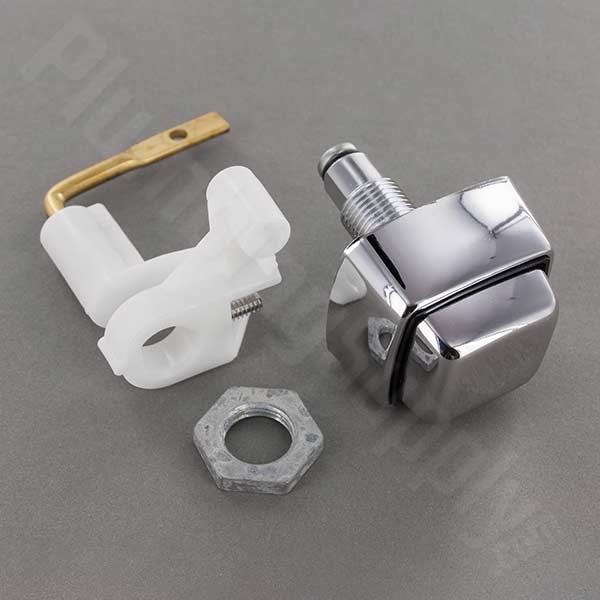

Mansfield #48 Side mount actuator button Metal construction	Chrome	$38.00	Enter a quantity and

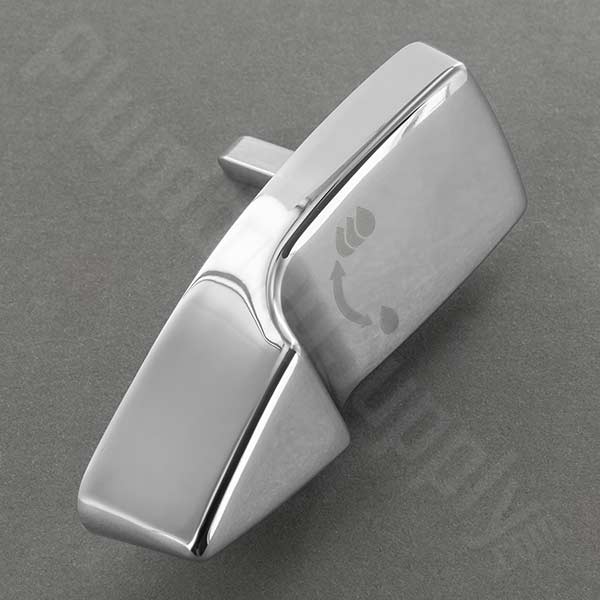

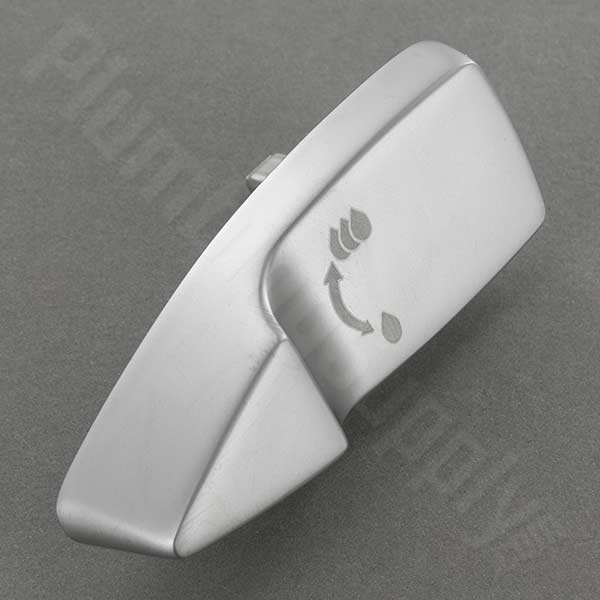

Mansfield #50 Front left or right mount Metal handle ONLY Water Conservation "Dual Flush" Technology - Lift handle UP for solid waste or push handle DOWN for liquid waste and highest efficiency flush Fits pressure-assist tanks 119 & 119RH	Chrome	$25.13
	Satin Nickel	$49.43	Enter a quantity and

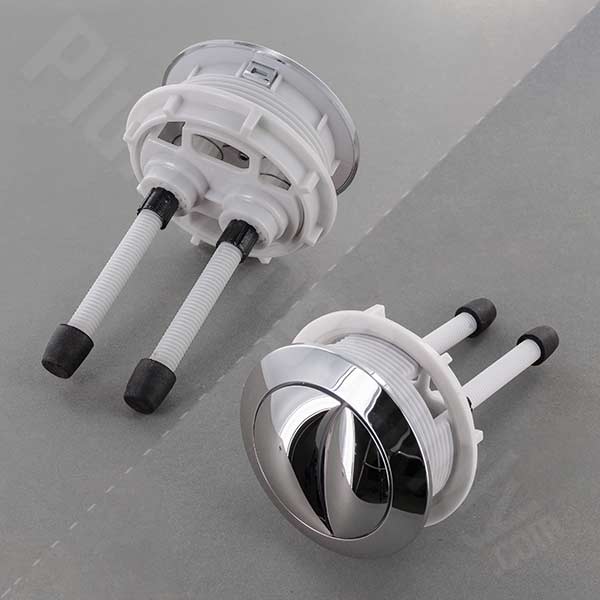

Mansfield #78 Top mount actuator button Plastic ABS construction Fits tanks: 178	Chrome	$38.48	Enter a quantity and

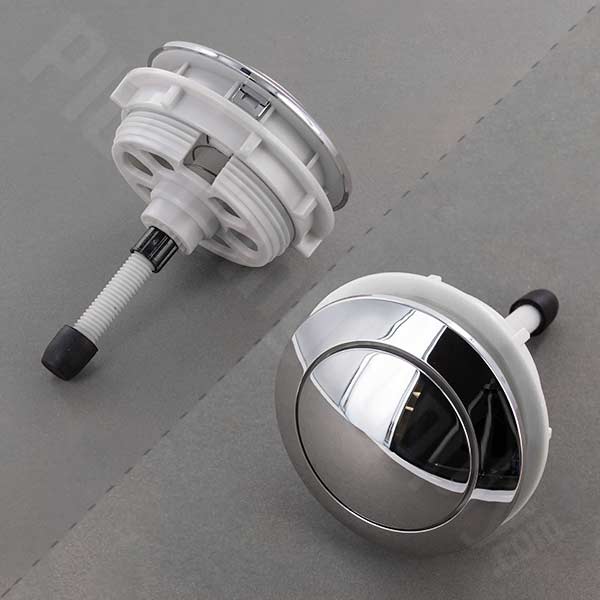

Mansfield #79 Top mount actuator button Plastic ABS construction Fits tanks: 1012 & 3012	Chrome	$31.29	Enter a quantity and

- OR - View Cart

Mansfield Toilet Repair Parts Related Items

Mansfield Toilet Picture Index Mansfield Classic Beige slow close toilet seat

Mansfield Colored Toilet Seats Toilet supply valve kit

Toilet Supply Valves

Toilet Flex Lines

Toilet Rings

Toilet Flanges Grab bar with toilet paper holder combo

Dual Purpose
Grab Bars American flag graphic

Plumbing Products Made in the USA

Mansfield Toilet Parts By Series

For pictures of Mansfield toilets, click here

Frequently Asked Questions

Q. "How do I find my Mansfield toilet model number?"
A. Look inside your tank. Always exercise caution when removing the tank lid, as it is fragile and can be easily broken if stepped on or dropped. Inside your tank on the back wall of the tank near the waterline, you should see a model number stamped in the porcelain. Typically, for Mansfield toilets, you will see "Mansfield" followed by "No. ###" - the "No. ###" is your toilet tank model number. There may be more letters following, depending on additional features available on that model of the toilet. For example, toilets with a right hand trip lever will have "RH" at the end of the model number.

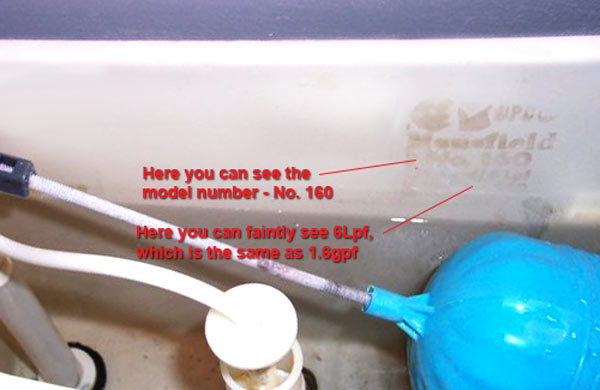

Example of Mansfield toilet tank model number

Q. "How do I know if I need a 3.5gpf or 1.6gpf fill valve, flush valve, or flapper? Can I just use either one? What if I want to convert my old 3.5gpf into a 1.6gpf?"
A. In addition to the model number stamped into your tank, Mansfield generally notes the water consumption of the toilet. If the gallons per flush are not noted, or are faded beyond readability, try to find a date code stamped elsewhere in the tank. Any toilet manufactured AFTER 1992 will use only 1.6gpf as all toilets made after that date were required by federal law to use 1.6gpf or less. If your toilet is older, there's a chance it uses 3.5gpf, and consequently will need parts that provide 3.5 gallons of water per flush.

Converting your 3.5gpf toilet into a 1.6gpf by simply buying the other parts is NOT recommended. While we mostly talk about the toilet tank when referring to a toilet's water efficiency, it is important to understand that the toilet tank and toilet bowl work together to provide optimal flushing. Toilet bowls on 3.5gpf toilets require that much water to effectively move the waste through the trap of the bowl and into the sewer line. Using less can cause clogs at the source and further down the line - that have to be cleared with more water. If you are concerned about saving water and have an older 3.5gpf toilet, we recommend replacing it with a newer water-efficient toilet as many "conversion methods" simply don't work.

Q. "What is a 2-piece toilet?"
A. A 2-piece toilet is a toilet that consists of a separate bowl and a separate tank joined together by using a gasket and bolts.

Q. "Are Mansfield toilet parts made in the USA?"
A. While all Mansfield vitreous china items (i.e., toilets) are made in the USA, many toilet manufacturers contract out the manufacture of their replacement parts. Additionally, many discontinued parts have been replaced by "will fit" versions. Thus, we cannot guarantee that Mansfield toilet repair parts are all made in the United States. If this is important to you, please feel free to contact us and we will do our best to find out if the part you need is made in the USA or if there is a suitable substitute made in the USA.
