Alto Toilet Repair Parts
by Mansfield


Mansfield Alto Toilet

Replacement Parts for Mansfield Alto Toilet
Two Piece 1.28gpf Models - 3120, 3121, 3122, 3125, 3172, 3173, 3174

Parts diagram for Mansfield two-piece 1.28gpf Alto toilets

Item # Part # Description Price & Quantity
1 2206 Pilot Operated Anti-Siphon Fill Valve - Adjustable height 8" - 12" $17.67
400A Fluidmaster Fill Valve - Adjustable height 9" - 14" - for 3120, 3121 & 3122 tanks only $10.92
630-2206 Repair Kit for 2206 Fill Valve $3.92
218 Replacement Refill Tube & Clip for 400A Fill Valve $4.45
2 228 2" Hybrid Flush Valve - includes 3" flapper, chain, stainless steel clip, spud gasket, and nut $15.99
3 630-0207 3" Flapper $8.44
4 WA84 "Will Fit" Replacement Flush Valve Gasket $1.37
5 31 Front Mount Trip Lever with Plastic Handle & Arm - LEFT Hand
31RH Front Mount Trip Lever with Plastic Handle & Arm - RIGHT Hand
6 630-0204 SmartFasten 2" Tank to Bowl Kit - includes tank to bowl gasket, three bolts, & three nuts $6.14
7 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket - View dimensions $4.38
8 Bolt Caps Bolt Cap Covers (1 pair)
  Round Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis
  Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

- OR - View Cart

Replacement Parts for Mansfield Alto Toilet
Two Piece 1.6 gpf Models - 125, 160, 161, 165, 166, 170, 171, 172, 173, 174, 175, 180, 181, 190

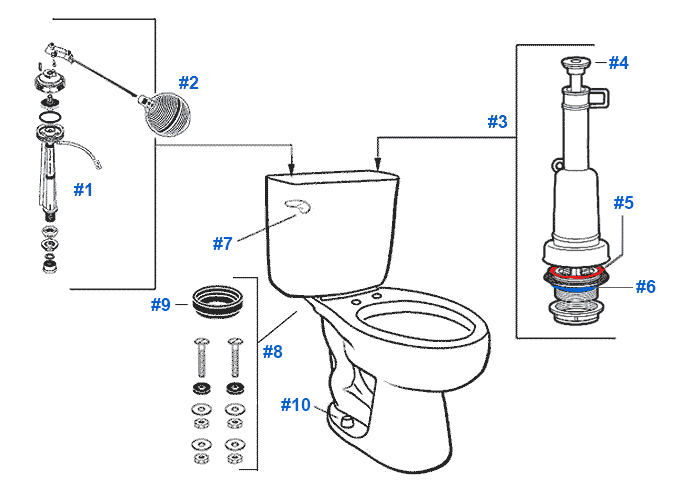

Parts diagram for Mansfield two-piece 1.6gpf Alto toilets

Item # Part # Description Price & Quantity
1 08ULF-1112 Anti-Siphon Ballcock - 11-1/2" - includes float rod, refill tube, acetal locknut & coupling nut $14.58
400A Fluidmaster Fill Valve - for 161, 171 & 181 tanks only $10.92
218 Replacement Refill Tube & Clip for 400A Fill Valve $4.45
2 Float Ball "Will Fit" Plastic Float Ball - 4" x 5" $3.40
3 211-1112 Flush Valve - 1.6 gpf - 10-1/8" from toilet tank to top of valve $17.16
210-1112 Flush Valve - 3.5 gpf - 10-1/8" from toilet tank to top of valve $15.43
4 225-5907 Replacement Stop Cap for 211-1112 Flush Valve $2.19
5 M001 Replacement Flush Valve Seal - 3-1/8" O.D. x 2-1/8" I.D. $3.02
6 WA84 "Will Fit" Replacement Flush Valve Gasket $1.37
7 40 Front Mount Trip Lever with Plastic Handle & Arm - LEFT Hand
40RH Front Mount Trip Lever with Plastic Handle & Arm - RIGHT Hand - Chrome $11.06
55 Front Mount Trip Lever with Metal Handle & Arm - LEFT Hand
55RH Front Mount Trip Lever with Metal Handle & Arm - RIGHT Hand - Chrome $14.88
8 630-0204 SmartFasten 2" Tank to Bowl Kit - includes tank to bowl gasket, three bolts, & three nuts $6.14
9 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket - View dimensions $4.38
10 Bolt Caps Bolt Cap Covers (1 pair)
  Round Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis
  Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

- OR - View Cart

Replacement Parts for Mansfield Alto Pro Toilet
Two Piece 1.6gpf Model - 395

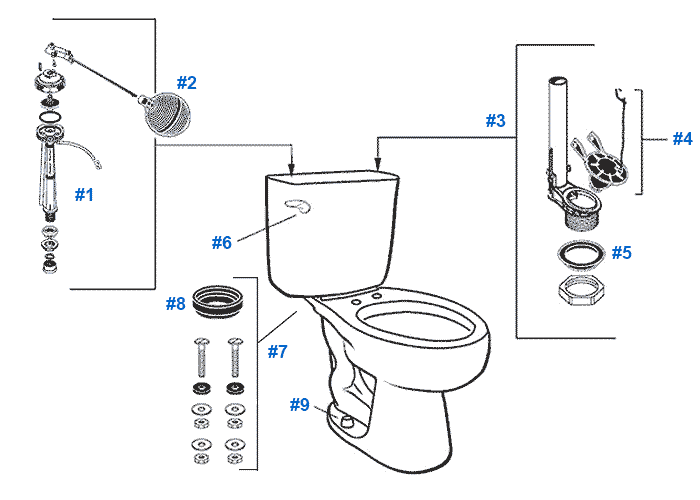

Parts diagram for Mansfield two-piece 1.6gpf Alto Pro toilets

Item # Part # Description Price & Quantity
1 89-1012 Anti-Siphon Ballcock - Replaced by Fluidmaster 400A $10.92
2 Float Ball "Will Fit" Plastic Float Ball - 4" x 5" $3.40
3 202-1212 2" Flush Valve - Replaced by #87 "Will Fit" $9.17
4 630-0173 2" Flapper for Original 202-1212 Flush Valve $6.75
2001 2" Flapper for "Will Fit" Flush Valve $3.90
5 WA84 "Will Fit" Replacement Flush Valve Gasket $1.37
6 56 Front Mount Trip Lever with Plastic Handle & Arm
7 630-0204 SmartFasten 2" Tank to Bowl Kit - includes tank to bowl gasket, three bolts, & three nuts $6.14
8 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket - View dimensions $4.38
9 Bolt Caps Bolt Cap Covers (1 pair)
  Round Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis
  Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

- OR - View Cart

Mansfield Alto Toilets Related Items




Frequently Asked Questions

Q. "I see that the Alto toilets have two fill valves/ballcocks listed. How do I know which one to choose?"
A. Please use the OEM part number unless your model number is specifically noted for use with the Fluidmaster 400A fill valve. For models 161, 171, 181, 3120, 3121, and 3122, you have a choice of using the Fluidmaster 400A or the OEM fill valve/ballcock listed. Both valves will function properly with these models.

Q. "I have installed the tank to bowl kit (630-0204) and tightened the 3 nuts and bolts to attach the tank to the bowl but water still seeps around the bolts and puddles on my floor. Are these the correct size bolts for this toilet?"

A. The bolts are the correct size. This will usually happen when the bolts and nuts are not tightened adequately. The manufacturer says the white nylon nuts should be hand tigtened and then a 7/16" socket should be used on them to tighten them 2 or 3 turns more. Make sure to tighten each bolt one turn at a time in rotation. By tightening in a rotation you will help prevent one side of the tank from to much stress which could cause the tank to crack. After each bolt has been tightened one turn, go back in the same order and tighten each bolt one turn again until the black rubber on each screw squishes down to seal the holes. After each bolt has been properly tightened there should be no leaks.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
