Stainless steel toilets are virtually indestructible, very durable, and best for institutional and commercial applications. These Blowout Jet toilets provide blowout jet action for a positive flush, and are made to last. PlumbingSupply.com® is your source for stainless steel toilets and many other commercial products.

Please note: These toilets are made-to-order and are non-returnable.


304 Stainless Steel Blowout Flex-Flush Toilet

This Stainless Steel Toilet Features:
  • HET 1.28 gpf with large 2-3/8" waste waterway and 1.6 gpf with large 3" waste waterway for easy flushing and less stoppages!
  • Flex-Flush designed trap will pass 2-5/8" diameter solid waste material
  • Durable stainless steel construction - great for public restrooms

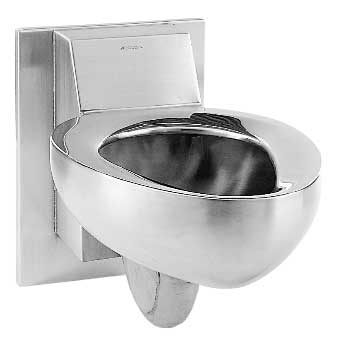

  • #4110 model (pictured): 1-1/2" FIP back supply connection - for concealed flushometers
  • #4115 model: 1-1/2" MIP top supply connection - for exposed flushometers
  • Satin finish exposed surfaces except for integral seat area
  • Integral elongated seat area polished to bright mirror finish
  • Optional HS drilling to accommodate hinged solid plastic seat
  • Vandal resistant 14 gauge type 304 stainless steel
  • Designed to withstand 5000 lb. load weight without damage
  • Self-draining flushing rim
  • Blowout flushing action
  • Fully enclosed trap
  • Requires 1" incoming supply line
  • 2 3/8" OD (1.28 gpf) or 3" OD (1.6 gpf) toilet waste outlet extends 4" past back of fixture for no-hub connection
  • White powder coat option available for those who want a conventional looking toilet, but also want durability to withstand abuse
  • Can be installed to meet ADA height requirements
  • Uses water saving flushometers sold separately below

Compliant with California Energy Commission water efficiency standards

Model # Security Fixtures Price & Quantity
HET-4110 1.28 gpf Wall Hung toilet for back supply
* printable verification form
$1,007.92
HET-4110-HS 1.28 gpf Wall Hung toilet for back supply with HS option
- includes hinged solid plastic seat
* printable verification form
$1,053.71
4110 1.6 gpf Wall Hung toilet for back supply
* printable verification form
$793.55
4110-HS 1.6 gpf Wall Hung toilet for back supply with HS option
- includes hinged solid plastic seat
* printable verification form
$861.41
HET-4115 1.28 gpf Wall Hung toilet for top supply
* printable verification form
$1,009.27
HET-4115-HS 1.28 gpf Wall Hung toilet for top supply with HS option
- includes hinged solid plastic seat
* printable verification form
$1,057.98
4115 1.6 gpf Wall Hung toilet for top supply
* printable verification form
$757.63
4115-HS 1.6 gpf Wall Hung toilet for top supply with HS option
- includes hinged solid plastic seat
* printable verification form
$825.82

Add Powder Coat Color Option To One Toilet - Porcelain White
Industrial strength without the institutional look
$265.68

- OR - View Cart

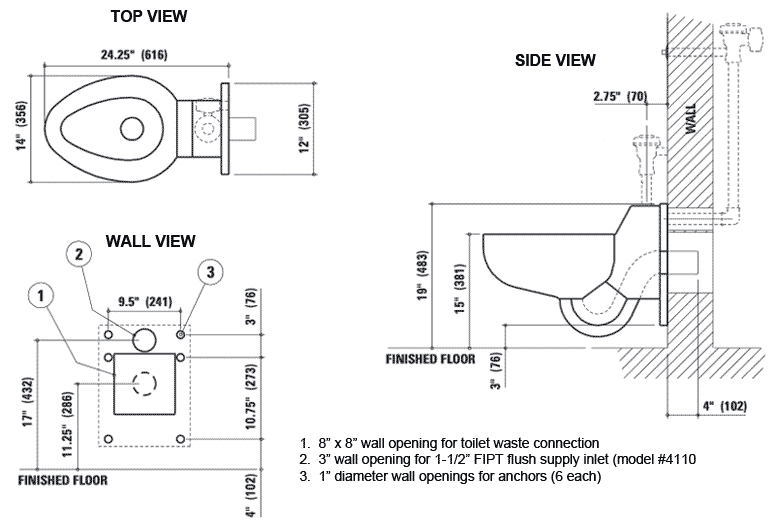

wall hung toilet dimensions for Model 4110 and 4115

Mounting to wall: An accessible pipe chase is necessary for in-wall plumbing. Anchor rods pass through the wall which are then secured with washer lugs and hex nuts on the pipe chase side of the wall. Six 1/2" diameter threaded steel anchor rods screw into the back of the fixture. No exposed nuts or bolts are used.

Sloan Manually Operated Flushometers
for 1" Supply Lines

Flush valves are not included with wall hung toilets

The following flush valves or their equivalents are recommended by the manufacturer

Sloan Royal top supply flushometer
top supply
Sloan #111-1.6
Sloan Royal back supply flushometer
back supply
Sloan 9603-1.6 XL

The back supply Sloan model 9603-1.6 gallon per flush is used as an alternative to a top supply valve when extreme vandal protection is needed. The flushometer is mounted behind a wall and is conveniently hydraulically activated with the push of an exposed push button mounted into and through the wall. The push button is ADA Compliant with a non-hold-open feature and can be mounted to either the left or the right hand side of the toilet.

The 9603-1.28 MBFW or 9603-1.6 MBFW (metal button fixture wall actuator) include a wall clamp and threaded rod for through the wall installation for walls up to 8" thick. A spacer is provided for walls less than 2" thick.

The 9603-1.28 AFD MBPM or 9603-1.6 MBPM (metal button panel mount) are recommended for installations where a front access panel is provided or can be used with the Sloan Easy Access Wall Box in places where extreme vandalism is a concern but behind-the-wall access is limited or not available.



Proudly made in the USA USA flag button

Compliant with California Energy Commission water efficiency standards

Model Water Inlet Mounting Type GPF Description Price & Quantity
111-1.28 Top supply Exposed 1.28 Flushometer for floor/wall hung toilets
w/Dual filter bypass diaphragm
$156.93
111-1.6 Top supply Exposed 1.6 Flushometer for floor/wall hung toilets
w/Dual filter bypass diaphragm
$158.39
9603-1.28 Back supply Concealed 1.28 Flushometer for floor/wall hung toilets $226.71
9603-1.28
DFB MBFW
Back supply Concealed 1.28 Flushometer for floor/wall hung toilets
w/Dual filter bypass diaphragm
w/MBFW Metal button fixture wall actuator
$319.34
9603-1.28
AFD MBPM
Back supply Concealed 1.28 Flushometer for floor/wall hung toilets
with Anti-flotation device
with MBPM Metal button panel mount
for use only with Wall Box or when
an Access Panel is provided in
a combination (sink/toilet) fixture
$306.56
9603-1.6 XL
MBFW
Back supply Concealed 1.6 Flushometer for floor/wall hung toilets
w/MBFW Metal button fixture wall actuator
$313.71
9603-1.6 XL
MBPM
Back supply Concealed 1.6 Flushometer for floor/wall hung toilets
with MBPM Metal button panel mount
for use only with Wall Box or when
an Access Panel is provided in
a combination (sink/toilet) fixture
$300.74

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What do you mean by "back supply connection" (model #4110) and "top supply connection" (model #4115)?"
A. Back-supplied models use flush valves that are concealed inside or behind the wall and mount through the wall into the back of the toilet. Toilets that are supplied from the top use an exposed flush valve that mounts on top of the toilet. Top supply toilets are not recommended for installation in maximum or medium security correctional facilities.

Q. "I need to replace my 3.5GPF toilet. Will these toilets work if I reuse my existing flush valve?"
A. Yes you can re-use your existing flushometer valve, however, you will need to replace the internal flush valve parts with a rebuild kit so the gallons per flush of the flushometer will match the gallons per flush the toilet requires.

Q. "Can I uses these toilets with 3/4" supply lines?"
A. No, the manufacturer states these toilets are designed for use with a minimum 1" supply line providing 35psi flushing pressure.

Q. "Are these stainless steel toilets as sturdy as they claim to be?"
A. The manufacturer states these toilets are designed to withstand 5000 lb. loading weight without permanent deflection and damage. They are fabricated using heavy gauge type 304 stainless steel, seamlessly welded and formed into a vandal resistant fixture to be used in high abuse areas.

Q. "Where are wall hung stainless steel toilets normally used?"
A. These stainless steel toilets are nearly indestructible and so are often installed in prisons, parks, bars, hospitals, schools, rest areas, sports arenas, bus stations, or anywhere else toilets see high levels of use and abuse. Many institutions believe wall hung toilets are easier to clean than floor mounted ones.

Q. "What's the point of powder coating a stainless steel toilet?"
A. Adding a "porcelain" white powder coating to your toilet makes it look like a porcelain fixture. This is great if you're tired of replacing broken porcelain fixtures and want the strength of stainless steel, but really prefer the look of porcelain.
