Top Quality Stainless Steel Urinals

by Griffin Products Inc

Proudly made in the USA

Griffin maintains their same strict quality control with their stainless steel urinals as they do with their impressive selection of commercial grade, stainless steel sinks. Manufactured from 16 gauge type 304 stainless steel and designed to stand up to years of frequent daily commercial use, these urinals are a great value.

Paluxy Series

Single & Multi-Station Trough Urinals

Designed for high capacity restrooms, trough urinals are most often the fixture of choice. Having a trough urinal in a restroom takes up less room than individual urinals servicing the same population and takes less water, since one flush washes down most sizes of trough urinals. Made from 16 gauge stainless steel, these urinals will easily hold up to the rigors of a busy restroom.

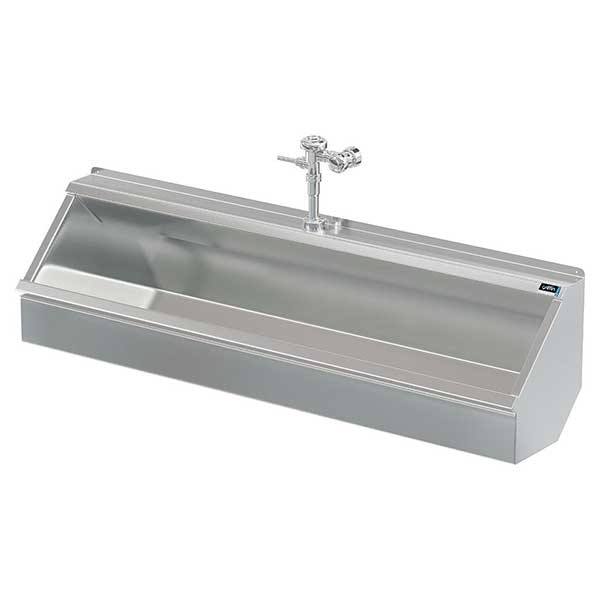

example of stainless steel trough urinal with manual flush valve
These stainless steel trough urinals feature:
  • Durable 16 gauge, type 304 stainless steel construction
  • Integral flush reservoir provides a consistent wash for the entire length
  • Pitched rear section for consistent flow to sink drain
  • Attractive smooth satin finish
  • Pre-drilled holes and wall hanger provide simple & secure mounting to wall
  • Flat end design enables installation of multiple units in sequence
  • Strainer drain & wall hanger included

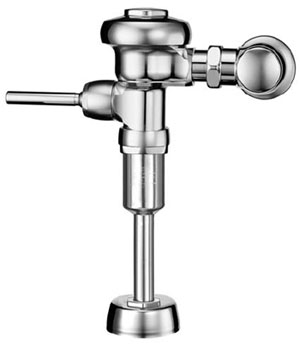

  • Paluxy flush valve urinals include a Sloan 186 1.5 gpf flush valve
  • View Sloan 186 specifications
  • View Sloan 186 installation specifications
  • Compatible with motion sensor valve installations
  • Proudly made in the USA

Manual Flush Valve
and Strainer Drain Included
Model Overall Dimensions Flush Valve
Price & Quantity

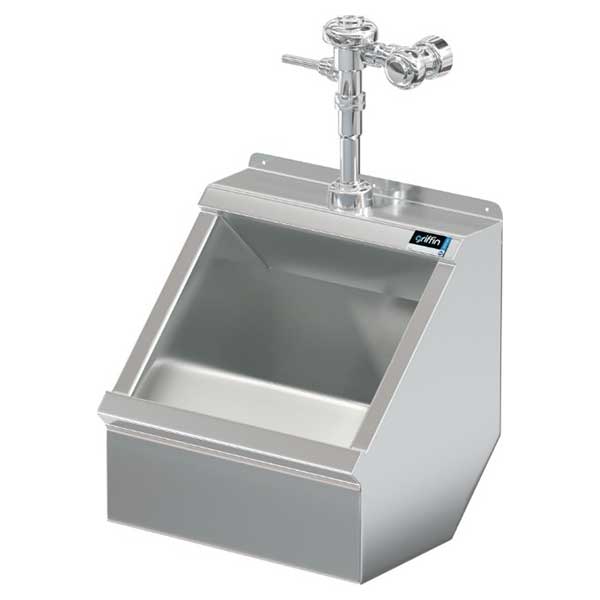

PA-18FV 18" x 15" 0.5 $1,695.27
PA-36FV 36" x 15" 1.5 $1,896.36

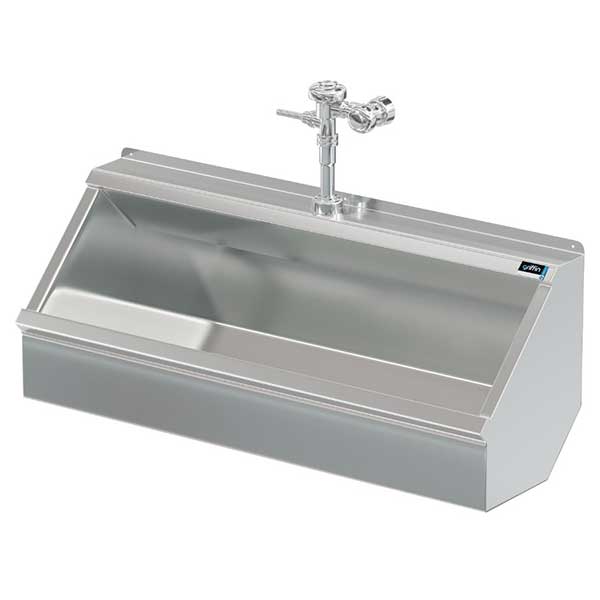

PA-48FV 48" x 15" 3.5 $2,261.19

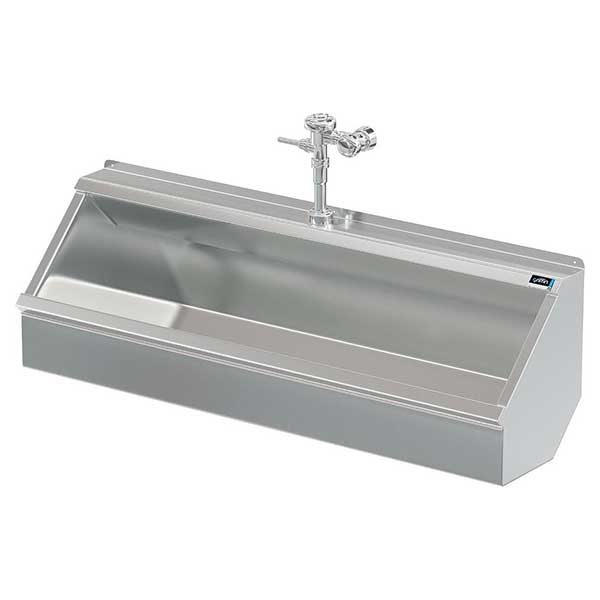

PA-60FV 60" x 15" 3.5 $2,266.52
PA-72FV 72" x 15" 3.5 $2,832.60

Please note: Due to low-flow regulations, these units cannot be shipped to customers in California.

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

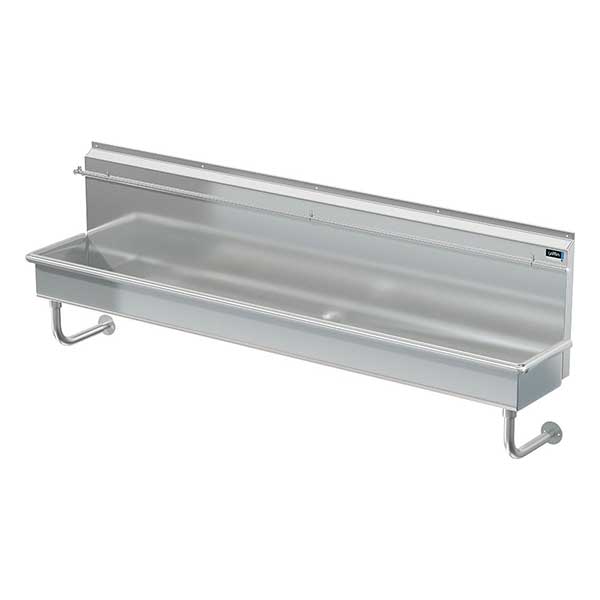

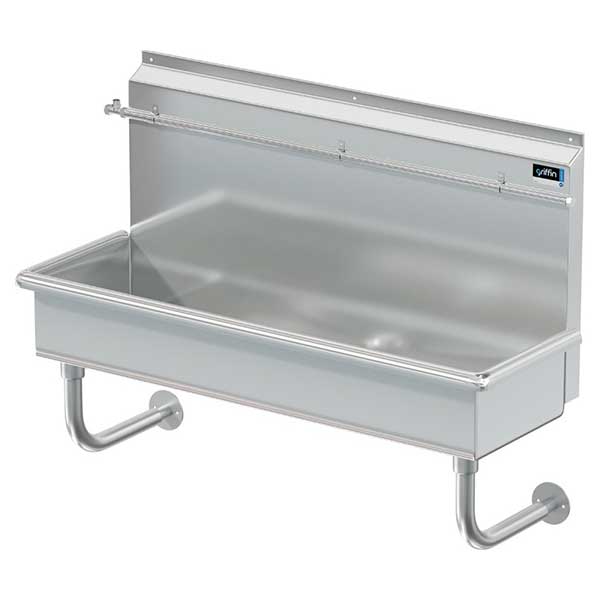

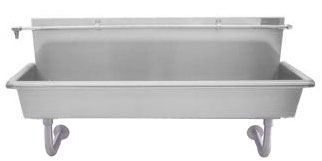

Stainless Steel Trough Urinals with Exposed Flush Piping

Sometimes the concealed washdown system isn't appropriate. For sports arenas, schools, and bars, we offer a stainless steel urinal series designed to work with an exposed washdown flush pipe. Designed to be installed with the flush pipe of your choice, these are constructed of 16 gauge type 304 stainless steel to be recycleable, hugely accommodating, and built to last.

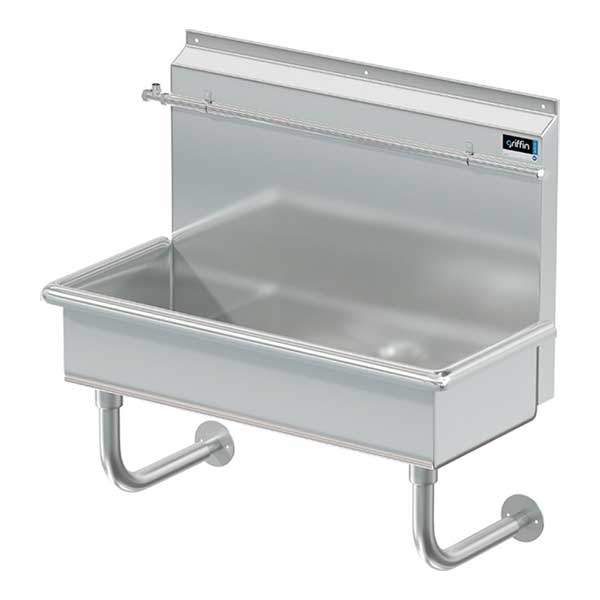

Griffin 36 inch flush pipe style trough urinal model pa36fp
These stainless steel urinals feature:
  • All seams heliarc welded, ground and polished to a smooth finish.
  • Includes exposed chrome flush pipe with key stop sized to match urinal
  • Rolled rim front and sides
  • 8" deep trough
  • 18" tall backsplash with 2" return to the wall
  • Stainless steel tubular wall mounting brackets
  • Stainless steel flat strainer drain with 1-1/2" IPS included
  • Entire unit is 16 gauge, type 304 stainless steel
  • Convenient installation tile edge with pre-drilled nail/screw holes
  • Wall brackets and mounting clips included
  • Proudly made in the USA

Flush Pipe Assembly
and Flat Strainer Drain Included
Model Overall Dimensions Price & Quantity
PA-36FP 36" x 17-1/2" x 8" $1,695.94
PA-48FP 48" x 17-1/2" x 8" $1,979.08

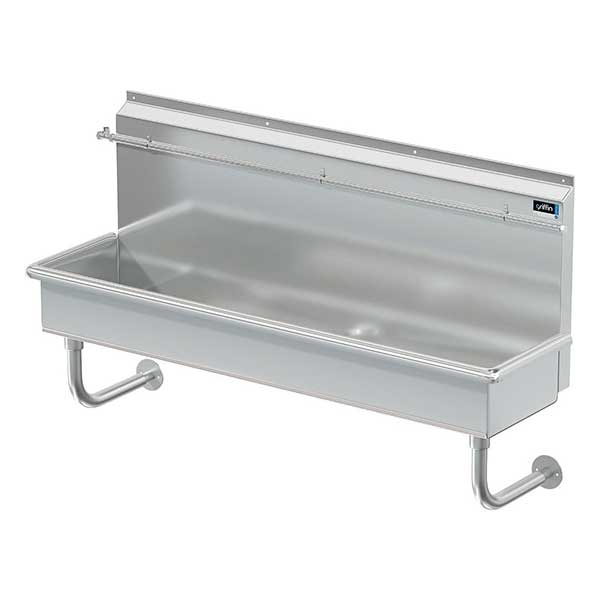

PA-60FP 60" x 17-1/2" x 8" $2,182.78

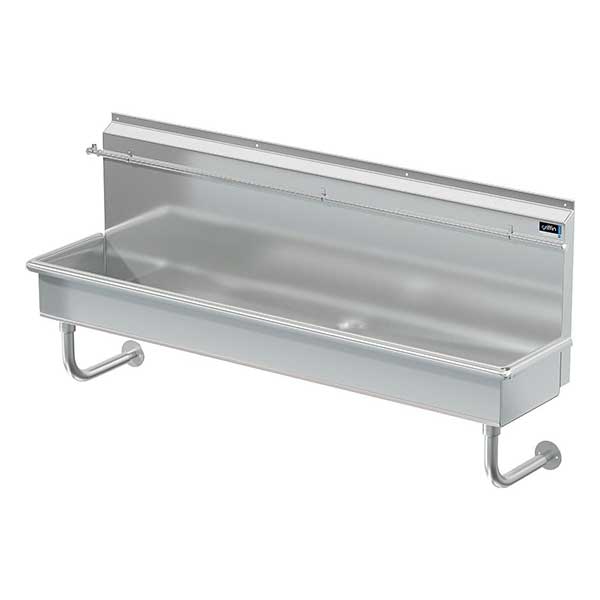

PA-72FP 72" x 17-1/2" x 8" $2,322.87
PA-96FP 96" x 17-1/2" x 8" $2,818.74

Please note: Due to low-flow regulations, these units cannot be shipped to customers in California.

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

Griffin Flush Pipes

A key stop flush pipe, sometimes called a trickle valve, allows maintenance personnel complete control of urinal water usage. Use for a final flush at the end of the day or simply set the water flow and remove the key for consisent water flow. If turned completely off, a key stop system can help prevent flooding due to vandalism. Whether on or off, this key stop flush pipe system allows water to be easily measured and tracked, and can help prevent unexpected water expenses.

example of a key stop flush pipe
These key stop flush pipes feature:
  • Available in a variety of lengths to fit the TU-series urinals offered above
  • Includes "trickle flow" setting
  • Key stop control so maintenance personnel retain control of the water flow
  • Includes pipe, key, and mounting hardware
  • The FP-960 ships with two 48" flush pipes and one coupling to install as a 96" flush pipe

Model Dimensions Price & Quantity
FP-360 36" $233.73
FP-480 48" $285.36
FP-600 60" $271.59
FP-720 72" $299.73
FP-960 96" $489.10

- OR - View Cart

Metered Flush Valve

Most urinal flush pipe systems come standard with a trickle valve controlled by a key stop, which works well for most installations. However, if you need a self-closing valve, whether to satisfy your local municipality's requirements or for water efficiency, this metered flush valve will replace most key stop urinal flush pipe valves quickly and easily. Simply remove the key stop valve and thread in the new metered flush valve in its place. The valve is factory-set at 3-1/2 seconds and is vandal resistant.

image of the Griffin FV-100 metered flush valve
This urinal flush valve features:
  • Designed to work with flush pipe systems
  • Replaces standard adjustable "trickle valve"
  • Vandal resistant handle
  • Constructed of sturdy cast brass with a durable chrome plate finish
  • Seals and o-rings are EPDM rubber for chlorine and chloramine resistance
  • Factory set to approximately 3-1/2 seconds
  • 1/2" IPS connections
  • Flow rate: .5 gpm

Griffin #FV-100 Metered Flush Valve = $153.44

- OR - View Cart
