American Standard Toilet Fill Valves
Help conserve water by replacing worn toilet parts
American Standard toilets have long been a standard in the industry, and to support this widely-used brand, we stock many American Standard fill valves currently produced. Don't know what valve you need? Check under your lid for a model or tank number and see our
photos to help identify your toilet.

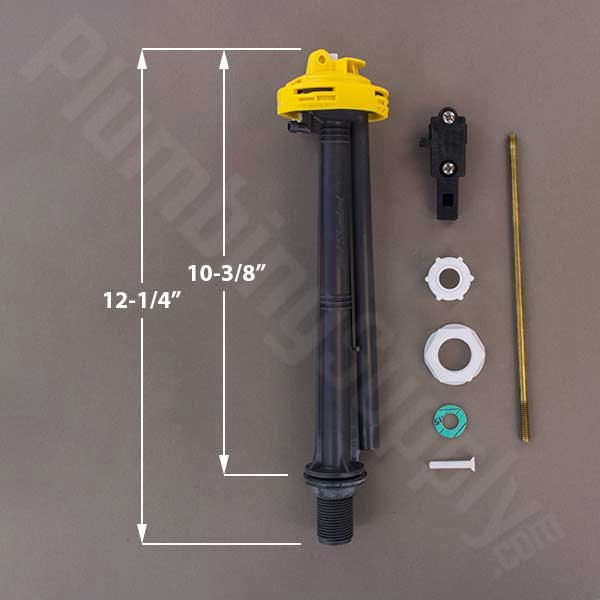

#047211-0070A Fill Valve for American Standard
- With 12-1/4" overall height and 10-3/8" from toilet tank to top of valve, this water control valve fits many toilet tanks
- Includes refill fill tube
- Fits American Standard Cadet Prestige Model #'s 2313.075 & 2813.079
- Float ball sold separately
47211-0070A American Standard Fill Valve = $33.76

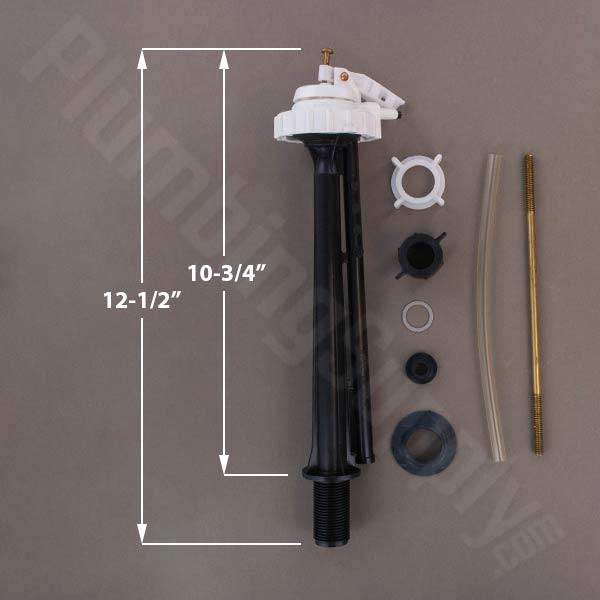

#047212-0070A Fill Valve for American Standard
- With 12-1/2" overall height. 10-3/4" from toilet tank to top of valve, and 9" waterline, this water control valve fits many toilet tanks
- Includes refill fill tube
- Fits American Standard toilets - Model #'s
2162,
2093,
2139, 2131, 2138,
2128, 2130 and 2134
- Float ball sold separately
47212-0070A American Standard Fill Valve = $32.44

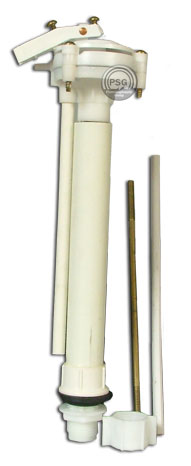

#738053 Fill Valve aka Ballcock
- 12 1/2" tall
- Constructed of chemical resistant material
- Easy to install
- Includes brass rod and fill tube
- Fits American Standard toilet Inga model #2037.015
- Replaced by "suitable replacement" - chemical resistant, no float ball needed, adjustable height from 7-3/4" to 13-1/2", proudly made in the USA

"Suitable Replacement" Korky QUIETFILL Toilet Fill Valve - #528 = $10.15

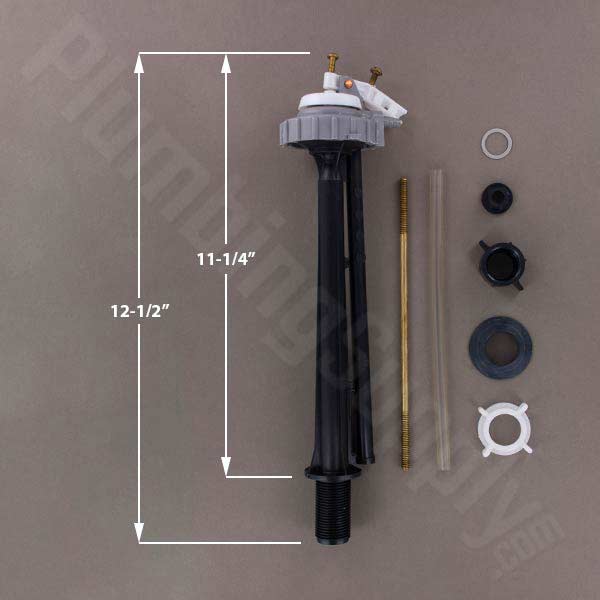

#738066 Fill Valve for Antiquity Toilets
- #738066 fill valve 10-1/2" tall from toilet to top of valve
- Constructed of chemical resistant material
- Easy to install
- Fits American Standard toilet Antiquity models #2464, #2264, Hamilton models #2092, #2096 and Hunterdon model #2055.011
- Replaces discontinued fill valves #738402-0070A and #738466-0070A
738066-0070A American Standard Fill Valve = $24.87

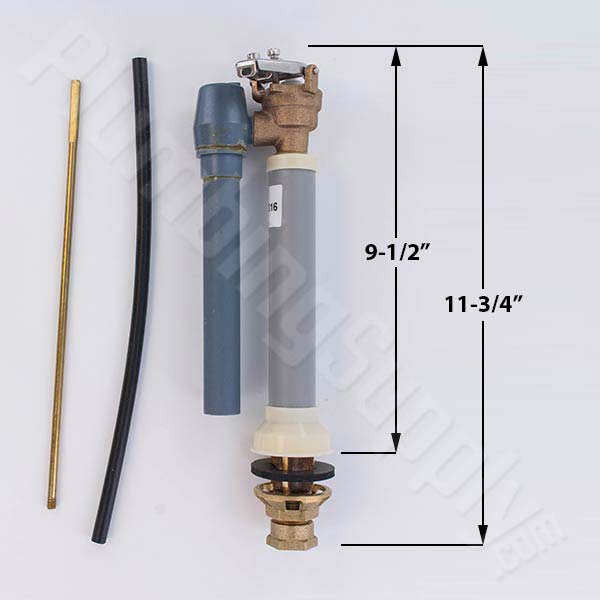

#047130-0070A Fill Valve For Lexington Series Toilets
- 9-1/2" tall
- Fits the Lexington series toilet - 2006, 2007
- Includes fill tube and brass rod (10 1/2" with flat end)
- Float ball sold separately
- Brass cap
47130-0070A American Standard Fill Valve = $130.46

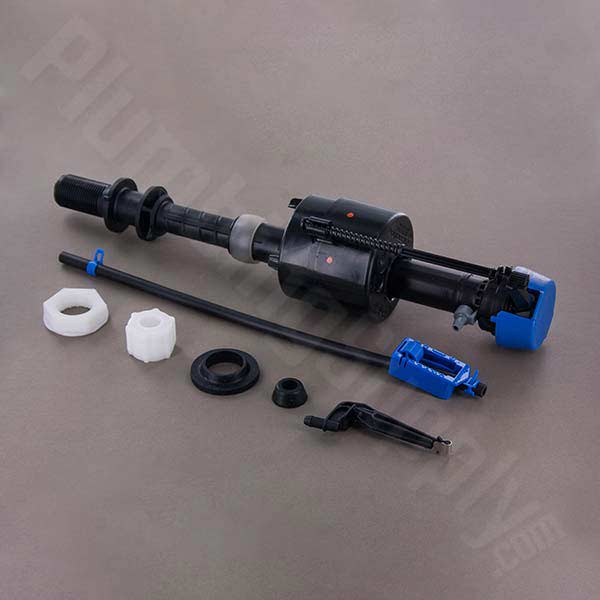

#7381125-400-0070A OEM Water Control (Fluidmaster)
- Adjustable - extends from 9" - 12 1/2" to refill tube outlet
- Fits the 4114 tank
- Includes refill tube
- Constructed of chemical resistant material for durability
- Replaces 738565-401.0070A
7381125-400-0070A American Standard Fill Valve = $43.12

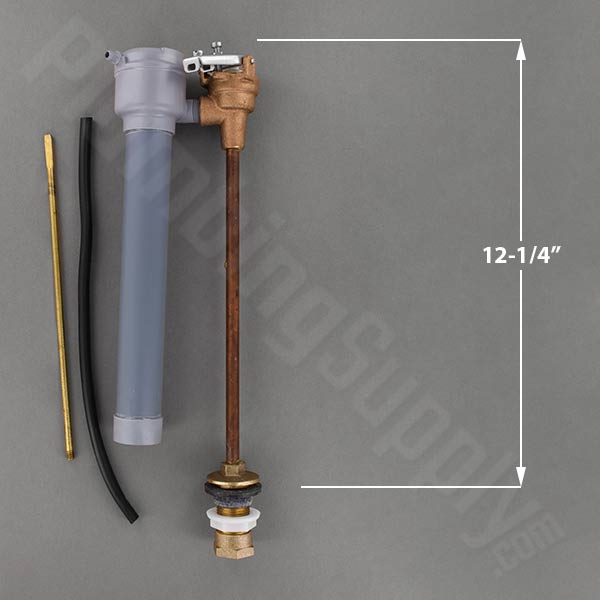

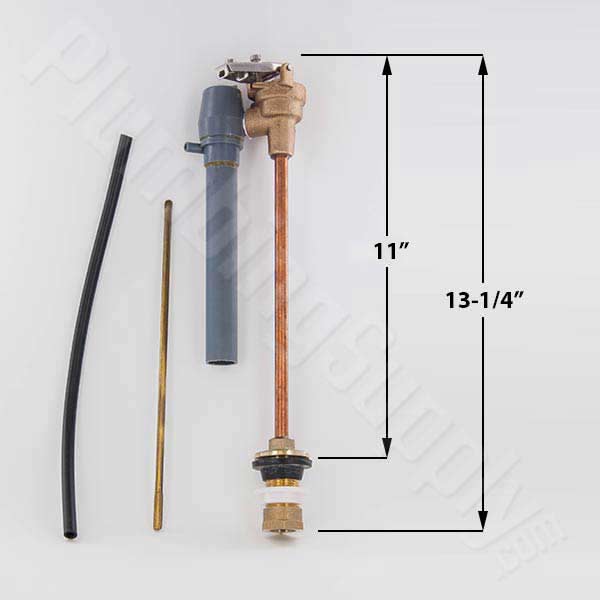

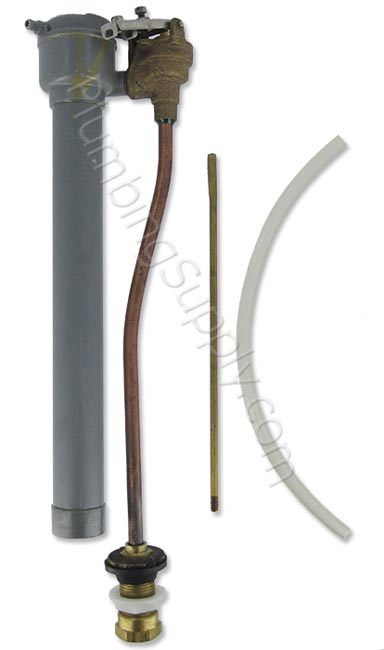

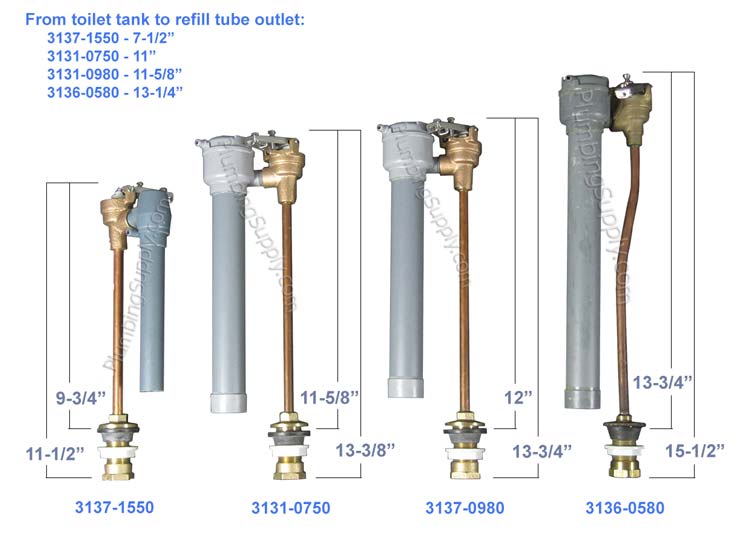

Fill Valves for American Standard Tank #4049

Left to right: 3137-1550, 3131-0750, 3137-0980, 3136-0580
- Available in a variety of lengths to fit many American Standard toilets
- Durable, chemical resistant construction
- Fits the 4049 tank
- View detailed fill valve dimensions
- Float ball sold separately

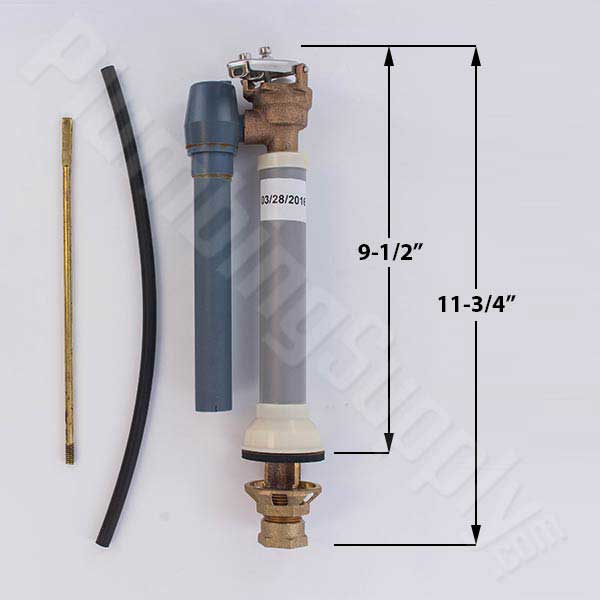

#047131-0070A Water Control Assembly
- 11-3/4" overall height, 9-1/2" from toilet tank to top of valve
- Includes mounting kit and supply coupling kit
- Durable construction
- Fits some American Standard Ellisse and Roma toilets
- Float ball sold separately
047131-0070A American Standard Fill Valve = $130.69

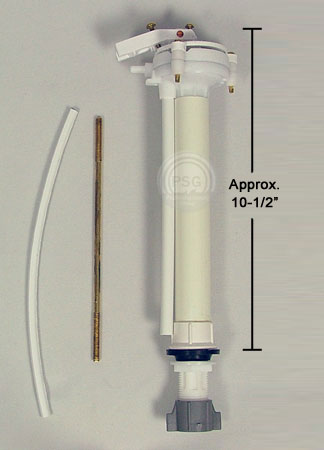

#738103-0070A American Standard Fill Valve
- 12" overall height, 10-1/2" from toilet tank to top of valve, 9" from toilet tank to refill tube outlet
- Fill valve only
- Includes refill tube and 8" brass float rod
- Sturdy construction
- Fits some American Standard Ellisse and Lexington toilets
- Replaced by "Fluidmaster 400A" - chemical resistant, built-in fully adjustable float, adjustable height from 9" to 14"
- Anti-siphon design prevents contamination of drinking water supply
- Eliminates float ball interference with flapper and chain
- Proudly made in the USA
Fluidmaster 400A Fill Valve = $10.92
#3142-000 Toilet Fill Valve
- Includes mounting kit and supply coupling kit
- Fits some American Standard Yorkville and Glenwall #4083 toilet tanks
- 12" tall
- View dimensions
- Replaced by "Fluidmaster 400A" - chemical resistant, built-in fully adjustable float, adjustable height from 9" to 14"
- Anti-siphon design prevents contamination of drinking water supply
- Eliminates float ball interference with flapper and chain
- Proudly made in the USA
Fluidmaster 400A Fill Valve = $10.92
#047189-0070A Cadet Toilet Fill Valve
- Includes mounting kit and supply coupling kit
- Fits some American Standard Cadet toilets
- 9-3/8" tall
- Replaced by 7381125-400-0070A
Replacement 7381125-400-0070A Fill Valve = $43.12

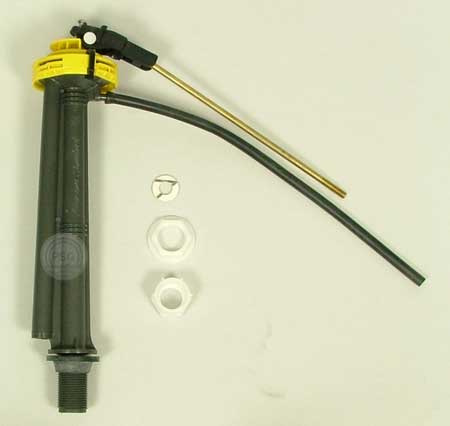

#047210-0070A Fill Valve for American Standard
- 11-1/2" tall
- Includes water control mounting kit and supply coupling
- Float ball sold separately
- Fits some American Standard Ellisse toilets
- Replaces #047183-0070A
- Replaced by "will fit" - chemical resistant, no float ball needed, adjustable height from 7-3/4" to 13-1/2", proudly made in the USA

"Will Fit" Korky QUIETFILL Toilet Fill Valve - #528 = $10.15
#047174-0070A American Standard Ballcock
- Approximately 9-3/4" to 10" tall
- Includes water control mounting kit and supply coupling kit
- Float ball sold separately
- Fits some American Standard Heritage and Platner toilets
047174-0070A American Standard Ballcock = $117.06

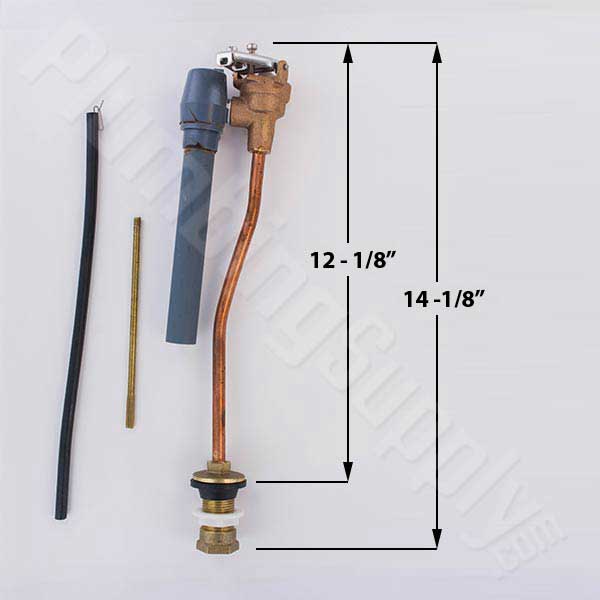

#047133-0070A American Standard Water Control Assembly
- 12" tall
- Includes refill tube, mounting kit & coupling kit
- Fits some American Standard Roma toilets
- Float ball sold separately
047133-0070A American Standard Fill Valve = $91.12

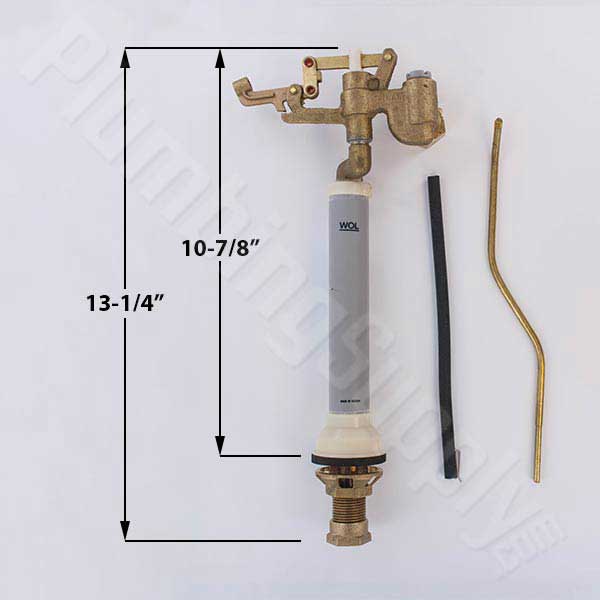

Fill Valves for American Standard Roma & Luxor Toilets
- Fits some American Standard Luxor and Roma toilets
- Includes refill tube, mounting kit & supply coupling kit - float ball sold separately
- Fits Non-Vent-away models
047136-0070A Fill Valve for Non-Ventaway Toilets = $329.02
American Standard Toilets Related Items:
Frequently Asked Questions
Q. "What are the most commonly replaced toilet parts?"
A. This depends on several factors; each time you use your toilet the trip lever, flapper, and fill valve are operated. You will find, however, that the flapper and fill valve are the parts most exposed to water and will be the first ones to wear out in most cases.

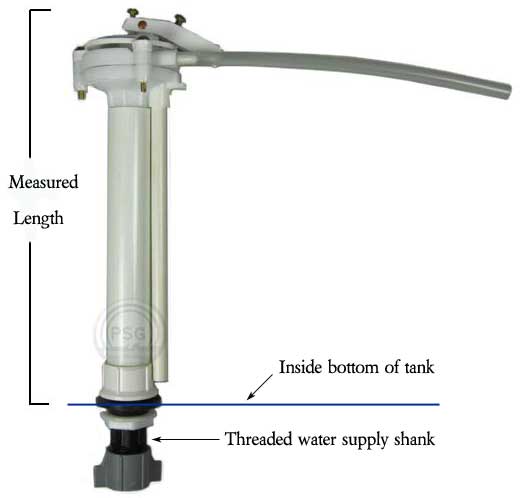

Q. "How are the lengths of the toilet fill valves measured?"
A. The toilet fill valve measurements we show are measured from the inside bottom of the tank to the top of the fill valve. The threaded water supply shank that fits through the bottom of the tank is not included in this measurement.

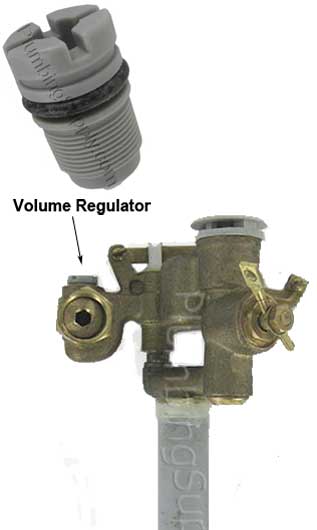

Q. "How do you adjust the water flow of the Fill Valve for the Roma and Luxor toilets?"
A. To adjust the water flow of the Fill Valve you turn the volume control stem located next to the plunger. Turn the stem clockwise to decrease water flow or counter-clockwise to increase water flow.
Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.
