Model 16 Outdoor Freezeless Wall Faucets
by Woodford

The Model 16 has a patented Pressure Relief Valve that releases pressure at approximately 350 PSI to keep pipe rupture from happening. The oval, powder coated, die-cast aluminum handles are durable and stand up to repeated use, plus the multiple wall-thickness and inlet type options make the Model 16 ideal in colder climates.

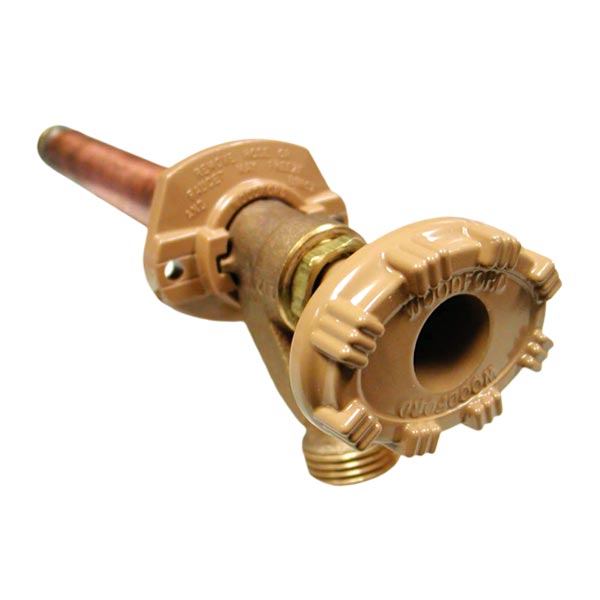

Woodford Model 16 Freezeless Wall Faucets

Woodford wall faucet model 16
Features:
  • Internal resetting pressure relief valve which prevents the faucet casing tube from bursting in freezing conditions even if a hose is unintentionally left on
  • Designed for residential outside water service application and is not intended for continuous use applications
  • Integral vacuum breaker for anti siphon protection
  • Nozzle - 3/4" male hose thread
  • Stainless steel seat - prevents sediment scratching, provides positive shut-off
  • EPDM packing - helps prevent leaking
  • Adjustable wall flange
  • Max pressure: 125psi
  • Max temperature: 120°F
  • Add a tee key for vandal resistant installations
  • Choose correct faucet determined by wall thickness
Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.

Model 16 Inlets

Woodford Wall Faucet Inlet Specs
Model # Description Standard Handle Tee Key Handle
16C (1/2" female sweat - 3/4" type 'M' male sweat) Enter a quantity and
16CP (1/2" male pipe thread - 1/2" female sweat) Enter a quantity and
16P (1/2" female pipe thread - 3/4" male pipe) Enter a quantity and

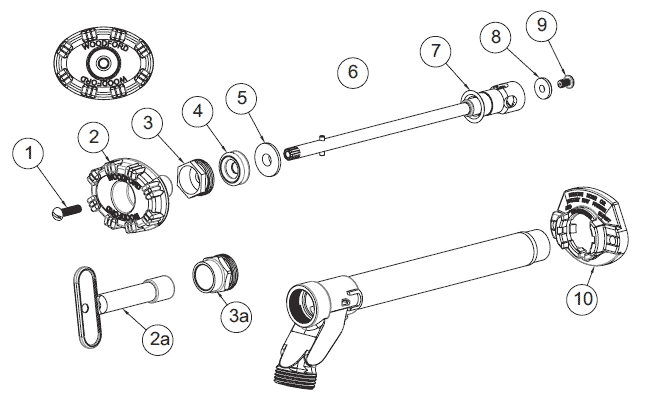

Replacement Parts for Model 16

Woodford outdoor faucet parts model 16

Note: round handle is included with #6. For oval handle, see #2.

Item # Image Part # Description Price & Quantity
1 Woodford handle screw 30002 Handle Screw $3.58 Enter a quantity and
2 Woodford oval metal handle 30559 Metal Wheel Handle - Oval $6.41 Enter a quantity and
2a Woodford long tee key 50012 Tee Key (optional) $7.56 Enter a quantity and
3 Woodford packing nut 30059 Packing Nut $5.35 Enter a quantity and
3a 30512 Packing Nut w/ deep stem nut guard (optional) $9.13 Enter a quantity and
4 Woodford packing 30560 Packing $4.25 Enter a quantity and
5 Woodford packing support washer 30006 Packing Support Washer $2.31 Enter a quantity and
6 RK-PRV Pressure Relief Valve Stem Assembly
Includes items 1, 2(Round), 3, 4, and valve stem
RK-ADJ-PRV Adjustable Pressure Relief Valve Stem Assembly
(Includes items 2, 3, 4, 7, 8, 9)
See Adjustable
PRV Stem
Enter a quantity and
7 Woodford check valve 30459 Check Valve $3.63 Enter a quantity and
8 Woodford valve seat rubber 30008 Valve Seat Rubber $2.16 Enter a quantity and
9 Woodford retainer screw 30804 Retainer Screw $3.46 Enter a quantity and
10 Woodford adjustable flange 30098 Adjustable Flange $1.89 Enter a quantity and

Adjustable Operating Rod with Pressure Relief Valve (RK-ADJ-PRV)
Replace your valve stem assembly with an upgraded version

Built-in pressure relief stem helps prevent copper tubing from freeze bursting
(even if the faucet is accidentally left on)

pressure relief operating rod kit
Each kit will adjust to replace operating rods with overall lengths from 5-7/8" to 15-7/8"

Kit includes: 6" pressure relief inlet stem (x1), 3" stem stop (x1), 6 3/4" middle stem (x1), 5 3/16" handle stem (x1), stainless steel clips (x2), EPDM packing (x1), packing nut (x1), round metal wheel handle (x1), and handle screw (x1).

Arrange stem components provided in kit to match the length of your stem.

Adjustable Operating Rod with Pressure Relief = $35.02

- OR - View Cart

Woodford Model WF-MS Mounting Sleeve

mounting sleeve
Features:
  • Mounting sleeve takes the guesswork out of how far to stub-out your wall faucet
  • Allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason
  • A numbered scale is built into the top of the mounting sleeve
  • For Woodford models 14, 16, 17, & 19 only
  • View a helpful installation guide
  • Installed example
  • Included components

Woodford Mounting Sleeve = $19.97

- OR - View Cart

Order 10 or more mounting sleeves for additional savings!
Pricing discounts will show up in your shopping cart.


Double Check back flow Preventers for Hose Bibbs

Backflow Preventer
Features:
  • Prevents back flow contamination and freezing
  • 120°F maximum temperature rating
  • Maximum pressure 125 psi
  • 3/4" female hose inlet connection
  • 3/4" male hose outlet connection
  • Fits hose bibbs with standard 3/4" hose threaded outlets
  • Available in brass (shown) and chrome finishes
Description Finish Price & Quantity
Double Check Backflow Preventer Brass $29.62
Chrome $35.16
- OR - View Cart

Looking for more freezeless wall faucet options?
Click on any image to see that Woodford outdoor faucet series

Related Items & Accessories



Frequently Asked Questions

Q. "Are these outdoor faucets quarter turn?"
A. No, these quality outdoor faucets are compression style faucets, making them easy to repair.

Q. "How do I choose the right faucet length?"
A. Determine the thickness of your wall. The faucet must pass through the exterior wall all the way through to the interior of the wall to keep the inlet from freezing. Next, choose the style of inlet you will need to attach to the type of piping you are using. The inlet length will be determined by the inlet type you choose. The inlet length is the length the faucet shaft is exposed on the interior wall to allow your piping to be connected to the faucet. Order the faucet determined by the actual wall thickness of your wall, not the overall length which includes the inlet length.

If your wall thickness is 4" then select the 4" wall thickness. If your wall is 4-1/2" thick then select the next size up to make sure the inlet of the faucet goes through your wall so the inlet is protected from freezing conditions.
