Model 14 Outdoor Freezeless Wall Faucets
by Woodford

A properly installed Freezeless Wall Faucet can protect you from water damage caused by a burst pipe. A downward pitch, coupled with Woodford's tried and true design, prevents water from remaining in the faucet, so freezing does not occur - saving you from possibly thousands of dollars in damages due to a high pressure leak when the water is turned on after the thaw. By adding a double check backflow preventer, you can be sure there will be no back flow contamination, and there will be an added measure of protection against freezing.

Woodford Model 14 Freezeless Wall Faucets

Woodford freezeless wall faucet model 14
Features:
  • Freezeless faucet drains when the handle is shut off and the hose is removed
  • Designed for residential outside water service applications
  • 3/4" male hose thread
  • Permanent durable stainless steel seat helps prevent scoring or scratching from sediment
  • EPDM Packing - helps prevent leaking
  • Max pressure: 125psi
  • Max temperature: 120°F
  • Adjustable flange (poly carbonate) - makes easier to mount
  • Add a tee key for vandal-resistant installations
  • For additional safety, add a backflow preventer
  • Choose the correct faucet by wall thickness
Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.

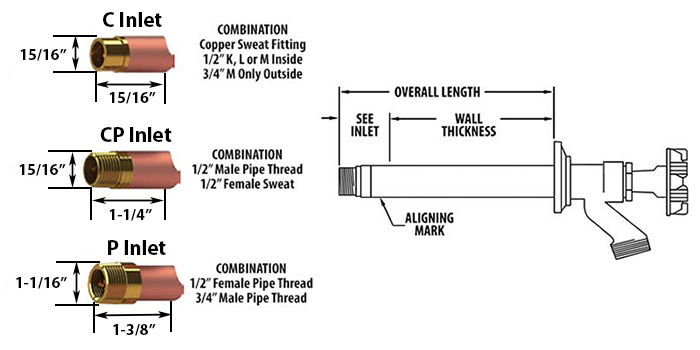

Models 14, 16, 17, & 19 Inlets

Woodford Wall Faucet Inlet Specs
Model # Description Standard Handle Tee Key Handle
14C (1/2" female sweat - 3/4" type 'M' male sweat) Enter a quantity and
14CP (1/2" male pipe thread - 1/2" female sweat) Enter a quantity and
14P (1/2" female pipe thread - 3/4" male pipe) Enter a quantity and

Replacement Parts for Model 14

Wordford outdoor faucet parts model 14
Item # Image Part # Description Price & Quantity
1 Woodford handle screw 30002 Handle Screw $3.58 Enter a quantity and
2 Woodford round plastic handle 30099 Plastic Wheel Handle - Round
Replaced by #30096 metal handle (See Below)
Discontinued
Woodford round metal handle 30096 Metal Wheel Handle - Round $3.55 Enter a quantity and
2a Woodford long tee key 50012 Tee Key (optional) $6.72 Enter a quantity and
3 Woodford packing nut 30059 Packing Nut $4.63 Enter a quantity and
3a 30512 Packing Nut w/ deep stem nut guard (optional) $8.15 Enter a quantity and
4 Woodford packing 30560 Packing $4.25 Enter a quantity and

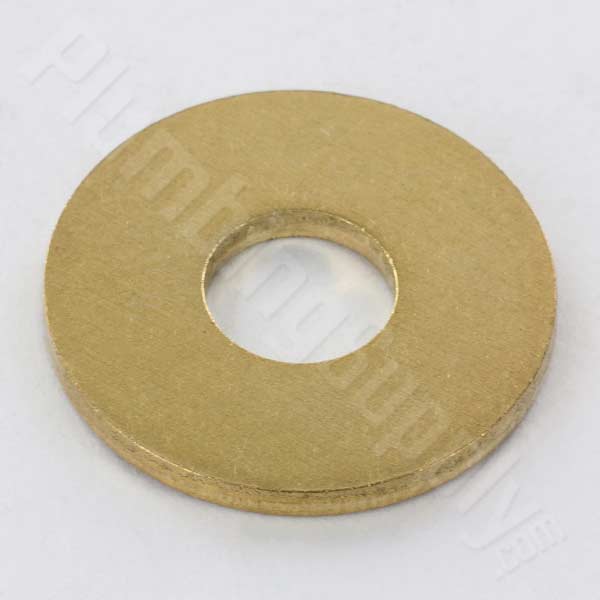

5 Woodford packing support washer 30006 Packing Support Washer $3.14 Enter a quantity and
6 357XX Valve Stem Assembly
Included items 7,8,9 (see table A below)
See Table A
RK-ADJ-PRV Valve stem assembly upgrade with pressure relief valve
(Includes items 2, 3, 4, 7, 8, 9)
See Adjustable
PRV Stem
7 Woodford check valve 30459 Check Valve $3.63 Enter a quantity and
8 Woodford valve seat rubber 30008 Valve Seat Rubber $2.16 Enter a quantity and
9 Woodford retainer screw 30009 Retainer Screw $2.78 Enter a quantity and

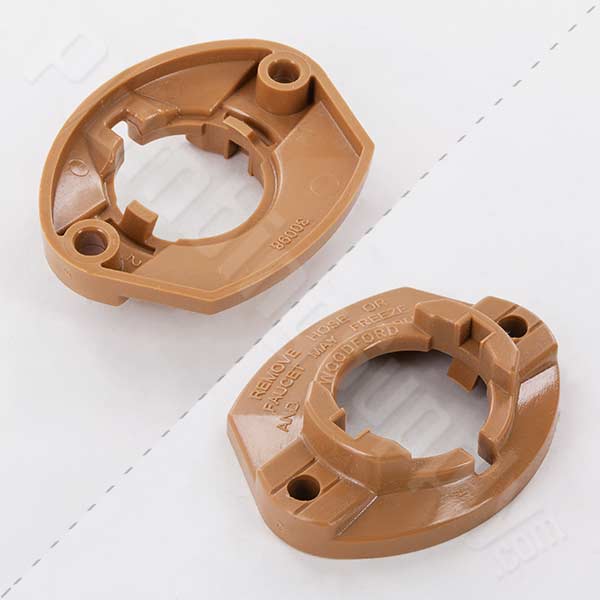

10 Woodford adjustable flange 30098 Adjustable Flange $1.75 Enter a quantity and
Woodford repair kit #RK-14MH RK-14MH Repair kit (items 1-5, 8 & 9)
Includes metal handle (2a not included with kit)
$19.80 Enter a quantity and

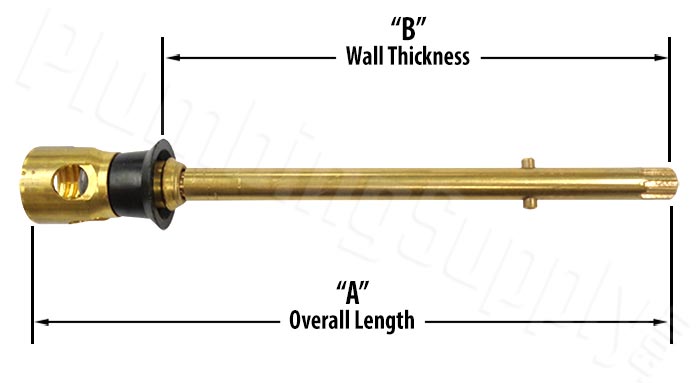

(Table A) Valve Stem Assembly

Replacement stem valve assembly

Part # "B"
Wall Thickness
"A"
Overall Length
Price & Quantity

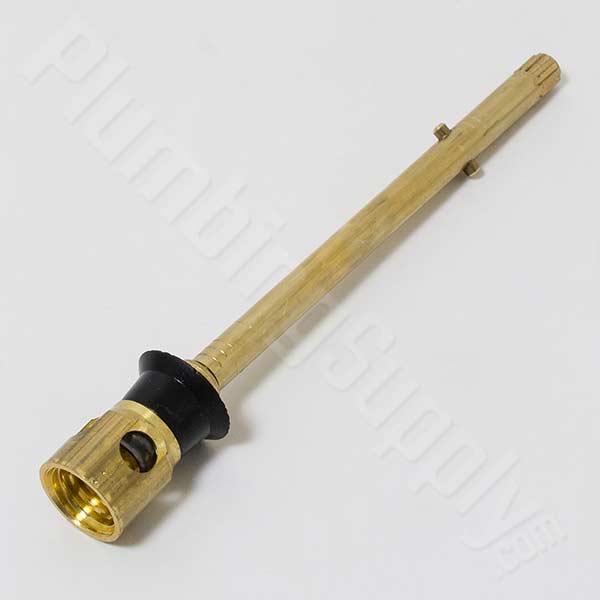

35720 4" 5-7/8" $11.96 Enter a quantity and

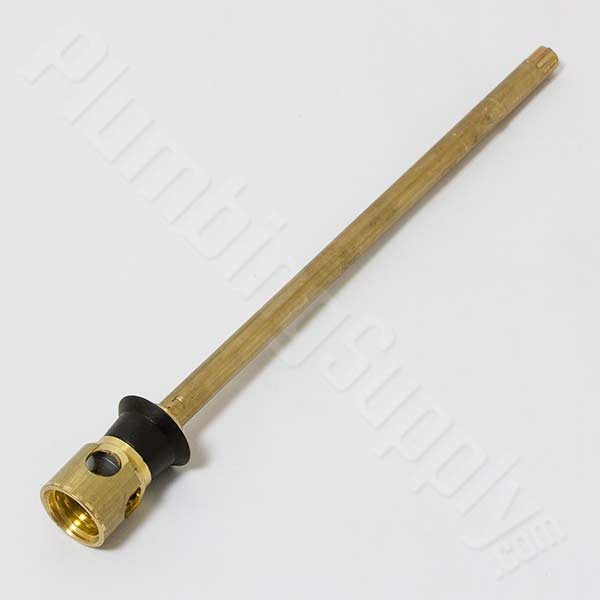

35721 6" 7-7/8" $12.73 Enter a quantity and

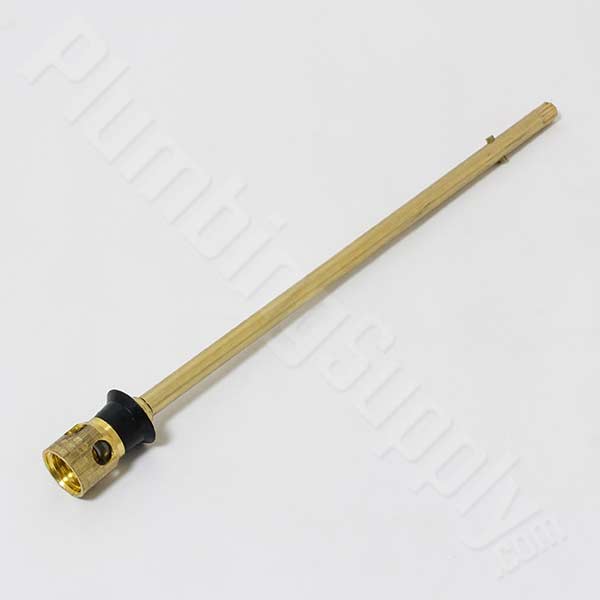

35722 8" 9-7/8" $13.82 Enter a quantity and

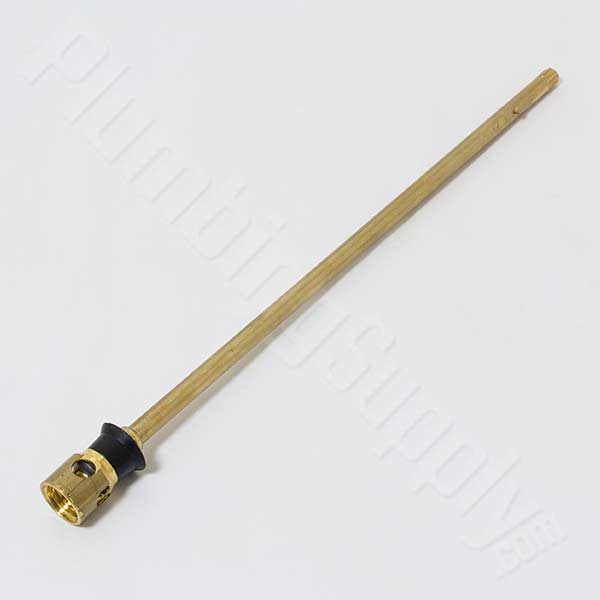

35723 10" 11-7/8" $14.75 Enter a quantity and

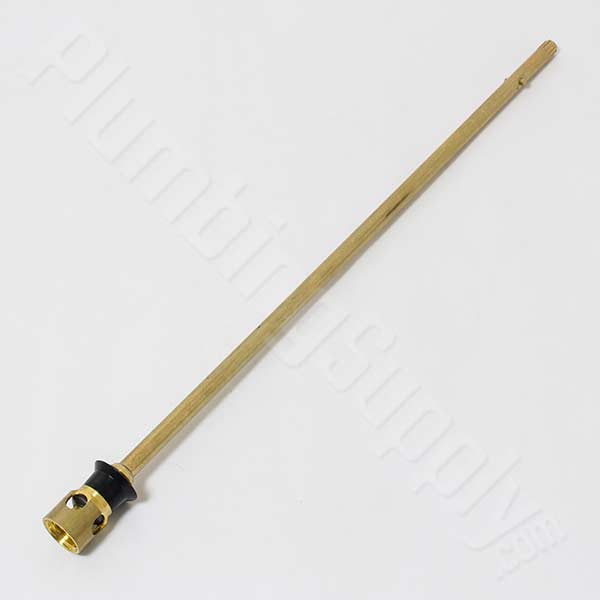

35724 12" 13-7/8" $15.58 Enter a quantity and

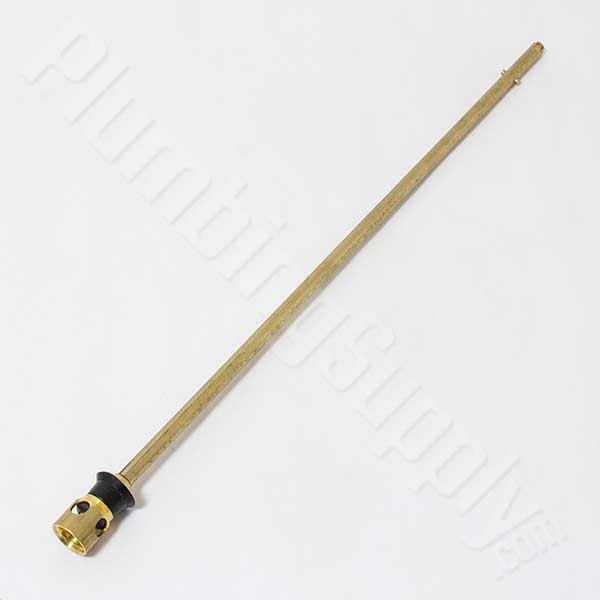

35725 14" 15-7/8" $16.58 Enter a quantity and
Part # "B"
Wall Thickness
"A"
Overall Length
Price & Quantity

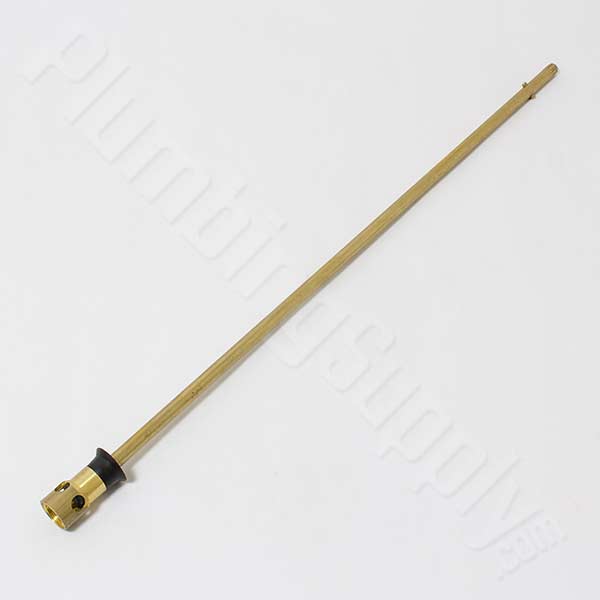

35736 16" 17-7/8" $17.43 Enter a quantity and

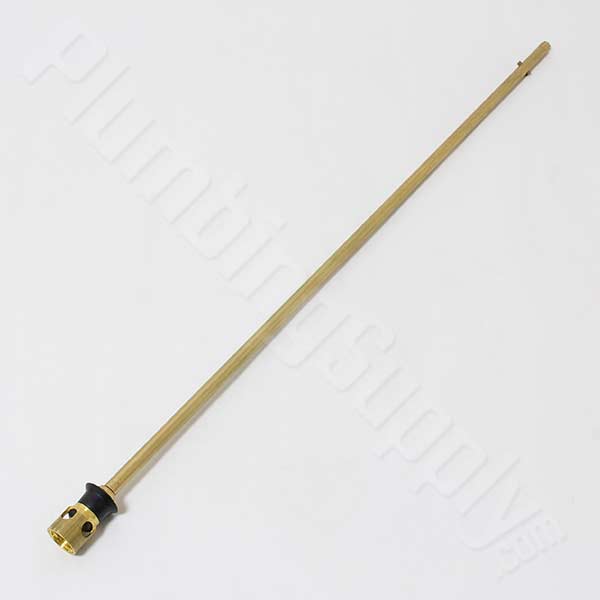

35726 18" 19-7/8" $18.50 Enter a quantity and
35737 20" 21-7/8" $19.35 Enter a quantity and
35738 22" 23-7/8" $20.39 Enter a quantity and
35727 24" 25-7/8" $21.32 Enter a quantity and

Adjustable Operating Rod with Pressure Relief Valve (RK-ADJ-PRV)
Replace your valve stem assembly with an upgraded version

Built-in pressure relief stem helps prevent copper tubing from freeze bursting
(even if the faucet is accidentally left on)

pressure relief operating rod kit
Each kit will adjust to replace operating rods with overall lengths from 5-7/8" to 15-7/8"

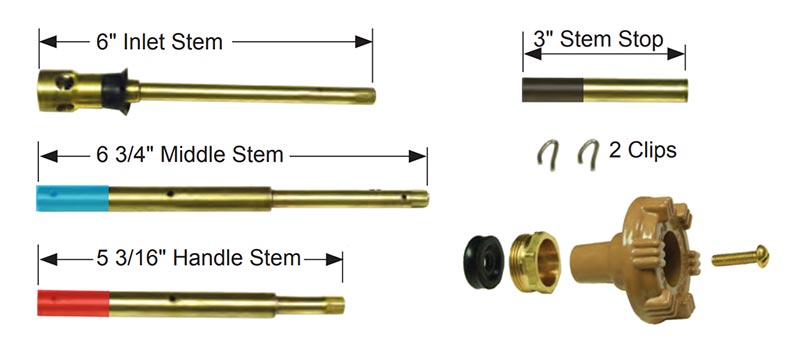

Kit includes: 6" pressure relief inlet stem (x1), 3" stem stop (x1), 6 3/4" middle stem (x1), 5 3/16" handle stem (x1), stainless steel clips (x2), EPDM packing (x1), packing nut (x1), round metal wheel handle (x1), and handle screw (x1).

Arrange stem components provided in kit to match the length of your stem.

Adjustable Operating Rod with Pressure Relief = $35.02

- OR - View Cart

Woodford Model WF-MS Mounting Sleeve

mounting sleeve
Features:
  • Mounting sleeve takes the guesswork out of how far to stub-out your wall faucet
  • Allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason
  • A numbered scale is built into the top of the mounting sleeve
  • For Woodford models 14, 16, 17, & 19 only
  • View a helpful installation guide
  • Installed example
  • Included components

Woodford Mounting Sleeve = $12.98

- OR - View Cart

Order 10 or more mounting sleeves for additional savings!
Pricing discounts will show up in your shopping cart.


Double Check back flow Preventers for Hose Bibbs

Backflow Preventer
Features:
  • Prevents back flow contamination and freezing
  • 120°F maximum temperature rating
  • Maximum pressure 125 psi
  • 3/4" female hose inlet connection
  • 3/4" male hose outlet connection
  • Fits hose bibbs with standard 3/4" hose threaded outlets
  • Available in brass (shown) and chrome finishes
Description Finish Price & Quantity
Double Check Backflow Preventer Brass $29.24
Chrome $35.16
- OR - View Cart

Looking for more freezeless wall faucet options?
Click on any image to see that Woodford outdoor faucet series

Related Items & Accessories



Frequently Asked Questions

Q. "Are these outdoor faucets quarter turn?"
A. No, these quality outdoor faucets are compression style faucets, making them easy to repair.

Q. "How do I choose the right faucet length?"
A. Determine the thickness of your wall. The faucet must pass through the exterior wall all the way through to the interior of the wall to keep the inlet from freezing. Next, choose the style of inlet you will need to attach to the type of piping you are using. The inlet length will be determined by the inlet type you choose. The inlet length is the length the faucet shaft is exposed on the interior wall to allow your piping to be connected to the faucet. Order the faucet determined by the actual wall thickness of your wall, not the overall length which includes the inlet length.

If your wall thickness is 4" then select the 4" wall thickness. If your wall is 4-1/2" thick then select the next size up to make sure the inlet of the faucet goes through your wall so the inlet is protected from freezing conditions.
