Waste King 9930 Legend Disposer Parts
(Formerly called "Gourmet 9930")

for disposers made by Anaheim Manufacturing

Whether you need a stopper assembly, a grind ring, or the nut for the inspection plate, you'll find these and many more parts here on PlumbingSupply.com®! When you need replacement parts for your WasteKing disposer, we have what you're looking for. Looking for other WasteKing products? Check here.

If your Waste King was manufactured prior to 1996, these parts may not fit your disposer - learn more

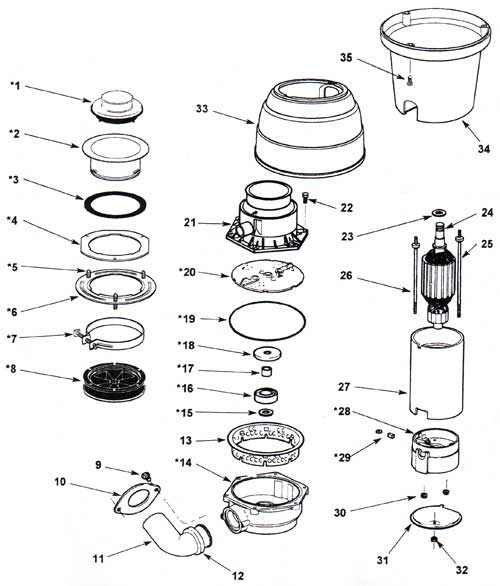

Waste King Gourmet Custom Series - Model 9930
Item
#
Description Price & Quantity
1 Deluxe Stopper Assembly - Chrome Discontinued
use "will-fit" below
"Will Fit" Stopper Assembly - Chrome
More finish options
$23.40 Enter a quantity and
2 Sink Flange
More finish options
Discontinued
3 Rubber Gasket (Thin) $2.76 Enter a quantity and
Will-Fit Rubber Gasket (Thick)
- install ridges up towards underside of sink
$2.62 Enter a quantity and
4 Support Ring
Only available in assembly kit (item #1-8)
Discontinued
5 Screw 5/16"-18 x 1-1/4" (each)
3 screws needed
$2.30 Enter a quantity and
6 Mount Ring
Only available in assembly kit (item #1-8)
Discontinued
Use part #1-8
7 Screw Clamp Mount Ring $6.71 Enter a quantity and
8 Splash Guard / Hush Cushion
Only available in the assembly kit (item #1-8)
Discontinued
1-8 Plain Sink Flange Assembly
includes items #1-8
$43.87 Enter a quantity and
9 Outlet Screws (2 pack) $2.34 Enter a quantity and
9-10 Outlet Flange & 2 Screws
Only available in the kit (item #9-12)
Discontinued
11 Outlet Elbow Discontinued
Outlet Alternative (12" Tailpiece)
other tailpiece sizes available
Note: outlet gasket sold separately below
$2.22 Enter a quantity and
12 Rubber Outlet Gasket Discontinued
9-12 Outlet Drain Elbow & Gasket Kit
includes items #9-12
$8.79 Enter a quantity and
13 Grind Ring Discontinued
14 Drain Housing Discontinued
15 Thrust Washer Discontinued
Waste King Gourmet Custom Series - Model 9930
Item
#
Description Price & Quantity
16 Water Seal Discontinued
17 Spacer Seal Discontinued
18 Slinger Discontinued
19 O-Ring Discontinued
20 Turntable Discontinued
21 Hopper Assembly Discontinued
22 Hopper Screw (each)
6 hopper screws needed
$2.35 Enter a quantity and
Hopper Screws (6 pack)
6 hopper screws needed
$12.69 Enter a quantity and
23 Washer Discontinued
24 Armature Assembly Discontinued
25 Motor Stud Discontinued
26 Motor Stud Discontinued
27 Motor Shell Assembly Discontinued
28 Endbell Discontinued
29 Motor Brush & Spring Assembly
2 brush and springs needed
Discontinued
28-29 Endbell Assembly
Includes items #28 & #29
$28.12 Enter a quantity and
30 Hex Nut (each)
2 hex nuts needed
$2.35 Enter a quantity and
Hex Nuts (2 pack)
2 hex nuts needed
$4.23 Enter a quantity and
31 Inspection Plate $4.56 Enter a quantity and
32 Nut For Inspection Plate Discontinued
33 Upper Shell Discontinued
34 Lower Shell $6.58 Enter a quantity and
35 Shell Screw
3 shell screws needed
Discontinued

Disposer Cleaning Brush

Disposer cleaning brush
Features:
  • Scrub your garbage disposer quickly and easily to get rid of odor causing residues
  • Ergonomically designed T-handle allows for strong grip while cleaning the disposal
  • Works on most food waste disposal systems
  • Approximate dimensions 12" x 3.5"

Disposer Cleaning Brush = $7.72

Order 12, 24, 48 or more for additional savings!
Pricing discounts will show up in your shopping cart.
- OR - View Cart

Related Items & Information

Frequently Asked Questions

Q. "My garbage disposer smells! Is there anything that I can do besides buying a new one?"
A. The quickest and easiest way is to use the Disposer Freshener we offer. Disposa Fresh® is a non toxic mixture of natural citrus oils and gelatin. Run cold water and turn on the disposer to make sure the disposer is empty, and then turn the disposer off. Now run hot water into the disposer but do not turn the disposer on. Turn the water off and drop in two or three capsules and turn on the disposer briefly to distribute the contents of the capsules inside the disposer. Let the disposer sit unused for awhile or until the next time you need to use it. As an alternative, you can also clean the disposer by having it grind up a few cups of ice and some table salt. This helps to cut the grease and slime off the sides of the disposer. Then flush it out with cold water followed by half of a lemon or lime to deodorize.

Q. "I've heard that garbage disposer waste harms septic tanks. Any truth to that?"
A. We have yet to read any study that reflects that. Some cities have banned disposers and then, later changed their minds and allowed them, such as New York. From what we know, food disposer waste gets consumed by bacteria in sewage treatment plants and septic tanks.

Q. "My Waste King disposer is over 20 years old. Will your parts still fit?"
A. These parts are designed to fit units manufactured after 1996. Anaheim Manufacturing redesigned their disposers in 1996. This resulted in the introduction of the EZ Mount system in place of the previous style of quick-mounting for their Waste King disposers. It also resulted in some changes to the "three bolt" style of mounting system. If you are unsure if your unit was manufactured before or after the redesign, units before the 1996 redesign had the reset switch located on the bottom of the unit, facing the floor.

It is the opinion of our Founder Vic that garbage disposers are not garbage cans, therefore, should not be used as such. Most potatoes peels, carrots and the like will not get chopped up well (with any brand), and can help clog your drain lines. He feels that food (garbage) disposers should be used sparingly. Much of what goes into your drains eventually has to be removed by sewage treatment facilities or be dealt with by some system.
