Waste King 1001 Legend/Gourmet Disposer Parts

by Anaheim Manufacturing® is proud to be the National Parts Dealer for Waste King® is your best source on the Internet for repair parts for your Waste King (formerly BoneCrusher) garbage disposer. Tired of reaching for the wall switch to turn on the disposer? Click here for an air-switch for easy disposer operation - easy to install, easier to use!

Please note: The Bone Crusher line of disposers have been replaced by Waste King Legend/Gourmet Series
Upper & lower shells are available in new style only (Waste King Legend/Gourmet Series)

NOTE: These parts fit Waste King disposers using the EZ-Mount system, but do not fit Waste King units using the 3-bolt mount system.
If your Waste King was manufactured prior to 1996, these parts may not fit your disposer - learn more

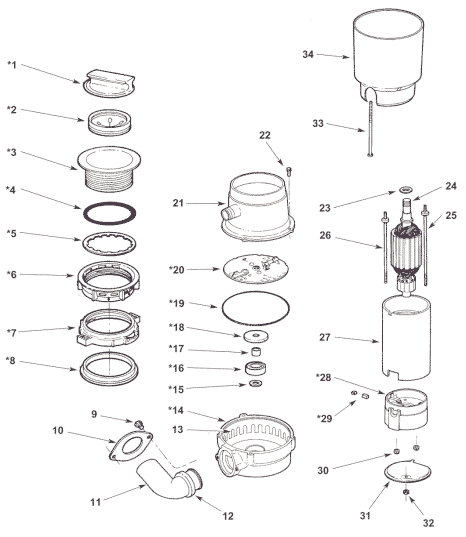

Waste King Gourmet Series - Model 1001
Item # Description Price & Quantity
1 Stopper #174C068P01 $2.99
2 Splash guard #614C069P01 - available with stopper only shown below (1 & 2) see below
1 & 2 Basic stopper + splash guard #027C036S01 $7.39
3 OEM Sink flange - Plain - available ONLY in mount assembly (1-8) below Discontinued
Alternative sink flange - Deluxe - Chrome - other designer finishes available $76.57
4 Sinkflange rubber gasket - thin (included with kit) $2.04
Sinkflange rubber gasket - thick (not included with kit) $2.04
5 Fiber gasket (waxed) $2.34
6 Supporting ring $4.40
7 Mount ring $7.57
8 Cushion mount ring - available ONLY in mount assembly shown below (1-8) see below
1-8 Mount assembly - includes items 1-8
- (plain sink flange and basic stopper included)
Please Note: #4 thin gasket ONLY included with this kit
9 & 10 Outlet flange & screws - (includes one flange & two screws) $4.89
11 Outlet elbow $3.39
Outlet alternative - straight 12" tailpiece - more tailpiece sizes available
- Note: outlet gasket sold separately below
12 Rubber outlet gasket $2.24
13 Grind ring Discontinued
14 Drain housing Discontinued
15 Thrust washer Discontinued
16 Water seal Discontinued
17 Spacer seal Discontinued
18 Slinger Discontinued
19 O-ring Discontinued
20 Turntable Discontinued
18-20 Turntable assembly includes items 18-20 Discontinued
21 Hopper Discontinued
22 Hopper screw - 6 required per unit, sold each** $2.04
23 Washer Discontinued
24 Armature assembly Discontinued
25 Motor stud Discontinued
26 Motor stud Discontinued
27 Motor shell assembly Discontinued
28 Endbell Discontinued
29 Brush motor & brush spring assembly Discontinued
30 Nut - 2 required per unit, sold each** $2.05
31 Inspection plate $4.06
32 Nut Discontinued
33 Shell screw Discontinued
34 Lower shell Discontinued
  **Order the "required per unit" quantity for additional savings!

- Or -
View Button

Disposer Cleaning Brush

Example of disposer cleaning brush

This cleaning brush features:
  • Scrub your garbage disposer quickly and easily to get rid of odor causing residues
  • Ergonomically designed T-handle allows for strong grip while cleaning the disposal
  • Works on most food waste disposal systems too
  • Approximate dimensions 12" x 3.5"
  • View how to use this brush

Disposer Cleaning Brush = $6.99

- Or -
View Button
Order 12, 24, 48 or more for additional savings!
Pricing discounts will show up in your shopping cart.

Disposer Freshener

Example of disposer freshener pellets

This disposer freshener features:
  • Keep your garbage disposer clean and odor free
  • For use with any disposer
  • Convenient, easy-to-use - simply drop it in and turn on the disposer!
  • Cuts grease
  • Freshens sink and drain
  • Non-corrosive, biodegradable
  • Safe for septic tanks
  • Safe for pipes of all ages
  • Safe for PVC pipes

Disposa Fresh Disposer Freshener = $9.17

- Or -
View Button

Parts For Waste King Legend/Gourmet Series Garbage Disposers:
to replacement parts for model 111
to replacement parts for model SS2600
to replacement parts for model SS3100
to replacement parts for model SS3200
to replacement parts for model SS3300
to replacement parts for model SS8000
to replacement parts for model SS5000TC
to replacement parts for model SS8000TC

Parts For Waste King Gourmet Custom Series Garbage Disposers:
to replacement parts for model 9900TC
to replacement parts for model 9910
to replacement parts for model 9920
to replacement parts for model 9930
to replacement parts for model 9950
to replacement parts for model 9980

to garbage (food waste) disposer repair parts - index page

Related Items & Accessories:

Frequently Asked Questions

Q. "What is the difference between the Bone Crusher line and the Waste King Gourmet line of disposers?"
A. Sinkmaster has discontinued manufacturing the Bone Crusher line of disposers and replaced this line with the Waste King Gourmet line.

Q. "I installed my new disposer into a stainless steel sink but the thin gasket I used that came with the disposer keeps the flange slightly raised above the inside of the sink. Small amounts of water do collect around the flange. Should I have used plumbers putty?"
A. Some disposal manufacturers recommend using the rubber gasket that comes with the disposer. However, other disposer manufacturers recommend using plumbers putty. We believe if the flange is properly installed using plumbers putty, the installation will provide a seal for a longer length of time than the rubber gasket. When a flange is installed with plumbers putty the putty will keep water from leaking through it. The plumbers putty will also stay pliable over time. As the sink is used water comes in contact with the plumbers putty which slowly absorbs into the putty. The water actually acts as a lubrication for the putty and helps keep it from drying out. This is why sink flanges installed with plumbers putty can function for 20 years or more without leaking. If the sink is not used for 4 months or longer the putty will begin drying out which will lead to leakage when the sink is again used. If you have more confidence in using the rubber gasket and can live with small amounts of water left in your sink, then by all means use the rubber gasket.

Q. "My garbage disposer smells! Is there anything that I can do besides buying a new one?"
A. Generally the simple solution to this is to clean the disposer by having it grind up a few cups of ice and some table salt. This helps to cut the grease and slime off the sides of the disposer. Then flush it out with cold water followed by half of a lemon or lime to deodorize.

Q. "Should I be adding enzymes/bacteria to my disposer or septic tank whenever I use my disposer?"
A. Not in our opinion. There are even disposers that add enzymes every time that you use that disposer. From what we have read, bacteria grow naturally after initially being introduced (mostly by nature) into septic tanks, and no additional enzymes/bacteria need to be introduced. From our perspective, adding additional enzymes/bacteria each time seems like a waste of money and resources. One additional note, our Founder wishes to encourage you to use composting and not throwing all wastes down your food disposers. Save the Planet and recycle as much as possible.

Q. "I've heard that garbage disposers waste harms septic tanks. Any truth to that?"
A. We have yet to read any study that reflects that. Some cities have banned disposers and then, later changed their minds and allowed them, such as New York. From what we know, food disposer waste gets consumed by bacteria in sewage treatment plants and septic tanks.

Q. "My Waste King disposer is over 20 years old. Will your parts still fit?"
A. These parts are designed to fit units manufactured after 1996. Anaheim Manufacturing redesigned their disposers in 1996. This resulted in the introduction of the EZ Mount system in place of the previous style of quick-mounting for their Waste King disposers. It also resulted in some changes to the "three bolt" style of mounting system. If you are unsure if your unit was manufactured before or after the redesign, units before the 1996 redesign had the reset switch located on the bottom of the unit, facing the floor.

It is the opinion of our Founder Vic that garbage disposers are not garbage cans, therefore, should not be used as such. Most potatoes peels, carrots and the like will not get chopped up well (with any brand), and can help clog your drain lines. He feels that food (garbage) disposers should be used sparingly. Much of what goes into your drains eventually has to be removed by sewage treatment facilities or be dealt with by some system.
