Centrifugal Pumps
by Zoeller Pump Co.

Moving water from one place to another is a whole lot easier with these centrifugal pumps. Whether you need to transfer water, boost the pressure on an existing source, or provide water for irrigation, this pump can handle it. Equipped with a heavy-duty low-maintenance motor, it can do the job with excellent results.

End Suction Centrifugal Pumps

Zoeller - 300 Series End Suction Centrifugal Pumps
This Centrifugal Pump by Zoeller Features:
  • This superb pump uses centrifugal force to move the liquid through the pipes
  • Works great for: water transfer, pressure boosting, cooling water, irrigation, dewatering, circulation, mixing water, etc.
  • Strong cast iron housing
  • Non-automatic - this pump is designed to be turned on and off manually
  • Drain plug - for easy draining of pump
  • Four position discharge - to make installation easier
  • Vertical or horizontal installation - versatile installation options
  • Mechanical seal - the pump is hermetically sealed so you won't have to add oil
  • Heavy duty 3450 RPM, single phase motor
  • Suction port 1-1/2"
  • Discharge 1-1/4"
  • Motor CSA listed - tested by the CSA for safety and inspected to see that it complies with pump standards
  • Designed to be hardwired - no cord to plug in the wall
  • Brass impellers - electronically balanced so the motor will run without too much vibration
  • These pumps can be field wired for 115V or 230V applications (Except pump 300-0006 N300 is available in 115V only)
Model# Description Shut-off HP Volts Amps Price & Quantity
300-0006 N300 Centrifugal pump 62' .3 115 8.6 $506.89
301-0006 NE301 Centrifugal dual voltage pump 69' .5 115 or 230 13 $530.71
302-0006 NE302 Centrifugal dual voltage pump 76' .75 115 or 230 14 $620.76
303-0006 NE303 Centrifugal dual voltage pump 93' 1 115 or 230 18 $646.36
304-0006 NE300 Centrifugal dual voltage pump 102' 1.5 115 or 230 21 $663.09
305-0006 NE301 Centrifugal dual voltage pump 104' 2 115 or 230 25 $758.42

- OR - View Cart

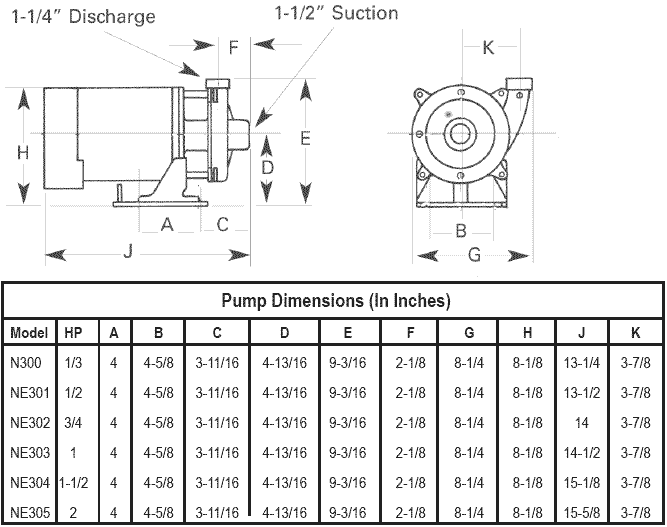

Diagram for the Centrifugal pumps

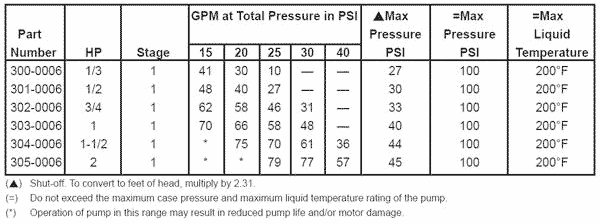

Data for Centrifugal pumps

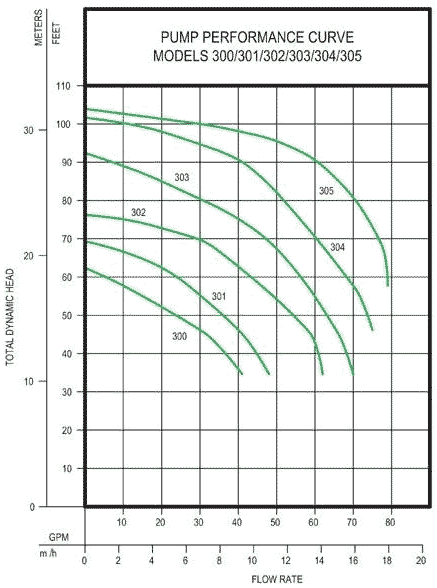

Click here for performance curve

Related Items & Accessories



Frequently Asked Questions

Q. "Why is it called a centrifugal pump?"
A. A 'centrifugal pump' is designed to make use of centrifugal force to move the water. Centrifugal force is created by a rotating object and it moves things perpendicular to the motion that's creating it. Centrifugal pumps use a rotating impeller to create velocity in the water. The pump converts that velocity into pressure which in turn pushes the water. Since the rotating impeller is creating centrifugal force to pump the water, it's called a centrifugal pump. There are other types of pumps that are 'positive displacement pumps'; they move water by trapping liquid and forcing it through a discharge pipe.

Q. "Also, what's the advantage of having the pump hardwired?"
A. One of the reasons hardwiring is used is because long cords won't always deliver enough voltage to the motor.

Q. "How would I attach the pump to the electrical wires from my house?"
A. There are terminals in the pump that you can attach the wires to. Basically, you wrap the wires around the appropriate screws and then tighten the screws. Note: Please refer to the installation instructions that come with the pump.

Q. "It say's this pump is non-automatic. What's the difference between an automatic and non-automatic pump?"
A. An automatic pump has a built in float switch that will turn on the pump automatically at a fixed water level. After the water is pumped out to certain water level (also a preset level), the pump will turn itself off. A non-automatic pump has to be manually turned on and off, or with a separate control like a piggyback float switch.

Q. "What does it mean by dual voltage?"
A. The pump is labeled as dual voltage because it has the wires needed to be connected to a 230V or 115V setup. The pump is designed to be hardwired and does not come with a cord that plugs into the wall.

Q. "What's the drain plug for?"
A. The drain plug allows you to drain the remaining water out of the pump after it's turned off. This feature is designed to prevent water in the pump from freezing during cold weather which could cause the pump housing to crack.

Q. "What does it mean by four position discharge?"
A. There are four bolts that hold on the discharge. If you want the discharge to face a different direction, all you have to do is undo the bolts, re-orient the discharge, and put the bolts back in.

Q. "Is this pump submersible?"
A. This pump is not designed to be operated underwater. For fully submersible pumps, click here.
