Submersible Pumps
by Zoeller

Zoeller submersible sump pumps are designed for performance and reliability. Whether you need to remove water in a basement or pump storm water away from patios, driveways, or construction site foundations. Every submersible dewatering pump is factory tested underwater, so you can be assured your pump has been built to last and tested for dependability. With a variety of discharge and volume capacities to choose from, you're sure to find a submersible pump to meet your specific needs.

click any image to jump directly to that section
Zoeller Mighty Mate 50 series submersible sump pumpMighty Mate Pumps
BEST BUY
Zoeller Flow Mate 98 series submersible effluent pumpFlow-Mate Pumps
Zoeller Floor Sucker Model LM44 utility pumpFloor Sucker Pumps
Zoeller 49 series Water Ridd'r utility pumpsWater Ridd'r Pumps
Zoeller Aqua Mate pumpAqua Mate Pumps
Zoeller - 70 series pumps72 & 76 Pumps

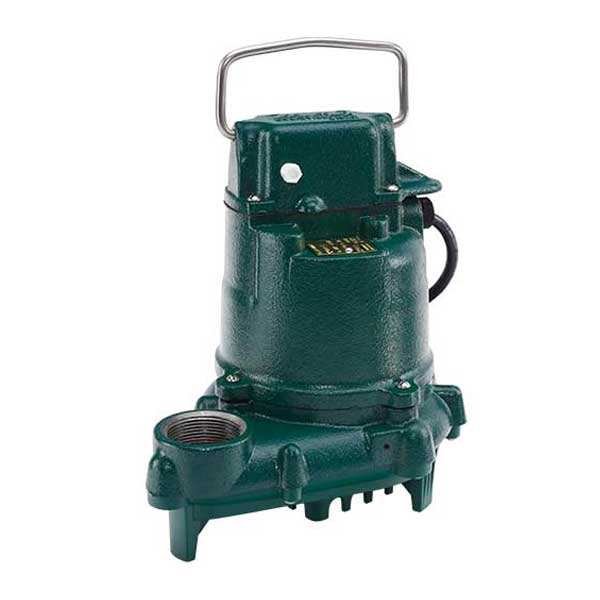

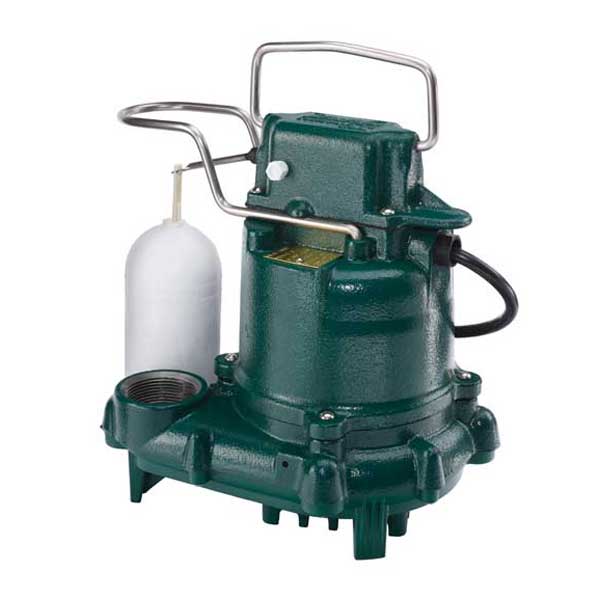

Zoeller "Mighty-Mate" Dewatering/Effluent Submersible Sump Pumps - 50 Series

Non-Automatic
Automatic

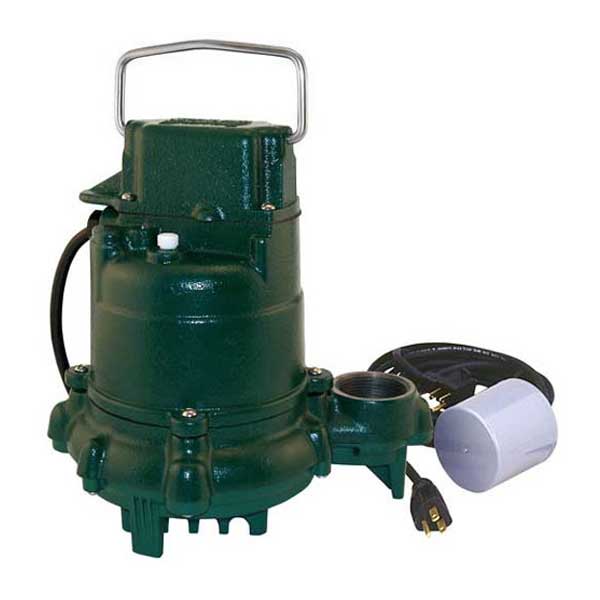

Variable Level Float Switch

3/10 HP - 115 volt or 230 volt, single phase - 1-1/2" NPT discharge

Automatic pumps have an integral, float operated, submersible (NEMA 6) 2 pole mechanical switch that turns on the pump automatically when water rises to 7-1/4" water level and pumps until the water level lowers to 3" level. The switch arm assembly and all exposed screws are made of stainless steel so they won't rust.

Non-automatic pumps can be used with a VLFS (variable level float switch) so they can be turned on and off automatically. The BE and BN model pumps listed below include a variable level float switch and a 1-1/2" x 2" PVC adapter.

These pumps are engineered with a vortex impeller that helps break-up and force debris through the volute that could otherwise clog your pump, and are capable of passing 1/2" spherical solids through to the discharge piping.

All of the "Mighty-Mate" models listed below have stainless steel handles and guards, have automatic reset thermal overload protection, can handle 130° maximum water temperature for effluent or dewatering applications, and are compatible for use with the optional 10-2421 pump stand (which attaches to riser directly as shown here).

What's the difference between these four different Mighty-Mate models? The materials used in making the pump and the impeller. The model 53 is cast iron with a thermoplastic base and the impeller is glass filled plastic with metal insert. The model 55 is bronze with a thermoplastic base and the impeller is glass filled plastic with metal insert. The model 57 is all cast iron construction with a cast iron impeller. The model 59 is all bronze construction with a bronze impeller. They are all 3/10 HP pumps and have the same pumping capabilities.

View 50 series pump performance curve chart -- View 50 series pump dimension diagram

Mighty Mate Model 53 Cast Iron Pumps with Glass-Filled Impellers

Model # Description Shut Off Amps Volts Cord Price & Quantity
53-0001 M53 Mighty Mate Cast Iron Automatic Pump 19.25' 9.7 115V 9' $355.87 Enter a quantity and
53-0002 N53 Mighty Mate Cast Iron Non-Automatic Pump 19.25' 9.7 115V 15' $381.56 Enter a quantity and
53-0032 BN53 Mighty Mate Cast Iron Non-Automatic Pump - with VLFS and 1-1/2"x 2" PVC adapter 19.25' 9.7 115V 9' $362.98 Enter a quantity and
53-0029 BN53 Mighty Mate Cast Iron Non-Automatic Pump - with VLFS and 1-1/2"x 2" PVC adapter 19.25' 9.7 115V 15' $415.39 Enter a quantity and
53-0003 D53 Mighty Mate Cast Iron Automatic Pump 19.25' 4.8 230V 9' $417.40 Enter a quantity and
53-0004 E53 Mighty Mate Cast Iron Non-Automatic Pump 19.25' 4.8 230V 15' $397.87 Enter a quantity and
10-2421 Optional pump stand - attaches to riser as shown here $23.76 Enter a quantity and

Mighty Mate Model 57 Cast Iron Pumps with Cast Iron Impellers

Model # Description Shut Off Amps Volts Cord Price & Quantity
57-0001 M57 Mighty Mate Cast Iron Automatic Pump 19.25' 9.7 115V 9' $363.73 Enter a quantity and
57-0002 N57 Mighty Mate Cast Iron Non-Automatic Pump 19.25' 9.7 115V 15' $365.32 Enter a quantity and
57-0033 BN57 Mighty Mate Cast Iron Non-Automatic Pump - with VLFS and 1-1/2"x 2" PVC adapter 19.25' 9.7 115V 9' $448.53 Enter a quantity and
10-2421 Optional pump stand - attaches to riser as shown here $23.76 Enter a quantity and

Mighty Mate Model 59 Bronze Pumps with Bronze Impellers

Model # Description Shut Off Amps Volts Cord Price & Quantity
59-0001 M59 Mighty Mate Bronze Automatic Pump 19.25' 9.7 115V 9' $2,481.96 Enter a quantity and
10-2421 Optional pump stand - attaches to riser as shown here $23.76 Enter a quantity and

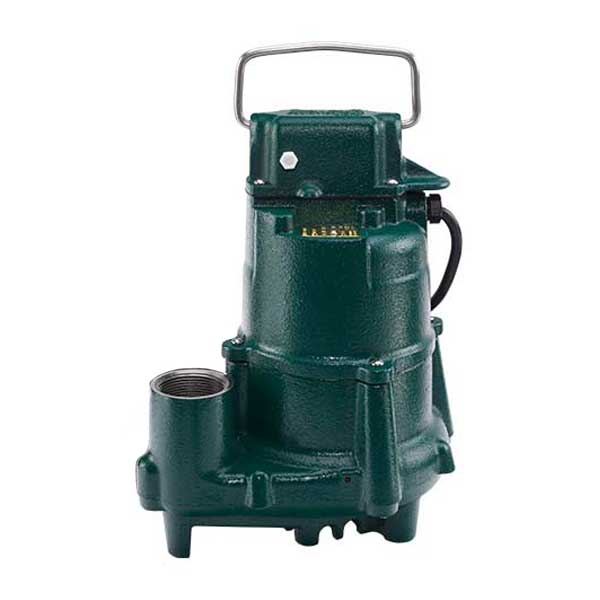

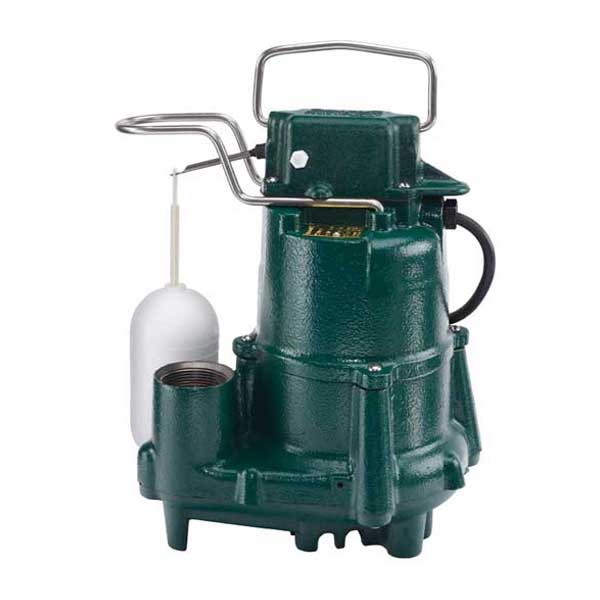

Zoeller Flow-Mate Dewatering/Effluent Submersible Sump Pumps - Model 98

Non-Automatic
Automatic
Variable Level Float Switch

These 1/2 HP, Flow-Mate 98 series dewatering style pumps, are built for longevity and fabricated with durable cast iron. The motor and pump housing, switch case and base, are all cast iron and then sprayed with a powder coated epoxy finish. Great parts make a great machine.

A non-clogging, engineered plastic vortex impeller helps keep debris from clogging the pump while allowing the passage of up to 1/2" spherical solids through the pump and out the 1-1/2" NPT discharge.

These pumps will pump fluids vertically up 22 feet at 10 GPM or pump fluids vertically up 10 feet at 60 GPM.

Automatic pumps have an integral float operated, submersible (NEMA 6) 2 pole mechanical switch. The guard, handle, switch arm assembly and exposed screws are stainless steel to prevent rust and corrosion. The pump will turn on when the water level reaches 9-1/2" high and pumps until the water is lowered to a 3" level.

Non-automatic pumps can be used with a variable level float switch, (VLFS) to allow them to function as an automatic pump. The BE and BN model pumps listed below include a variable level float switch and a 1-1/2" x 2" PVC adapter. By using a variable level float switch, the installer has the freedom to specify the water level (between 6" and 36") and regulate the on and off setting of the pump.

Both the automatic and the non-automatic 98 series pumps are compatible with the optional 10-2421 pump stand which is made of durable, non corrosive ABS. The pump stand attaches securely to the pump and is designed to raise the pump 2" off the bottom of a basin or sump and provide the ability to further raise the intake level of the pump by adding sections of 1 1/2" or 2" PVC piping if needed.

Available in 115 volt or 230 volt (60 Hz, single phase) these 1/2 HP pumps come with a 15' electrical cord, have a permanent split capacitor motor that is oil filled and hermetically sealed and also equipped with automatic reset thermal overload protection.

View 98 series performance curve -- View 98 series pump diagram
Model # Description Shut Off Amps Volts Cord Price & Quantity
98-0001 M98 Flow Mate Cast Iron Automatic Pump 23' 9.4 115V 15' $507.21 Enter a quantity and
98-0002 N98 Flow Mate Cast Iron Non-Automatic Pump 23' 9.4 115V 15' $478.42 Enter a quantity and
98-0003 D98 Flow Mate Cast Iron Automatic Pump 23' 4.7 230V 15' $558.71 Enter a quantity and

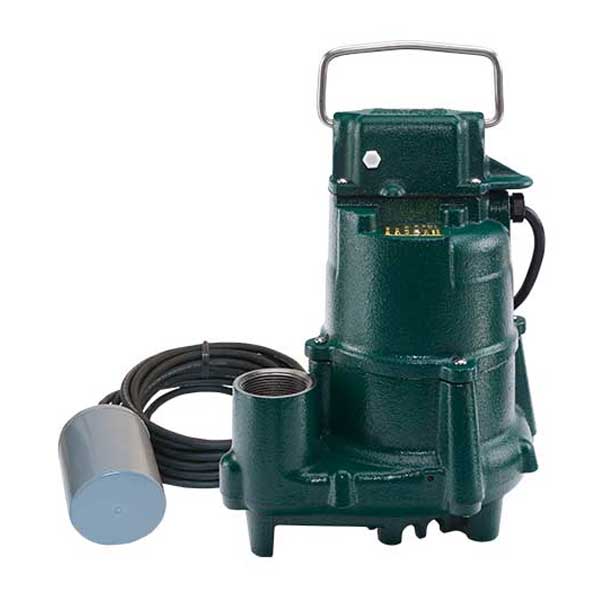

98-0005 BN98 Flow Mate Cast Iron Non-Automatic Pump - with VLFS and 1-1/2"x 2" PVC adapter 23' 9.4 115V 15' $615.96 Enter a quantity and
10-2421 Optional pump stand - attaches to riser as shown here $23.76 Enter a quantity and

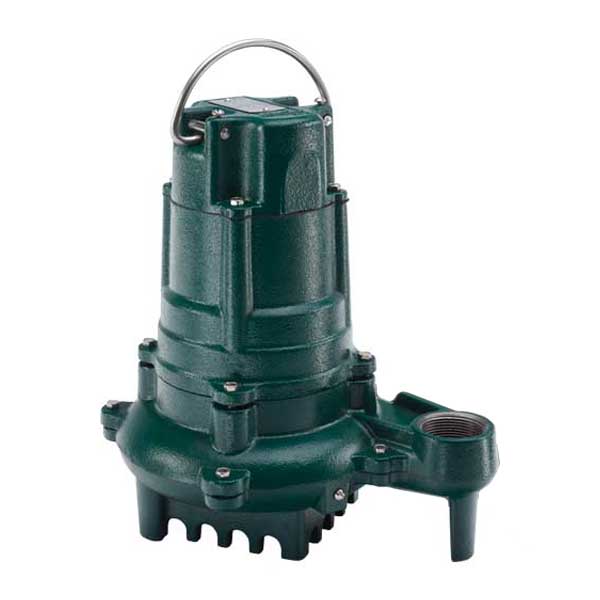

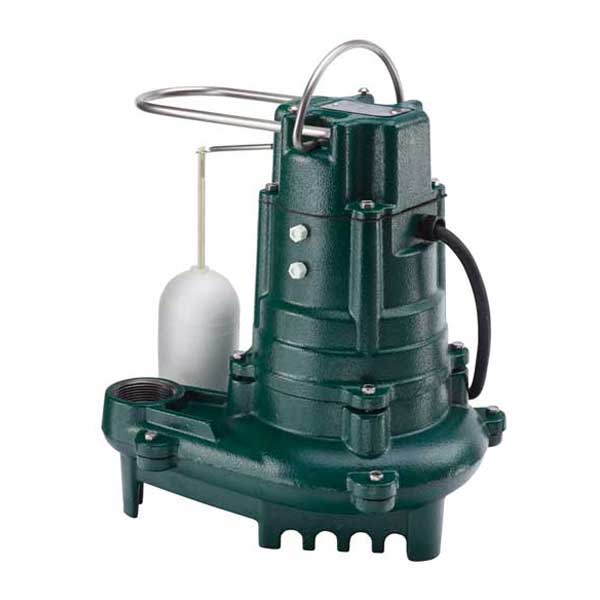

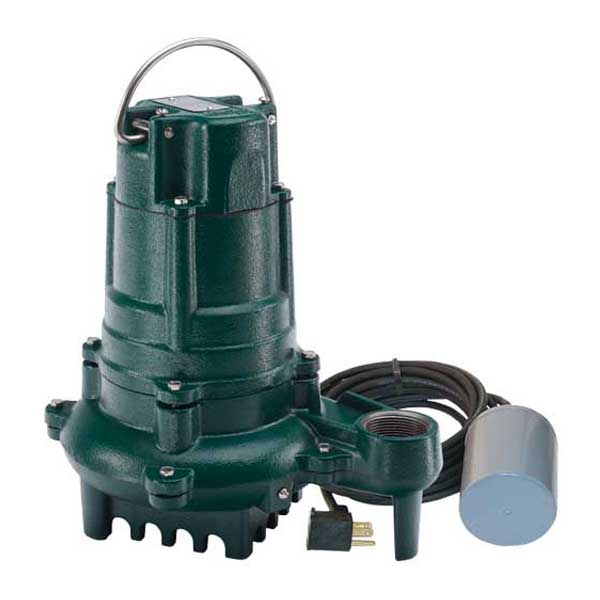

Zoeller Flow-Mate Dewatering/Effluent Submersible Sump Pumps

Non-Automatic
Automatic
Variable Level Float Switch

1/2 HP - 115 volt or 230 volt, single phase - 1-1/2" NPT discharge

The Flow-Mate 137 series are completely cast iron constructed, the motor and pump housing, the switch case, and the base and impeller, all made from durable cast iron and then powder coated with epoxy for corrosion resistance.

The Flow-Mate 139 series are completely bronze constructed, the motor and pump housing, the switch case, the base and the impeller, everything bronze, and then sprayed with a powder coated epoxy finish to add more corrosion resistant protection.

Both styles of these 1/2 HP pumps move liquid at the rate of 92 GPM when pumping up 5 feet and will move liquid at 20 GPM pumping up 22 feet.

A non-clogging vortex impeller works great for dealing with small debris and helps allow this pump to pass 5/8" spherical solids out through the discharge.

The automatic pumps have a float operated, submersible (NEMA 6) 2 pole mechanical switch with a stainless steel switch arm assembly, screws, bolts, guard and handle, The float is preset to turn on when liquid level reaches 10" and turn off when the liquid level reaches 2-3/4" level.

Non-automatic pumps can be used with a variable level float switch, (VLFS) to allow them to function as an automatic pump. The BE and BN model pumps include a variable level float switch and a 1-1/2" x 2" PVC adapter. By using a variable level float switch, the installer can have the freedom to specify the water level (between 6" and 36") to regulate the on and off setting of the pump as needed.

All pumps include an automatic reset thermal overload protection feature, and are compatible with the 10-2421 pump stand.

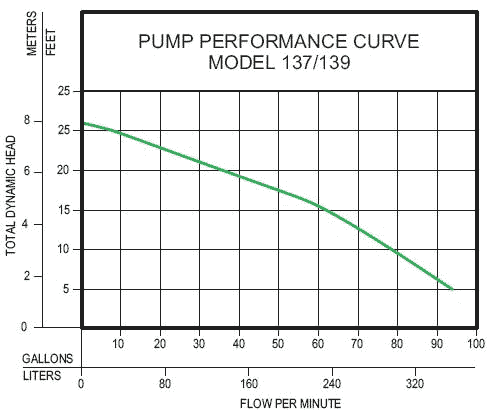

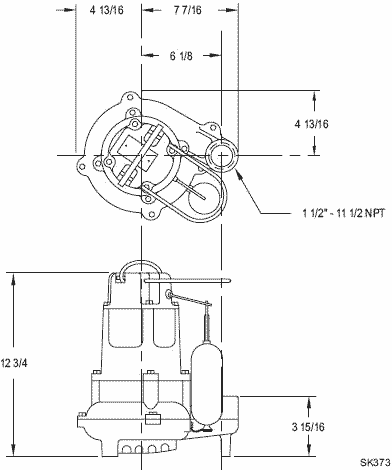

View 130 series performance curve -- View 130 series pump diagram
Model # Description Shut Off Amps Volts Cord Price & Quantity
137-0001 M137 Flow Mate Cast Iron Automatic Pump 26' 10.7 115V 10' $770.25 Enter a quantity and
137-0002 N137 Flow Mate Cast Iron Non-Automatic Pump 26' 10.7 115V 15' $706.12 Enter a quantity and
137-004 E137 Flow Mate Cast Iron Non-Automatic Pump 26' 5.8 230V 15' $836.15 Enter a quantity and
137-0045 BN137 Flow Mate Cast Iron Non-Automatic Pump - with VLFS and 1-1/2"x 2" PVC adapter 26' 10.7 115V 15' $762.26 Enter a quantity and
137-0068 BE137 Flow Mate Cast Iron Non-Automatic Pump - with VLFS and 1-1/2"x 2" PVC adapter 26' 5.8 230V 15' $900.45 Enter a quantity and
10-2421 Optional pump stand - attaches to riser as shown here $23.76 Enter a quantity and

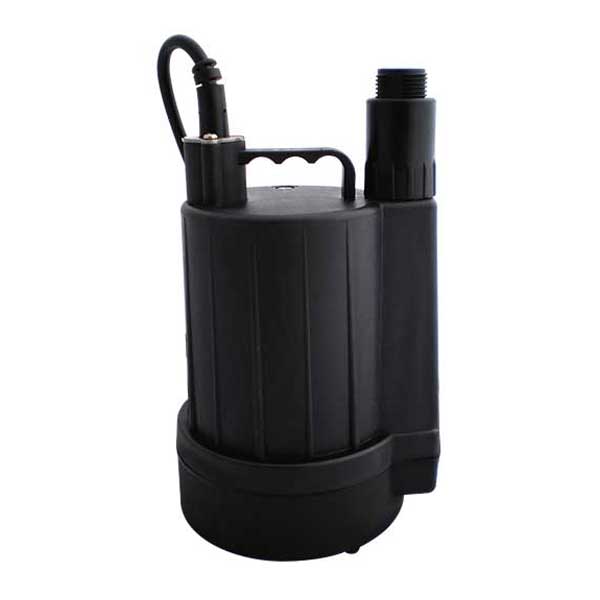

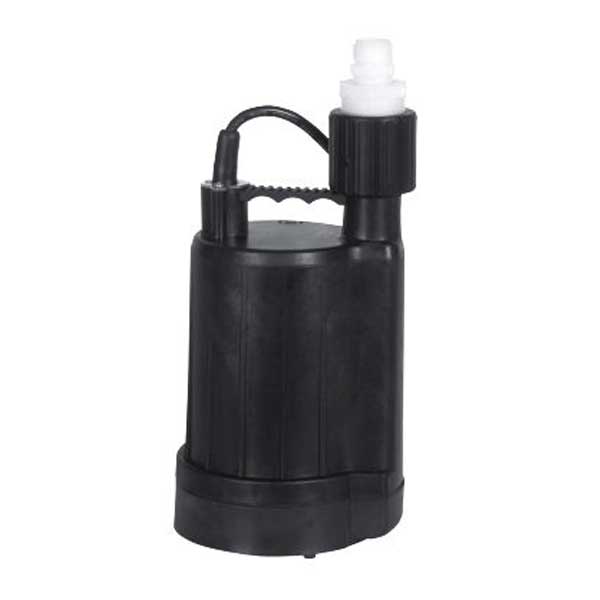

Zoeller Floor Sucker Series Submersible Utility Pumps

Model 42
Model 44
Model LM44
Model 46

These lightweight, portable utility pumps are the ideal solution for flooded basements or patios. They operate fully or partially submerged and are non-automatic with automatic reset thermal overload protection and a screened bottom that is easily removed for cleaning.

Constructed with a durable polypropylene housing to protect your pump, they have a temperature rating of 104°F (40°C) and come with either a 9' or 20' 3-prong power cord. The Floor Sucker pumps can be used either indoors or outdoors.

What's the difference between the various models?

  • Models 42 and 44 are permanently lubricated
  • Models 42 and 44 remove water from most flat surfaces down to 1/8"; model 46 will pump down to 1"
  • Model 42 is adaptable for use with standard garden hose (fitting included) & 1" NPT pipe
  • Model 44 is adaptable for use with standard garden hose (fitting included), 1-1/4" female NPT or 3/4" female NPT
  • Model LM44 is not to be used as a sump pump and is for utility applications only

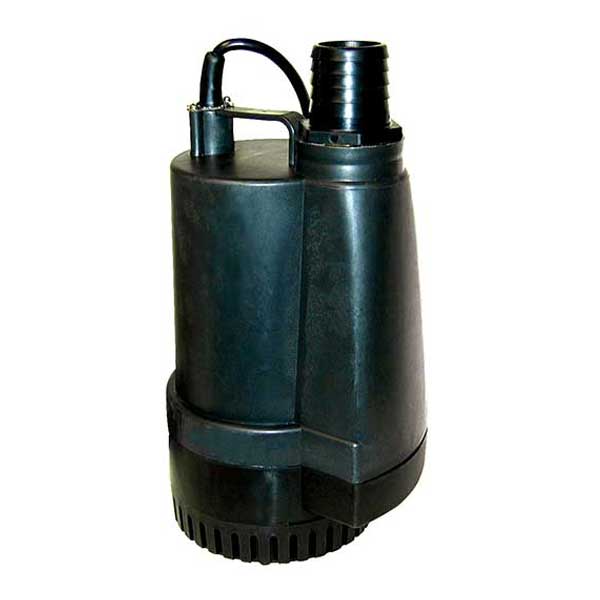

  • Model 46 is 2" NPT discharge with 2" hose adapter

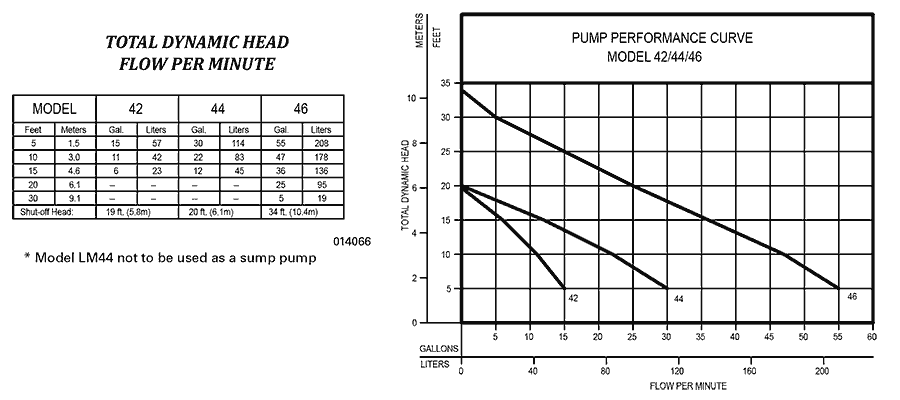

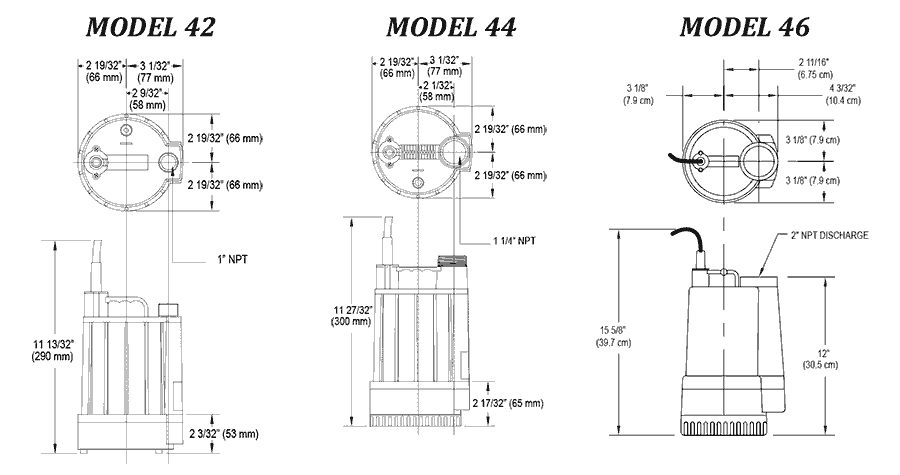

View Floor Sucker utility pump curve chart -- View Floor Sucker utility pump diagrams
Model # Description Shut Off HP Amps Volts Cord Price & Quantity
42 Floor Sucker II Non-Automatic Utility Pump 19' 1/6 1.5 115V 9' $242.97
20' $244.57 Enter a quantity and
44 Floor Sucker Non-Automatic Utility Pump 20' 1/4 2.5 115V 9' $250.28
20' $264.71 Enter a quantity and

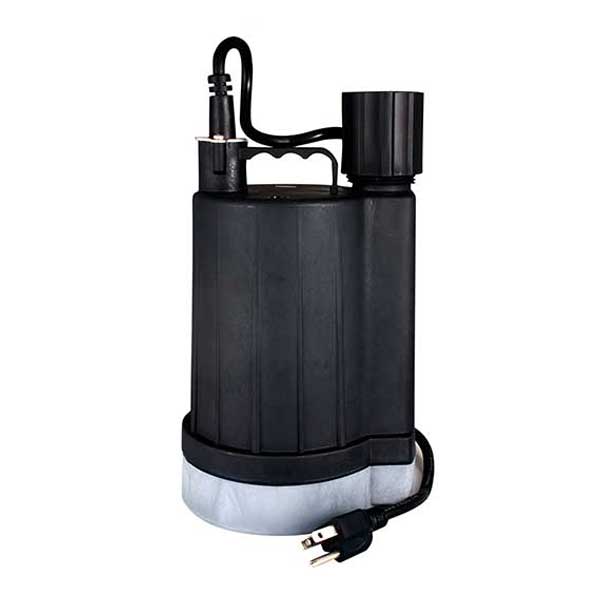

LM44 Floor Sucker Manual Utility Pump with Automatic Sensor 20' 1/4 2.5 115V 9' $288.11
20' $332.96 Enter a quantity and
46 Floor Sucker N46 Non-Automatic Utility Pump 33' 1/2 6.0 115V 20' $558.05 Enter a quantity and

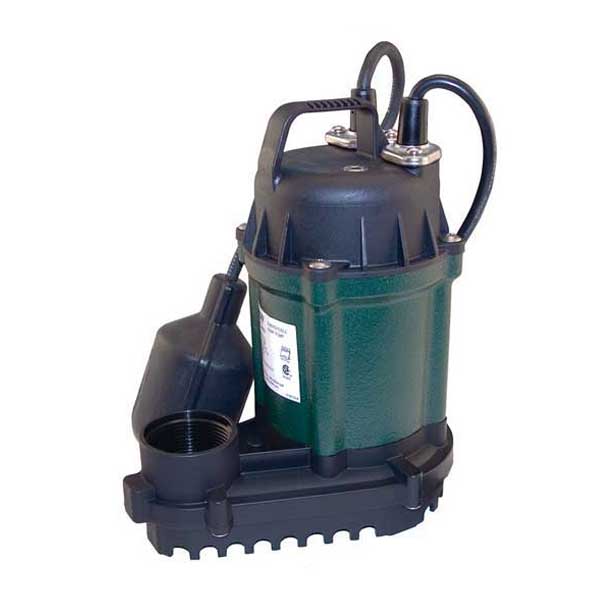

Zoeller Water Ridd'r III Series Submersible Sump & De-Watering Pumps

These Water Ridd'r Sump Pumps Feature:
  • 1/4 HP - 115 volt, single phase, 3.8 Amps, temperature rating 104°F (40°C)
  • Non-clogging vortex impeller
  • Quality carbon & ceramic rotary seal and watertight neoprene seal between motor and cover
  • Stainless steel screws and hardware work great to hold your pump together
  • Automatic reset thermal overload protection and efficient heat sink
  • Reliable, tethered float switch that will turn your pump on when needed
  • Rugged cast iron motor housing with corrosion resistant baked on enamel
  • Oil-filled & hermetically sealed so you don't have to add oil
  • 1-1/2" NPT discharge passes 3/8" solids (sphere)
  • Automatic pump turns on at a 11-1/4" water level and pumps until the water level is at 4-1/8"
  • Fits 12" diameter pits

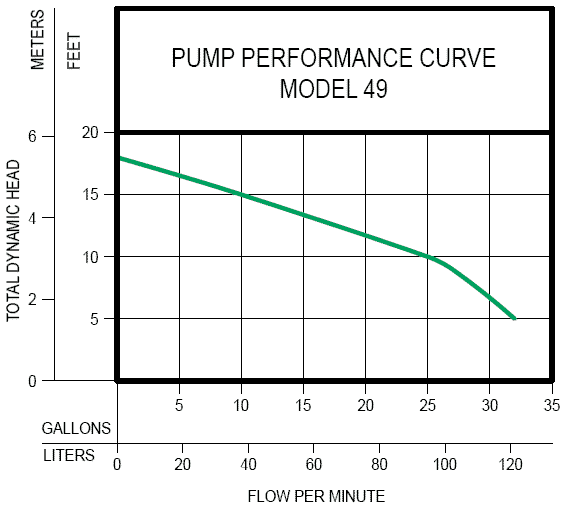

  • View the Model 49 performance curve

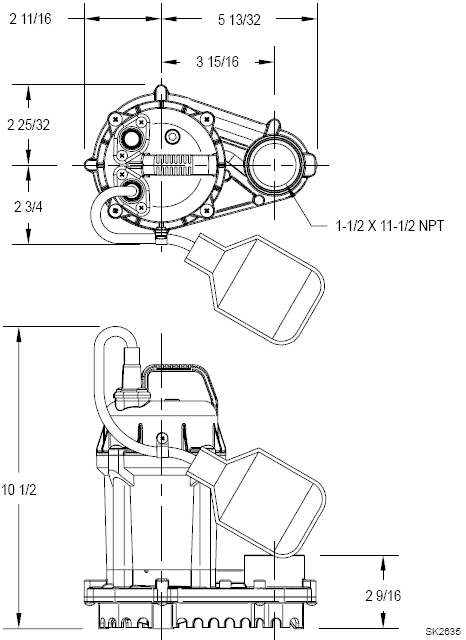

  • View the Model 49 pump diagram
Model # Description Shut Off Amps Volts Cord Price & Quantity
49-0005 Water Ridd'r III Automatic pump 18' 3.8 115V 10' $256.52 Enter a quantity and
49-0006 Water Ridd'r III Automatic pump 18' 3.8 115V 20' $270.84 Enter a quantity and
10-2421 Optional pump stand $23.76 Enter a quantity and

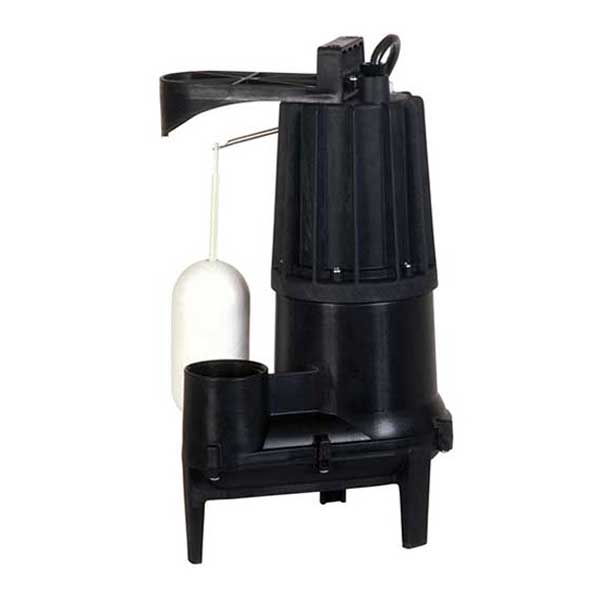

Zoeller Aqua Mate Submersible De-Watering Pumps

Automatic
These Aqua Mate sump pumps feature:
  • Quality pump works well for sewage/effluent and dewatering purposes
  • Passes 2" inch spherical solids
  • 2" NPT discharge
  • Non-clogging vortex impeller
  • 115V single phase, 60 Hz, 4/10 HP, 5.5 Amps, 3400 RPM
  • Automatic reset thermal overload protection
  • Non-corrosive engineered plastic motor housing, pump housing, base, and impeller with all stainless steel screws, switch arm, and lower motor housing
  • 2-pole float operated mechanical switch & solid polypropylene float for automatic model
  • Maximum temperature for dewatering - 110°F (43°C)
  • On point: 13" off point: 5-3/4"

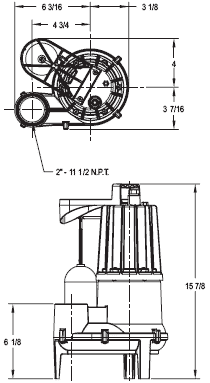

  • View dimensions

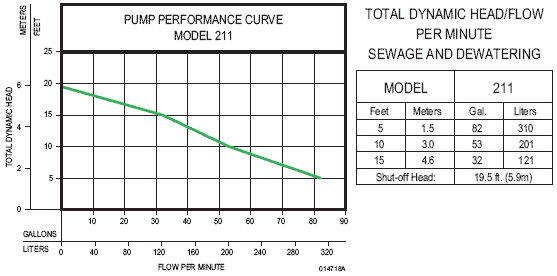

  • View the Model 211 performance curve & table
Model # Description Shut Off Amps Volts Cord Price & Quantity
211-0001 M211 Aqua Mate Automatic Dewatering Pump 19.5' 5.5 115V 10' $489.22 Enter a quantity and
211-0002 N211 Aqua Mate Non-Automatic Dewatering Pump 19.5' 5.5 115V 15' $447.86 Enter a quantity and

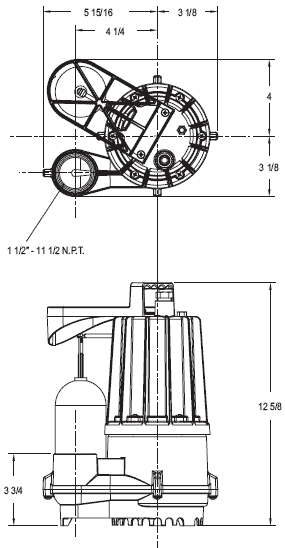

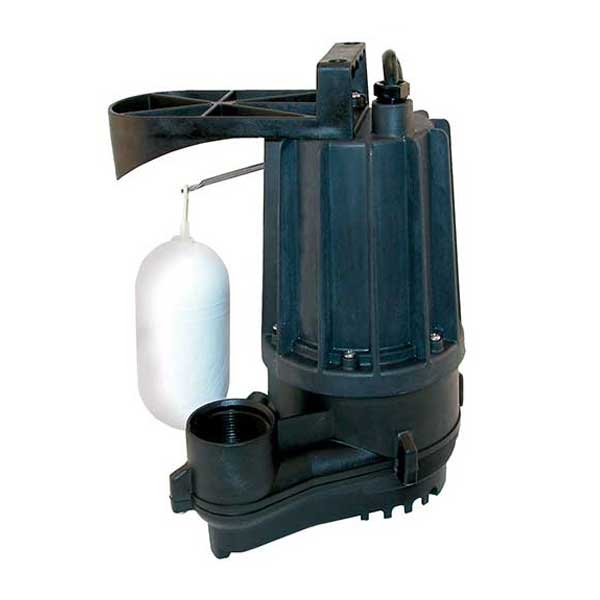

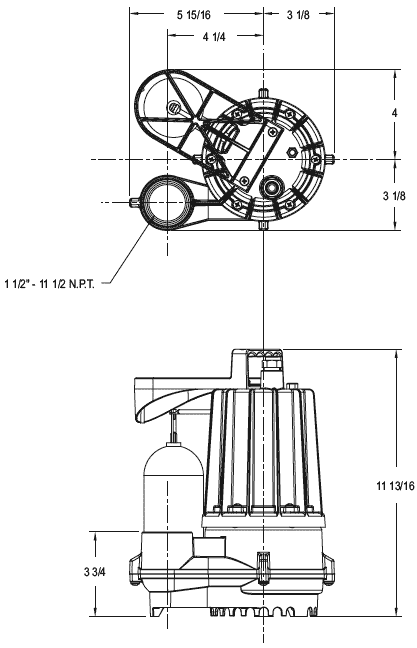

Zoeller Dewatering Submersible Sump Pumps

Automatic
These Submersible Sump Pumps Feature:
Model # Description Shut Off HP Amps Volts Cord Price & Quantity

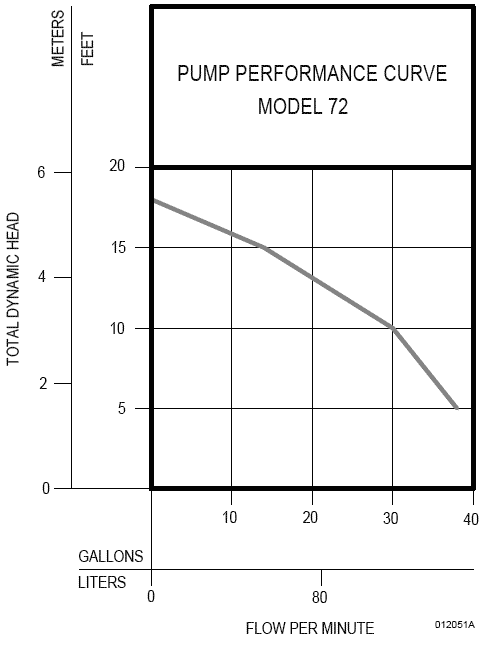

72-0001 Automatic M72 Thermoplastic Pump - Turns ON at 7-3/8" water level, turns OFF at 3-5/8" 18' 3/10 3.1 115V 9' $332.60 Enter a quantity and

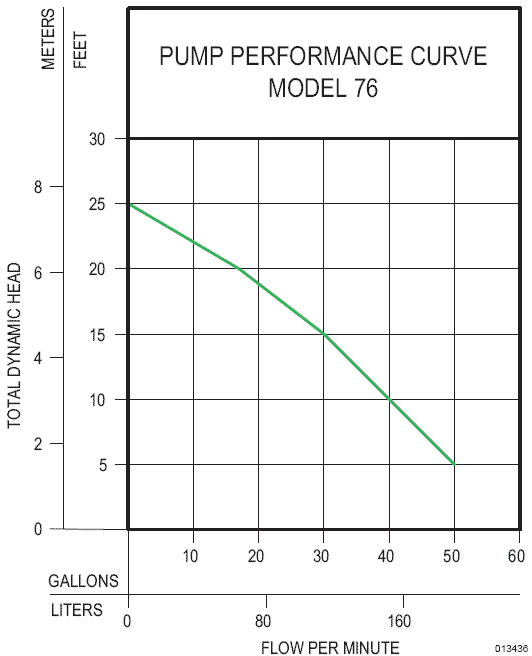

76-0001 Automatic M76 Thermoplastic Pump - Turns ON at 8-1/2" water level, turns OFF at 3-5/8" 25' 1/2 5 115V 9' $341.85 Enter a quantity and
10-2421 Optional pump stand $23.76 Enter a quantity and

Related Items & Accessories

Pump sizing guide
General Pump Sizing Guide Electronic pump controller
Pump Controllers
& Float Switches Zoeller high head submersible pump
High Head Submersible Pumps Zoeller high temperature submersible pump
High Temperature Submersible Pumps Zoeller effluent pump
Zoeller Effluent Pumps Effluent pump
Duramac Effluent Pumps Choosing the right pump
Choosing the Right Pump clear smart check
PVC Check Valves


Frequently Asked Questions

Q. "How does a VLFS (variable level float switch) work?"
A.Variable level float switches normally come with a piggyback plug that is plugged into an electrical outlet. The outlet should be a grounded receptacle equipped with a ground fault circuit interrupter. The pump plug is then plugged directly into the female part of the piggyback plug. The float end of the cord is normally attached to the pump discharge pipe, a short distance from the float itself, creating a tether to allow the float to move up or down with the water level. The tether length can be as short as 6" and as long as 36" as long as it can move freely up and down with the water level. When the float rises with the water level to the distance predetermined by the tether length, the float activates a switch internally allowing electricity to flow through the piggyback plug to the pump cord turning the pump on. When the water level decreases, as water is pumped out, the float lowers and shuts off the power to the pump when it reaches the bottom limit of the tether length. Since automatic pumps usually have their own integral float system, variable level float switches should only be used on non-automatic pumps.

Image showing how a float switch operates

Q. "What's the difference between an automatic and non-automatic pump?"
A. An automatic pump has a built in float switch that will turn on the pump automatically at a fixed water level. After the water is pumped out to certain water level (a preset level), the pump will turn itself off. A non-automatic pump has no integral switch, and so would turn on when plugged in, and off when unplugged. A non-automatic (manual) pump can be made to operate automatically by using a separate control like a piggyback float switch (variable level float switch) to provide a switch with flexibility for pumping range adjustments.

Q. "What is a manual pump with an Automatic Sensor?"
A. A manual pump with an automatic sensor is basically a pump that includes a built-in sensor. That sensor shuts the pump off when no water is detected. The pump should be placed on a hard surface in water before plugging it in and starting it. Once you start the pump, it will siphon water until there is no more water left. As soon as the the sensor detects the pump is no longer pumping water, it will automatically shut-off. The pump then turns on every 3 minutes after for 5 seconds pumping water out if necessary. The pump will automatically shut off again once all water has been pumped out.
If there will be no water to be pumped after the pump shuts off automatically the first time, then the pump should be unplugged. These pumps will operate continuously either partly or fully submerged. However, extended use in a partially or non-submerged situation can cause the pump to overheat since water helps to dissipate heat off the pump. The pump will shut itself off until the motor cools. Repeated overheating can cause damage to the pump. These pumps are not designed to be used with a float switch and are not to be left plugged in over long periods of time.

Q. "What is a vortex impeller and what does it do?"
A. A vortex impeller handles debris better than other impellers, therefore, helps to prevent the pump from clogging. Below is an example of a vortex impeller.
vortex impeller

Q. "What does the automatic reset thermal overload protection do?"
A. If the pump gets too hot the thermal overload protection will turn it off until the pump cools down (to prevent damage to the motor). The pump turns back on after it has cooled down enough. This backup protection feature is useful if some debris causes the pump to overheat.

Q. "What does it mean by 'dewatering'?"
A. The pumps are called dewatering pumps because they are made to remove water and pump it somewhere else.

Q. "What's the advantage of a double seal over a single seal pump?"
A. The double seal pumps have an extra internal seal to provide extra added protection to the motor in case the primary seal should ever fail. The extra seal also improves the bearing lubrication helping to eliminate bearing and seal damage from accidental dry runs.

Q. "Why is it called a submersible pump?"
A. These pumps are designed to be placed directly in the water. They draw the water up from the bottom of the pump.

Q. "What does 'effluent' mean?"
A. Effluent is the term normally used in the dewatering industry to mean any waste material in a liquid form.


Customer Testimonials

"Recently purchased same item (Zoeller #72-0001) from you. It worked so well that I am buying a second one. It was a great product at a fair price. It helped me to solve a longstanding drainage problem I had been experiencing."
- Garvis Toler, Burke, Virginia 22015

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us so we will never give, share or sell contact information or e-mail addresses to anyone!
