Mount Vernon Series Toilet Repair Parts

by Gerber

We know it can be difficult to find parts for older toilets like the Gerber Mount Vernon toilet. So we've made it easy to find the parts you need - they're all right here! Whether you're looking for a new gasket, need a flapper, or want to replace your entire fill or flush valve, we've got everything you need to fix up your old Mt. Vernon toilet and get it running like new again.
Gerber Mt. Vernon series toiletTanks #28-290, 28-292, & 28-295

Replacement Parts for Gerber Mt. Vernon Toilets
Two Piece Models - Tanks #28-290, 28-292 & 28-295

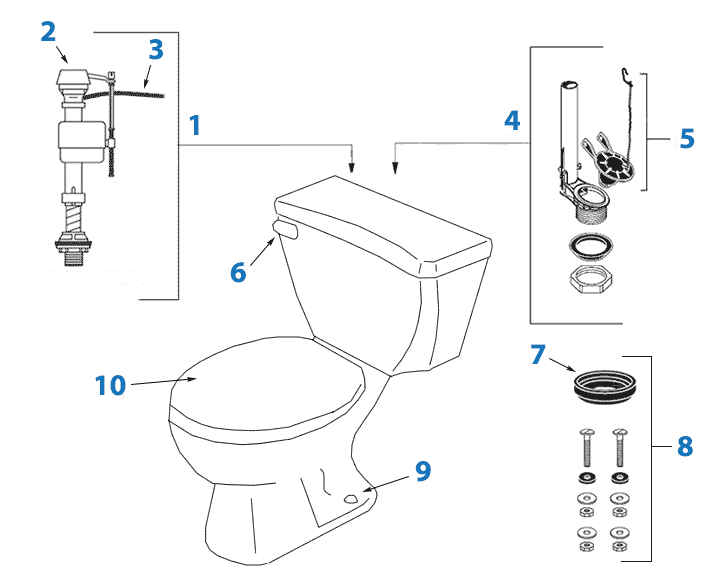

Parts diagram for Gerber Mt. Vernon toilets - tank numbers 28-290, 28-292, and 28-295
Item # Part # Description Price & Quantity
1 99-300 Fill Valve $25.06
2 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 WF-TUBE Refill Tube $1.71 Enter a quantity and

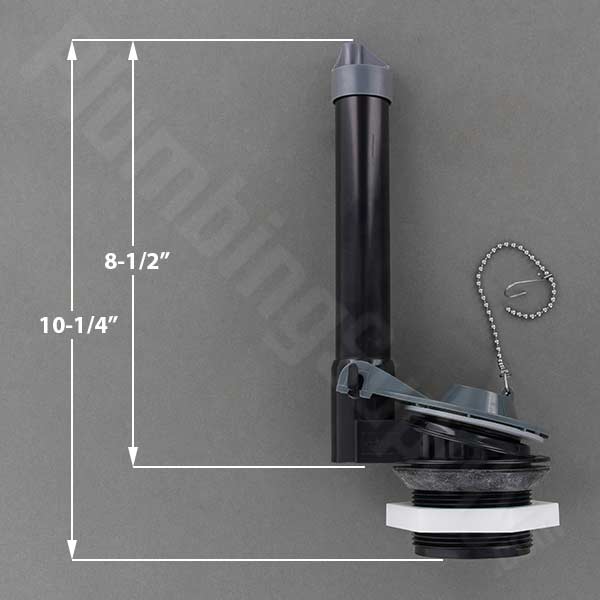

4 99-655 OEM Flush Valve - includes flapper and chain Discontinued

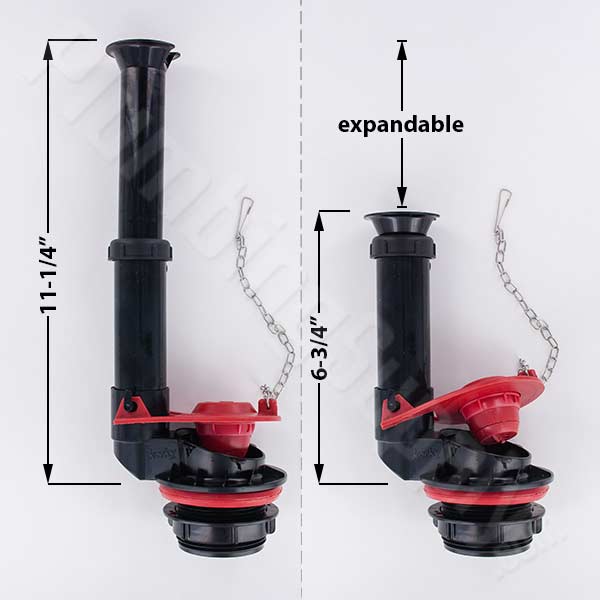

4020 Suitable Replacement Adjustable Flush Valve - includes flapper and chain $10.97
5 99-644 Flapper with Chain $8.28
6 99-585 Left Front Mount Toilet Tank Lever - Chrome $10.44
99-585-RH RIGHT Front Mount Toilet Tank Lever - Chrome $10.45

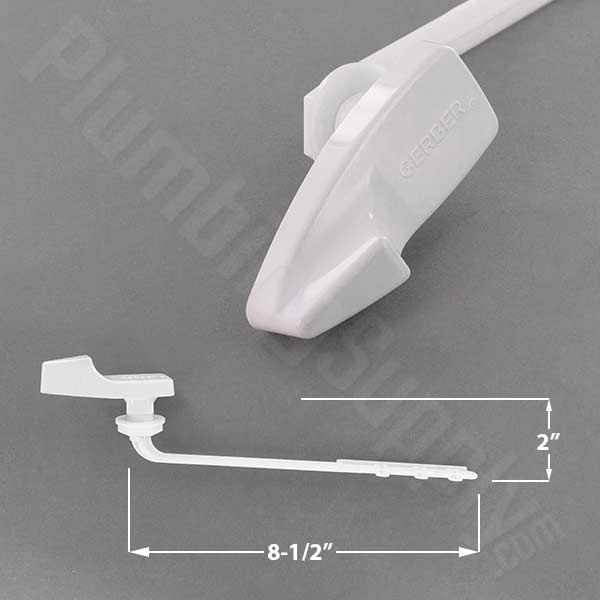

99-586 Left Front Mount Toilet Tank Lever - White $10.69
7 99-582 Tank Gasket ONLY - Discontinued Replaced with
99-537 below
8 99-537 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $11.78
9 "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $2.99 Enter a quantity and
10 200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Related Items & Information

Frequently Asked Questions

Q. "How can I find the model number of my Gerber toilet?"
A. Look inside your tank. Always exercise caution when removing the tank lid, as it is fragile and can be easily broken if stepped on or dropped. Look inside the tank starting with the back wall - for non-pressure assist models, the model number will be painted just above the waterline (example below left). For pressure assist tanks, the number will be closer to the top of the tank (example below right). Please note that due to safety concerns with pressure assist toilets, we choose not to offer parts for these models.

How to find your Gerber toilet model number

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
