Logan Square Series Toilet Repair Parts
by Gerber

The traditional style of the Logan Square toilet is ideal for Victorian homes and other classic design styles. Keep your Gerber Logan Square toilet in excellent condition and avoid leaks with quality replacement parts.

Replacement Parts for Gerber Logan Square Toilets
Two-Piece Models - Tanks # 28-530 & 28-535

Parts diagram for Gerber Logan Square toilets - tank numbers 28-530 and 28-535
Item # Part # Description Price & Quantity
1 99-300 Fill Valve $25.06 Enter a quantity and
2 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 218 Refill Tube & Angle Adapter $4.67 Enter a quantity and

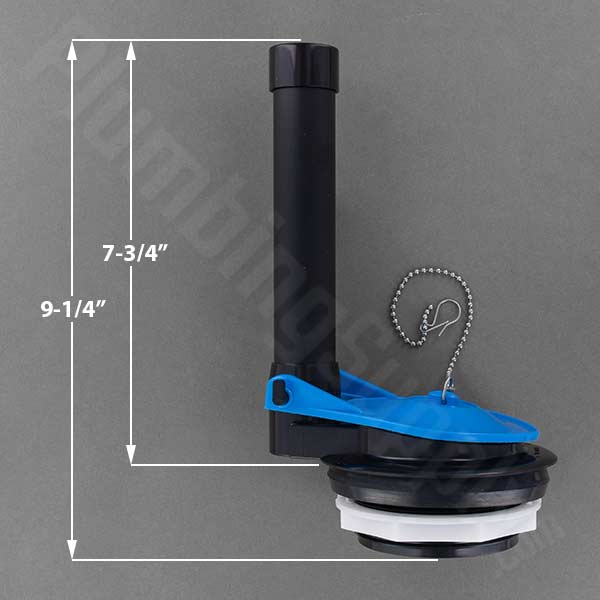

4 99-780 Flush Valve - includes flapper and chain $18.27 Enter a quantity and
5 99-788 Flapper with Chain $10.37 Enter a quantity and

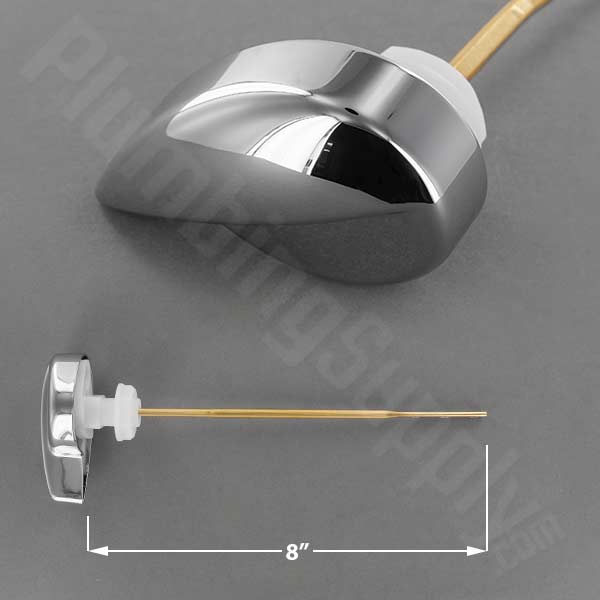

6 99-685 Side Mount Toilet Tank Lever - Chrome $26.03
99-685WH Side Mount Toilet Tank Lever - White $26.09

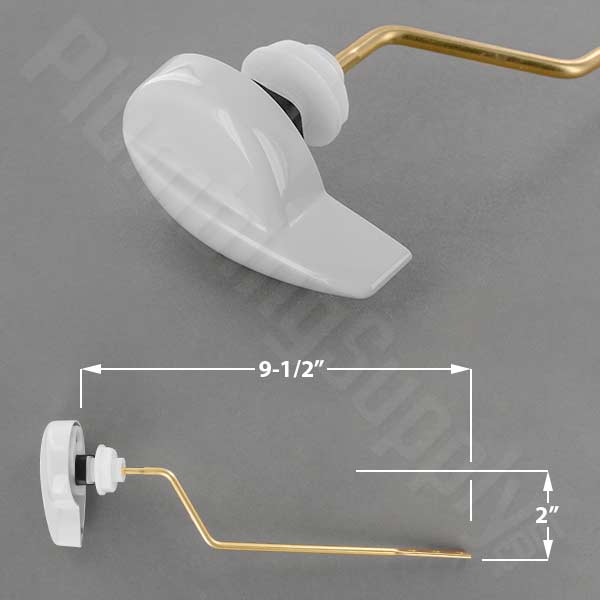

99-659 Side Mount Toilet Tank Lever - White $29.85 Enter a quantity and
7 99-660 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $12.80 Enter a quantity and
8 200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 "Will Fit" Toilet Bolt Caps (2) - White (view more color options) $2.99 Enter a quantity and

Replacement Parts for Gerber Logan Square High Efficiency Toilets
Two-Piece Models - Tanks # HE-28-530 & HE-28-535

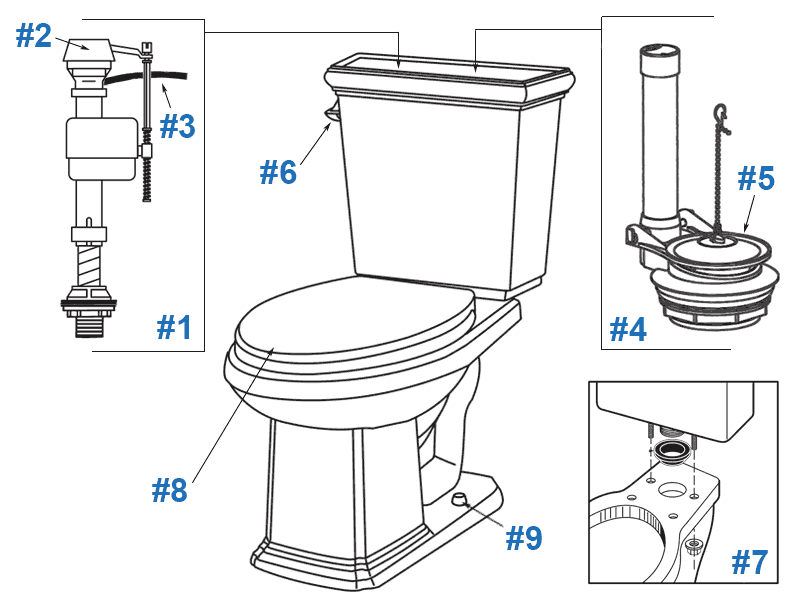

Parts diagram for Gerber Logan Square high efficiency toilets - tank numbers HE-28-530 and HE-28-535
Item # Part # Description Price & Quantity
1 99-300 Fill Valve $25.06 Enter a quantity and
2 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 218 Refill Tube & Angle Adapter $4.67 Enter a quantity and

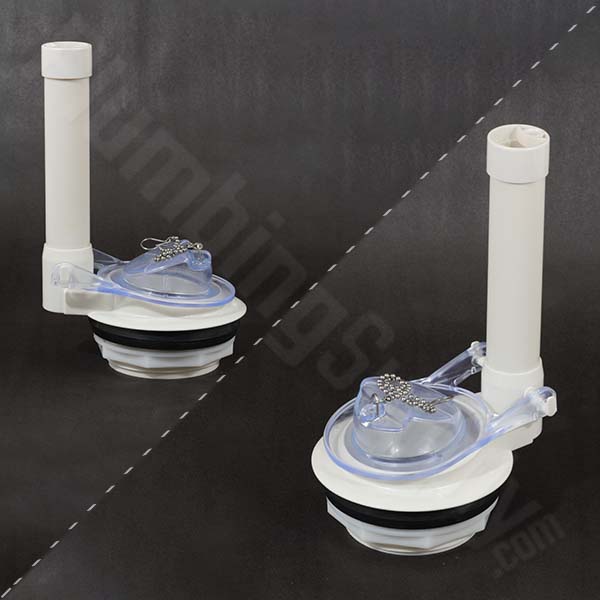

4 99-004 Flush Valve - includes flapper and chain - Replaced by GA712003 $14.90 Enter a quantity and
5 99-788 Flapper with Chain $10.37 Enter a quantity and
6 99-659 Side Mount Toilet Tank Lever - White $29.85 Enter a quantity and
7 99-660 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $12.80 Enter a quantity and
8 200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 "Will Fit" Toilet Bolt Caps (2) - White (view more color options) $2.99 Enter a quantity and

Replacement Parts for Gerber Logan Square Dual Flush Toilets
Two-Piece Models - Tank # DF-28-530

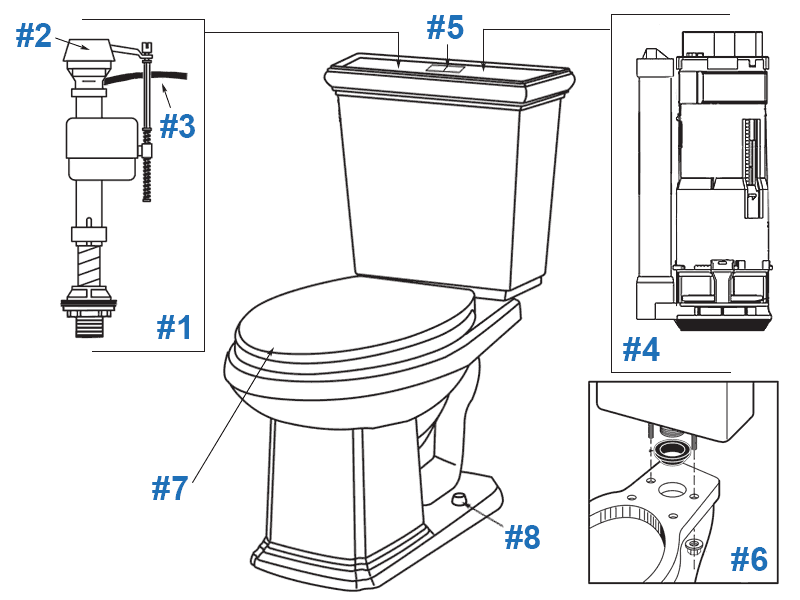

Parts diagram for Gerber Logan Square dual flush toilets - tank number DF-28-530
Item # Part # Description Price & Quantity
1 99-300 Fill Valve $25.06 Enter a quantity and
2 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 218 Refill Tube & Angle Adapter $4.67 Enter a quantity and

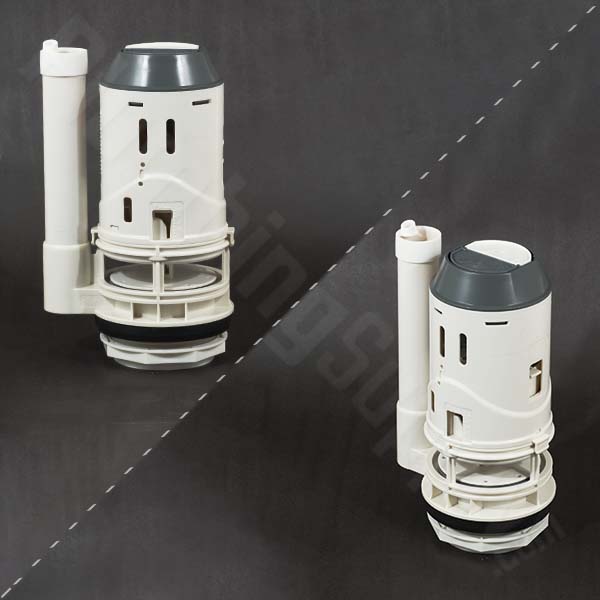

4 99-021 Dual Flush Valve $23.99 Enter a quantity and
5 99-022 Top Mount Push Button - Chrome $24.19 Enter a quantity and
6 99-660 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $12.80 Enter a quantity and
7 200E3 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56
1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
8 "Will Fit" Toilet Bolt Caps (2) - White (view more color options) $2.99 Enter a quantity and

Related Items & Information

Frequently Asked Questions

Q. "How can I find the model number of my Gerber toilet?"
A. Look inside your tank. Always exercise caution when removing the tank lid, as it is fragile and can be easily broken if stepped on or dropped. Look inside the tank starting with the back wall - for non-pressure assist models, the model number will be painted just above the waterline (example below left). For pressure assist tanks, the number will be closer to the top of the tank (example below right). Please note that due to safety concerns with pressure assist toilets, we choose not to offer parts for these models.

How to find your Gerber toilet model number

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
