Top Quality Water Filters

By American Plumber

Water filtration is easy to do without spending tons of money. You no longer need to continue purchasing plastic water bottles. Simply install a water filter system and get great tasting water at your tap for a fraction of the cost. We have been offering American Plumber water filtration products since we started. They manufacture a product that we believe in, and we will continue to offer these water filters as they are of excellent quality. American Plumber has filter housings and cartridges for nearly every water filtration need, at prices that will fit your budget - you're sure to find the products you need to help provide you and your family great tasting drinking water and save you money in the process.

Building your custom water filter system is as easy as 1, 2, 3...

  • Step 1: Choose your filter housing based on your application (i.e., undercounter, whole house, etc.)
  • Step 2: Choose your filter cartridge based on what you are trying to remove from your water
  • Step 3: Find all the other supplies you need for installation (tubing, flexes, fittings, etc.)



The filters featured on this page are for COLD water only. If you need a HOT water filter, please click here.


Why are the cartridges offered separately from the filter housings? Due to geographical differences in water quality and specific filtering applications required for quality drinking water, we offer a variety of filters for the same housing. This allows you the freedom to select the housing to fit your desired flow rate and to choose the best applicable cartridge to improve your home's water issues. We offer sediment filters for dirt, silt or sand problems and carbon filters to help remove chlorine and other taste and odor problems. We are sure you can find a solution customized to meet your filtration needs.


Already know what kind of replacement filter you need for your existing American Plumber system? Find it here!

Not sure what kind of filter you need? Check out our buying guide for more information

Slim Line Undercounter Filter Housings and Cartridges

w385-pr filter housing
These slimline housings feature:
  • 3/8" NPT inlet/outlet slim-line cold water housing
  • Includes bracket & O-ring
  • Recommended for under counter use
  • For cold water use ONLY
  • Variety of filter cartridges are available below
  • Overall dimensions: 4-1/2" wide x 7" length (short/compact housing)
  • Designed for 4-7/8" length filter cartridges (sold separately below)

W385-PR Slim-Line 7" Filter Housing = $16.42

Cartridges for the Slim-Line 7" Housing

Filter
Cartridge
Micron
Rating
Material & Size Reduces (Purpose) Max GPM Price & Quantity

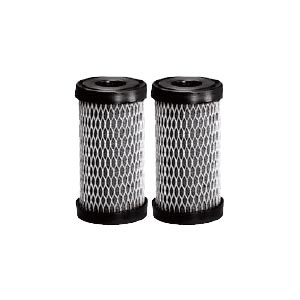

W5CIP478 5 Carbon Impregnated Cellulose
2-1/2" diameter x 4-7/8" length
Taste, odor, chlorine, sediment 2.0 $13.89
Sold in pairs
Enter a quantity and

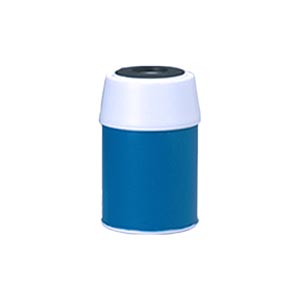

WGC478 20 Granular Activated Carbon
2-7/8" diameter x 4-7/8" length
Taste, odor, chlorine 1.0 $10.69
Sold individually
Enter a quantity and

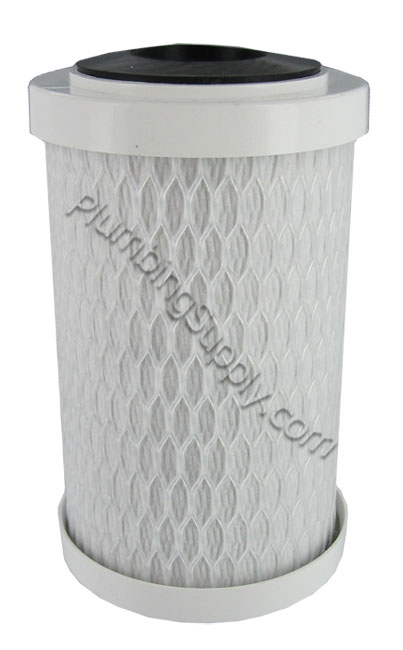

W.5CB478 0.5 Carbon Briquette
2-7/8" diameter x 4-7/8" length
Taste, odor, chlorine 0.5 $16.29
Sold individually
Enter a quantity and

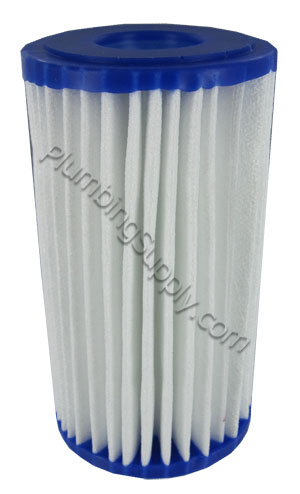

W30PE478 30 Pleated Polypropylene
2-5/8" diameter x 4-7/8" length
Sediment (dirt, sand, silt) 1.0 $8.48
Sold in pairs
Enter a quantity and
W5P478 5 Spun Polypropylene
2-3/8" diameter x 4-7/8" length
Sediment (dirt, sand, silt) 1.0 $4.59
Sold individually
Enter a quantity and

Accessories for the Slim-Line 7" Housing

Model Description Price & Quantity

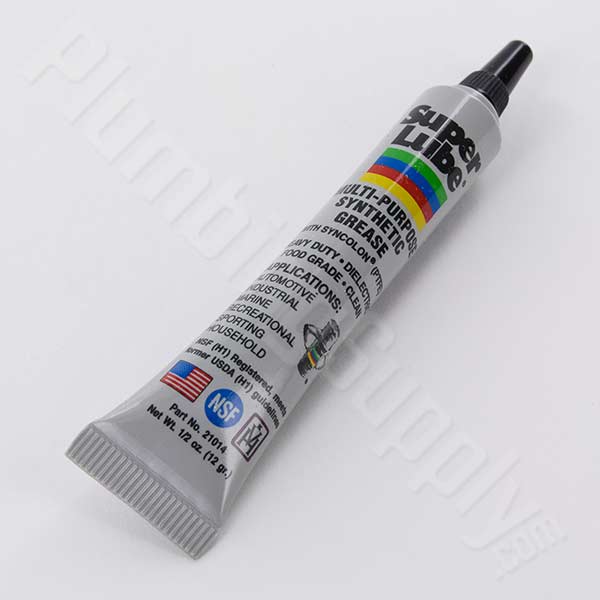

SLUBE Super Lube - for potable/drinking water, non-toxic lube for o-rings - 1/2 ounce $3.49 Enter a quantity and

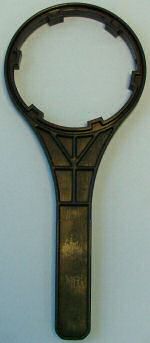

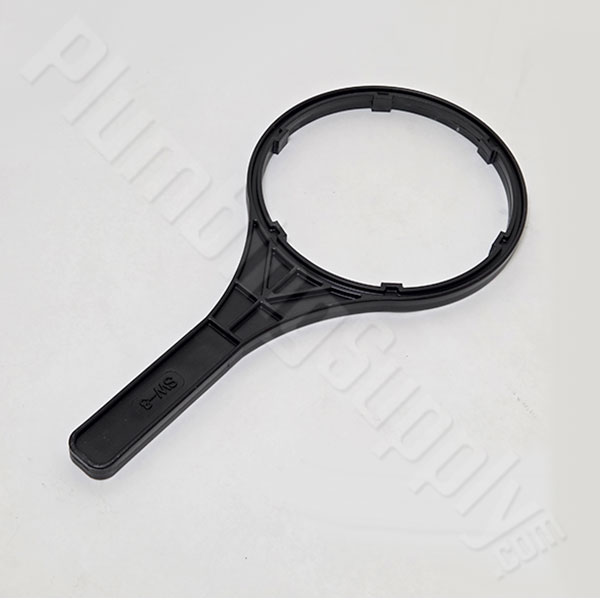

WW38 Spanner Wrench for 3/8" Housings $5.58 Enter a quantity and
Installation Accessories

Standard 3/8" Undercounter Filter Housings & Cartridges

If you're tired of the taste of your city water, and don't want to deal with monthly deliveries and bills, then installing an undercounter filter system is one of the best ways to get clean, fresh tasting water. Whether you need to filter out a bit of sediment, or simply reduce the chlorine taste and odor in your tap water, select an appropriate cartridge, and you're on your way! Simply install between your incoming cold line and the kitchen faucet and you have filtered water for cooking, making coffee, or simply drinking. As an added bonus, you don't have to worry about lugging heavy bottles or cases of water around, and disposing of the bottles afterwards.

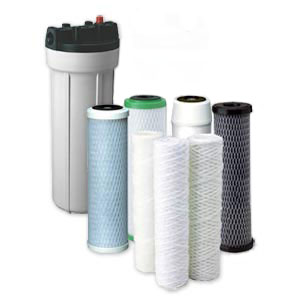

examples of some standard housings
These standard filter housings feature:
  • Typical under counter filter style is easy to install
  • For cold water filtration only
  • 3/8" NPT inlet and outlet
  • Housings include an o-ring
  • Mounting bracket offered separately, unless noted otherwise
  • Operating temperature 40-100°F
  • Need faster flow rates? Try the jumbo style

Undercounter 3/8" Filter Housings

Model Description Dimensions Price & Quantity

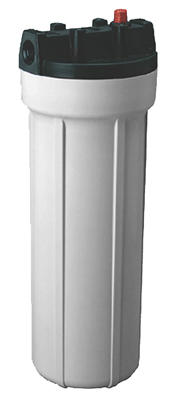

W38-PR 3/8" NPT Inlet/Outlet Filter Housing with Metal Mounting Bracket 4-1/2" x 12" $20.59 Enter a quantity and
W38-PRB 3/8" NPT Inlet/Outlet Filter Housing with Integral Mounting Bracket 4-1/2" x 12" $23.07 Enter a quantity and

Cartridges for 3/8" Housings
fit both housings shown directly above

Also fit American Plumber WVC34 and Ametek's PVH and PS series housings
Filter Cartridge Micron
Rating
Material Reduces (Purpose) Max GPM Price & Quantity

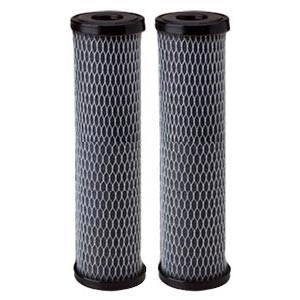

W5CIP 5 Carbon Impregnated Cellulose
2-5/8" diameter x 9-7/8" length
Sediment, taste, odor, chlorine 5.0 $17.29
Sold in pairs
Enter a quantity and
CFB-PB10 0.5 Powder Activated Carbon
with absorbent media
2-7/8" diameter x 9-7/8" length
Chlorine, taste, odor up to 5,000 gallons, Cryptosporidium and Giardia cysts, (lead up to 2,000 gallons) 1.0 $24.95
Sold individually
Enter a quantity and

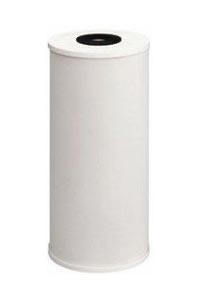

WLC-R 0.5 Carbon Briquette
2-7/8" diameter x 9-7/8" length
Chlorine, taste, odor, Cryptosporidium and Giardia cysts, lead, and some VOC's 0.6 $27.79
Sold individually
Enter a quantity and

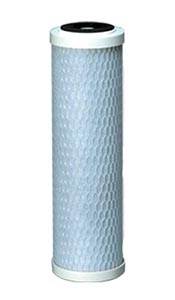

W.5CB
(Old CBC-10)
0.5 Activated Carbon Briquette
2-7/8" diameter x 9-7/8" length
Taste, odor 1.0 $19.57
Sold individually
Enter a quantity and
WCC
(Old CC-10)
20 Activated Carbon
2-7/8" diameter x 9-7/8" length
Taste, odor 1.0 $14.49
Sold individually
Enter a quantity and

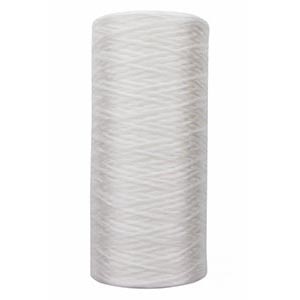

W5P
(Old #P5)
5 Spun Polypropylene
2-3/8" diameter x 9-7/8" length
Sediment 10 $11.89
Sold in pairs
Enter a quantity and

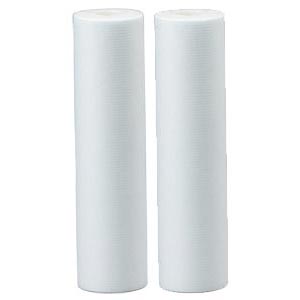

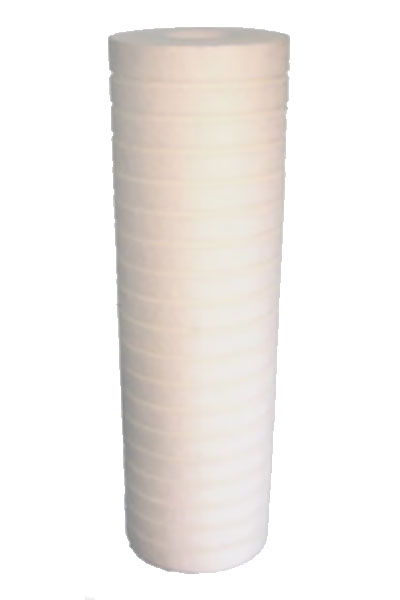

WPD-110
(Old #W5PB)
5 Grooved Polypropylene
2-3/8" diameter x 9-7/8" length
Sediment 10 $10.69
Sold in pairs
Enter a quantity and

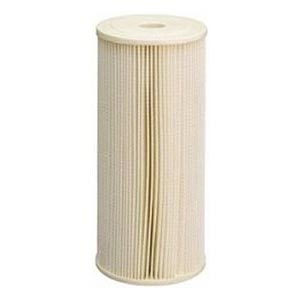

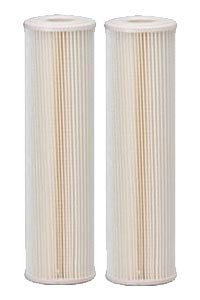

W5CP 5 Pleated Polyester
2-5/8" diameter x 9-7/8" length
Sediment 10 $14.97
Sold in pairs
Enter a quantity and

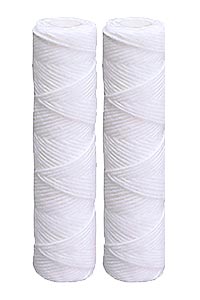

W5W
(Old CWF)
5 Polypropylene
2-1/4" diameter x 9-7/8" length
Sediment 7.0 $8.33
Sold in pairs
Enter a quantity and

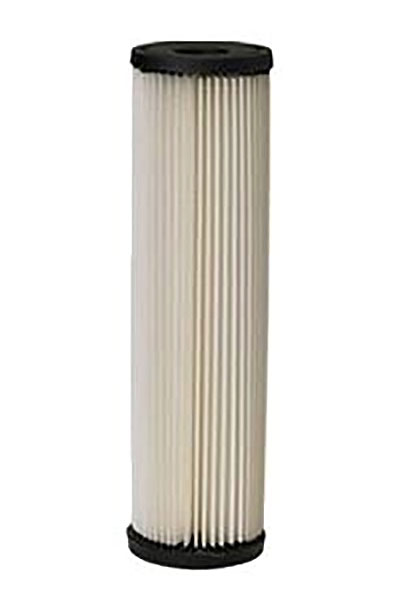

W20CLA 20 Pleated cellulose
2-5/8" diameter x 9-7/8" length
Sediment 12 $8.89
Sold in pairs
Enter a quantity and

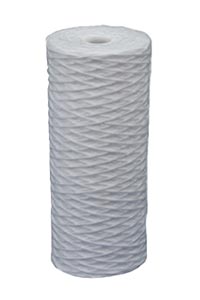

WPD-25
(Old W25P/R25B)
25 Grooved Polypropylene
2-3/8" diameter x 9-7/8" length
Sediment 10 $12.07
Sold in pairs
Enter a quantity and

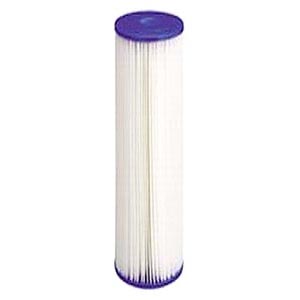

W30PE
(Old R30)
30 Pleated polyester
2-5/8" diameter x 9-7/8" length
Sediment 12 $15.84
Sold in pairs
Enter a quantity and
W30W
(Old CW-MF)
30 Polypropylene
2-1/8" diameter x 9-7/8" length
Sediment 10 $7.94
Sold in pairs
Enter a quantity and

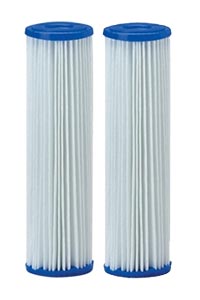

W50PE
(Old R50)
50 Pleated polyester
2-5/8" diameter x 9-7/8" length
Sediment 12 $14.42
Sold in pairs
Enter a quantity and

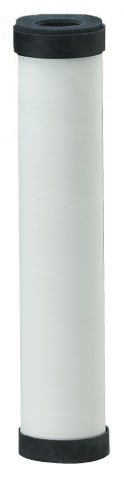

CRE-1 1 Ceramic - cleanable
9-7/8" length
Fine sediment .2 $35.93
Sold individually
Enter a quantity and

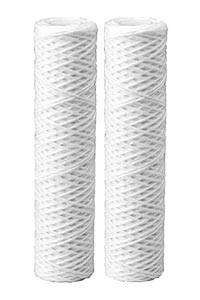

W50W
(Old WPD-50)
50 Polypropylene
2-1/4" diameter x 9-7/8" length
Sand, silt, scale, rust 10 $8.88
Sold in pairs
Enter a quantity and

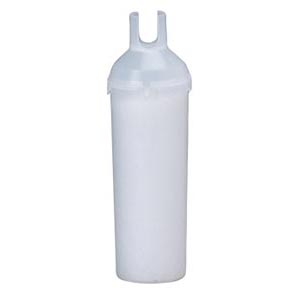

WPCC
(Old PCC-1)
- Food Grade Phosphate
2-5/8" diameter x 9-7/8" length
Scale inhibitor 5 $54.66
Sold individually
Enter a quantity and
The WLC-R cartridges are currently not for residential sale in California.

Enter a quantity of 2, 6, or more of the same cartridge for additional savings!
Pricing discounts will be shown in the shopping cart.

Accessories for 3/8" Housings

Model Description Price & Quantity
W38-OR Replacement O-Ring for 3/8" Housings $3.38 Enter a quantity and
SLUBE Super Lube - for potable/drinking water, non-toxic lube for o-rings - 1/2 ounce $3.49 Enter a quantity and
WW38 Spanner Wrench for 3/8" Housings $5.58 Enter a quantity and

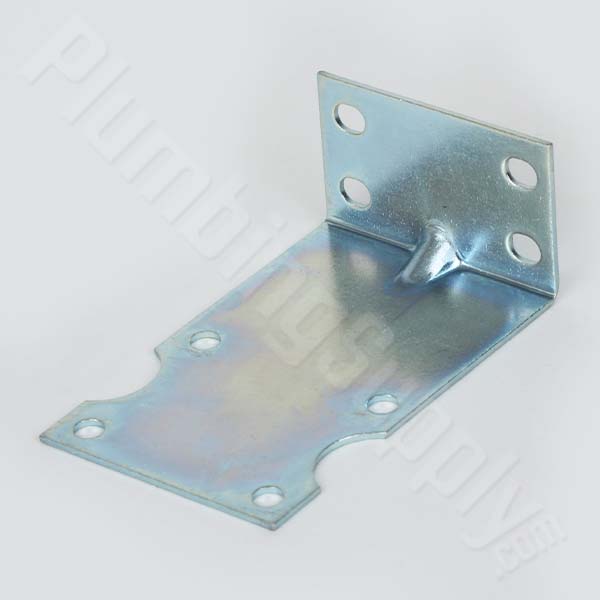

WMB38 Metal Mounting Bracket for 3/8" Housings $4.97 Enter a quantity and
Installation Accessories

Standard 3/4" Filter Housings & Cartridges

These water filters are an easy and economical way to provide clean, great tasting water. Do you know what issues you wish to address? Simple chlorine taste and odor? Try a carbon filter. Water tastes fine but a bit of dust is visible if you leave a glass sitting? Perhaps a pleated or string-wound polypropylene filter is more appropriate. Just keep in mind to match the filter to your particular water situation and you'll be happier with your water in no time.

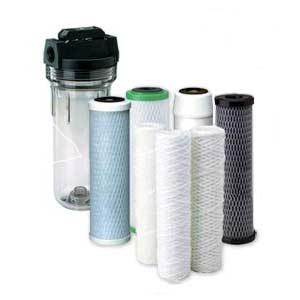

examples of some standard housings
These standard filter housings feature:
  • Typical under counter filter style is easy to install
  • Suitable for whole house filtration when using sediment filter cartridges
  • For cold water filtration only
  • 3/4" NPT inlet and outlet
  • Housings include an o-ring
  • Mounting bracket offered separately, unless noted otherwise
  • Operating temperature 40-100°F
  • Need faster flow rates? Try the jumbo style

Undercounter 3/4" Filter Housings

Model Description Dimensions Price & Quantity

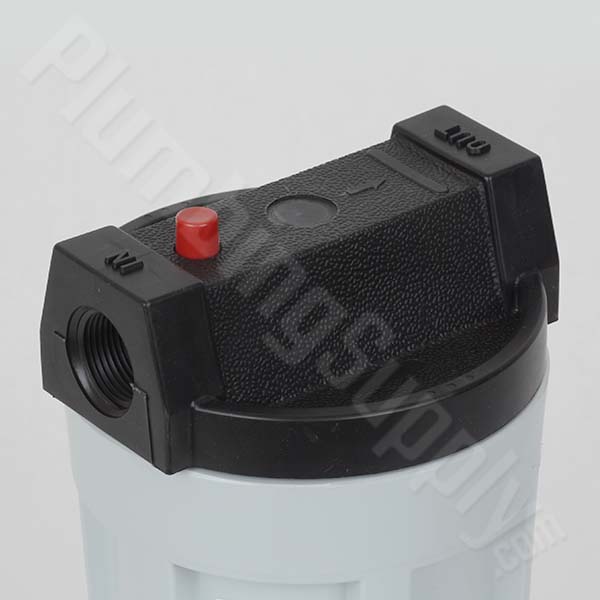

W34-PR 3/4" NPT Inlet/Outlet Filter Housing - Gray 5-1/8" x 12-1/4" $23.69 Enter a quantity and

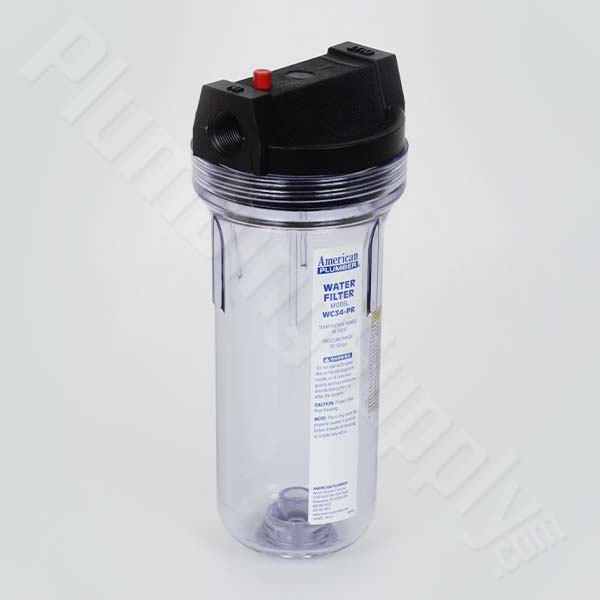

WC34-PR 3/4" NPT Inlet/Outlet Filter Housing - Clear 5-1/8" x 12-1/4" $32.30 Enter a quantity and

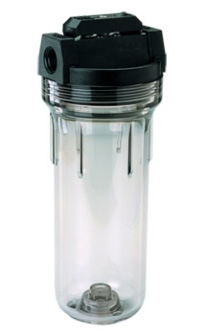

WVC-34 3/4" NPT Inlet/Outlet Filter Housing with Valve - Clear
valve in head closes both inlet/outlet port simultaneously
5-1/8" x 12-1/4" $43.09 Enter a quantity and
W34-PRM 3/4" NPT Inlet/Outlet Filter Housing - Gray
includes WPD-110 cartridge, WW34 wrench, and clean/dirty meter
5-3/4" x 15" $99.42 Enter a quantity and

Cartridges for 3/4" Housings
fit all housings shown directly above

Also fit Ametek's PVH and PS series and Culligan HF-360 housings
Filter Cartridge Micron
Rating
Material Reduces (Purpose) Max GPM Price & Quantity
W5CIP 5 Carbon Impregnated Cellulose
2-5/8" diameter x 9-7/8" length
Sediment, taste, odor, chlorine 5.0 $17.29
Sold in pairs
Enter a quantity and
CFB-PB10 0.5 Powder Activated Carbon
with absorbent media
2-7/8" diameter x 9-7/8" length
Chlorine, taste, odor up to 5,000 gallons, Cryptosporidium and Giardia cysts, (lead up to 2,000 gallons) 1.0 $24.95
Sold individually
Enter a quantity and
WLC-R 0.5 Carbon Briquette
2-7/8" diameter x 9-7/8" length
Chlorine, taste, odor, Cryptosporidium and Giardia cysts, lead, and some VOC's 0.6 $27.79
Sold individually
Enter a quantity and
W.5CB
(Old CBC-10)
0.5 Activated Carbon Briquette
2-7/8" diameter x 9-7/8" length
Taste, odor 1.0 $19.57
Sold individually
Enter a quantity and
WCC
(Old CC-10)
20 Activated Carbon
2-7/8" diameter x 9-7/8" length
Taste, odor 1.0 $14.49
Sold individually
Enter a quantity and
W5P
(Old #P5)
5 Spun Polypropylene
2-3/8" diameter x 9-7/8" length
Sediment 10 $11.89
Sold in pairs
Enter a quantity and
WPD-110
(Old #W5PB)
5 Grooved Polypropylene
2-3/8" diameter x 9-7/8" length
Sediment 10 $10.69
Sold in pairs
Enter a quantity and
W5CP 5 Pleated Polyester
2-5/8" diameter x 9-7/8" length
Sediment 10 $14.97
Sold in pairs
Enter a quantity and
W5W
(Old CWF)
5 Polypropylene
2-1/4" diameter x 9-7/8" length
Sediment 7.0 $8.33
Sold in pairs
Enter a quantity and

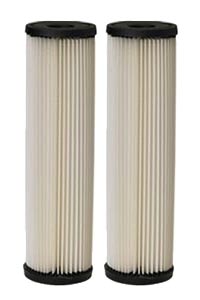

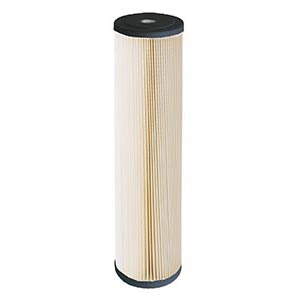

W20CLA 20 Pleated Cellulose
2-5/8" diameter x 9-7/8" length
Sediment 12 $8.89
Sold in pairs
Enter a quantity and
WPD-25
(Old W25P/R25B)
25 Grooved Polypropylene
2-3/8" diameter x 9-7/8" length
Sediment 10 $12.07
Sold in pairs
Enter a quantity and
W30PE
(Old R30)
30 Pleated Polyester
2-5/8" diameter x 9-7/8" length
Sediment 12 $15.84
Sold in pairs
Enter a quantity and
W30W
(Old CW-MF)
30 Polypropylene
2-1/8" diameter x 9-7/8" length
Sediment 10 $7.94
Sold in pairs
Enter a quantity and
W50PE
(Old R50)
50 Pleated Polyester
2-5/8" diameter x 9-7/8" length
Sediment 12 $14.42
Sold in pairs
Enter a quantity and
CRE-1 1 Ceramic - cleanable
9-7/8" length
Fine sediment .2 $35.93
Sold individually
Enter a quantity and

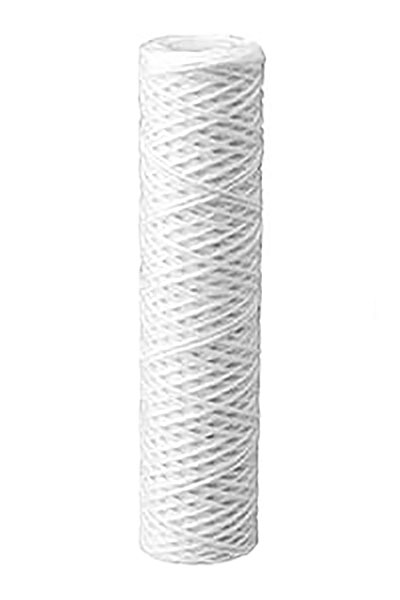

W50W
(Old WPD-50)
50 Polypropylene
2-1/4" diameter x 9-7/8" length
Sand, silt, scale, rust 10 $8.88
Sold in pairs
Enter a quantity and
WPCC
(Old PCC-1)
- Food Grade Phosphate
2-5/8" diameter x 9-7/8" length
Scale inhibitor 5 $54.66
Sold individually
Enter a quantity and
The WLC-R cartridges are currently not for residential sale in California.

Enter a quantity of 2, 6, or more of the same cartridge for additional savings!
Pricing discounts will be shown in the shopping cart.

Accessories for 3/4" Housings

Model Description Price & Quantity
W34-OR 3/4" Replacement O-Ring $3.37 Enter a quantity and
SLUBE Super Lube - for potable/drinking water, non-toxic lube for o-rings - 1/2 ounce $3.49 Enter a quantity and

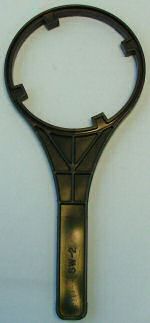

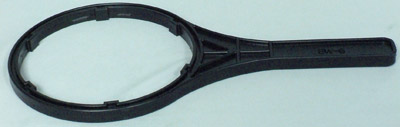

WW34 3/4" Spanner Wrench - fits WV34, WVC34, WH34, W34-PR & WC34-PR $5.59 Enter a quantity and

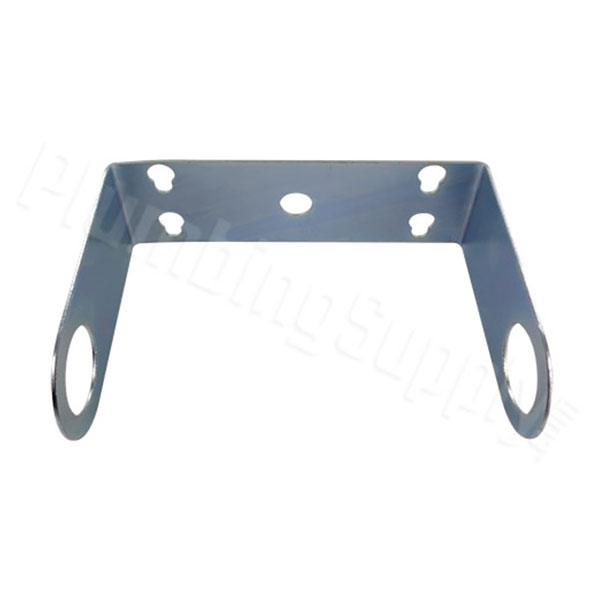

WMB34 3/4" Metal Mounting Bracket $6.65 Enter a quantity and
If your filter housing is more than five years old, please contact us for information on replacement accessories.

Installation Accessories

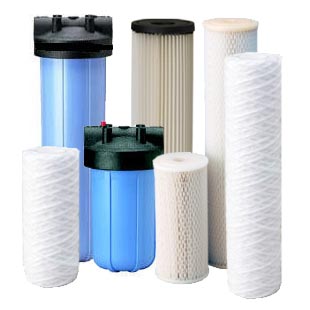

Jumbo Whole House Water Filter Housings & Cartridges

When you want to filter more than a single faucet, jumbo housings and cartridges are a terrific option. Jumbo sized housings have larger connections and use larger filters than the standard housing, which allows them to filter more water without having to change the filter any sooner. The 1-inch housings are perfect for most residential whole-house water filtration needs; simply select the cartridge to suit your water quality issue. Please note, these housings will not use any of the filter cartridges listed above; you will need the 4-1/2" wide jumbo filter cartridges listed below.

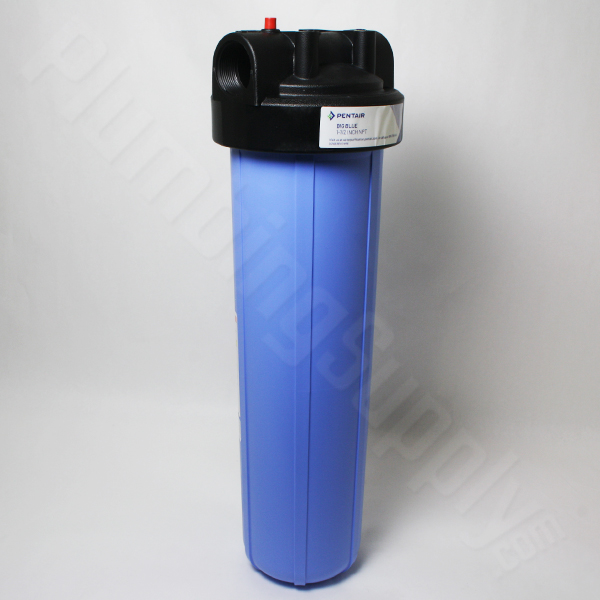

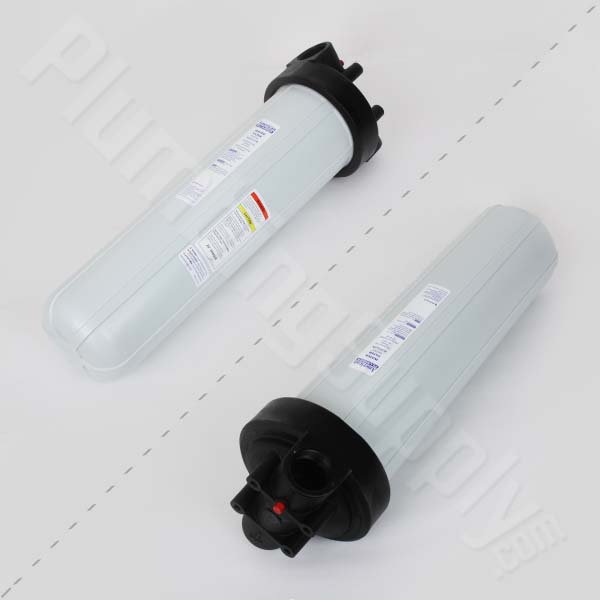

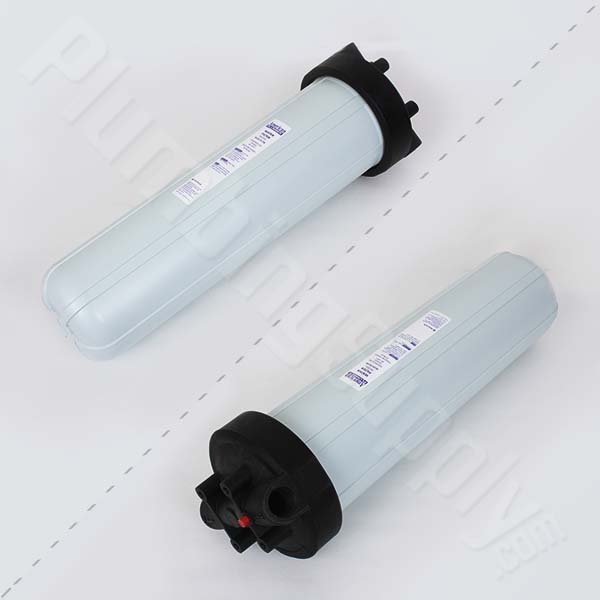

an example of the 1-inch jumbo  filter housings
These whole house filters feature:
  • Works great for most residential whole-house filtration needs
  • Compatible with large capacity jumbo filter cartridges, offered separately
  • Designed for cold water installations only
  • Rated for operating pressure within 30-100psi and temperatures within 40-100°F
  • Pressure relief button for ease of cartridge replacement
  • Includes o-ring

Jumbo Whole House Filter Housings

Model Description Dimensions Price & Quantity
W10-PR 1" NPT Inlet/Outlet Jumbo Filter Housing - Gray
comparable to the Culligan® HD-950
7-1/4" x 13-5/8" $62.52 Enter a quantity and
W10-BC 1" NPT Inlet/Outlet Jumbo Filter Housing - Clear

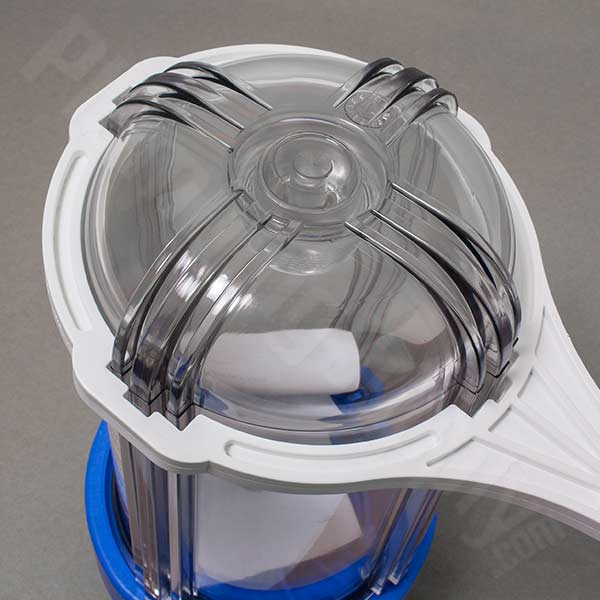

includes a unique spanner wrench
7-1/4" x 13-1/8" $91.24 Enter a quantity and
W15-PR 1-1/2" NPT Inlet/Outlet Jumbo Filter Housing - Gray 7-1/4" x 13-1/8" $64.75 Enter a quantity and

Cartridges for Jumbo Whole House Filter Housings
fit all housings shown directly above

If you wish to order two of the JUMBO Filter Cartridges for the 20" JUMBO housing, you will need a W20 filter coupling to connect them
Filter Cartridge Micron
Rating
Material Reduces (Purpose) Max GPM Price & Quantity

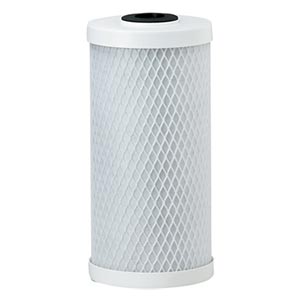

W.5CBHD 0.5 Activated Carbon Briquette
4-1/2" diameter x 9 7/8" length
Chlorine, taste, odor 4 $49.57 Enter a quantity and

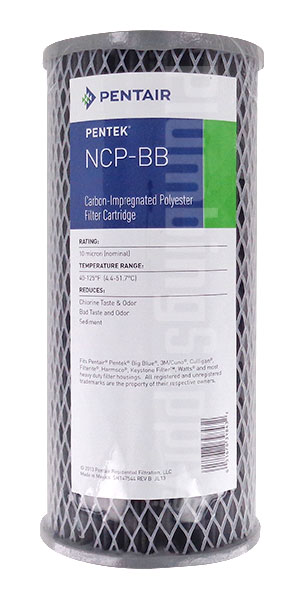

NCP-10BB 10 Pleated Carbon-Impregnated Polyester
4-1/2" diameter x 9 7/8" length
Chlorine, taste, odor 3 $25.49 Enter a quantity and

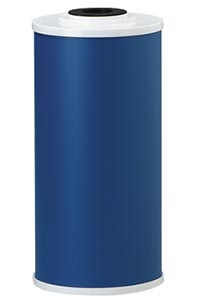

WGCHD
(Ametek GAC-BBS)
20 Granular Activated Carbon
4-1/2" diameter x 9 7/8" length
Chlorine, taste, odor 2 $35.98 Enter a quantity and
WRC25HD
(Ametek RFC-BBS)
25 Radial Flow Carbon
4-1/2" diameter x 9 7/8" length
Chlorine, taste, odor 3 $39.68 Enter a quantity and

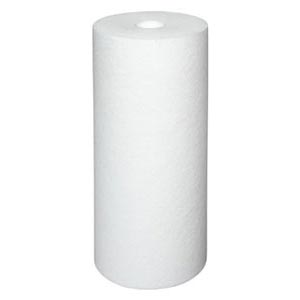

WDGD-5005 5 Dual Gradient Polypropylene
4-1/2" diameter x 9 7/8" length
Sediment 10 $15.97 Enter a quantity and
W5CPHD
(Ametek CP5-BBS)
5 Cellulose
4-1/2" diameter x 9 7/8" length
Sediment 20 $19.59 Enter a quantity and

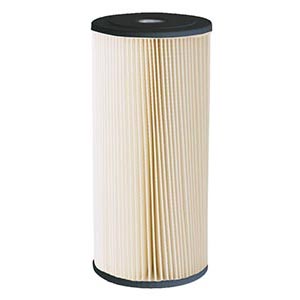

W20CLHD 20 Cellulose
4-1/2" diameter x 9 7/8" length
Sediment 20 $14.29 Enter a quantity and

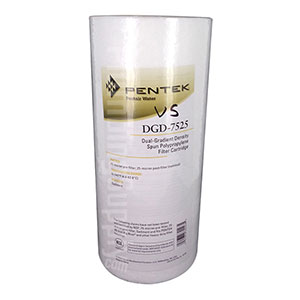

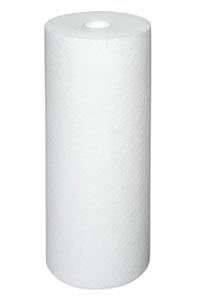

DGD-7525 25 Spun Polypropylene
4-1/2" diameter x 9 7/8" length
Sediment 10 $16.98 Enter a quantity and
W30PEHD
(Ametek R30-BBS)
30 Pleated Polyester
4-1/2" diameter x 9 7/8" length
Sediment 25 $22.29 Enter a quantity and

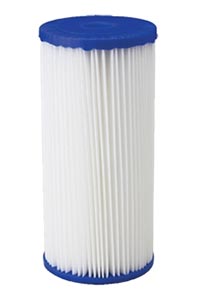

W50PEHD
(Ametek R50-BBS)
50 Pleated Polyester
4-1/2" diameter x 9 7/8" length
Sediment 25 $17.39 Enter a quantity and
Two separate gradient density layers enhance cartridge performance and increases the dirt holding capacity
Radial flow carbon filters are ideal for whole house and other high flow rate applications

Enter a quantity of 2, 6, or more of the same item for additional savings!
Pricing discounts will be shown in the shopping cart.

Accessories for Jumbo Housings

Model Description Price & Quantity
W10-OR Replacement O-Ring for Jumbo Housings $6.19 Enter a quantity and

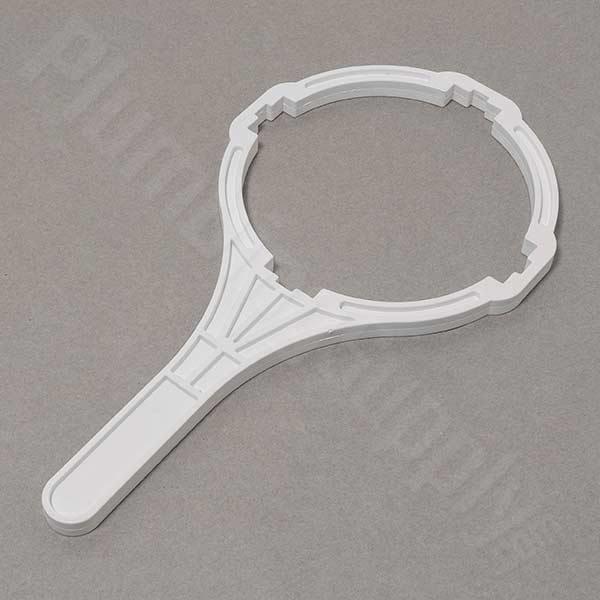

WWHD Spanner Wrench for Jumbo Housings $8.58 Enter a quantity and

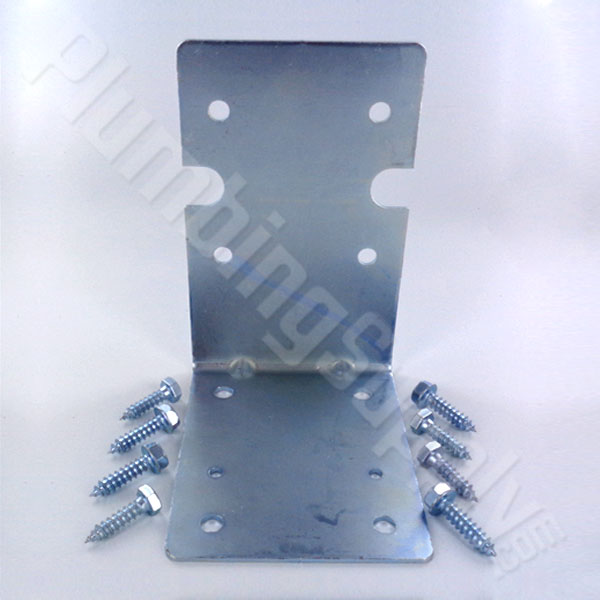

WMB20-ZN Metal Mounting Bracket for Jumbo Housings $14.39 Enter a quantity and
Installation Accessories

Extra Long Jumbo Water Filter Housings & Cartridges

A longer version of the jumbo filter cartridges above, these extra long filter housings are designed for whole house filtration; they hold the large capacity filters to handle the demand. Typically used to filter out sediment, these housings are great for a standalone unit, or as the first step in an entire system.

an example of the extra long jumbo filter housings
These extra long filters feature:
  • Large capacity housing for whole house and high flow applications
  • Excellent first step in any filtration system
  • Designed for cold water installations only
  • Housing accepts large capacity 4-1/2" diameter filter cartridges
  • Pressure relief button makes changing cartridges easier
  • Includes o-ring
These extra long filter housings can use 20" filter cartridges of any material or two of the 10" sediment filter cartridges listed above (not carbon) if connected with the reusable filter coupler

Extra Long Jumbo Whole House Filter Housings

Model Description Dimensions Price & Quantity
W20-10PR Extra Long 1" NPT Inlet/Outlet Jumbo Filter Housing 7-1/4" x 23-7/8" $86.30 Enter a quantity and
W20-15PR Extra Long 1-1/2" NPT Inlet/Outlet Jumbo Filter Housing 7-1/4" x 23-7/8" $93.85 Enter a quantity and

Cartridges for Extra Long Jumbo Whole House Housings
fit both housings shown directly above

Filter Cartridge Micron
Rating
Material Reduces (Purpose) Max GPM Price & Quantity
WRC25HD20
(Ametek RFC20-BBS)
25 Radial Flow Carbon
4-1/2" diameter x 20" length
Taste / Odor 6 $82.95 Enter a quantity and
W20CLHD20
(Ametek S1-20-BBS)
20 Pleated Cellulose
4-1/2" diameter x 20" length
Sediment 25 $28.89 Enter a quantity and
Radial flow carbon filters are ideal for whole house and other high flow rate applications

Accessories for Extra Long Jumbo Housings

Model Description Price & Quantity
W10-OR Replacement O-Ring for Extra Long Jumbo Housings $6.19 Enter a quantity and
SW-4 Spanner Wrench for Extra Long Jumbo Housings $8.58 Enter a quantity and
WMB20-ZN Metal Mounting Bracket for Extra Long Jumbo Housings $14.39 Enter a quantity and
W20 Filter Coupler for Extra Long Housings - Used to connect two 10" Jumbo Filter Cartridges $3.19 Enter a quantity and
Installation Accessories

Big Blue Heavy Duty 10" Filter Housings & Cartridges

Big Blue filter housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sump housings are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.

The high-flow polypropylene (HFPP) cap is available with 3/4", 1" or 1-1/2" NPT inlet and outlet ports. The 1-1/4" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly. Big Blue housings are compatible with a broad range of chemicals and are available with or without an optional pressure-relief button. They accept a wide variety of 4-1/2" diameter cartridges in either 10" or 20" lengths.

Big Blue Filter Housing
These heavy duty filters feature:
  • Heavy duty construction - durable polypropylene
  • Large capacity housing suitable for high flow applications
  • Can be used for a variety of residential & commercial applications
  • Optional pressure release valve
  • Max pressure: 100 psi
  • ANSI/NSF certified for material requirements
  • Mounting bracket sold separately

Big Blue 10" Heavy Duty Filter Housings

Model # Description Dimensions Price & Quantity
150469 3/4" NPT Big Blue 10" Filter Housing - with pressure release 7-1/4" x 13-1/8"   $24.95 Enter a quantity and
150239 1-1/2" NPT Big Blue 10" Filter Housing - with pressure release 7-1/4" x 13-1/8"   $64.58 Enter a quantity and
WMB20-ZN Mounting bracket $14.39 Enter a quantity and
  SUPER SALE! Limited to stock, while supplies last

Sediment Water Filters for Big Blue 10" Heavy Duty Housings
fit all housings shown directly above

Filter Cartridge Micron
Rating
Material Reduces (purpose) Max GPM Price & Quantity
W.5CBHD 0.5 Activated Carbon Briquette
4-1/2" diameter x 9 7/8" length
Chlorine, taste, odor 4 $49.57 Enter a quantity and
WP.5BB97P .05 Polypropylene String-Wound
4-1/2" diameter x 10" length
Extra fine sand, dirt, silt, scale,
rust & sediment particles
10 $21.84 Enter a quantity and
WP1BB97P 1 Polypropylene String-Wound
Extra fine sand, dirt, silt, scale,
rust, & sediment particles
15 $21.59 Enter a quantity and

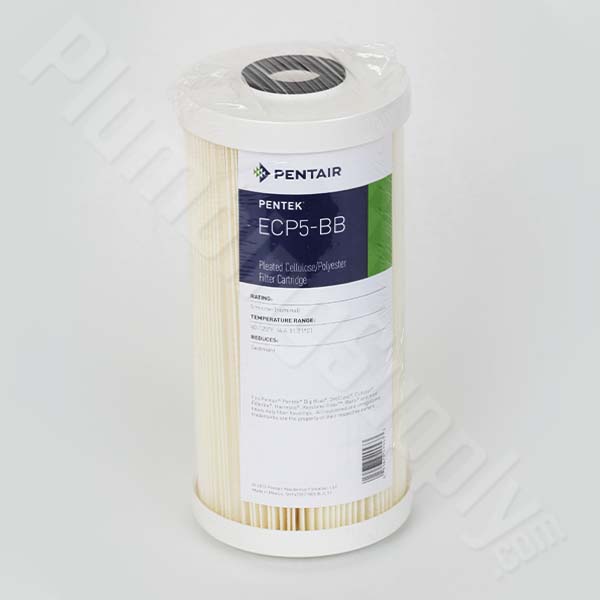

ECP5-BB 5 Pleated Cellulose-Polyester
4-1/2" diameter x 9-3/4" length
Extra fine sand, rust, dirt,
silt & scale particles
20 $19.59 Enter a quantity and

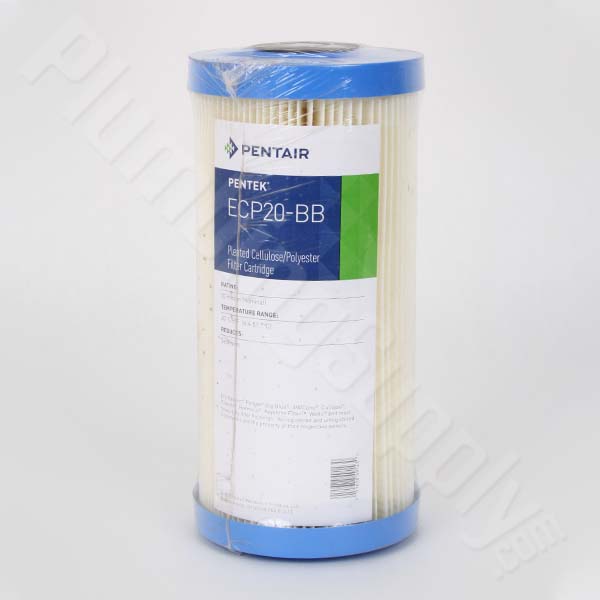

ECP20-BB 20 Pleated Cellulose-Polyester
4-1/2" diameter x 9-3/4" length
Extra fine sand, rust, dirt,
silt & scale particles
20 $14.71 Enter a quantity and
WP5BB97P 5 Polypropylene String-Wound
4-1/2" diameter x 10-1/8" length
Sand, dirt, silt, scale, rust, & sediment 15 $21.29 Enter a quantity and

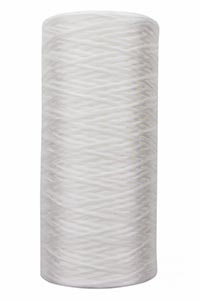

WP10BB97P 10 Polypropylene String-Wound
4-1/2" diameter x 10" length
Sand, dirt, silt, scale, rust, & Sediment 20 $20.49 Enter a quantity and
WP25BB97P 25 Polypropylene String-Wound
Sand, dirt, silt, scale, rust & sediment 20 $17.99 Enter a quantity and
DGD-7525 25 Dual-Gradient Polypropylene
Sand, dirt, silt, rust, scale particles 10 $16.98

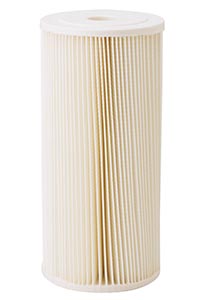

ECP1-BB 1 Pleated Cellulose-Polyester
Sediment 20 $16.93 Enter a quantity and
DGD-2501 1 Dual-Gradient Polypropylene
4-1/2" diameter x 9-7/8" length
Sediment 10 $18.57 Enter a quantity and

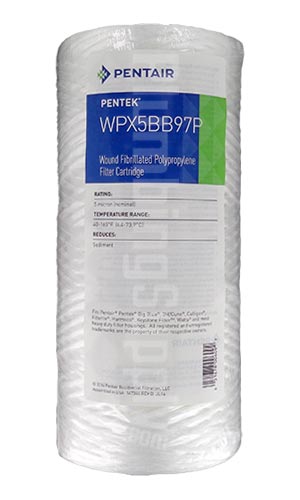

WPX5BB97P 5 Fibrillated Polypropylene String Wound
Sediment 10 $19.97 Enter a quantity and

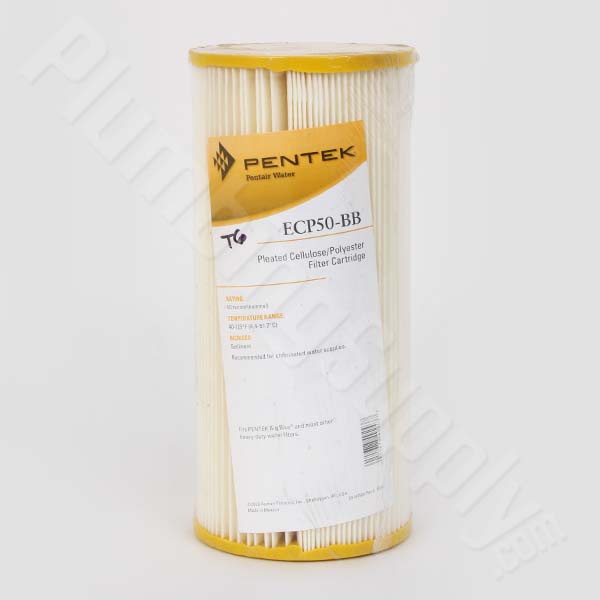

ECP50-BB 50 Pleated Cellulose-Polyester
4-3/8" diameter x 9-3/4" length
Sediment 20 $14.89 Enter a quantity and
Two separate gradient density layers enhance cartridge performance and increases the dirt holding capacity

Installation Accessories

Big Blue Heavy Duty 20" Filter Housings & Cartridges

Big Blue Filter Housing
These Heavy Duty Filter Housings Feature:
  • Heavy duty construction - durable Polypropylene
  • Ideal for residential, commercial, and industrial filtration where high-flow rates are required
  • Optional pressure release button
  • Max pressure: 90 psi
  • Max Temp: 100°F
  • ANSI/NSF certified for material requirements
  • Mounting bracket sold separately

Big Blue 20" Heavy Duty Filter Housings

Model # Description Dimensions Price & Quantity
150467 3/4" NPT Big Blue 20" Filter Housing - with pressure release 7-1/4" x 23-3/8"   $49.95 Enter a quantity and
150235 1-1/2" NPT Big Blue 20" Filter Housing - with pressure release 7-1/4" x 23-3/8"   $94.01 Enter a quantity and
WMB20-ZN Mounting bracket $14.39 Enter a quantity and
  SUPER SALE! Limited to stock, while supplies last

Sediment Water Filters for Big Blue 20" Heavy Duty Housings
fit both housings shown directly above

Filter Cartridge Micron
Rating
Material Reduces (purpose) Max GPM Price & Quantity

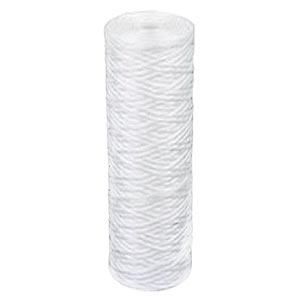

WP1BB20P 1 Polypropylene String-Wound
4-3/8" diameter x 20-1/4" length
Extra fine sand, dirt, silt, scale, rust, & sediment 30 $49.49 Enter a quantity and
WP25BB20P 25 Polypropylene String-Wound
4-1/2" diameter x 20-3/8" length
Sand, dirt, silt, scale, rust, & sediment 20 $47.19 Enter a quantity and

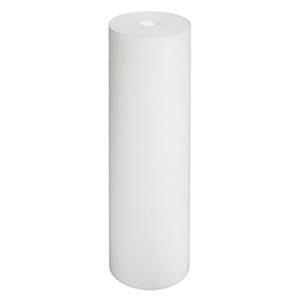

DGD-2501-20 25 Dual-Gradient Polypropylene
4-1/2" diameter x 20" length
Sand, dirt, silt, rust, scale 20 $29.40 Enter a quantity and
R30-20BB 30 Pleated Polyester - Reusable
4-1/2" diameter x 20" length
Sand, dirt, silt, rust, scale 20 $36.59 Enter a quantity and
DGD-5005-20 50/5 Dual-Gradient Polypropylene
4-1/2" diameter x 20" length
50 micron pre-filter, 5 micron post-filter
Sand, dirt, silt, rust, scale 20 $28.56 Enter a quantity and

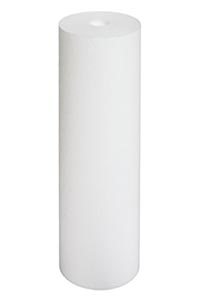

DGD-7525-20 75/25 Dual-Gradient Polypropylene
4-3/8" diameter x 20" length
75 micron pre-filter, 25 micron post-filter
Sand, dirt, silt, scale, rust & sediment 20 $32.58 Enter a quantity and

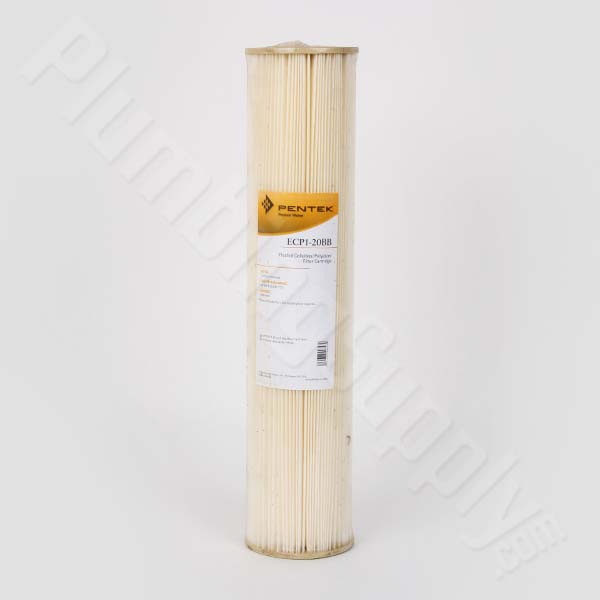

ECP1-20BB 1 Pleated Cellulose-Polyester
4-1/2" diameter x 20" length
Sediment 20 $29.93 Enter a quantity and

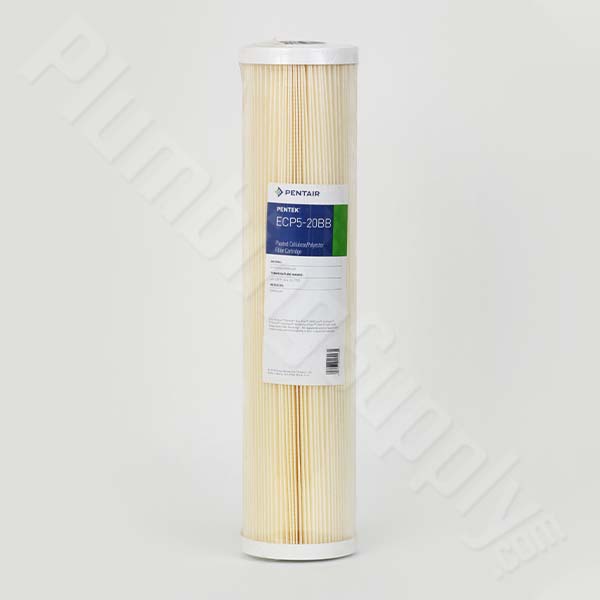

ECP5-20BB 5 Pleated Cellulose-Polyester
4-1/2" diameter x 20" length
Sediment 20 $29.71 Enter a quantity and

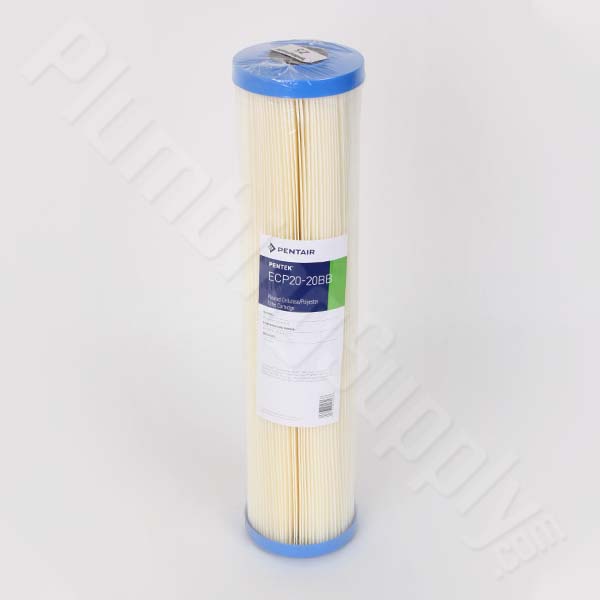

ECP20-20BB 20 Pleated Cellulose-Polyester
4-1/2" diameter x 20" length
Sediment 20 $28.53 Enter a quantity and
Two separate gradient density layers enhance cartridge performance and increases the dirt holding capacity

- OR - View Cart

Installation Accessories

Water Filters Related Items & Information



Frequently Asked Questions

Q. "How can I remove Giardia from my drinking water?"
A. Giardia (cryptosporidium, etc.) usually can be filtered out with a 1-micron or smaller filter.

Q. "What is a micron rating?"
A. The average size of the openings between pieces of the filter media are represented in microns. For example, a 40-micron filter has larger openings than a 5-micron filter. Consequently, the 40-micron filter element will let larger particles pass through the filter than the 5-micron element.

As a general rule, the smaller micron rating for a filter is better, but as with most everything, there is a trade-off. Flow capability usually drops off as the micron rating gets smaller. To overcome this, low micron-rating filters must have larger elements to keep from sacrificing precious flow.

You may want to consider sediment filtration such as the Lakos sediment filtration system to remove larger particles, then possibly install a whole house water filter to take out smaller particles.

Another option might be to install a dual stage undercounter filtration system, which uses two filters with different micron ratings. The higher micron rating filter helps remove the larger particles from the water and prevents the smaller micron rating filter from getting clogged which would result in a reduced flow.

Q. "Someone told me I should lube a replacement o-ring; is this true and why?"
A. O-rings, if not correctly lubed, can expand, and sometimes stick, to a filter housing, which can make it difficult (sometimes nearly impossible) to open the housing. To prevent this, simply prepare the replacement o-ring by applying enough silicone lubricant to give it a nice gloss all over before installing. Petroleum lubricants or faucet grease are not recommended as they typically cause o-rings to swell.

Q. "What is the best type of filter to remove chlorine from my water?"
A. Carbon filters are the most commonly used filter to remove chlorine from the water. The carbon media reduces the chlorine to chloride.

Q. "A year ago I bought an American Plumber WVC34 clear housing, your site stated at that time replacement cartridges 9 3/4" in length will fit the housing; but now the replacement cartridges listed on your page say they are 9 7/8" in length. Will 9 3/4" cartridges or 9 7/8" work in my WVC-34 housing?"
A. The American Plumber WVC-34 are designed to work with cartridges 9 3/4" or 9 7/8" in length. The specifications may have been changed to reflect the measurements stated by the manufacturer. Many companies refer to these cartridges as 10" length even though technically they can range between 9 3/4" and 9 7/8" in length. Sometimes it depends on how the manufacturer is measuring the cartridge, from end of cartridge to end of cartridge or from the washer on the end of the cartridge to the washer on the other end of the cartridge. The WVC34 housings will also work with a wide variety of cartridge widths ranging from 2 1/8" up to 3" in diameter.

Q. "Someone told me about adding a back washing system to my existing filter. Will this actually help?"
A. Backwashing filtering systems are available and are great for some applications (sediment filters, acid neutralizers, ion exchange systems, etc.). When used on a carbon system, it will remove the sediment buildup around the carbon, but does nothing to clean the actual carbon. Carbon absorbs chemicals like a sponge absorbs water. Once saturated, the carbon can no longer absorb any more chemicals and it must be disposed of. As of right now, we are not aware of any way in which the carbon can be cleaned and recycled.

Q. "My water has a high iron content (orange tint to water). How can I reduce this?"
A. We get more questions about iron than any other water problem. The method depends on how much iron is in your system and how fine the particles are. A test you can do yourself would be to fill a clear glass with water and let it sit for 15-20 minutes. If the iron settles to the bottom then a cartridge type filter (5 micron or smaller) should be able to remove the majority of the iron particles. If the particles remain suspended then a filter won't help.

For removal of very fine iron particles you will need either a water softener or an iron removal system. A water softener will remove up to 4ppm of iron, but if used this way the resin will need to be cleaned about once a month. If yours is higher than that then you will need an iron removal system with special media. Different media would be used for different mineral conditions. Sometimes aeration can be used. It's not necessarily better than ion resins, but you wouldn't need to regenerate the system with any chemicals. We highly recommend that you consult with a local expert before ordering any water treatment system. In many cases, for a family of two we recommend at least one cubic foot of Maz® medium to take the iron out. Maz® can be chlorinated intermittently or continuously without damage to the medium.

This must be back washed with some type of oxidizer. This can be hydrogen peroxide, chlorine, potassium permanganate, etc. (caution, some of these products can be hazardous in concentrated form). Of the above, hydrogen peroxide and potassium permanganate will not lose their properties as fast as most of them.

To avoid having to backwash, you could use Birm® media. However some say this is the weakest of all iron media and requires a pH of 7 or above, and there can be no presence of hydrogen sulfide. Also if you have a high iron content it might not be as effective as Maz®.

Note: We do not sell either Birm® or Maz® media. We recommend you contact your local water treatment company for advice on these products.

Q. "My water has been leaving Blue/Green stains. How can I filter this out?"
A. Green or blue stains are usually a result of a combination of copper pipe and acidic water. This needs to be treated with an acid neutralizer. We always recommend you have your water tested locally.

Q. Is there any reason not to use a clear filter body?"
A. In areas where sunlight is present, there is a potential for algae growth. Therefore we don't recommend it in those situations.

Q. "I have a lot of sand in my water. Will your sediment filters take out most of the sand?"
A. Yes, they will probably take the sand out but we want satisfied customers for the long haul. Most brands of sediment filters will take out sand but it clogs the filters very fast. We want to warn you that you would probably have to buy a LOT of sediment filters all of the time and constantly have to replace the filters. Ultimately it will hit you that you really should have a sand separator filter before a regular sediment filter. It is best to try to separate most of the sand out of your water before using a sediment filter (a stainless steel sand filter is the "best" way to go if you have sand and have somewhat aggressive or acidic water). Also please recognize that a sand filter will eliminate most of the sediment. For maximum sediment removal you should use both a sand separator and a sediment removal filter.

Q. "What is the best type of filter to remove fluorine?"
A. To remove fluorine, a catalyst carbon filter must be used. Catalyst carbon is a stronger carbon than what is normally used for chlorine removal and the cost is much more. We do not sell any catalyst carbon filters at this time.

Q. "Which filter is 'best' for me?"
A. If there were one 'best' then it would be easy. The myriad possibilities in water source and qualities, as well as personal preferences (and pocket books) as to what constitutes 'good' water, makes choosing a filter a very personal choice. Choosing the right filter begins with understanding which contaminants need to be removed from the water. Suspended particles, dissolved inorganics, dissolved organics, microorganisms, etc. each present somewhat different challenges.

Due to not knowing your particular local water conditions, as well as potential liabilities we do not "recommend" any one filter or filters. We like to warn people, do not use water filters on water that is microbiologically unsafe or unknown water quality without adequate disinfection before and after any brand of filter. If you aren't sure of the water quality (especially in the case of microbiological) then we highly recommend that you not assume that any of the filters that we offer can make your water safe. Most filters can not make your water safe from microbiological problems.

Q. "My pH is 3.0, my hardness is 43 grains, etc ... Can you tell me what I need?"
A. We sell top quality products for many water needs, however due to liability reasons, we will not recommend which system you need. Please note that the systems that we sell are very good at solving specific water problems. We can't say if it will solve your specific problem. If you know what you need we can sell it to you at a great price.

Q. "Does the monitor for the undercounter filter system run on AC or DC?"
A. The monitor is battery (9V DC) operated.

Q. "I just installed a new filter cartridge and my water is cloudy/white?"
A. After you install a new filter (this is the case with any/all brands of filter cartridges) you should run it for a few minutes. Generally cloudy or white water indicates air in the line and this is natural and normal with a replacement of a cartridge. Air will enter in the housing, lines and cartridge. Just run the water for a few (up to 5) minutes and the cloudy conditions will go away (unless you have VERY cold water in which case it is the oxygen in the water that could be making the water look cloudy). It is always a good idea to run the water free flowing for a few minutes after installing any brand or type of new filter cartridge. Also, when you're using drinking-water filter cartridges that contain carbon, it is recommended that you run the faucet tap for at least 20 seconds prior to each use to flush very fine black carbon powder that may be present.

Q. "Why aren't you featuring the lower priced S1 (W20CL-A) sediment filter cartridge or the W-5 (formerly called C1 and W5CIP) Activated Carbon cartridges?"
A. We do stock and sell both as we do get requests for them. The main reason people ask for them (in our opinion) is that Home Centers introduced them, and also, it is a very low-priced filter. We don't show them because they are impregnated cellulose cartridge and not good for some situations such as wells with quick pressure changes. Also, there isn't a lot of carbon contact with the W-5 (C1 - W5CIP). We prefer to encourage our customers to use the W30PE or W50PE sediment instead of the W20CL, and the WCC carbon filters instead of the W-5 (C1-W5CIP). The sediment W30/50PE are pleated polyester and much more rugged. The WCC has a lot more carbon contact time. Please note that the WCC is still the large 2 3/4" diameter, while the W-5 is now the 2 3/8" diameter. The WCC will not fit some of the under-counter systems and will not work in systems that use a coupler to connect filters together. Note: W20CL and W20CLA are the same filter.

Q. "Do you offer water filters that purify the water?"
A. The term "water purification" is much abused. Some use the term to sell cheap water filters at high prices. We offer a lot of choices in water filtration, all are quality products. Please note: You will need to know the quality of your water because if you have high bacteria, giardia, or other contaminants in your water, not all water purification systems (including ours) will take care of these unique water situations.

Q. "You say the CRE-1 ceramic cartridge can be cleaned and reused. How do you clean it?"
A. The CRE-1 ceramic cartridges can be easily cleaned with water and a damp cloth, a stiff nylon brush, or with a sponge. They are able to be cleaned several times and reused. When the diameter at the smallest point reaches 1 1/2" or the circumference is 4 3/4" then they will need to be replaced.

Q. "Do you sell filters that fit on shower heads?"
A. Yes, we sell a lot of them. When you consider that a number of health professionals have stated that breathing chlorine and that chlorine on the scalp and skin is not good for you - no wonder. Just click here.

Q. "Will these filters remove fluoride?"
A. No, they will not.

Q. "Why are the CBR2-10R and the WLC-R water filter cartridges not for sale in California?"
A. The CBR2-10R and the WLC-R filter cartridges have a 1/2 (0.5) micron rating that are capable of removing cysts in water. The most common microbial cysts in water are giardia lambia and cryptosporidium. Since these products have a 1/2 (0.5) micron rating, and show they can reduce certain amounts of lead and volatile organic compounds (VOCs), the California Department of Health says this is a "health claim" being made by the filter company. The CBR2-10R and WLC-R filter cartridges have been Tested and Certified by NSF International for material requirements. But these particular products have NOT been certified by the California Department of Health. The California Department of Health will not allow the sale of the CBR2-10R and WLC-R filter cartridges for residential use in California unless they are certified by them.

Q. "I may have a water problem but I'm not sure what the exact problem is. Can you help me?"
A. Our expert team loves a challenge and will do as much as possible to lend a hand. Below is a list of common problems, the cause, and the solution.

Symptom Cause Solution
•Cloudy, Discolored or Tinted Water •Clogged or Leaking Faucets Dirt / Rust Whole House Filter System
or
Under Counter Filters
•Musty. Swampy Taste •Chlorine Taste in Water & Ice Cubes Taste / Odor Refrigerator Filters
•Build-up in Water Heater Tank •Banging Water Heater Scale Hot Water System Protector
•Soap Deposits on Dishes & Clothing •Soap Curd in Bathtub Hard Water Water Softeners
•Brackish Taste •Cloudy Ice Cubes •Deposits on Pots & Pans When Boiling Water Dissolved Salts Reverse Osmosis

The contaminants removed by listed products may not be in your water.

Customer Testimonials

"I have been ordering my filters from your company for years and have always had excellent service."
- Wanda Derra, Malin, Oregon 97632-9515

"Thank you for your time, effort and sincere patience. You have been a great help. This combination of attributes made it a pleasure to do business with your organization."
- Robert Kurzen, Macon, Georgia 31204-1218

Please note that every customer testimonial shown on our pages has given us written permission to quote them. Our customer's privacy is very important to us, and we will never give, share or sell contact information or e-mail addresses to anyone!


return to top ↑

Copyright© 1995-2017 PlumbingSupply.com.
All Rights Reserved.
