Tankless Instant Electric Water Heaters
by Eemax

Proudly made in the USA

Eemax tankless water heaters are very compact and light and yet they are also extremely efficient electric water heating systems. Eemax electric tankless water heaters are a modern and cost effective alternative to traditional hot water heaters (when sized correctly) and they are relatively easily to install. These units come in two different models: Flow-controlled and Thermostatic. Flow-controlled models turn on at full power while the Thermostatic unit will adjust its power level according to the incoming water temperature. Flow-controlled units must be fed with cold water only. Thermostatic models can be fed with hot or cold water. Both models are activated by flow.

Help save our environment by saving energy. Stand-by heat loss wastes a LOT of energy. Installing tankless water heaters saves energy, as well as your pocket book in the long run. Think future! Think green. Think Tankless!

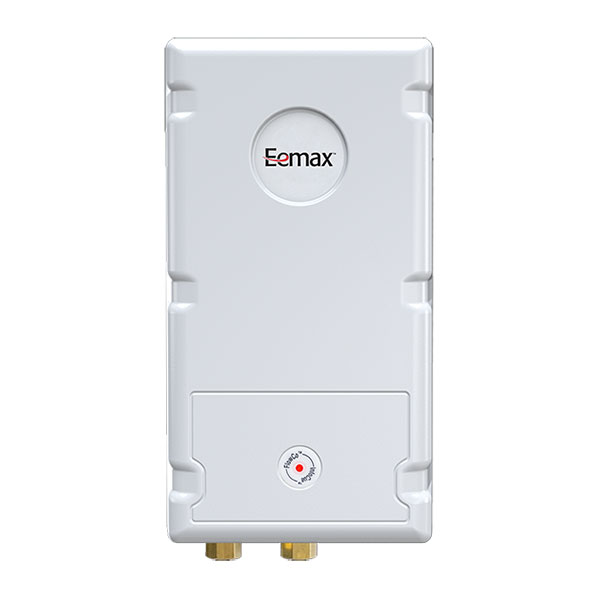

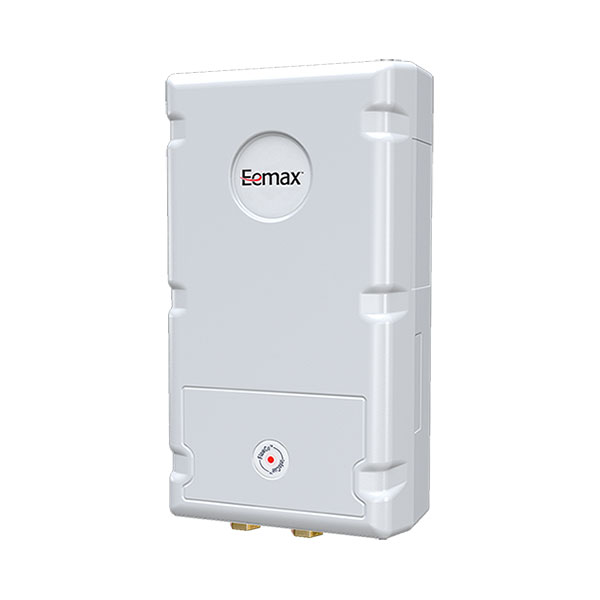

Eemax "Single Point" On-Demand Water Heater

Eemax single point On-Demand water heater
Features:
  • Great for many locations including: office and tenant spaces, commercial buildings, public hand washings, schools, service stations, shopping malls, concession stands, RV's, boats, and other various point of use needs.
  • Never wait for hot water again with this super efficient on demand water heater
  • A unique flow path ensure optimum heat transfer and extended element life
  • Designed for under sink hand washing installation
  • Single faucet use with 3/8" compression fittings at top of unit
  • Top or rear entry electric installation
  • Turns on with a flow of .5GPM (.5 GPM faucet aerator provided)
  • Mounts directly on the wall
  • Cold water feed only
  • Dimensions: 10.75" x 5.25" x 2.875"
Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.5
gpm
0.75
gpm
1.0
gpm
1.5
gpm
SP2412 120V 2.4kW 20A 12AWG 33° -- -- -- $234.13 Enter a quantity and
SP3012 120V 3.0kW 25A 10AWG 41° -- -- -- $234.15 Enter a quantity and
SP3512 120V 3.5kW 29A 10AWG 48° -- -- -- $233.80 Enter a quantity and
SP3208 208V 3.0kW 15A 14AWG 41° -- -- -- $238.69 Enter a quantity and
SP4208 208V 4.1kW 20A 12AWG 56° -- -- -- $238.83 Enter a quantity and
SP35 240V 3.5kW 15A 14AWG 48° 32° 24° 16° $234.98 Enter a quantity and
SP48 240V 4.8kW 20A 12AWG 64° 42° 31° 21° $233.69 Enter a quantity and
SP55 240V 5.5kW 23A 10AWG 75° 50° 38° 25° $233.95 Enter a quantity and
SP3277 277V 3.0kW 11A 14AWG 41° -- -- -- $238.26 Enter a quantity and
SP4277 277V 4.1kW 14.8A 14AWG 56° 37° 28° 19° $238.63 Enter a quantity and

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.


replacement elements for these Eemax tankless water heaters

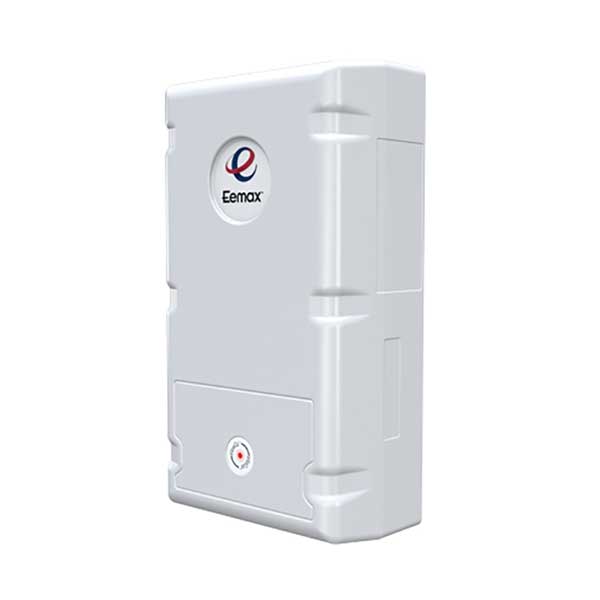

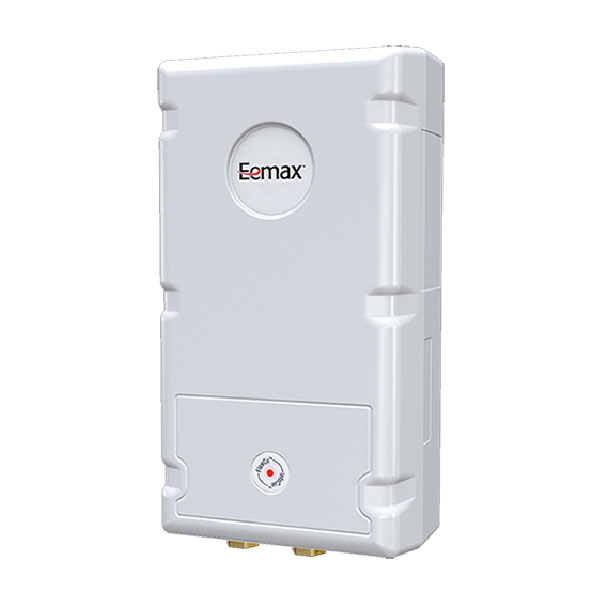

Eemax "Flow Controlled" On-Demand Water Heater

Eemax single point On-Demand water heater
Features:
  • Ideal for kitchen sinks, bar sinks, utility sinks, dual handwash sinks, restaurants, service stations, etc.
  • Brilliant water heater works instantly and doesn't run out of hot water like many other water heaters
  • Save on energy costs with a unique flow switch that activates the heater only when water is running (99% efficient)
  • Simple compression fittings and a unit that mounts directly to the wall ensures an easy installation procedure
  • Helps prevent against Legionella bacteria growth while also reducing calcification, liming and sedimentation
  • 3/8" or 1/2" pipe compression fittings on top (the EX models have the fittings on the bottom instead)
  • Bottom or rear entry electric
  • Turns on with at least .5 or .7 GPM, and maximum flow is 2 GPM
  • Comes with thermal cut out
  • Recommended cold water feed
  • Single phase models
  • Dimensions: 10.75" x 5.25" x 2.875"
SP 'FLOW CONTROLLED' Models
(3/8" OD pipe compression fittings at top)
Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.5
gpm
0.75
gpm
1.0
gpm
1.5
gpm
SP8208DL 208V 8.3kW 40A 8AWG -- 76° 57° 38° $258.33 Enter a quantity and
SP48DL 240V 4.8kW 20A 12AWG 64° 42° 31° 21° $319.92 Enter a quantity and
SP65DL 240V 6.5kW 27A 10AWG -- 59° 44° 30° $254.46 Enter a quantity and
SP75DL 240V 7.5kW 32A 8AWG -- 68° 51° 34° $253.32 Enter a quantity and
SP95DL 240V 9.5kW 40A 8AWG -- 87° 65° 43° $254.01 Enter a quantity and
SP60DL 277V 6kW 22A 10AWG -- 55° 41° 27° $258.33 Enter a quantity and
SP80DL 277V 8kW 29A 10AWG -- 73° 55° 36° $259.29 Enter a quantity and
SP90DL 277V 9kw 33A 8AWG -- 82° 61° 41° $258.84 Enter a quantity and
SP100DL 277V 10kW 36A 8AWG -- 91° 68° 46° $258.11 Enter a quantity and

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.

EX 'FLOW CONTROLLED' Models
(5/8" OD pipe compression fittings on bottom)
Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.5
gpm
0.75
gpm
1.0
gpm
1.5
gpm
EX8208 208V 8.3kW 40A 8AWG -- 76° 57° 38° $238.83 Enter a quantity and
EX35 240V 3.5kW 15A 14AWG 48° 32° 24° 16° $234.57 Enter a quantity and
EX48 240V 4.8kW 20A 12AWG 64° 42° 31° 21° $234.95 Enter a quantity and
EX55 240V 5.5kW 23A 10AWG 75° 50° 38° 25° $234.64 Enter a quantity and
EX65 240V 6.5kW 27A 10AWG -- 59° 44° 30° $233.85 Enter a quantity and
EX75 240V 7.5kW 32A 8AWG -- 68° 51° 34° $234.51 Enter a quantity and
EX95 240V 9.5kW 40A 8AWG -- 87° 65° 43° $233.74 Enter a quantity and
EX60 277V 6.0kW 22A 10AWG -- 55° 41° 27° $239.21 Enter a quantity and
EX80 277V 8.0kW 29A 10AWG -- 73° 55° 36° $238.94 Enter a quantity and
EX90 277V 9.0kW 33A 8AWG -- 82° 61° 41° $238.53 Enter a quantity and
EX100 277V 10kW 36A 8AWG -- 91° 68° 46° $239.11 Enter a quantity and

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.

Our Most Popular Model

Eemax "THERMOSTATIC" Models (Single Heating Element)

Eemax Tankless Water Heaters Thermostatic Models
Features:
  • Ideal for schools, hospitals, emergency eye wash, multi outlet hand washing, dishwashers, commercial kitchens, low volume showers, etc.
  • Sophisticated water heater provides you with instant hot water anytime you need it
  • Compact design allows it to be easily mounted on the wall and out of the way
  • No more waiting for hot water from the water heater on the other side of the house or building - no lag time
  • Fully adjustable temperature range between 100-140°F
  • Microprocessor temperature control for accurate temperature
  • Turns on with at least .5 GPM or .7 GPM. Maximum flow is 2 GPM
  • Provided with 1/2" copper pipe compression fittings with rear or bottom electric entry
  • Hot or cold water feed
  • Thermostat +/- 1° accuracy
  • Comes with thermal cut out
  • Single phase models
  • Easy Installation
  • Dimensions: 10.75" x 5.25" x 2.875"
Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.75
gpm
1.0
gpm
1.5
gpm
2.0
gpm
EX65T 240V 6.5kW 27A 10AWG 59° 44° 30° 22° $305.15 Enter a quantity and

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.


replacement elements for these Eemax tankless water heaters

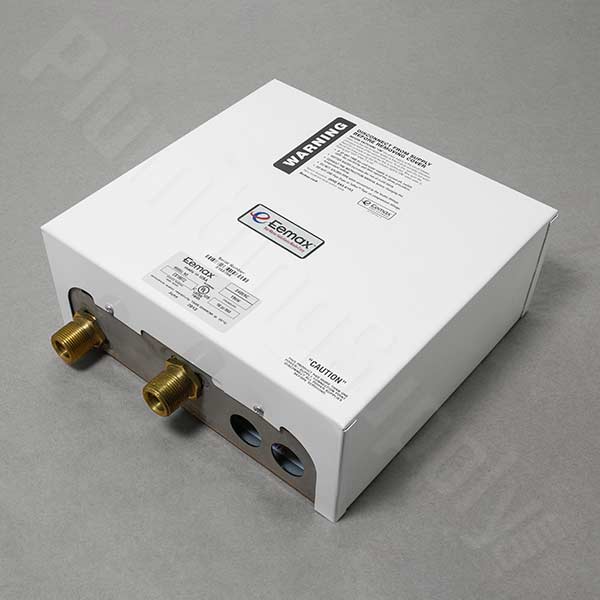

Eemax "Parallel" Models With Thermostatic Control (Two Heating Elements)

Eemax tankless water heaters Parallel models with thermostatic controls
Features:
  • Dual heating element water heater provides hot water for you whenever you need it
  • Ideal for dishwashers, showers, photo processing, emergency Eye/Face Wash, etc.
  • Microprocessor temperature control for accurate temperature
  • Minimum flow 1.5 GPM and Max flow 4 GPM
  • Hot or cold water feed
  • 3/4" npt water connections
  • Comes with thermal cut out
  • Standard range 100°F to 140°F.
  • Dimensions: 10 5/8"W x 10 1/8" H x 4 1/8" D
  • Single phase models
Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
1.5
gpm
2.0
gpm
2.5
gpm
3.0
gpm
4.0
gpm
EX1608T2 208V 16.6kW 80(2x40)A 8AWG per module 75° 57° 45° 38° 28° $719.70 Enter a quantity and
EX144T2 240V 15kW 64(2x32)A 8AWG per module 68° 51° 41° 34° 25° $786.19 Enter a quantity and
EX190T2 240V 19kW 80(2X40)A 8AWG per module + 65° 52° 43° 32° $788.01 Enter a quantity and
EX160T2 277V 16Kw 58(2X29)A 10AWG per module 73° 55° 44° 36° 27° $716.69 Enter a quantity and
EX200T2 277V 20Kw 72(2X36)A 8AWG per module + 68° 54° 46° 34° $717.65 Enter a quantity and

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.

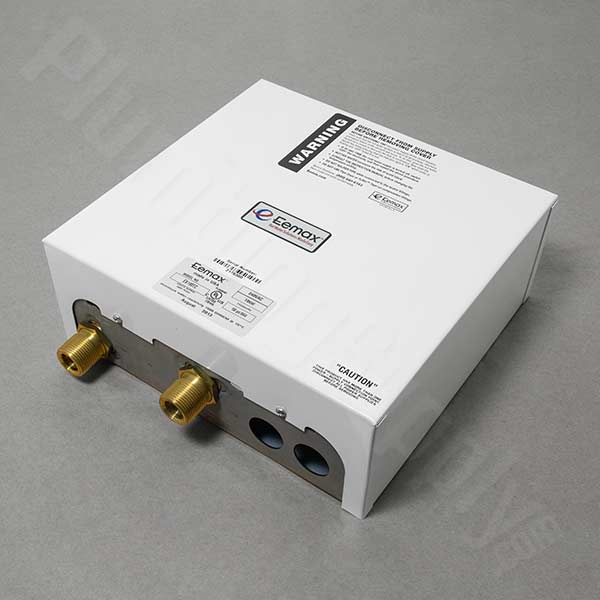

Eemax "Staged" Models With Thermostatic Control (Two Heating Elements)

Eemax tankless water heaters Parallel models with thermostatic controls
Features:
  • Efficient water heater provides hot water when you need it without heating up a lot of extra water
  • Activated in stages, based on your demand.
  • Ideal for showers, multi lavs, etc.
  • Microprocessor temperature control for accurate temperature
  • Minimum flow .7 GPM and Max flow 3 GPM
  • Hot or cold water feed
  • Standard temperature 100°F to 140°F
  • 3/4" npt water connections at bottom of unit
  • Comes with thermal cut out
  • Operating pressure: 40 psi minimum, 150 psi maximum
  • White Enameled Steel Cover
  • Dimensions: 10 5/8" W x 10 1/8" H x 4 1/8" D/li>
  • Single phase models
Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
1.5
gpm
2.0
gpm
2.5
gpm
3.0
gpm
EX1608TC 208V 16.6kW 80(2x40)A 8AWG per module 75° 57° 45° 38° $644.34 Enter a quantity and
EX144TC 240V 15kW 64(2x32)A 8AWG per module 68° 51° 41° 34° $632.15 Enter a quantity and
EX190TC 240V 19kW 80(2x40)A 8AWG per module 87° 65° 52° 43° $633.30 Enter a quantity and
EX160TC 277V 16kW 58(2x29)A 10AWG per module 73° 55° 44° 36° $641.55 Enter a quantity and
EX200TC 277V 20kW 72(2x36)A 8AWG per module + 68° 54° 46° $645.46 Enter a quantity and

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.


replacement elements for these Eemax tankless water heaters


Flexible Corrugated Hot Water Heater Connectors

Ultraflow water connector
  • Specifically designed for use with 3/4" water heaters inlet/outlet
  • Stainless steel water ways inside makes it resistant to rust and corrosion
  • Corrugated design helps prevent against kinks and crimps and makes it extremely flexible
  • Maintains optimum flow with no restrictions and 100% tested against leaking
  • Great for tankless water heaters and more
  • Chrome plated solid brass nuts makes tightening a breeze
  • UPC and ASME A112.18.6 compliant
  • IAPMO listed
  • Click here for more flexible water supply line sizes & connections
Material Inlet Outlet 18" Length 24" Length
Stainless Steel 3/4" FIP 3/4" FIP $7.44 $8.27 Enter a quantity and
Copper / Stainless Steel 3/4" FIP 3/4" Nom Sweat $7.61 $8.34 Enter a quantity and
Order 10 or more of the same item for additional savings!
Pricing discounts will show up in your shopping cart.

Related Items & Information



Frequently Asked Questions

Q. "Why is the max flow lower for the staged turn on?"
A. The heating modules are set up differently to accommodate different flow rates.

Q. "What's the difference between the parallel turn on and the staged turn on?"
A. The parallel turn on will give you a higher maximum flow rate, and it needs a higher flow rate to turn on than the staged turn on. The staged turn on will turn on with a lower flow rate, and it handles a lower maximum flow rate than the parallel turn on.

Q. "How does the staged turn on work?"
A. Staged turn on models only use the heating modules needed to produce the desired output temperature.

Q. "Does the kW listed under each model represent the amount of energy they use if all the heating elements are on?"
A. Yes, the specification for kilowatt usage for all models show the maximum wattage with all heating elements on.

Q. "Are the single point, flow controlled and MARINE/RV water heaters field adjustable?"
A. No, only water heaters that say they are thermostatic allow you to adjust the temperature of the water heater.

Q. "When it says "turns on with at least .5 or .7 GPM" how do I know which water heaters turn on at .5GPM or.7GPM?"
A. The water heaters that have a temperature listed under the .5GPM flow column are the water heaters that will turn on with only .5GPM. If there is no temperature listed in the .5GPM column, then the water heater starts when there is .7GPM flow.

Q. "Are all Eemax tankless water heaters designed to be hardwired?"
A. Yes, every tankless water heater by Eemax is supposed to be hardwired when it's installed.

Q. "Why does it say the water heater can have 3/8" or 1/2" pipe compression fittings?"
A. The water heater comes with an adapter so the pipe compression fittings can be used as 3/8" or 1/2" pipe.

Q. "Why does it say the water heater can have a top or rear entry electric?"
A. There are holes made in the top and the rear so the customer can set up the tankless water heater as a top entry or a rear entry electric. The choice is left up to the customer when they install the water heater.

Q. "Why does it say the water heater can have a bottom or rear entry electric?"
A. There are holes made in the bottom and the rear so the customer can set up the tankless water heater as a bottom entry or a rear entry electric. The choice is left up to the customer when they install the water heater.

Q. "Your products specify the 'temp. rise' based on the GPM flow; what do you mean by this?"
A. Temperature rise is the amount the heater raises the temperature of the incoming water, based on the flow rate shown of that water. If you don't know what your incoming water temperature is, we offer a chart that shows average groundwater temperatures in the USA, or you can check with your local water district for the actual temperature in your area. Please note this can be adjusted by any sort of preheating (such as solar heaters).

Q. "How much do I need to raise my incoming ground water temperature for ____________"
A. This is a highly personal question as everyone's opinion is different. Combine that with the differences in incoming water temperatures and you have a different answer for each installation. However, a lot of studies have been done on what people (on average) find comfortable, so we can give you some very general numbers to help you narrow the possibilities. These studies have shown that most people are comfortable washing their hands at near body temperature and find showers comfortable at 90°F to 110°F, depending on whether they prefer cool or hot showers. Nearly everyone agrees that 57°F is too chilly for comfortable handwashing, much less showering.

Q. "I am looking for an electric tankless water heater having less than 15 amps 120volt. Do you offer any?"
A. Unfortunately low amperage/wattage doesn't produce much "instant" heat (no matter what). The elements that we offer are almost 100% efficient (meaning that almost all of the heat that an electric element produces is already transferred into the water). You simply can't buy any brand (anywhere) of tankless water heater that uses less than 15 amps at 110volts that will give you much of a heat rise. We wish it possible as we would be able to sell many more electric tankless water heaters. If you only have 110-120 volts you might wish to consider using a small water heater instead of a tankless heater. Just click here to see those.

Q. "Can I install these tankless water heaters in my attic?"
A. Without seeing all of your plumbing piping, etc. it is difficult for us to answer with a straight "yes" or "no." One must be sure that a possible water siphoning condition can not be created as these fantastic electric tankless water heaters can not have air in the lines. Water siphoning out of any brand of electric tankless water heater might damage the heater or element when the element is on and there is no water (or not enough water) in the lines. Air should not be touching the elements.

Q. "I'm hearing a lot about lead-free these days. What does that have to do with plumbing products and how does the new lead-free legislation affect me?"
A. Basically, the laws implemented Jan. 1st, 2014 require plumbing products that come in contact with drinking water to be "essentially lead free" (less than 0.25% weighted average). For further information about how the law determines what is "lead free", rules regarding which plumbing products must be "lead free", and who these laws will affect, please click here.


Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.


return to top ↑

Copyright© 1995-2018 PlumbingSupply.com.
All Rights Reserved.
