D'MAND Kontrols® Complete Hot Water Recirculation Systems
The D'MAND Kontrols® system is unlike other recirculating systems in that it offers you hot water throughout your home ONLY when you want it. Traditional recirculating systems continuously circulate the hot water in the system, and even timers must run during the time you're home to ensure the hot water is available any time. The D'MAND Kontrols® systems don't run continuously - you simply activate the pump and wait just a few seconds - and voila! Hot water. Once the pump registers that there is hot water coming into the hot water line, it shuts off until the next time you need hot water. No wasted energy and no water running down the drain while you're waiting for it to heat up.
Approved by LEED, IAPMO, UPC Green Listed, CALGreen, EPA WaterSense, and California Energy Commission
Easily installs right under your sink
- Works entirely on demand - turn the unit on when you need it and get hot water at all your fixtures three or four times faster
- System shuts off automatically at specific temperature rise to prevent hot water coming through cold water line and save energy
- Various methods of activation available - system includes one hardwire activation button, but wireless remotes and motion sensors are available below
- No complicated pump settings to worry about
- Designed to reduce energy costs and save up to 10,000 gallons of water per year by eliminating the wait for hot water - 15 year pump life expectancy
- Ideal for systems with a dedicated return line, but also works well for retrofits by utilizing the cold water line as a return line
- Fluid temperature range: 36°F - 150°F
- Maximum operating pressure: 145 psi

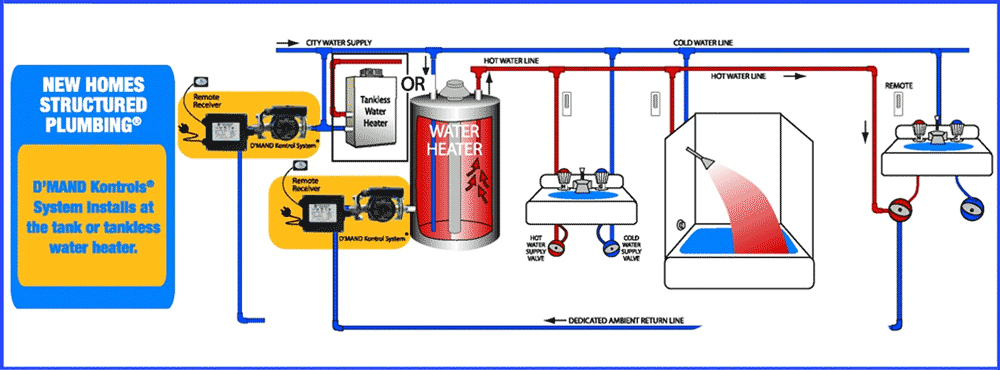

- Example diagram for new plumbing installation

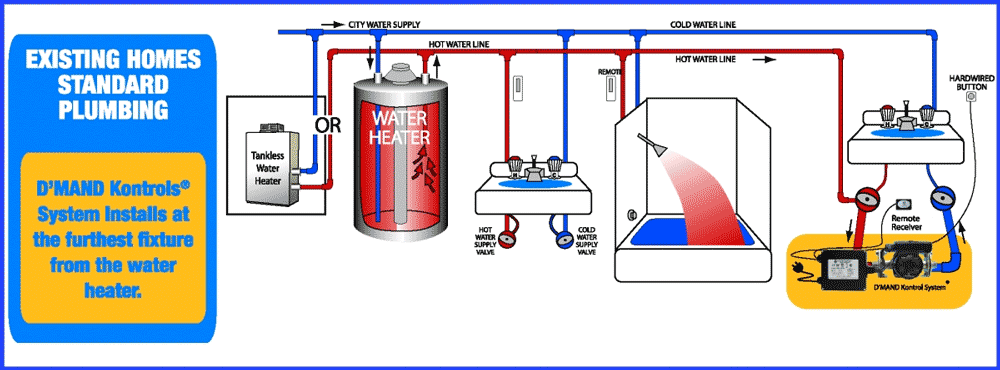

- Example diagram for existing plumbing installation
Systems for Plumbing Incorporating a Dedicated Hot Water Return Line
The D'MAND Kontrols® pump systems include an electronic circuit board, thermosensor, and an internal check valve. The ACT1 pump is suitable for use in buildings up to 4,000 sq. ft. using a tankless, tank or heat pump water heater. The 200 Series is suitable for use in buildings larger than 4,000 sq. ft. using a tankless, tank or heat pump water heater. These D'MAND Kontrols® pump systems will handle pipe runs up to 400 total lineal feet. This is the distance measured from the water heater out to the furthest point of the dedicated return line and back to the water heater (out & back).

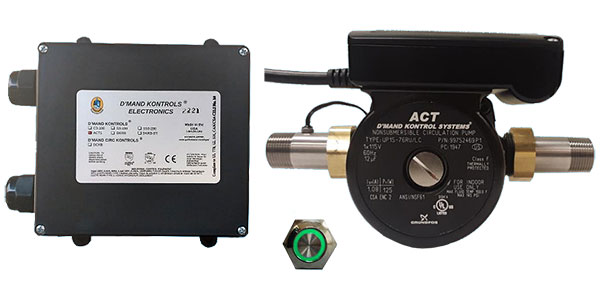

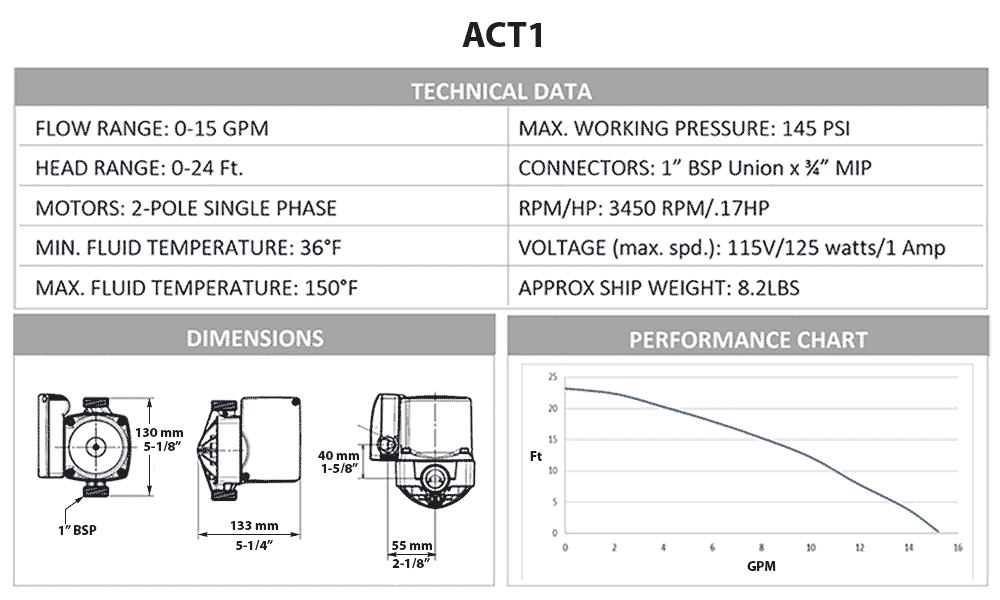

ACT1 Builder Series Recirculating System
Composite Hi-Speed "One Pump Solution"
For pipe runs up to 400 total lineal ft. (out & back)
1" BSP union w/stainless steel 3/4" MIP connections
includes (1) hardwired LED activation button
ACT1 - $758.86

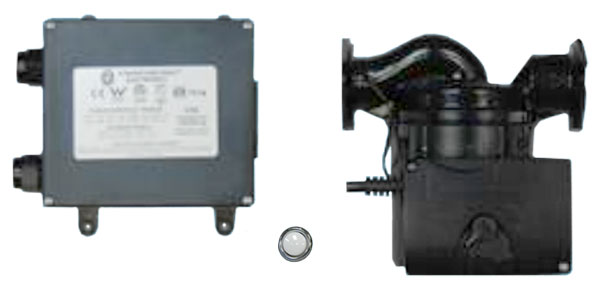

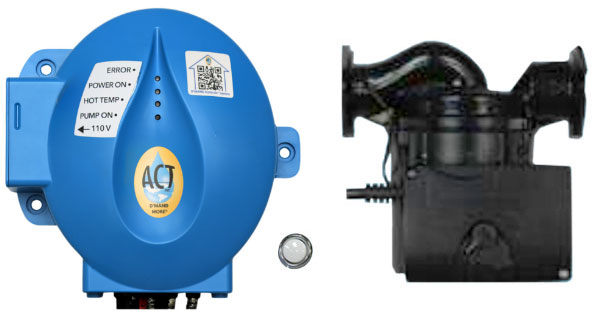

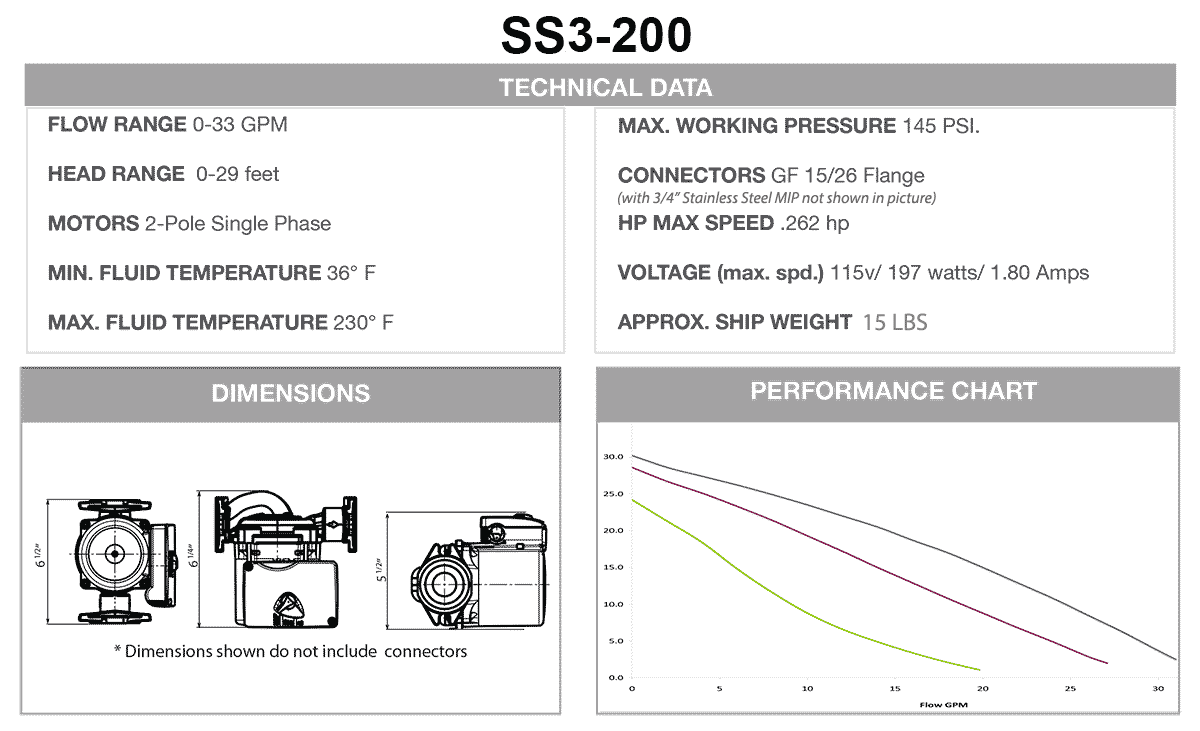

Stainless Steel 3-Speed Pump Recirculating System
200 Series
For pipe For pipe runs up to 400 total lineal ft. (out & back)
GF 15/26 Flanged inlet/outlet connections
includes hardwired activation button
SS3-200 - $1,396.25
Retro-Fit Systems for Standard Existing Plumbing
These retrofit pump systems include an electronic circuit board, thermosensor, and an internal check valve. They are suitable for use in buildings up to 4,000 sq. ft. using a standard tank, tankless, or heat pump water heater. The D'MAND Kontrols® pump systems will handle pipe runs up to 400 total lineal feet. Which means the distance measured from the water heater out to where the pump will be located and back to the water heater (out & back).

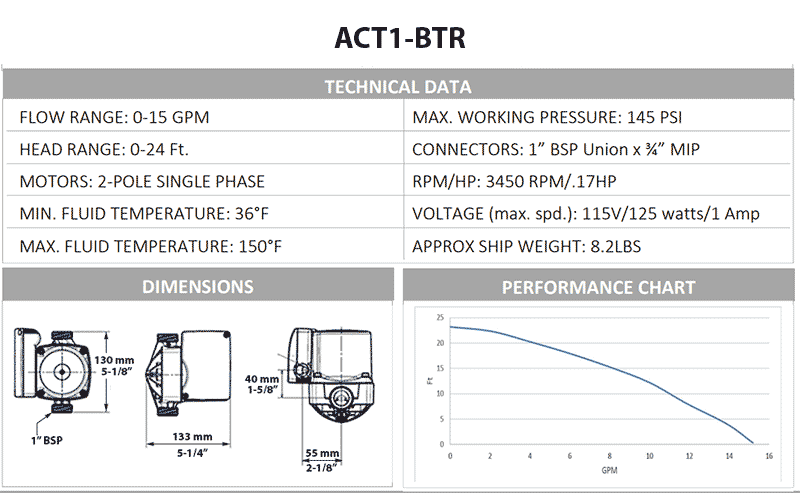

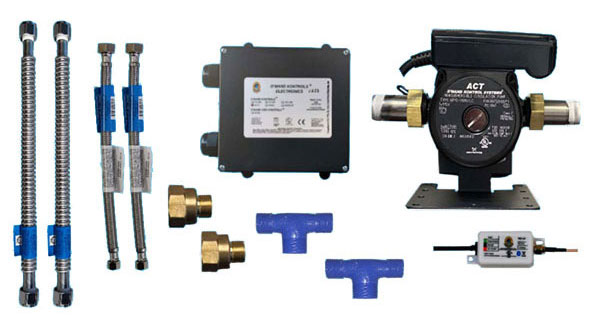

ACT1-BTR - Builder Series Recirculating System - Composite Hi-Speed Pump
The ACT1-BTR "One Pump Solution" system is easily installed horizontally under a kitchen or bathroom sink. System comes equipped with (1) Bluetooth receiver, (2) custom blue tees, (2) 3/4"x 18" water heater flex lines, (2) 3/8" x 1/2" x 12" sink flex lines, (2) 1/2" fipt x 3/8" adapters and (1) small mounting bracket.
ACT1-BTR = $864.97

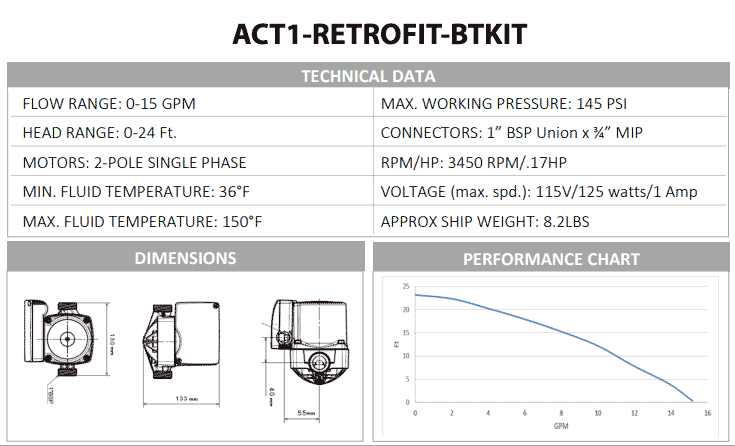

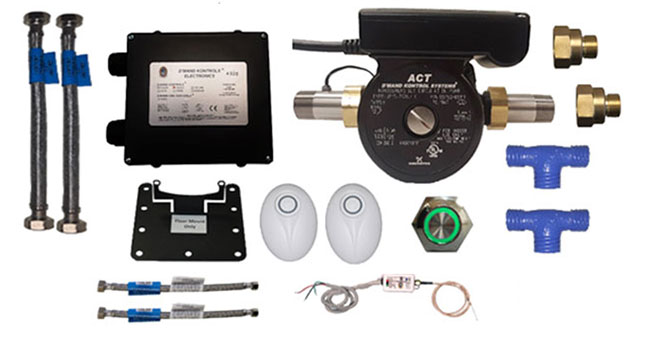

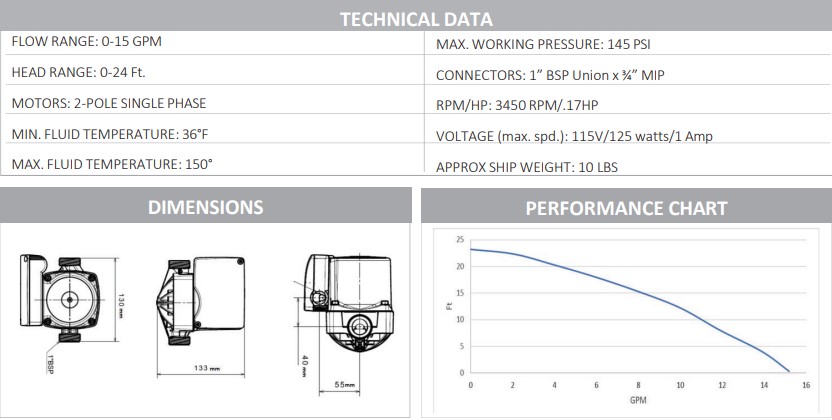

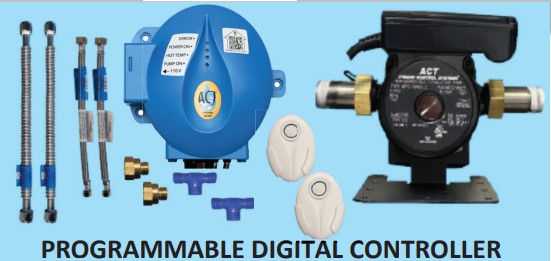

ACT1-RETROFIT-BTKIT - Builder Series Recirculating System - Composite Hi-Speed Pump
The ACT1-RETROFIT-BTKIT "One Pump Solution" system is easily installed horizontally under a kitchen or bathroom sink. System comes equipped with (1) Hardwired activation button, (1) Bluetooth receiver, (2) Bluetooth transmitters, (2) custom blue tees, (2) 3/4"x 18" water heater flex lines, (2) 3/8" x 1/2" x 12" sink flex lines, (2) 1/2" fipt x 3/8" adapters and (1) small mounting bracket.
ACT1-RETROFIT-BTKIT = $1,029.97

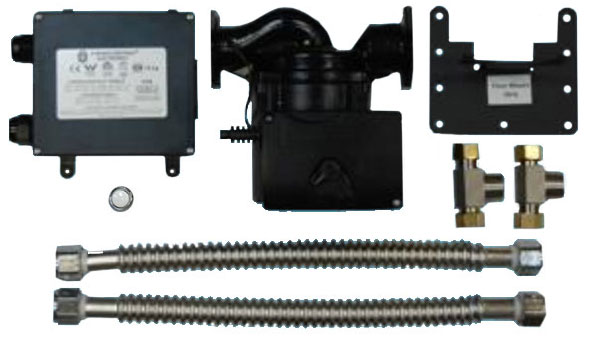

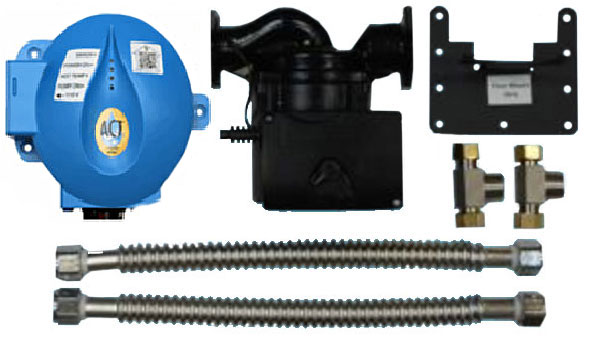

SS3-200-PF Recirculating System - Stainless Steel 3-Speed Pump

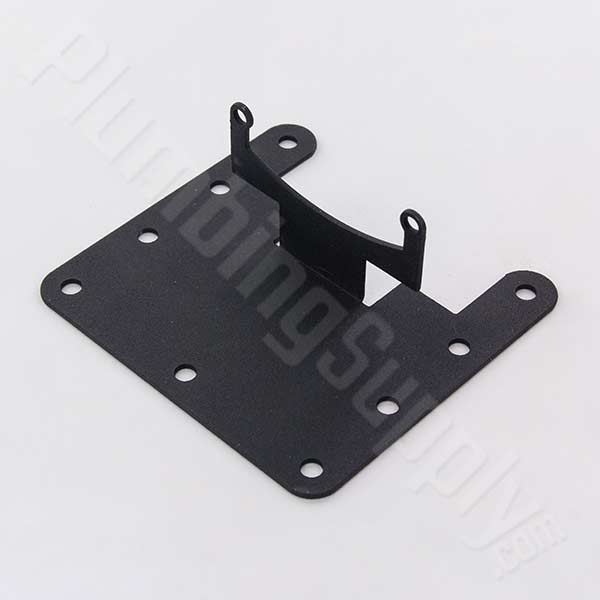

The SS3-200-PFS pump system is usually installed to piping near faucet locations furthest from the water heater. This system comes equipped with (1) hardwired activation button, (2) custom stainless steel tees, (2) 3/4" ID x 18" stainless steel corrugated flex lines with male/female ends, and (1) MB-BR-LRG large mounting bracket to secure the larger SS3-200 pump.
SS3-200-PFS = $1,555.37
Accessories for D'MAND Kontrols® Recirculating Systems

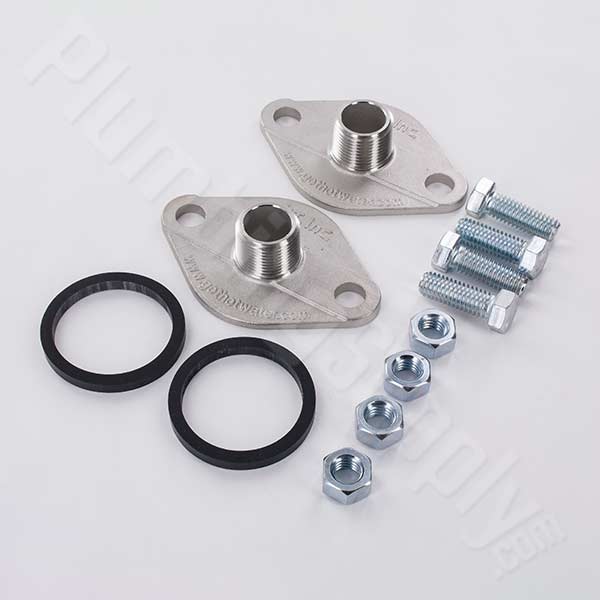

Need new flanges for your existing system? Want an extra motion sensor to activate the pump from a different room? Whatever accessories you need, PlumbingSupply.com® has what you're looking for.
Plumbing Installation Accessories
Hardwire Accessories
Please note: Hardwired accessories and wireless accessories CANNOT be used in conjunction with one another on the same D'MAND Kontrols® system. For example, you cannot have a hardwire motion sensor and a wireless motion sensor to activate the same pump. If you have multiple pumps installed, however, you can choose different accessories to activate each pump.

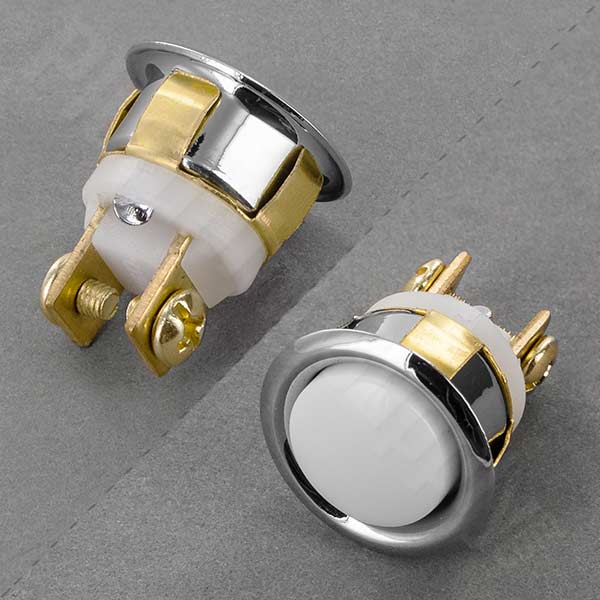

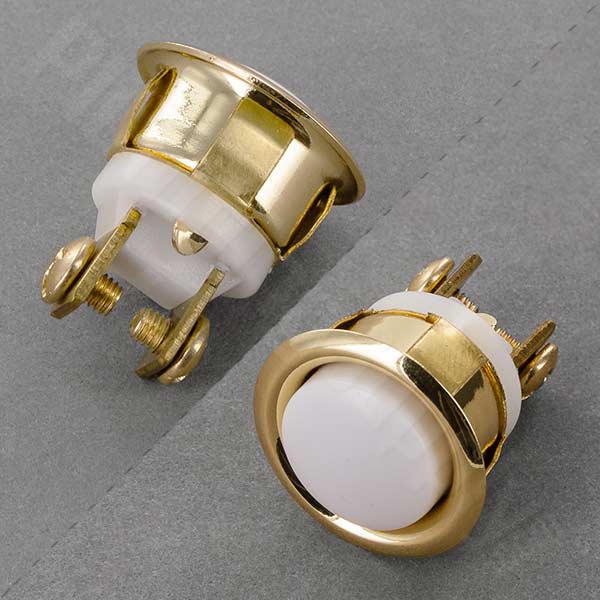

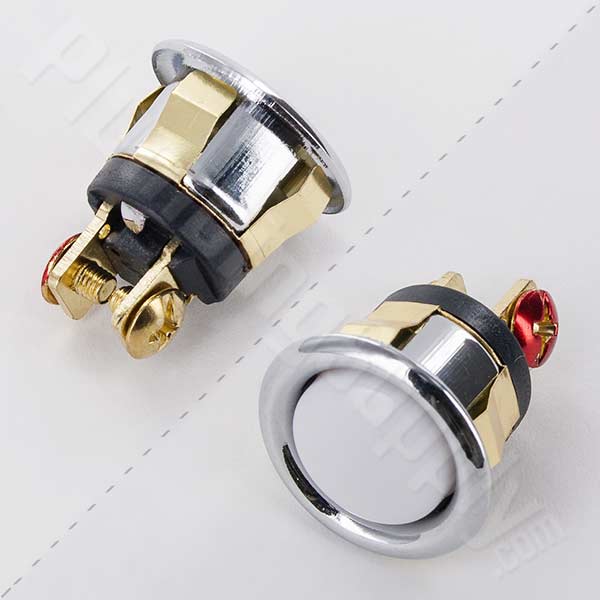

Activation Button - HWB
This button features:
- Easily activate your hot water on demand system with the push of a button
- Compatible with any ACT D'MAND Kontrols® system from 1991 to present
- No limit to the number of hard-wired buttons you can use with one system
- Wiring is done in parallel from each button back to system using Cat5, bell, thermostat wire, or any gauge of wire between 24ga and 18ga
Hardwire Activation Button

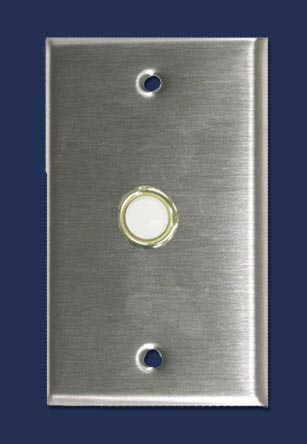

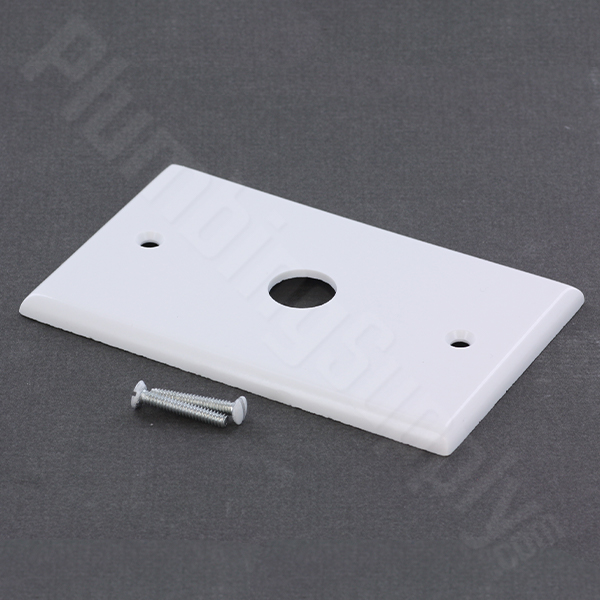

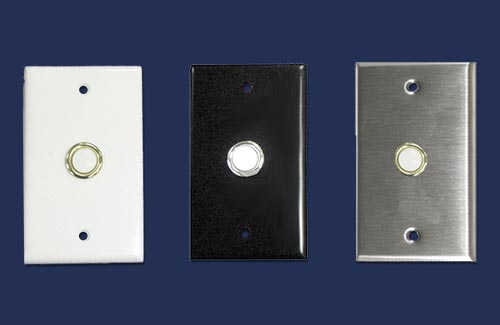

Button Wall Plate - BP
This wall plate features:
- Decorative wall plate for activation button (button not included)
- Comes in three finishes to suit your fixtures or décor
- Designed to affix to a common 1-gang electrical box
- Overall dimensions: 2-1/4" W x 4-1/2" L

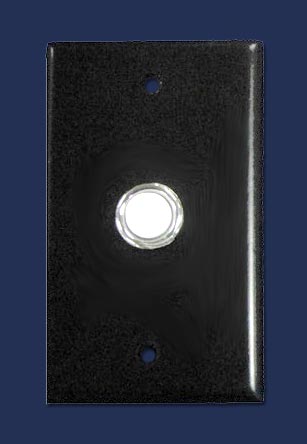

Please note: Only 1 each in Black finish is available. Limited to stock.
Wireless Accessories
Please note: Hardwired accessories and wireless accessories CANNOT be used in conjunction with one another on the same D'MAND Kontrols® system. For example, you cannot have a hardwire motion sensor and a wireless motion sensor to activate the same pump. If you have multiple pumps installed, however, you can choose different accessories to activate each pump.

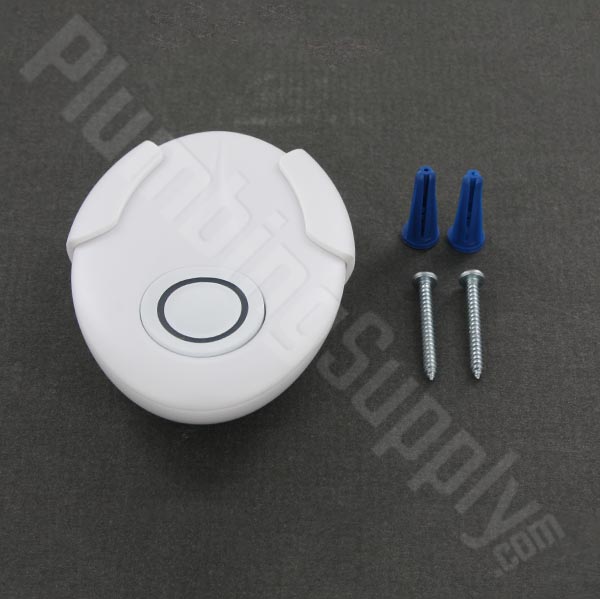

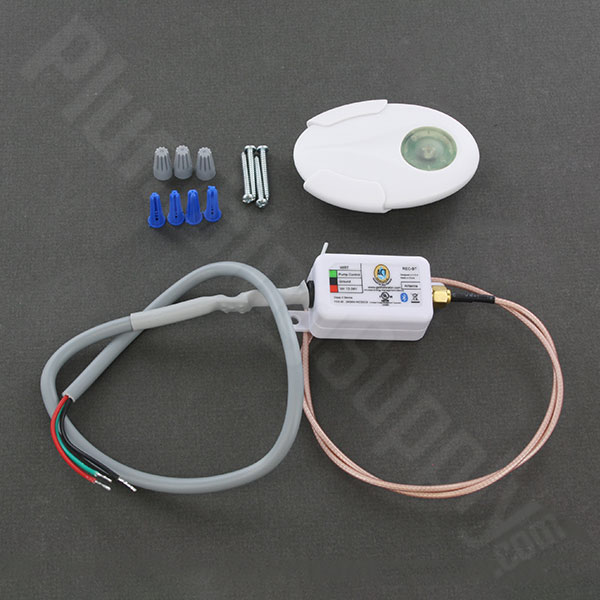

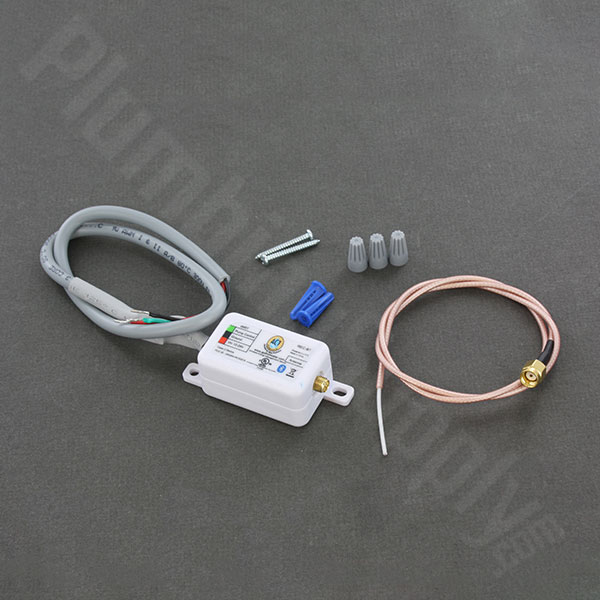

Bluetooth Wireless Receiver & Wireless Transmitter Kit - WRT-KIT-BT
This activation kit features:
- User pushes wireless Bluetooth transmitter button to activate pump from up to 60 feet away
- Receiver is hardwired to pump
- The receiver can also be paired and controlled by a smartphone using the free Act. Inc.app
- Up to 15 devices can be paired per receiver to control the ACT D'MAND Kontrols® systems
- Compatible with ACT D'MAND Kontrols® pump systems from 2002 to present by attaching new Bluetooth receiver to pump
- Receiver overall dimensions: 2-1/2" W x 1-3/4" L x 1-1/4" D
- Transmitter overall dimensions: 3-1/4" W x 7/8" L x 1" D
- Please note: CANNOT be used in conjunction with other hardwired or wireless D'MAND Kontrols® activation kits or methods
Bluetooth Wireless Receiver & Transmitter Kit
$71.63
Please note: New versions of transmitter only or receiver only are NOT compatible with older (pre-2019) receiver/transmitter systems. If your system was purchased prior to 2019, then purchase Bluetooth Wireless Receiver & Wireless Transmitter Kit
Frequently Asked Questions
Q. "How do I know which activation system to choose?"
A. The type of activation system you choose will be based on both personal preference and your installation limitations. Each system comes with one hardwire activation button (almost like a doorbell) included. The buttons can be placed anywhere you need hot water, but they must be directly wired to the pump so this type of activation can sometimes be difficult for retrofits and is generally recommended for new home construction or during an extensive remodeling. It's the same for the hardwired motion sensors as they must be connected directly to the pump.
The wireless remote control or the wireless motion sensors are often the best choice for those installing the D'MAND Kontrols® systems in existing homes. Only the receiver is hardwired to the unit and the remote control or sensors can be placed further away - in short, wherever you need them to be. Note that the motion sensors are designed to not allow activation of the unit by a subject under 4 feet high or 40 pounds of weight. This can be a good thing if you don't wish young children or pets to be able to activate the system, but could pose difficulties in other situations.
Q. "Does the pump have to be installed on the furthest fixture to work?"
A. Yes and no. The pump will activate and deliver hot water more quickly to your fixture, regardless of where it is on the line. However, it is most efficient if the unit is placed at the end of the main line - that way, all of the fixtures receive the benefit of quicker hot water without excess energy use. Additionally, be aware that some homes with unusual plumbing might require more than one system if all of the fixtures aren't plumbed on a single main line.
Q. "Can I use these pumps with threaded IPS pipe - the kits say only for copper pipe sizing?!"

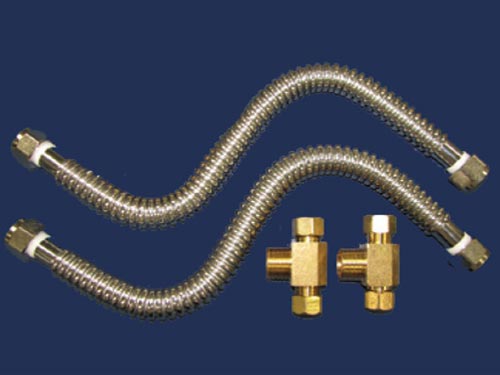

A. Yes, you can use the D'MAND Kontrols® systems if you have galvanized or other threaded pipe in your home. However, you won't be able to use the PF-Kit - you may need to purchase stainless steel flex lines separately and use a reducing tee with two pipe nipples to connect your existing faucet. If hiring a plumber to install the pump system for you, he or she will most likely know what size tee and nipples you will need, as this can vary depending on your existing fixture configuration.
Q. "How does this pump help save water?
A. If you think about it, many of us run the faucet or shower for a few minutes waiting for the water to heat up to a comfortable level, right? Depending on how long you're having to wait, you could be letting up to 7 gallons of water just run down the drain - and since most of us don't just stand around waiting for the water to heat up, there could be another 1 to 3 gallons lost before we notice the water is hot.
Installing an on-demand hot water recirculation pump means you push a button (or walk past a sensor), and in just a few seconds you'll have hot water waiting when you turn on the faucet. You won't need to run the water while it heats up - ergo, no more potable fresh water just running down the drain wasted!
Q. "I don't have a lot of storage in my bathroom/kitchen and utilize under-sink space for storing things. How much space will I lose under my sink?
A. The D'MAND Kontrol® systems are relatively compact - approximately 9" wide x 7" deep x 5" tall - and since they are typically installed behind the sink trap, you probably won't lose a significant amount of space.
Q. "Can these circulator pumps be used in California?
A. Yes, these pumps are approved for water recirculation systems in California.
